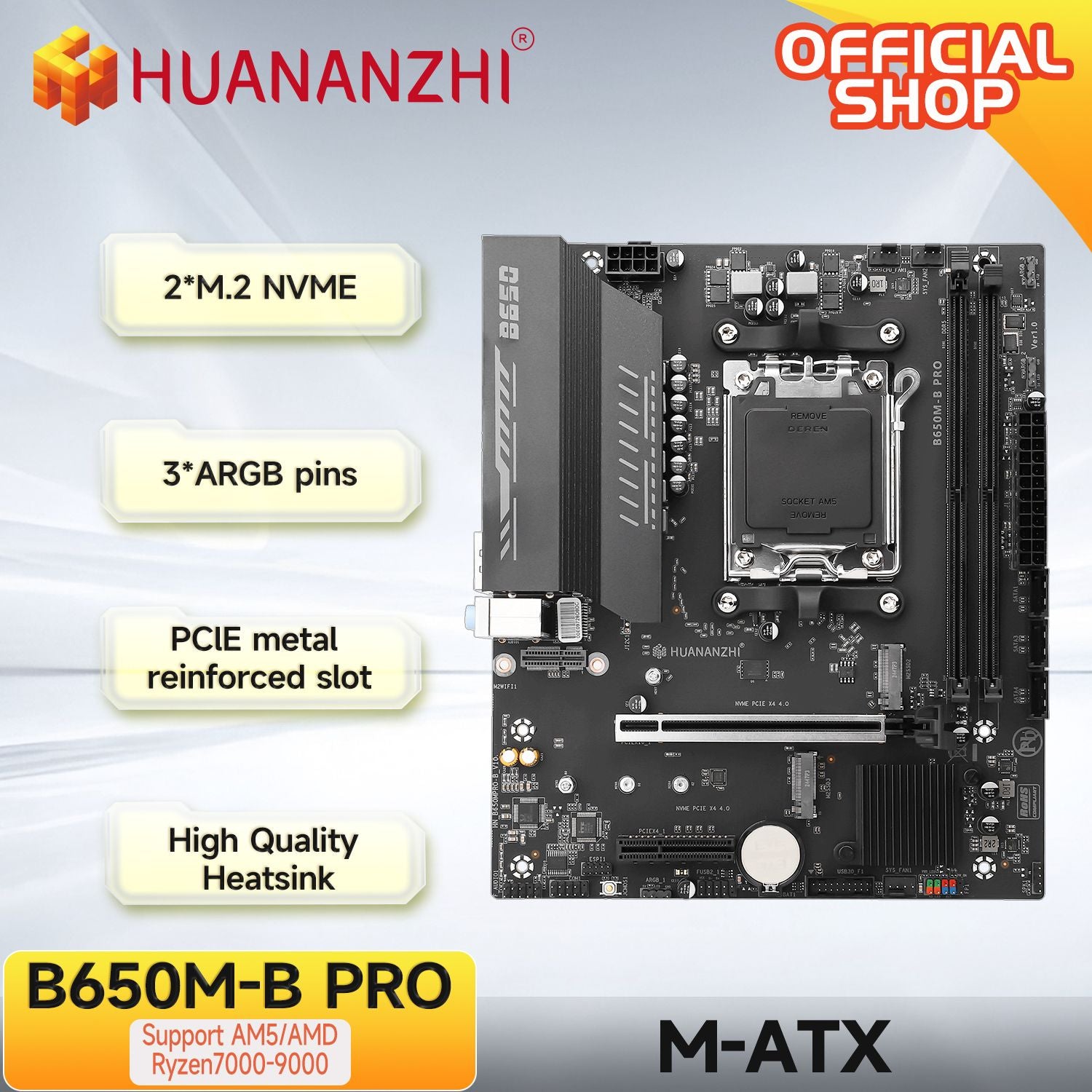

HUANANZHI B650M B PRO AMD AM5 Motherboard Support Ryzen R5 R7 7000 8000 9000 Series M.2 NVME WIFI Dual Channel DDR5 EXPO RAM
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: HUANANZHI
Chipset: AMD B650
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 96GB
Battery Included: No
Processor compatibility: AMD Ryzen 7000 Series-R3
Processor compatibility: AMD Ryzen 7000 Series-R5
Processor compatibility: AMD Ryzen 7000 Series-R7
With CPU: No
Support Memory Type: DDR5
Number of PCI: 0
Special Features: None
Storage Interface Type: SATA 3
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: Yes
Application: Desktop
Chipset Manufacturer: AMD
Back I/O Ports: 1x RJ45
PCI - E standards: PCI-E 4.0
Socket Type: Socket AM5
High-concerned chemical: None
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Origin: Mainland China
Number Of Memory Slots: 2
Support USB Type: USB 3.2 Gen1
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Memory channel: Double
SATA RAID: 0
SATA RAID: 1
Form Factor: Micro-ATX
Supports M.2 SSD: 2280
Number of M.2: 3
We promise to test and deliver the order you submitted within 24 hours

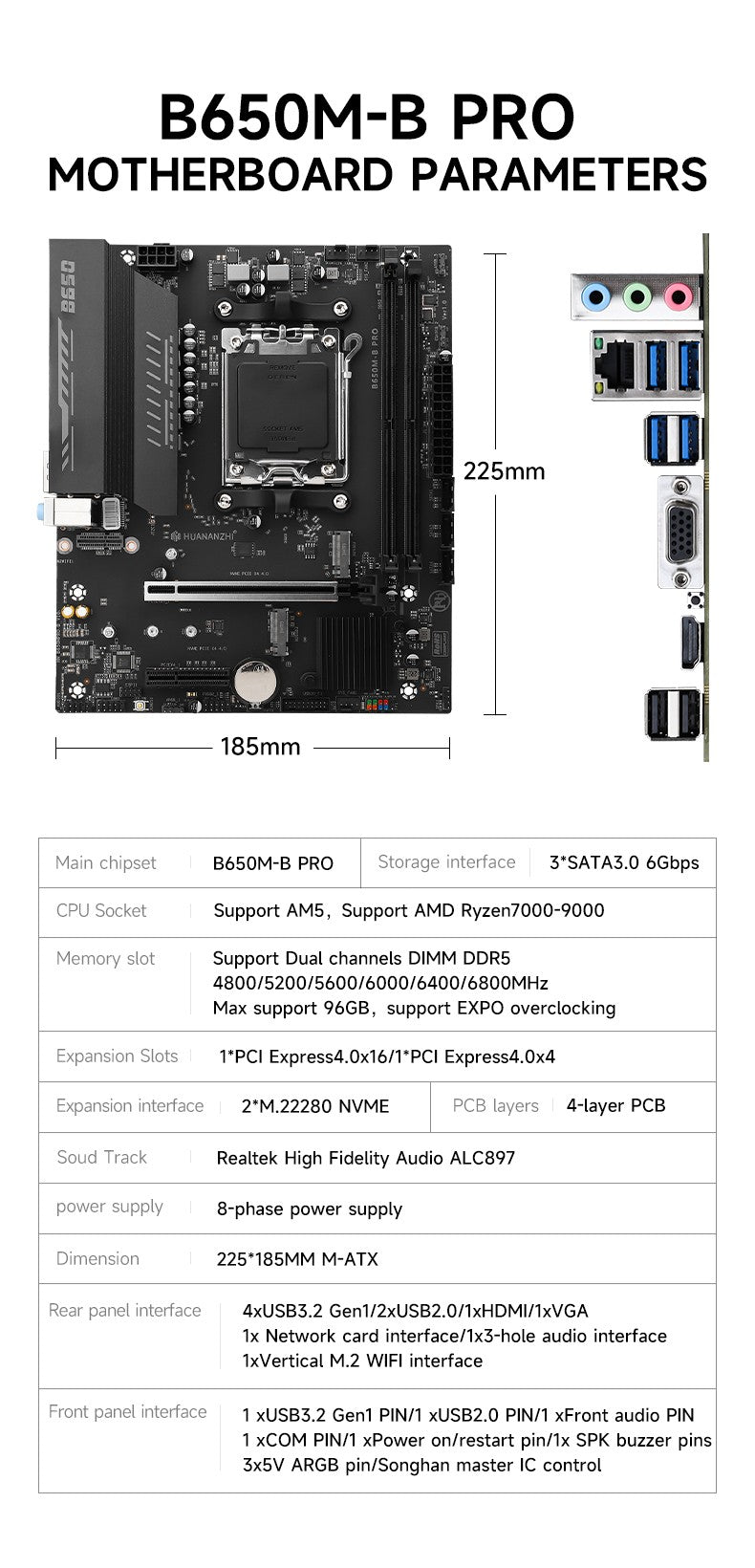

Specifications:

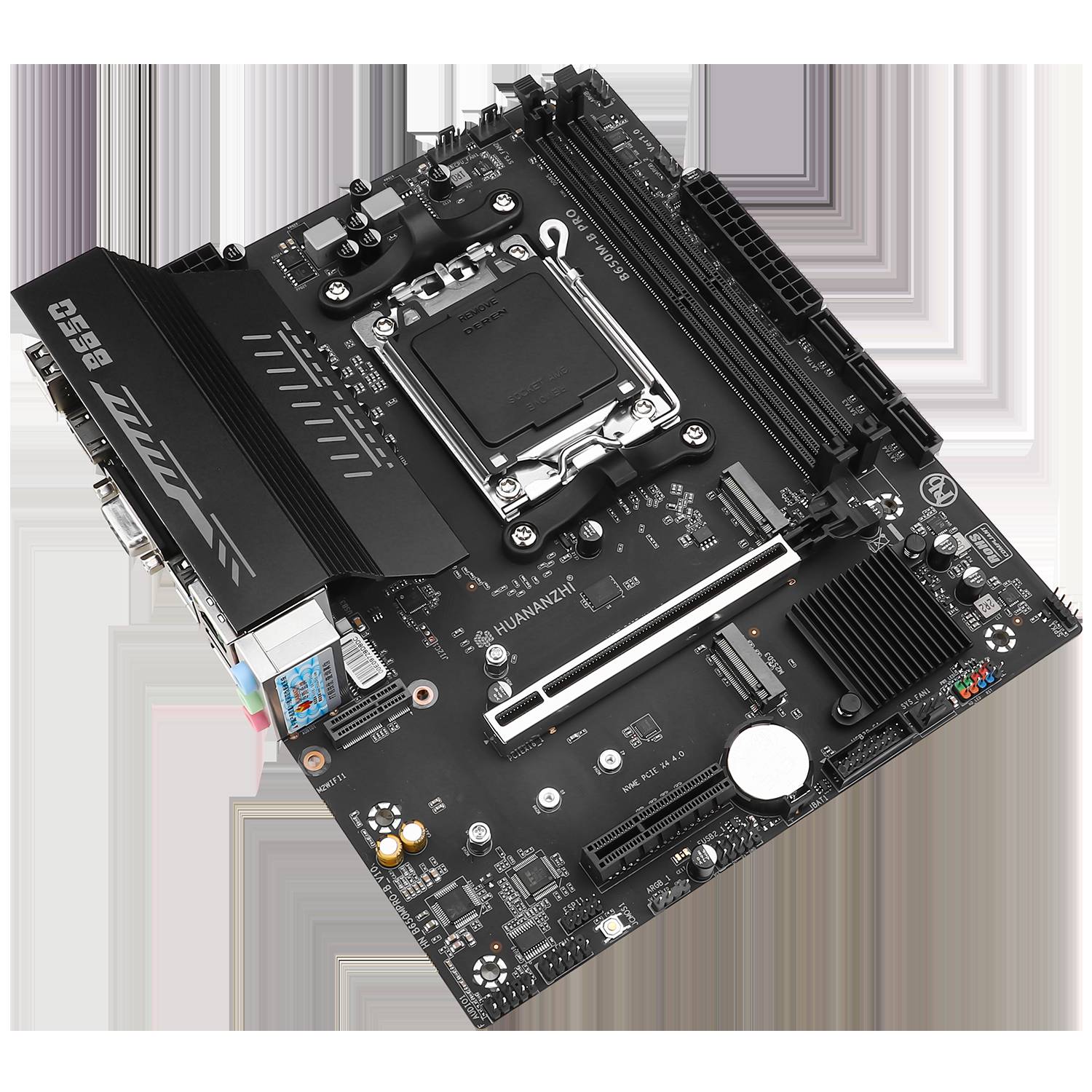

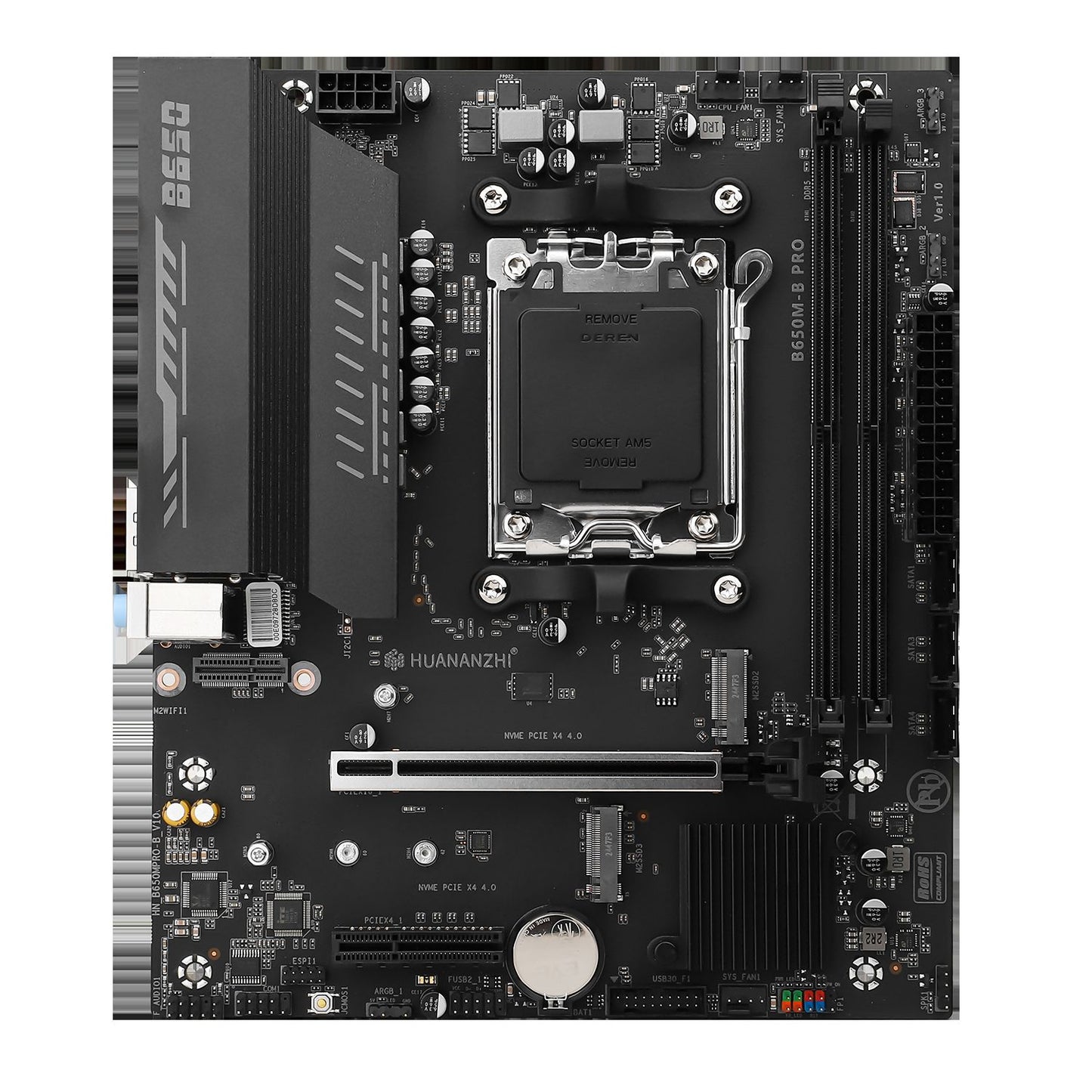

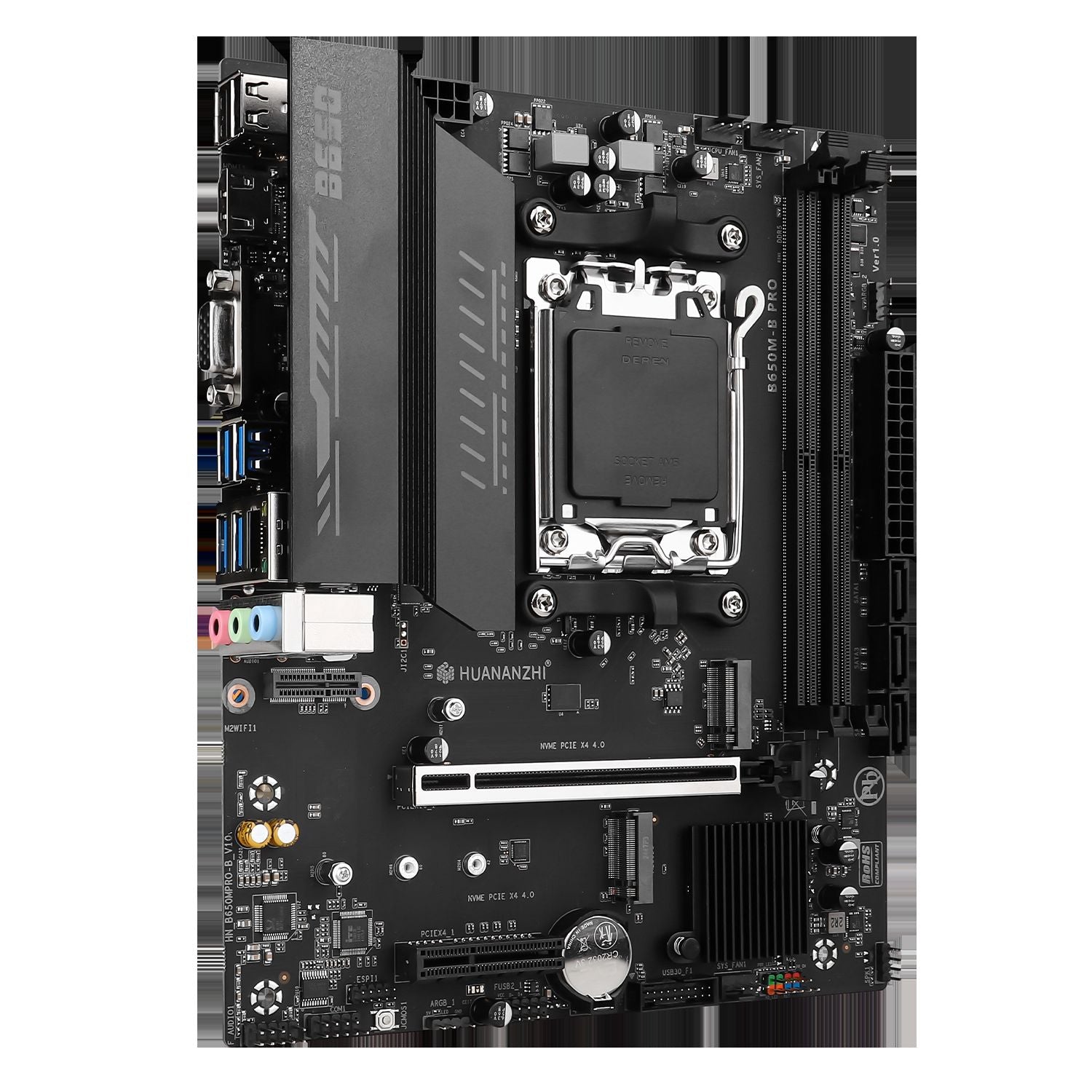

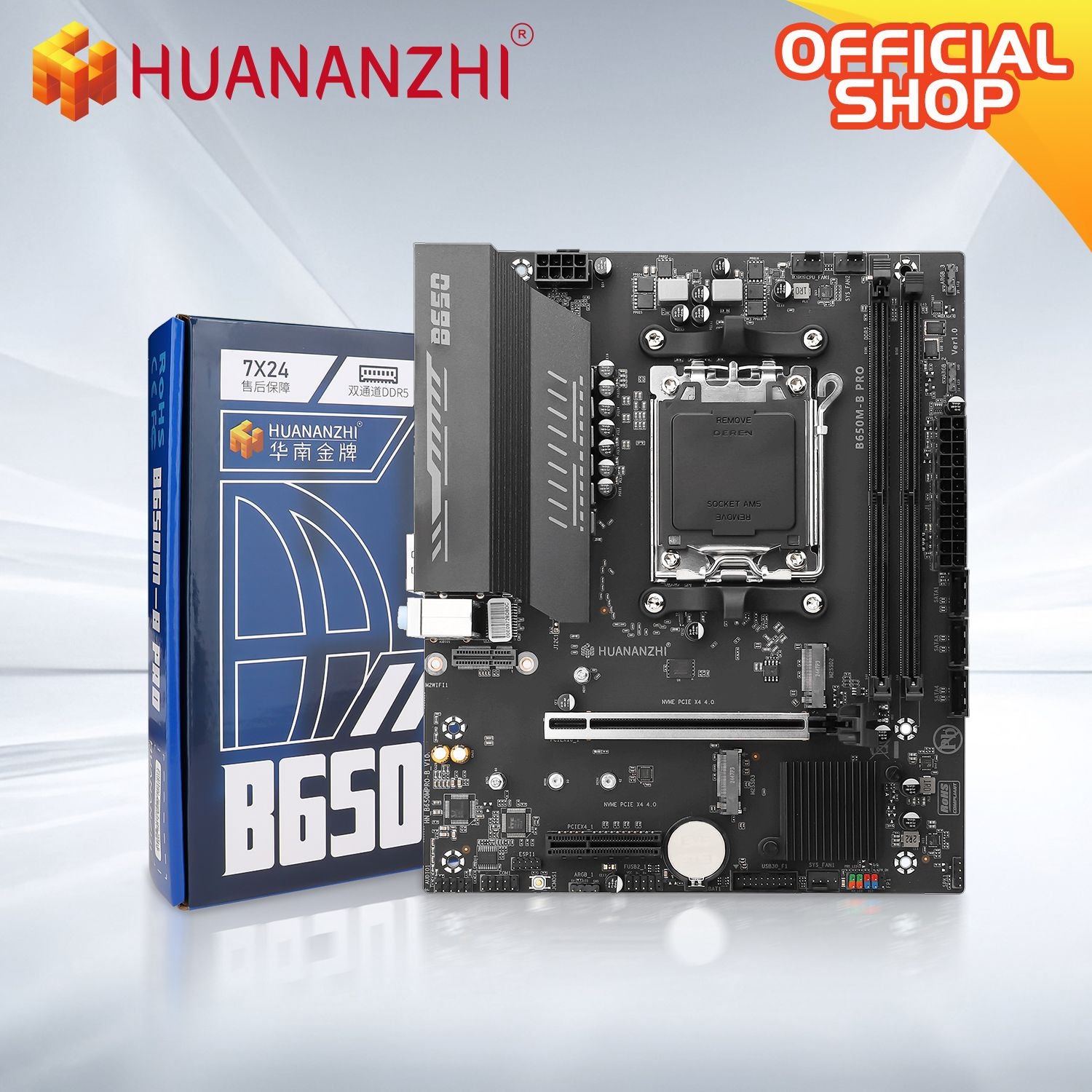

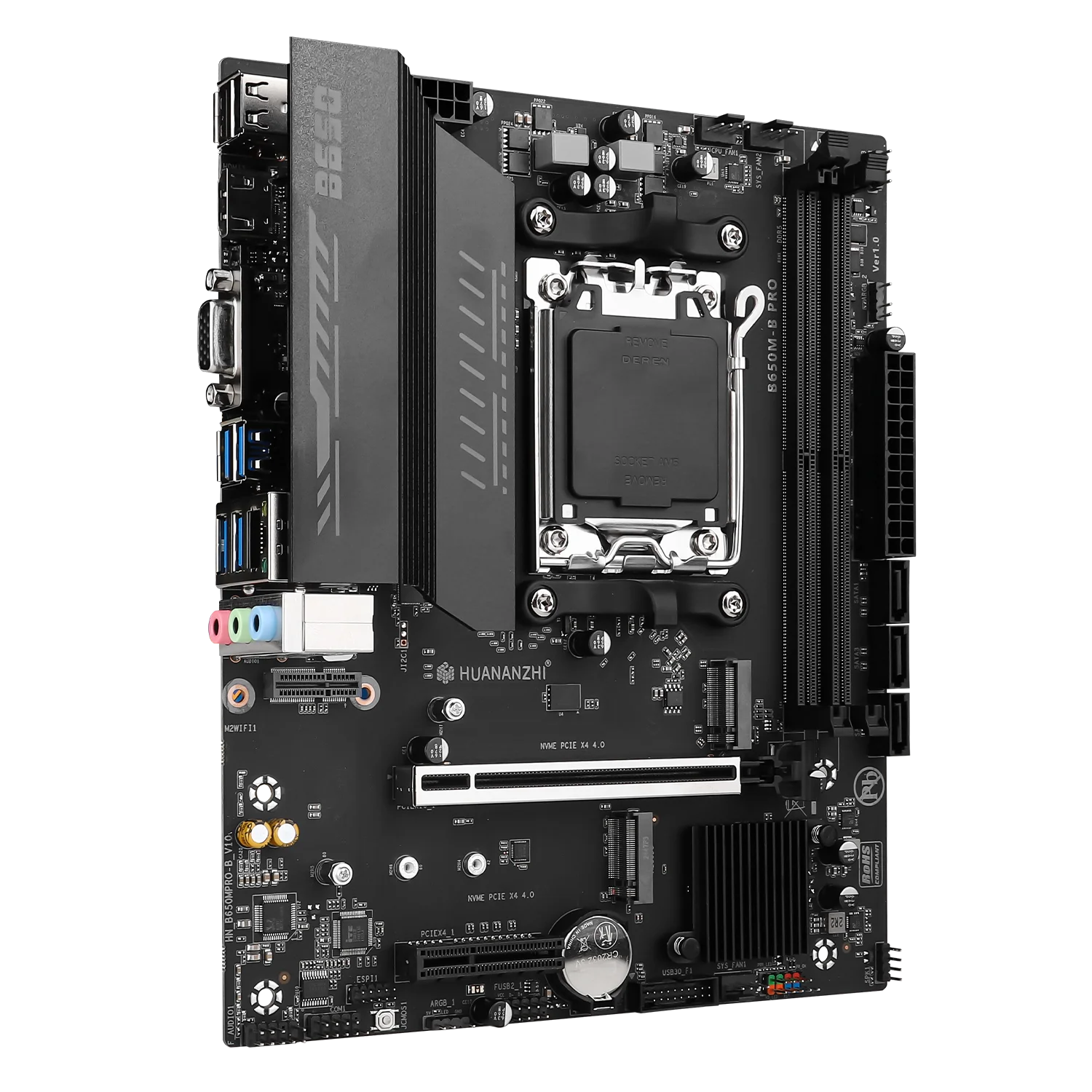

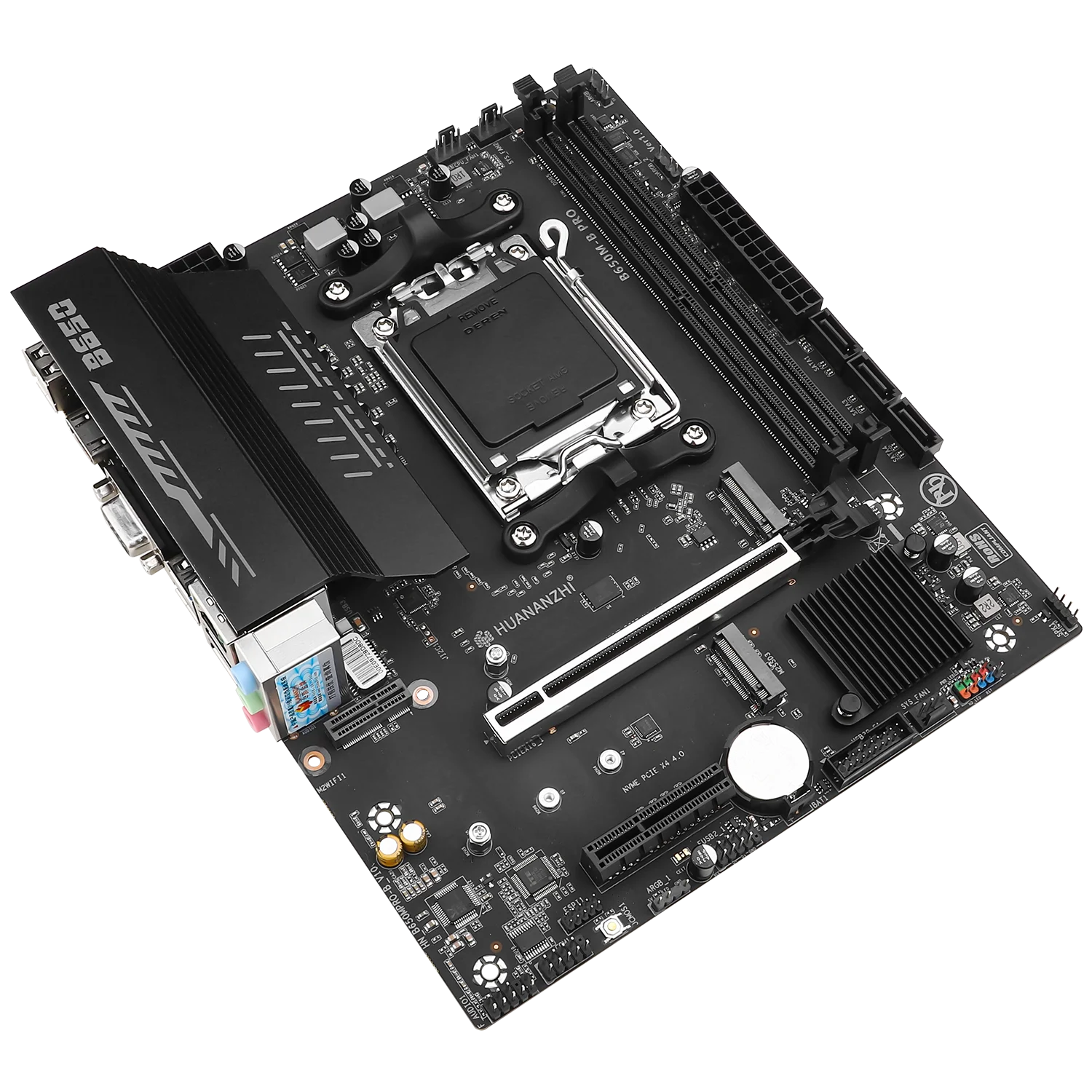

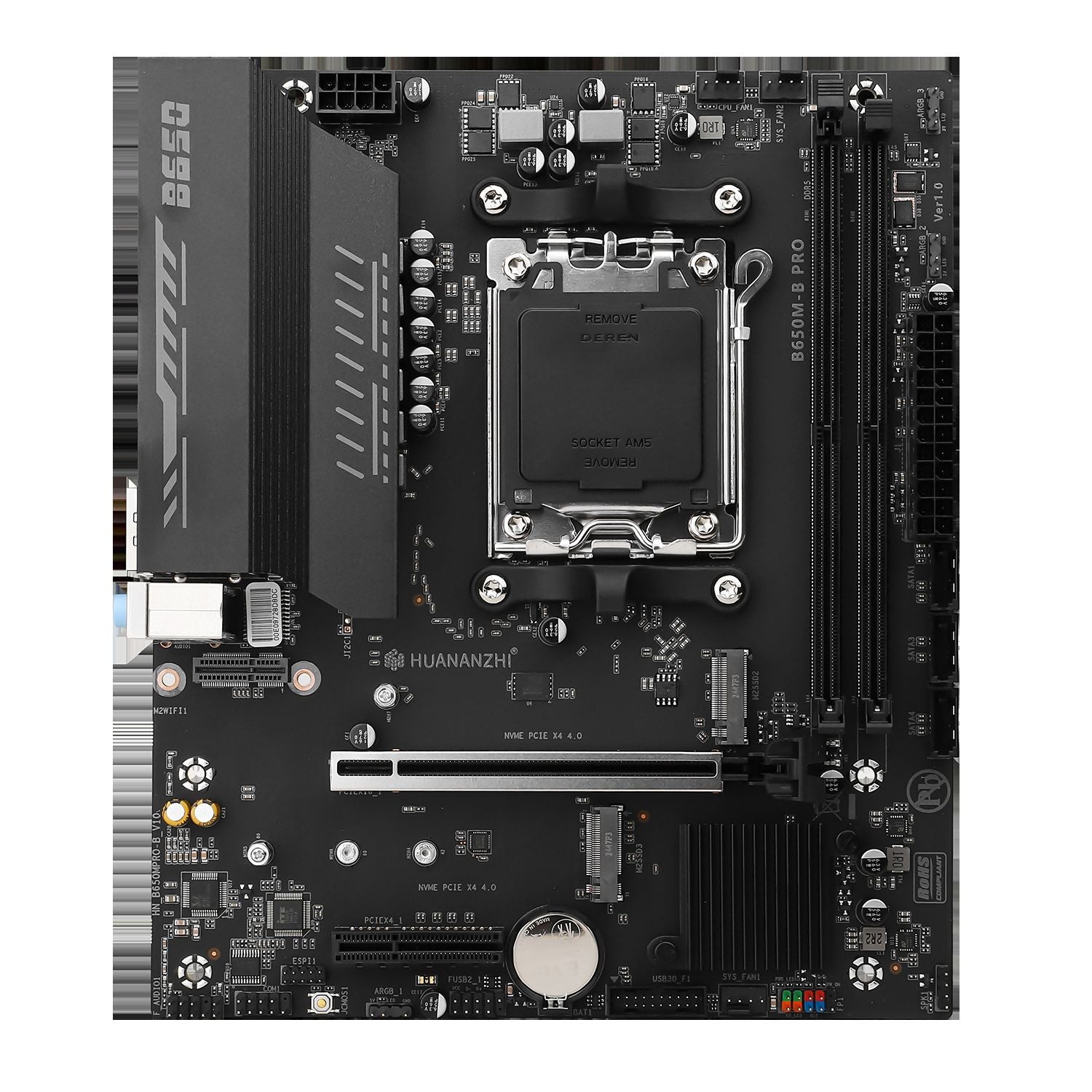

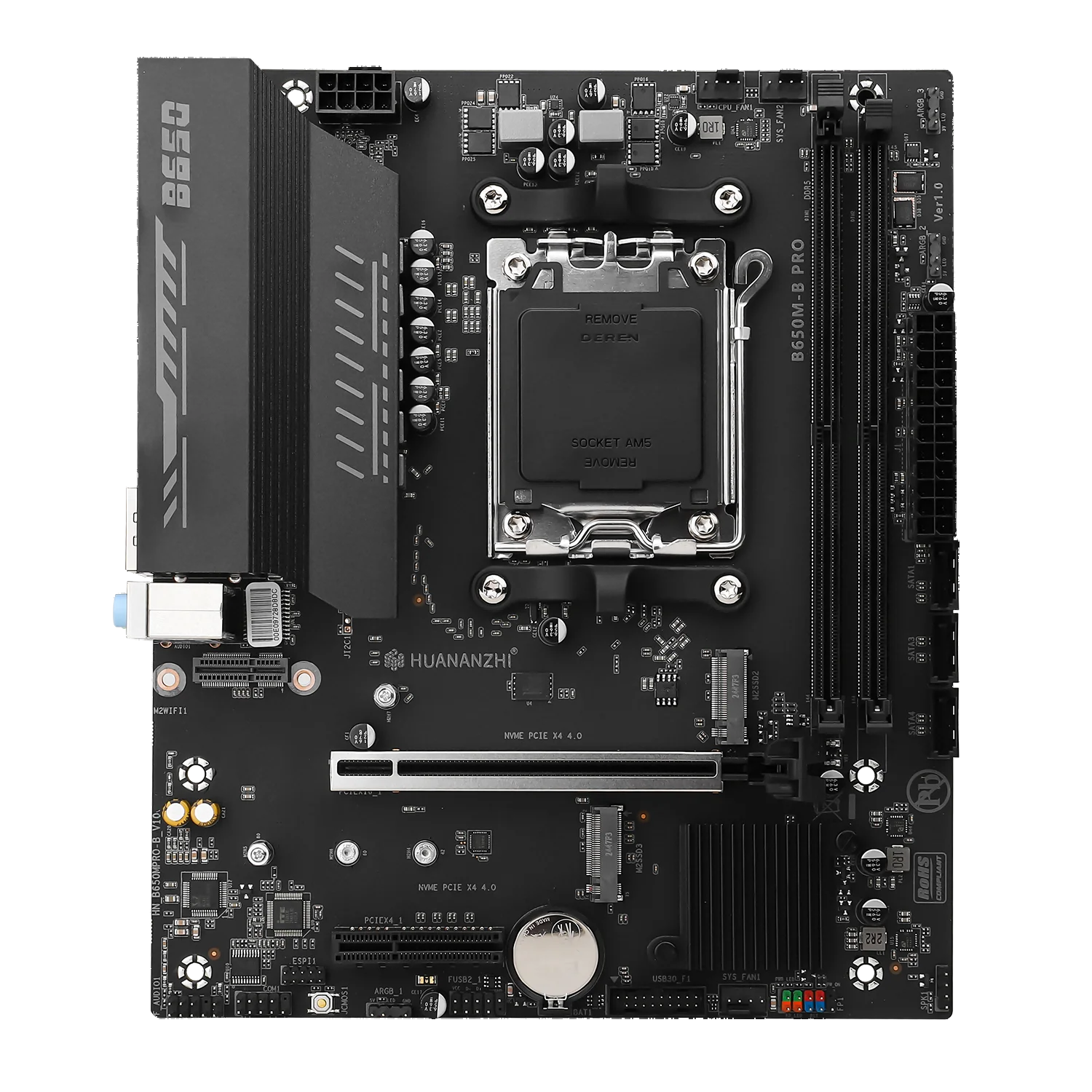

Model：HUANANZHI B650M-B PRO Motherboard
Main chipset：AMD B650 ... Etc chipset shipped randomly
CPU Socket：Support AMD AM5 platform processor, support AMD Ryzen7000-9000 series processor
Memory slot：2 x DDR5 memory slot

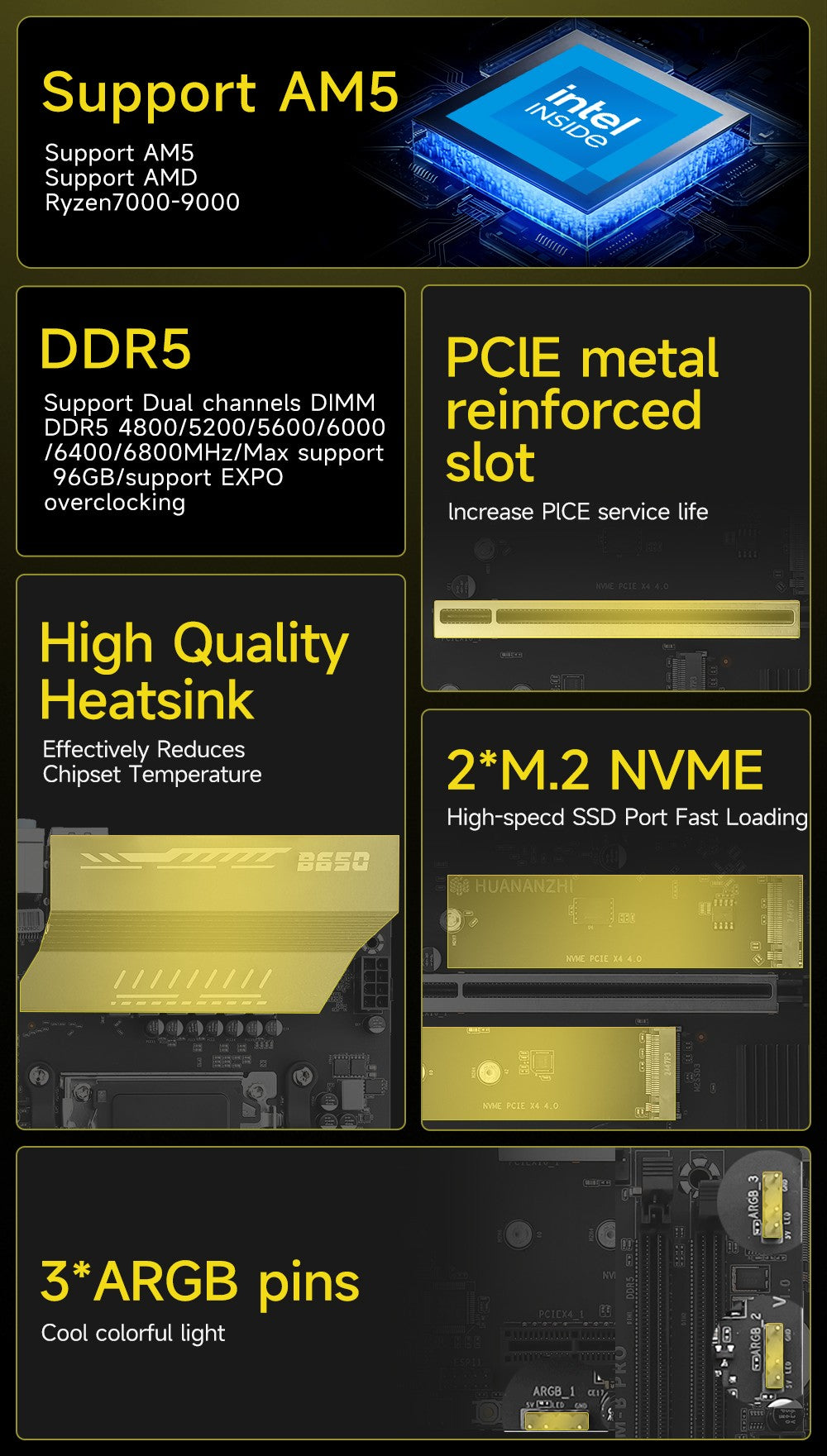

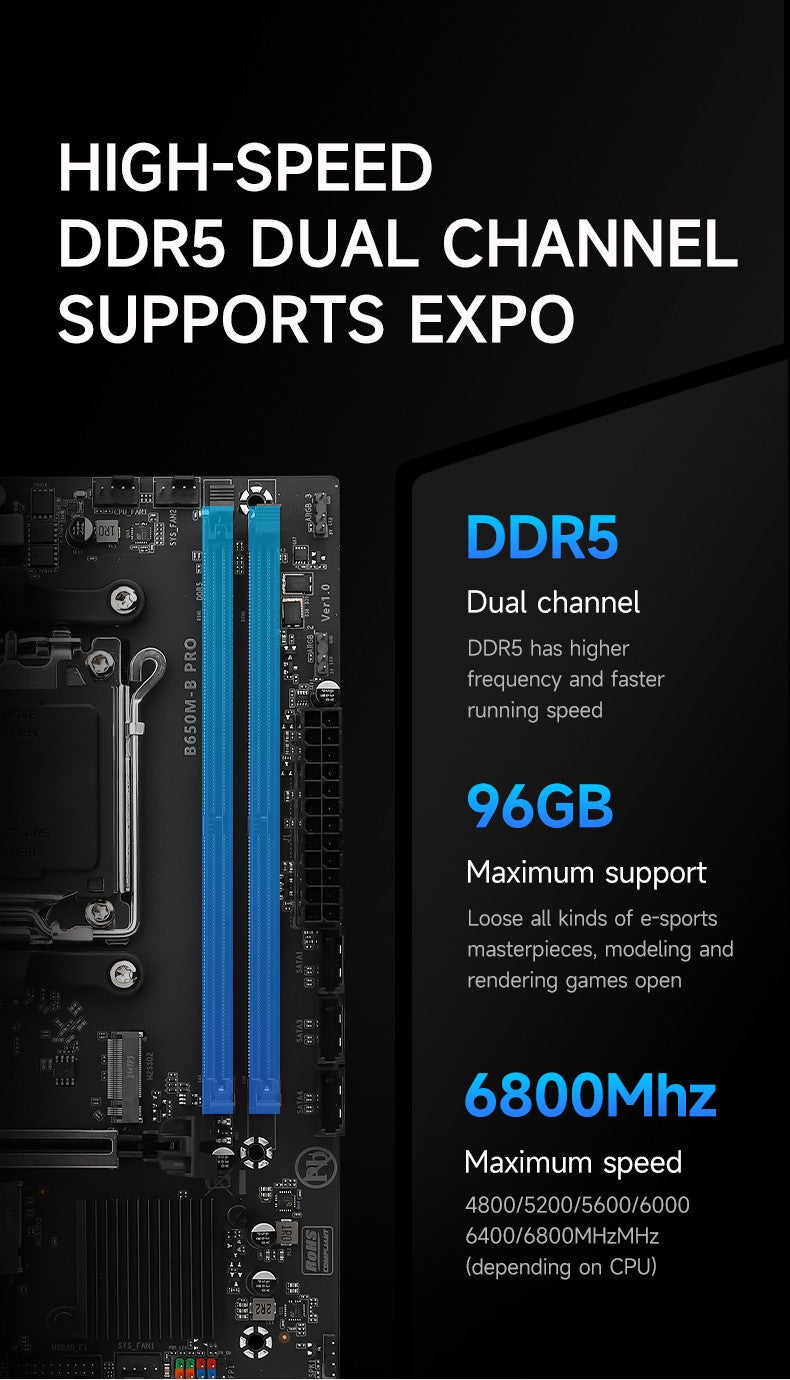

Memory standard：Support dual channel DDR5 4800/5200/5600/6000/6400/6800MHz Memory(Depends on CPU)，Max support 96GB
Storage interface：3 x SATA 3.0 6Gbps(Support RAID 0/1)

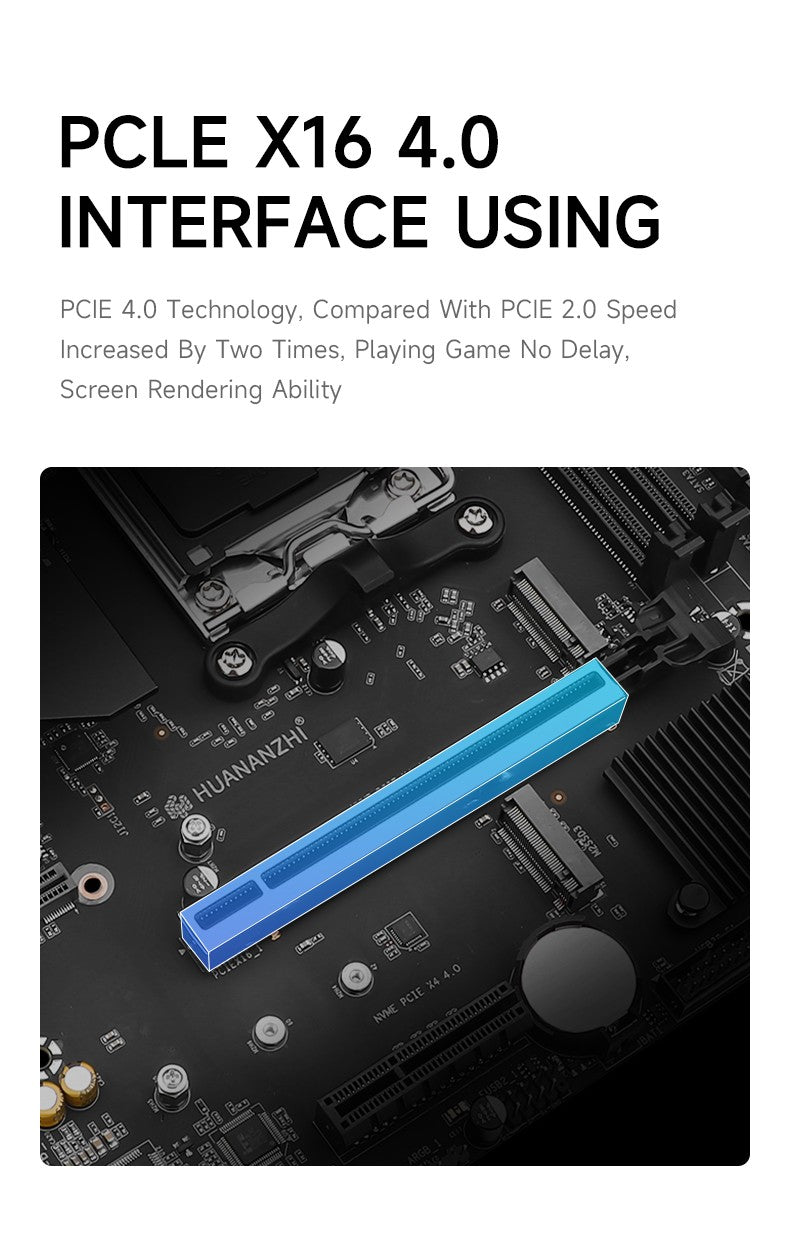

Expansion Slots：1 x PCI Express 4.0 x16，1xPCI Express 4.0 x4
Expansion interface：2xM.2 2280 NVME PCIE X4 4.0（1*vertical plug M.2 WIFI supports PCIE protocol at the IO port）
Soud Track：Realtek High Fidelity Audio
Network Card：Realtek Gigabit Ethernet
Power interface：24PIN+8PIN
FAN PIN：1xCPU_FAN PIN，2xSYS_FAN PIN

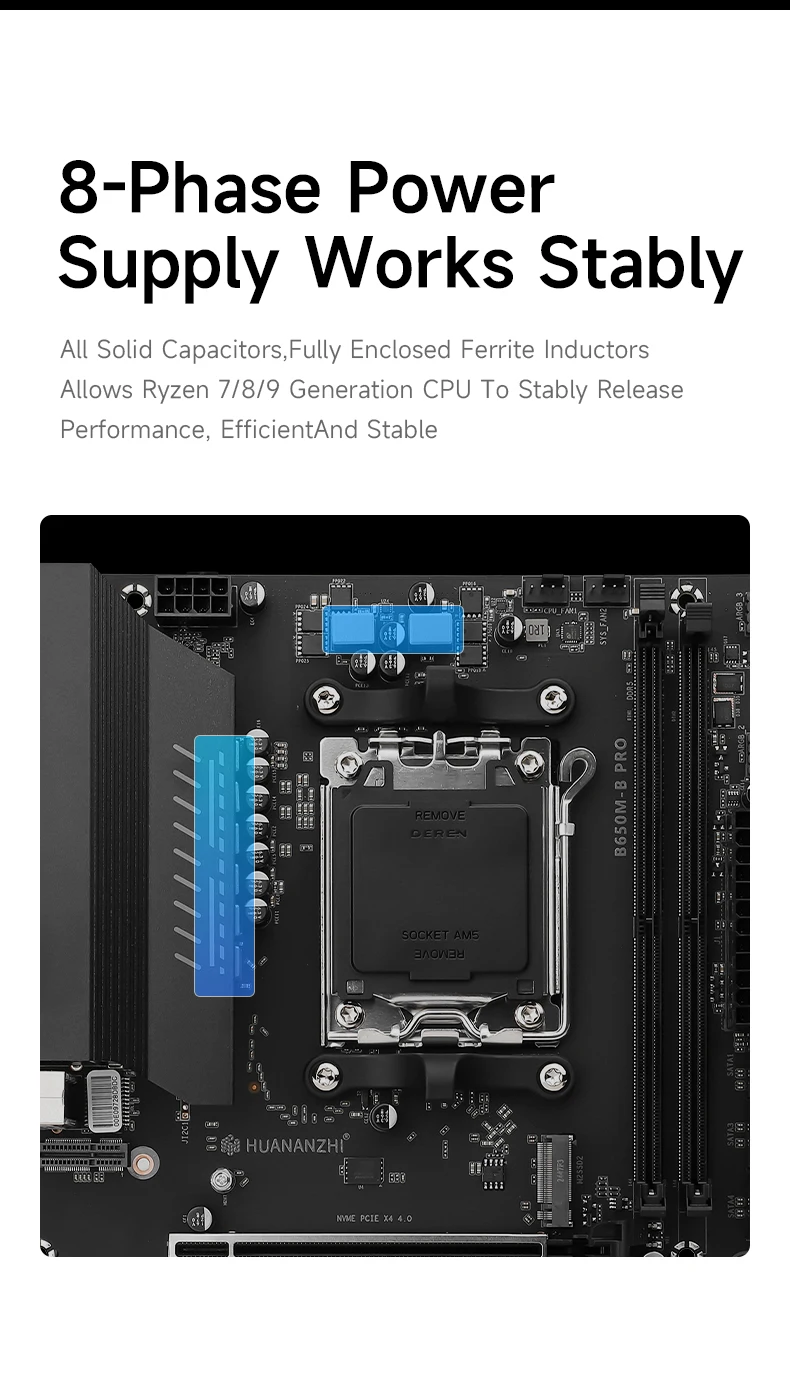

power supply：8-phase power supply
PCB layers：4-layer PCB

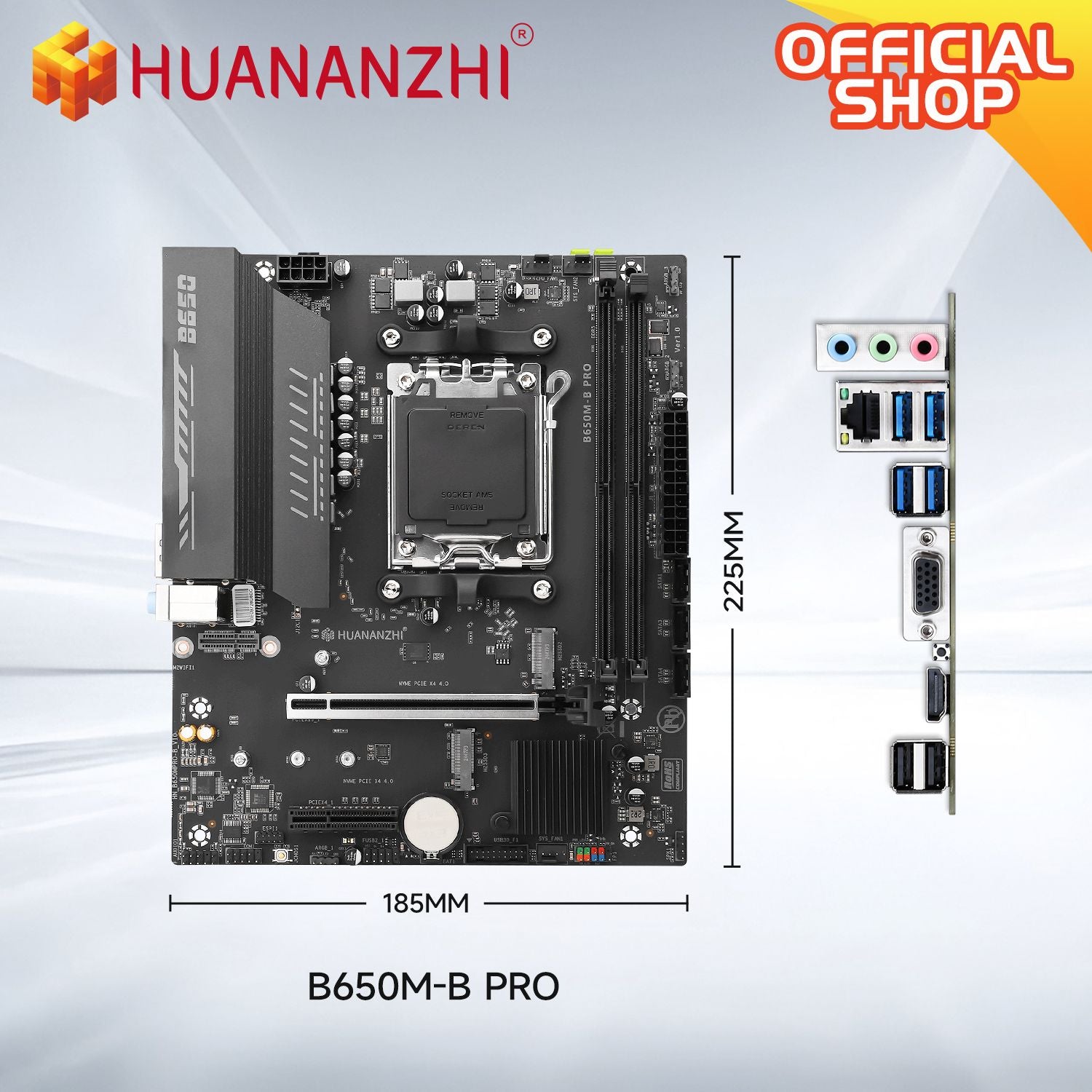

Dimension：225*185MM M-ATX

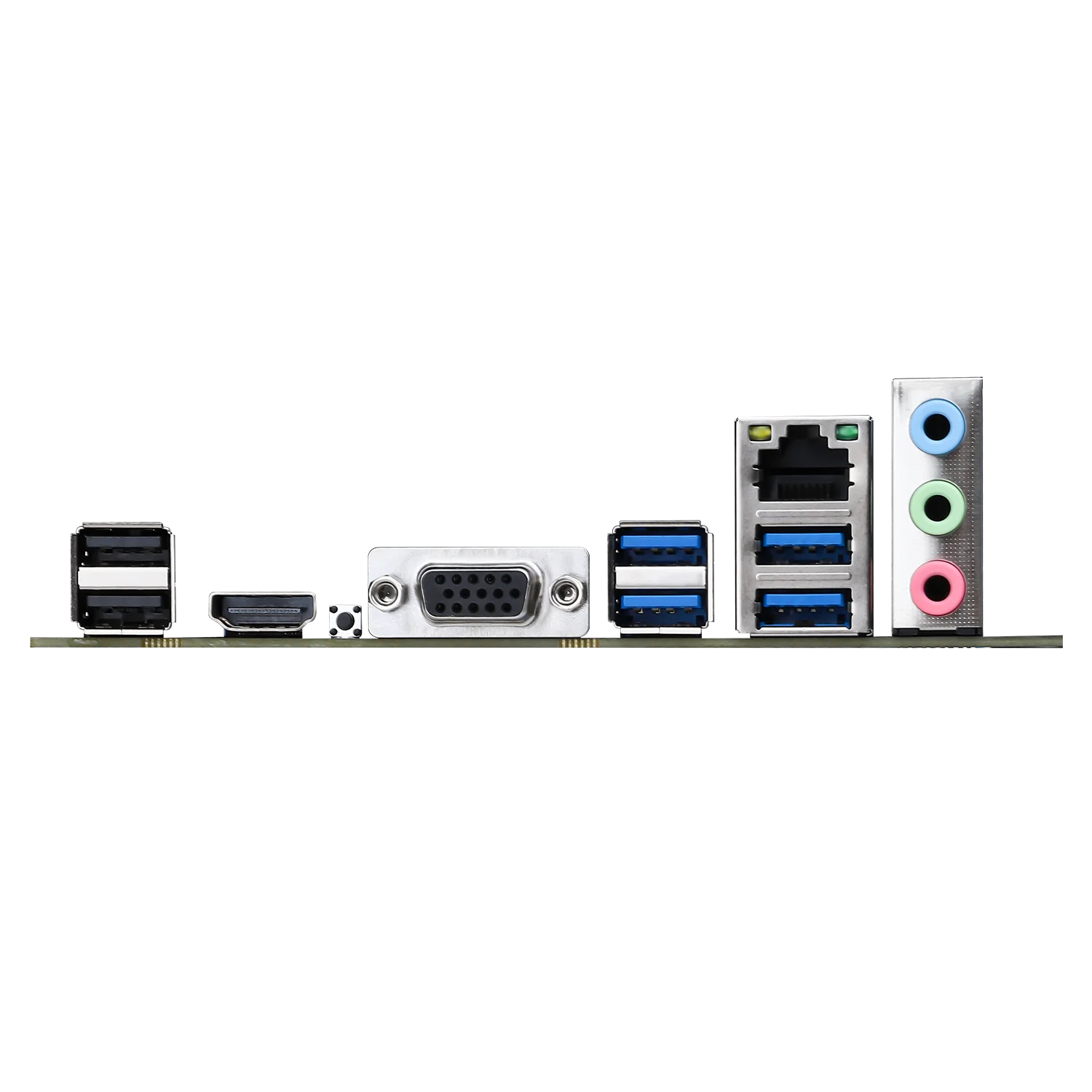

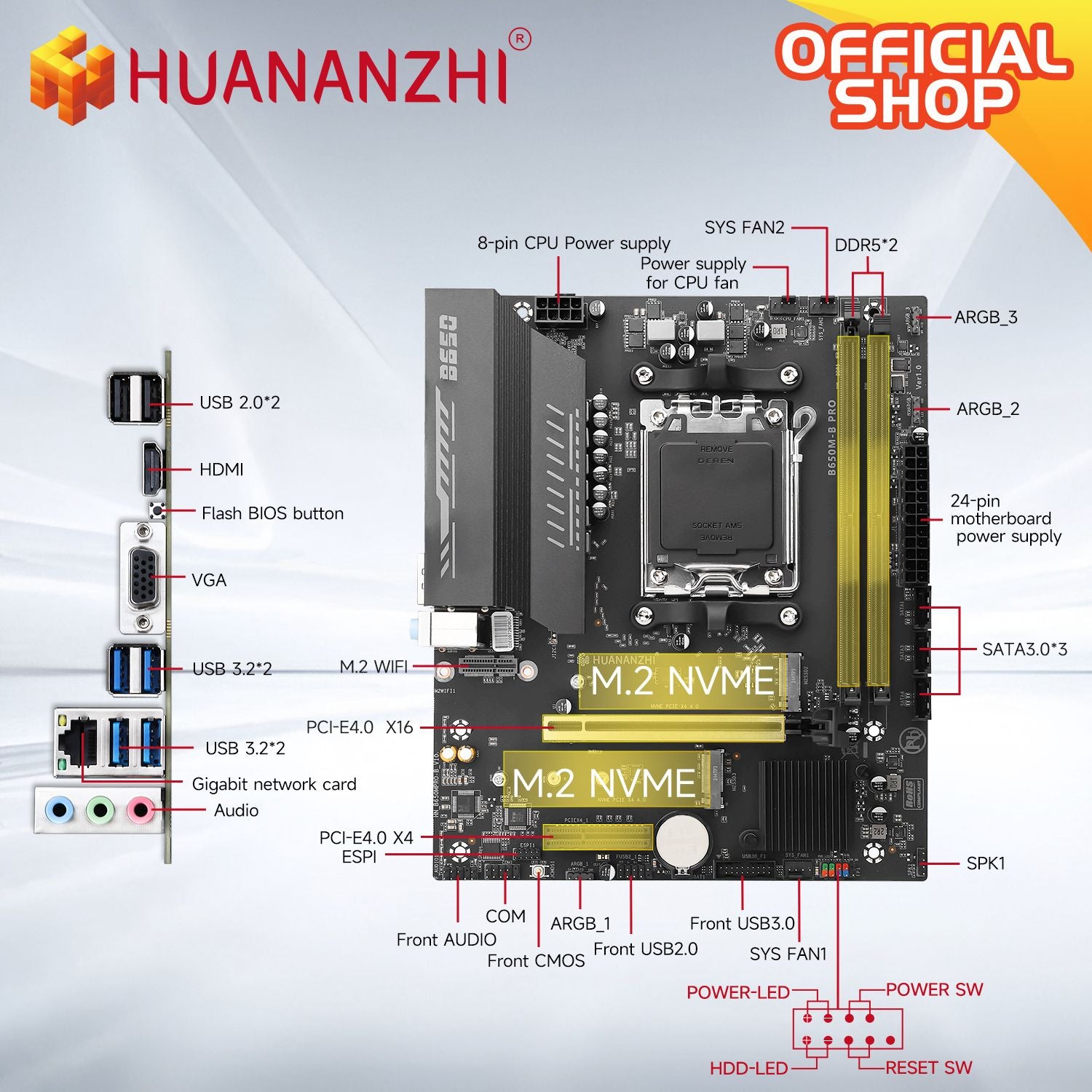

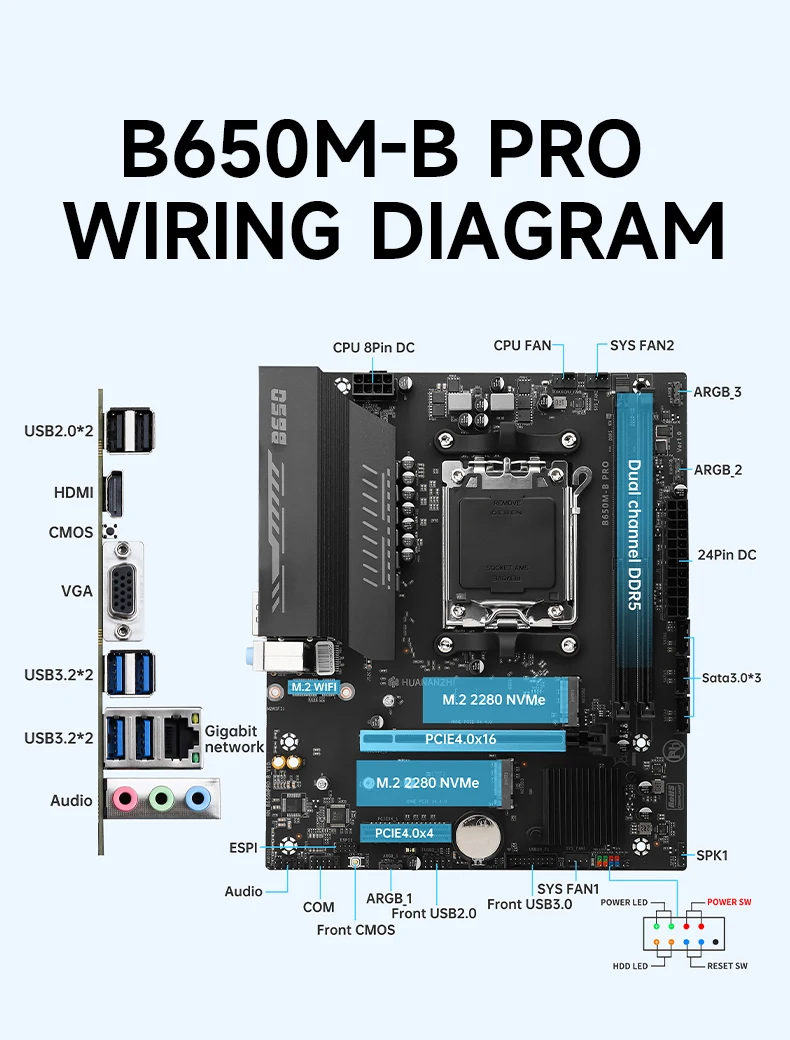

Rear panel interface：4xUSB 3.2，2xUSB 2.0，1xHDMI,1xVGA interface，1xRJ45Network card interface，1x3-hole audio interface，1*Direct plug-in WIFI reserved interface

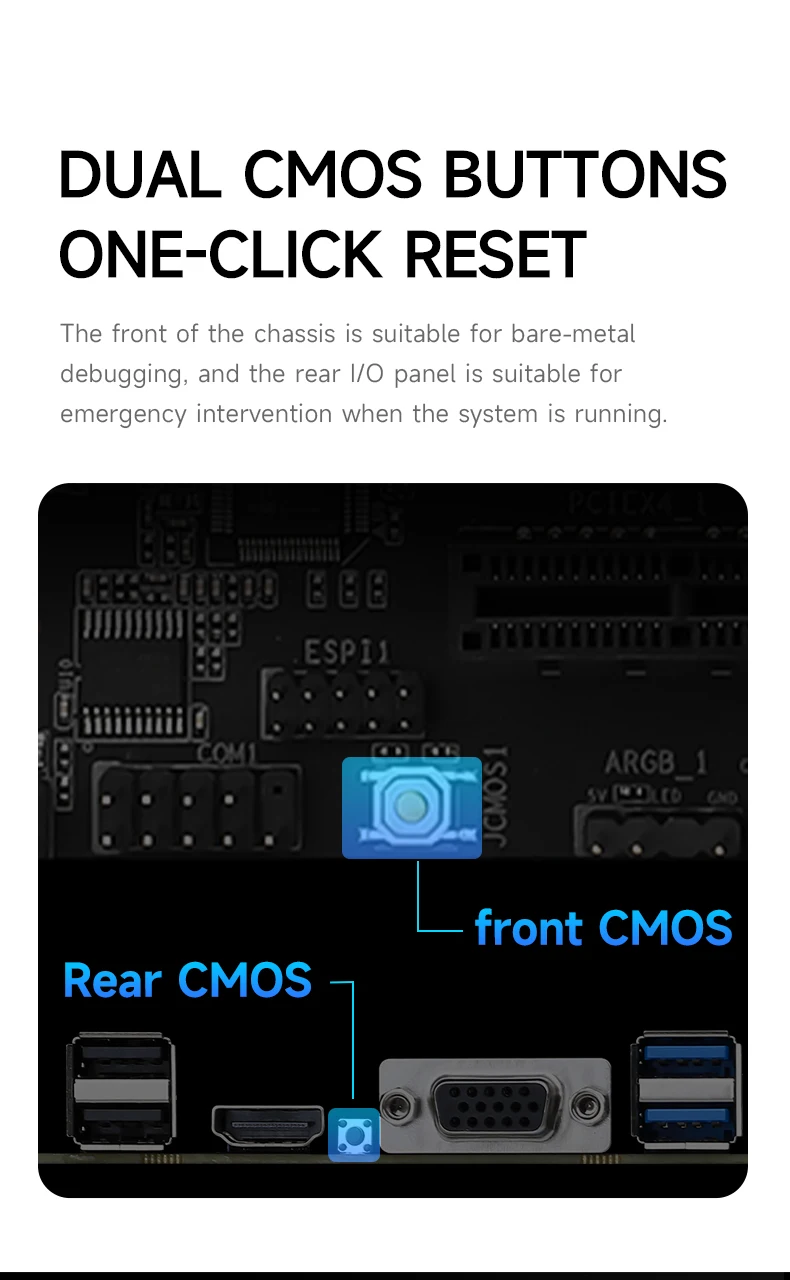

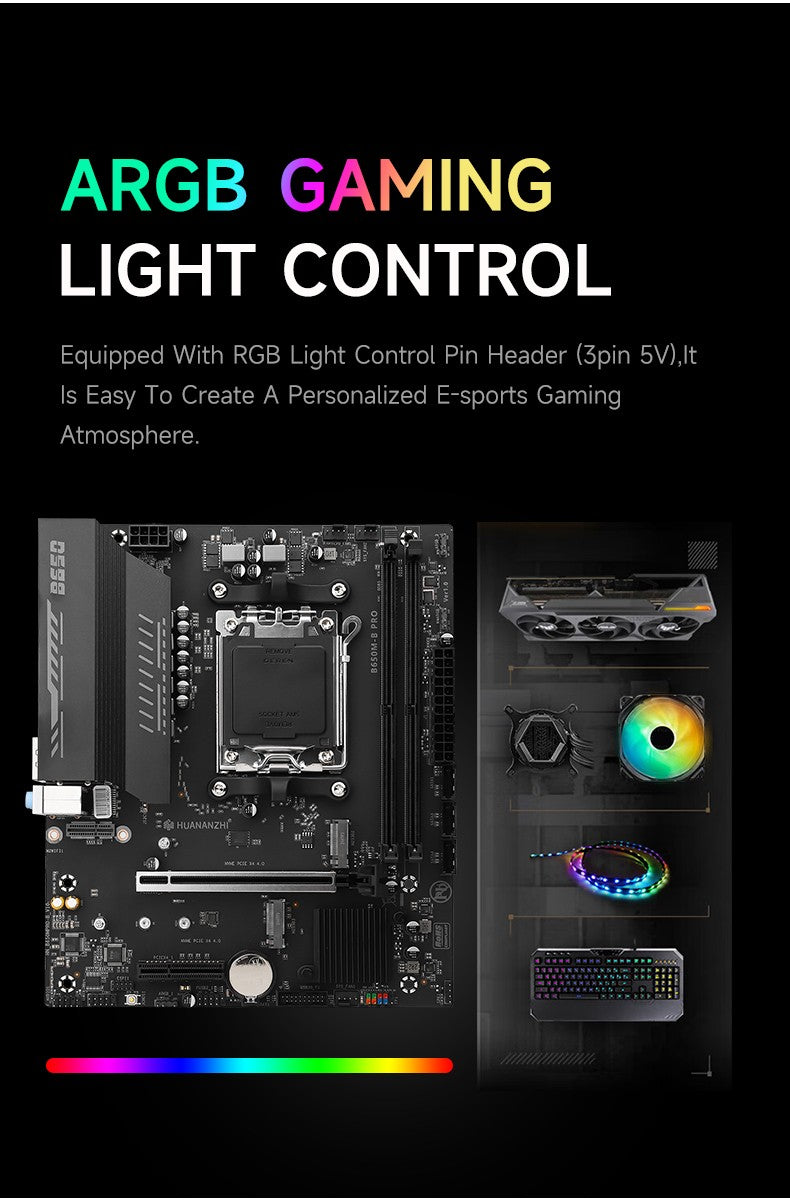

Front panel interface：1 set of USB3.2 Gen1 pins, 1 set of USB2.0 pins, 1 set of audio pins, 1 set of COM pins, 1 set of CMOS buttons, 1 set of SPK buzzer pins, 1 set of power-on and restart pins, 3 sets of 5V ARGB pins/Songhan main control IC control
Support system：Windows10/Windows11
BIOS：AMI UEFI BIOS
Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
