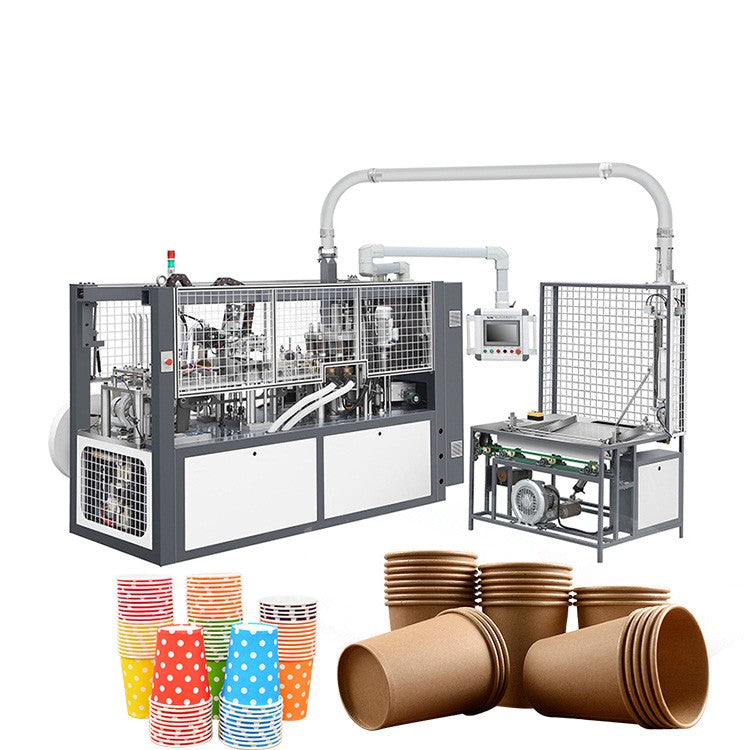

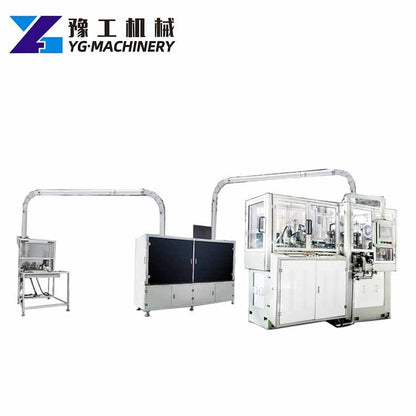

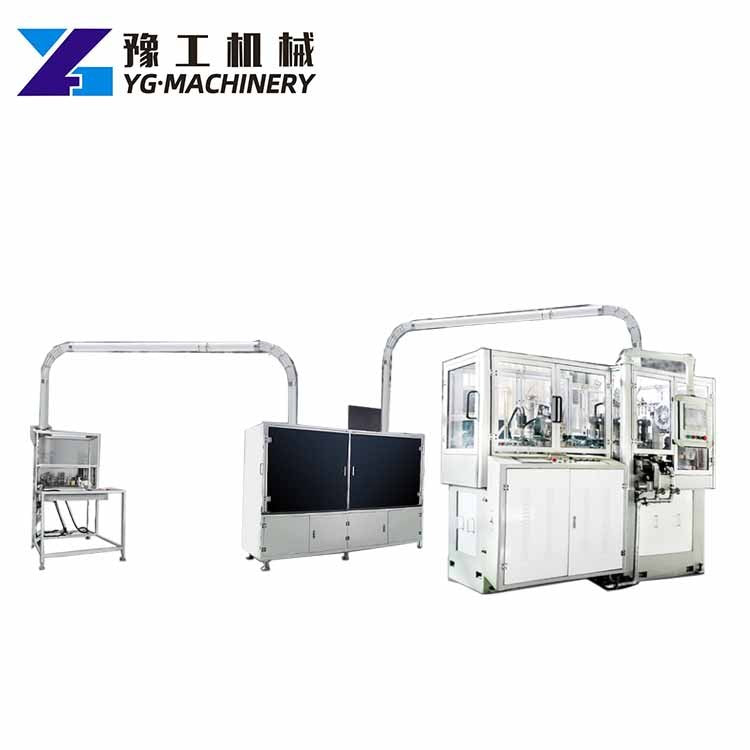

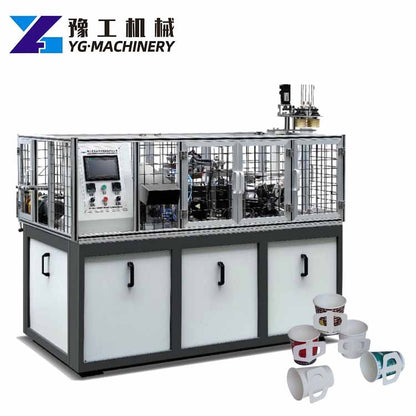

Professional Manufacturer Automatic Coffee Tea Cup Making Machine Price Paper Cup Forming Machine 90 Pcs/min Production Capacity

Brand Name: NoEnName_Null

Origin: Mainland China

High-concerned chemical: None

Certification: CE

Condition: New

product type: Paper Cup Machine

processing type: Other

place of origin: Henan, China

brand name: yugong

voltage: 380v

power(w): 12kw

dimension(l*w*h): 2500*1800*1700mm

warranty: 2 years

production capacity: 120 pcs/min

machinery test report: Provided

video outgoing-inspection: Provided

core components: PLC, Engine, Gear, motor, Bearing, Gearbox

Application: paper cups making machine

Name: disposable paper cup making machine

Product name: machine make cups paper

Keyword: paper cup making machine price

Function: machine to make disposable paper cup

Usage: paper cup making forming machine

Model: paper cup making machine fully automatic

Machine for: paper cup plate making machine

Machine type: paper cup machine making

Type: paper tea cup making machine

Condition: New

Marketing Type: New Product 2020

Warranty of core components: 2 years

Weight: 3400 kg

PLEASE NOTE?
1.The price only for reference, the specific cost based on your requirements and
the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message for price !!!
4.For specific information, please consult us. Wishing you a happy life!
5.Whatsapp:+86 182 0366 6368
Emali?chunhuali681@gmail.com
CONTACT US:

Product Description

Specification

Model	YG-90
Speed	100-120 pcs/min
Cup size	Top Diameter: 60mm(min)-125mm(max) Bottom Diameter: 45mm(min)-100mm(max)  Height: 60mm(min)-170mm(max)
Raw material	135-450 GRAM
Configuration	ULTRASONIC & HOT AIR SYSTEM
Output	12KW,380V/220V,60HZ/50HZ
Air compressor	0.4 M³/Min 0.5MPA
Net weight	3.4 TONS
Dimension of machine	2500×1800 ×1700 MM
Dimension of cup collector	900 ×900 ×1760 MM

Detailed Images

Highlights of paper cup making machine

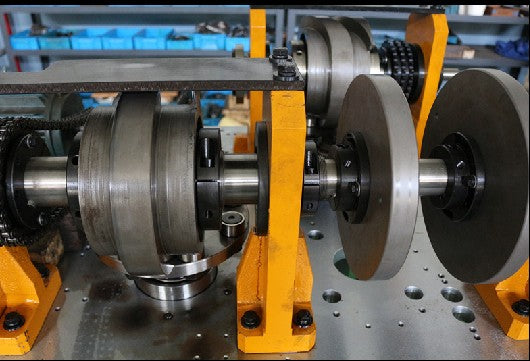

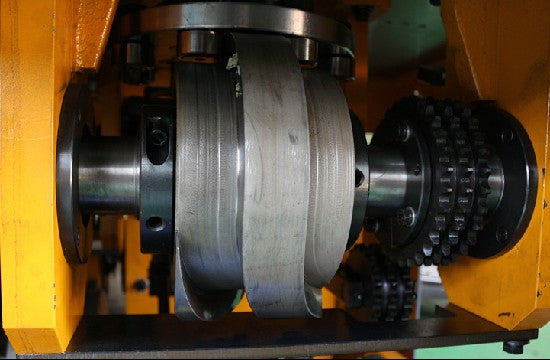

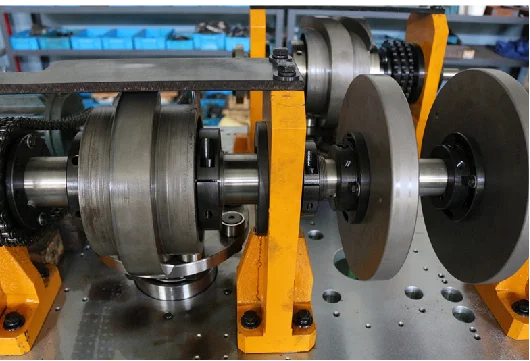

Open cylindrical cam

Two cam systems, this design more costly, but can let the top curling and bottom knurling more accuracy, stable and low noise. Cam adpots high strength Japan-SKD11 with quenching treatment,resistant to wear.

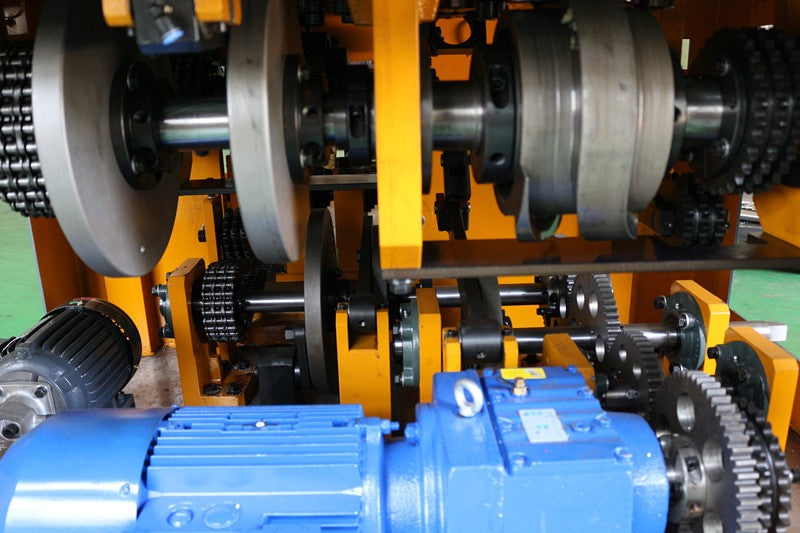

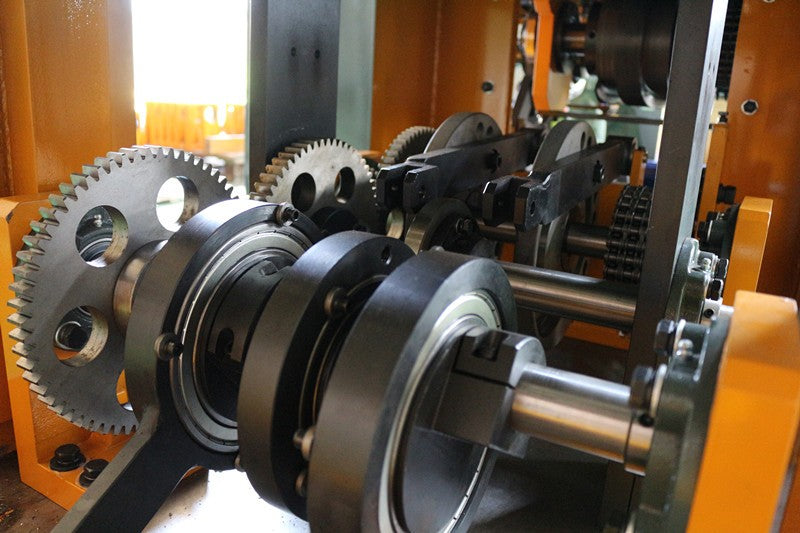

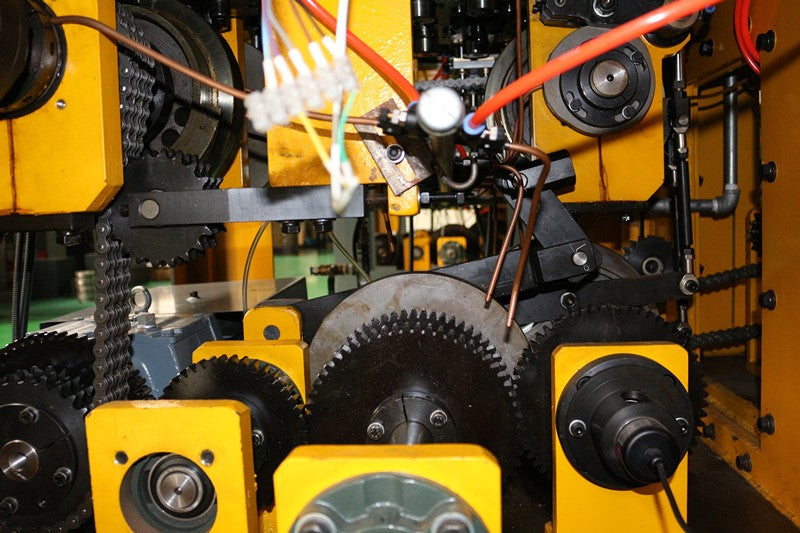

Gear drive

This system ensure the machine runs with high speed with low noise, smoothly running and high precision. Instead of chain drive.

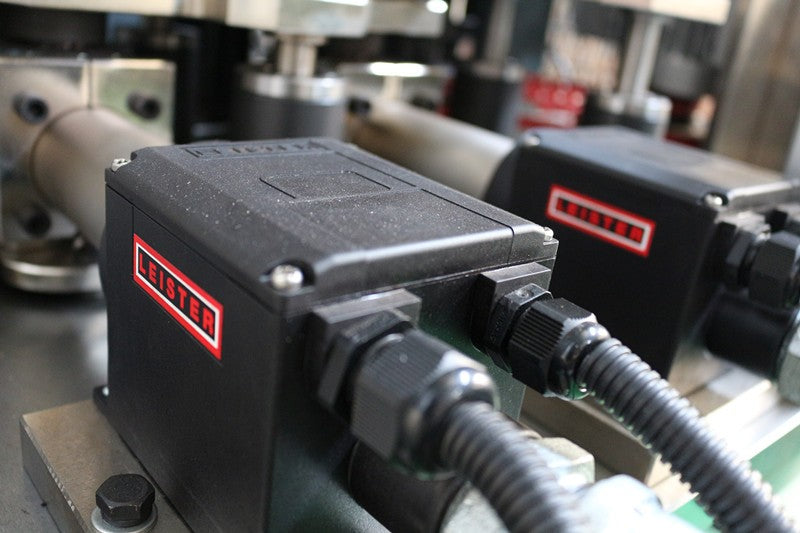

Hot air system and protect system

2 set of hot air systems can decrease the rate of leakage. Our factory using the whole set of Leister(Banko) hot air system with protection system. And our system sets up on the fixed plate, do not moving during production. Almost impossible to damage. Also the only one have the protect system that hot parts will go down, keep the distance with paper cup and cup mould when the machine stop.

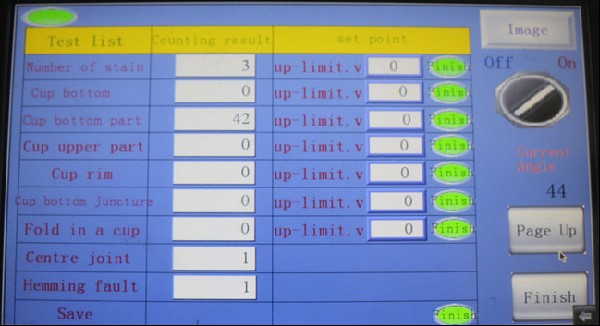

Inspection system

Unique design. Our factory set up on final turn station,more stable than set up on flying tube. Do not need to buy extra inspection machine, less factory space needed. Inspection accuracy can be set up by self.

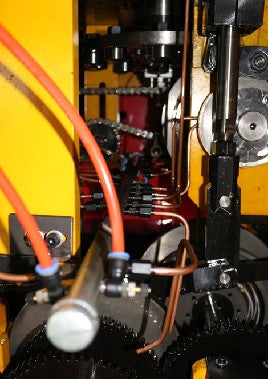

Oil lubrication system

Adoptes forced lubrication system to ensure main driving oil supply regularly and reduce friction and prolong the machine life. The oil circuit adds a clear the oil and filtering system to clean the oil automaticly. Our factory is the first one to using double layer plate to avoid the scraps of paper into the machine's inside.

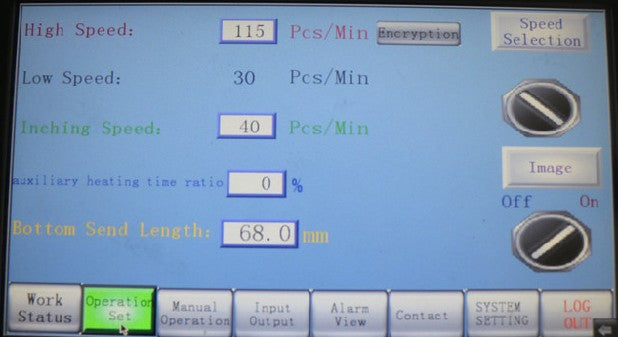

PLC control system

controlled by simple and efficient PLC system
