ZSUS X99 Dual Motherboard C612 Chip CPU M.2 LGA 2011 V3 E-ATX USB3.0 SATA3 8 DIMM DDR4 Support Xeon processor slot 2011-3

$228.99
$228.99 $0.00
Promoção Esgotado
Pacote: Placas-mãe
Faltam apenas 9 unidades

"Pagamento Seguro"

– Compre com confiança sempre"

Envio rápido e confiável

Direto na Sua Porta

  • Entrega Expressa
  • 12 Meses de Garantia
  • 7 Dias para Troca Fácil
Finalização de compra segura com
  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • Visa

Brand Name: ZSUS

Chipset: C612

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 256GB

Battery Included: No

Processor compatibility: Intel Xeon E Series

With CPU: No

Support Memory Type: DDR4

Number of PCI: 3

Special Features: RGB

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2 (SATA)

Package: Yes

RAID Supported: No

Application: Desktop

Application: Laptop

Application: Server

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI - E standards: PCI-E 3.0

Socket Type: LGA 2011-3

High-concerned chemical: None

Usage Scenario: Enthusiast & Overclocking

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Origin: Mainland China

Number Of Memory Slots: 8

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 4: 1

Number of PCIe x 16: 2

Number of SATA Ports: 10

Max LAN Speed: 1000Mbps

Certification: CE

Form Factor: E-ATX

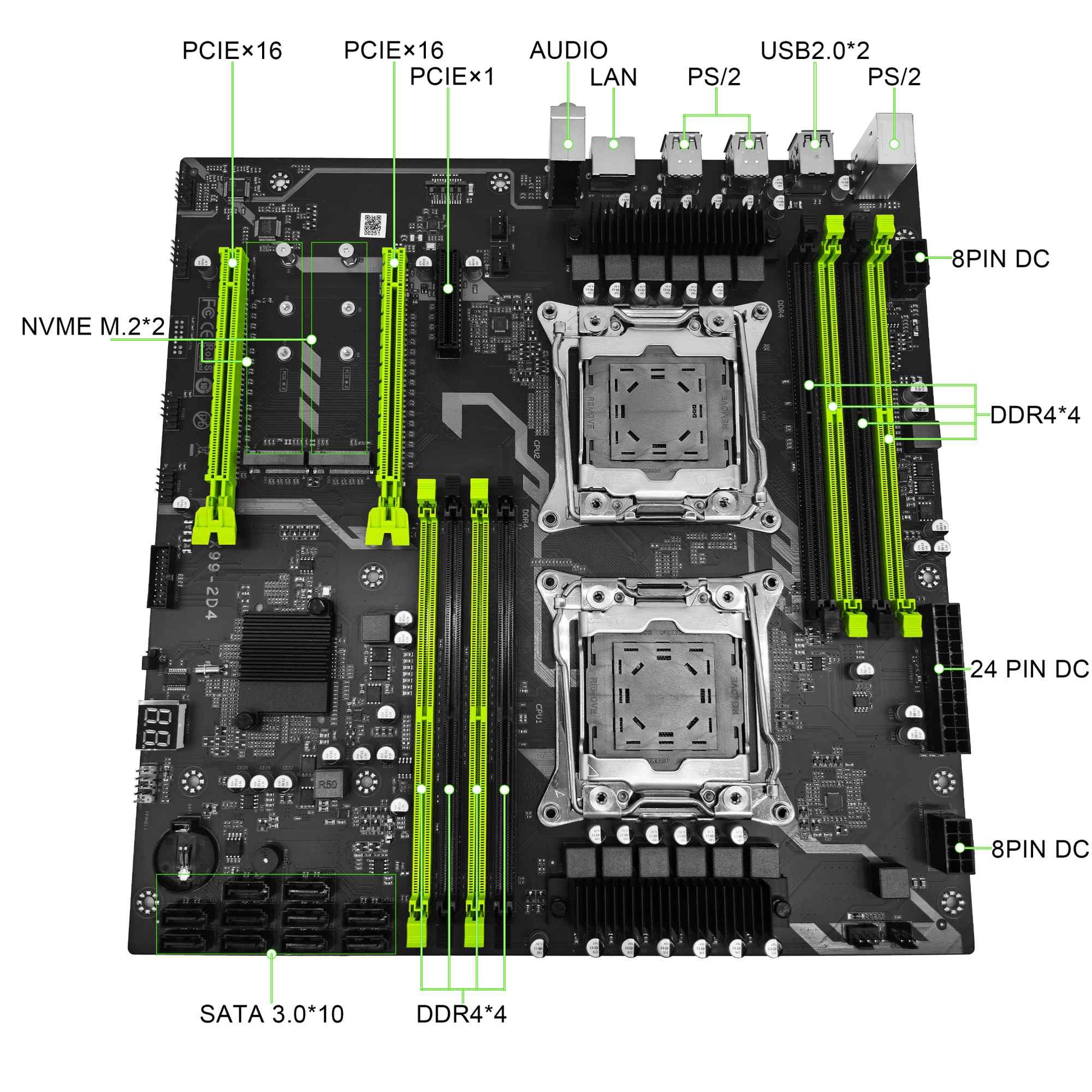

Model ：ZSUS X99 Motherboard Dual

CPU Socket ：LGA 2011-3 (XEON E5 V3 ,V4 CPU)

Main Chipset：C612

Memory socket: 8* DDR4
Max memory supported: 8*32G  DDR4 Maximum capacity: 256GB.
Memory type:3200/2666/2400/2133MHz
Memory type supported: non-ecc/reg ecc/ecc(The server ram can't work with the desktop ram, it has the compability problem.)
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN).

Ethernet: One Realtek Gigabit Ethernet card.
USB interface: 4 USB interfaces 3.0 ports. 2 USB interfaces 2.0 ports.
Pcie: Two Pcie x16, one Pcie x 4.
USB ports: 4 (1 USB port can be connected to 2 USB 2.0 ports).1 USB port can be connected to 2 USB 3.0 ports
SATA ports: 10 * SATA 3.0 ports.
ATXPWR interface :1 standard 1X8PIN power outlet :1 standard 1X24PIN power outlet.
M.2 port: 1* M.2 port (supporting PCIE M.2 ).
Dimensions: 290mmx295mm.

Support: same model CPU combination OR different model but same core number combination
Not supported: Mixed use of different core numbers, for example: 4 cores + 6 cores cannot be mixed, 6 cores + 8 cores cannot be mixed

The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom
