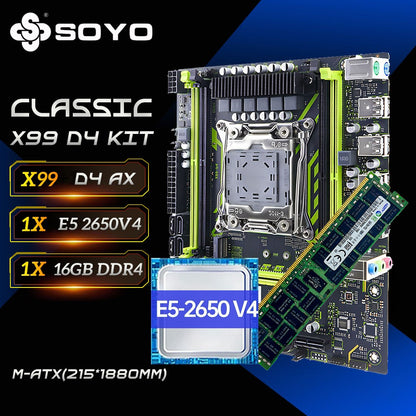

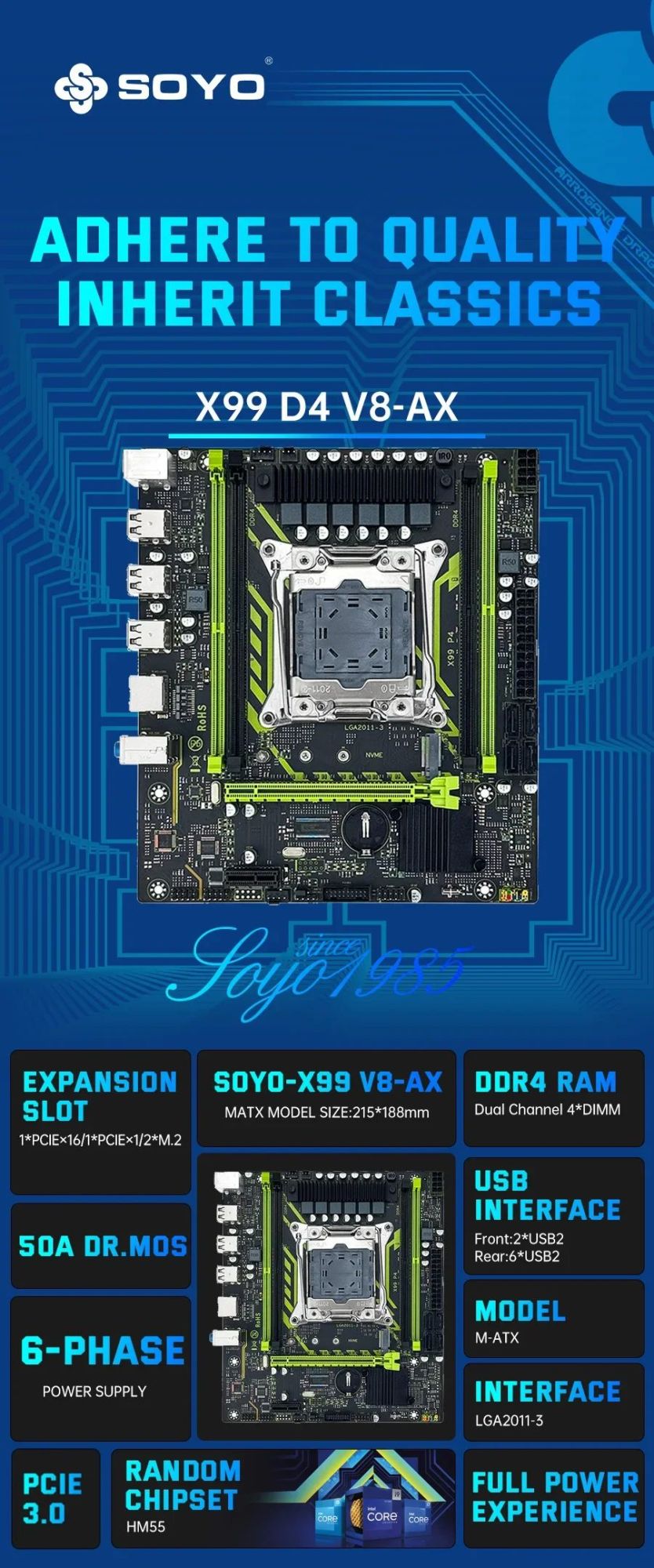

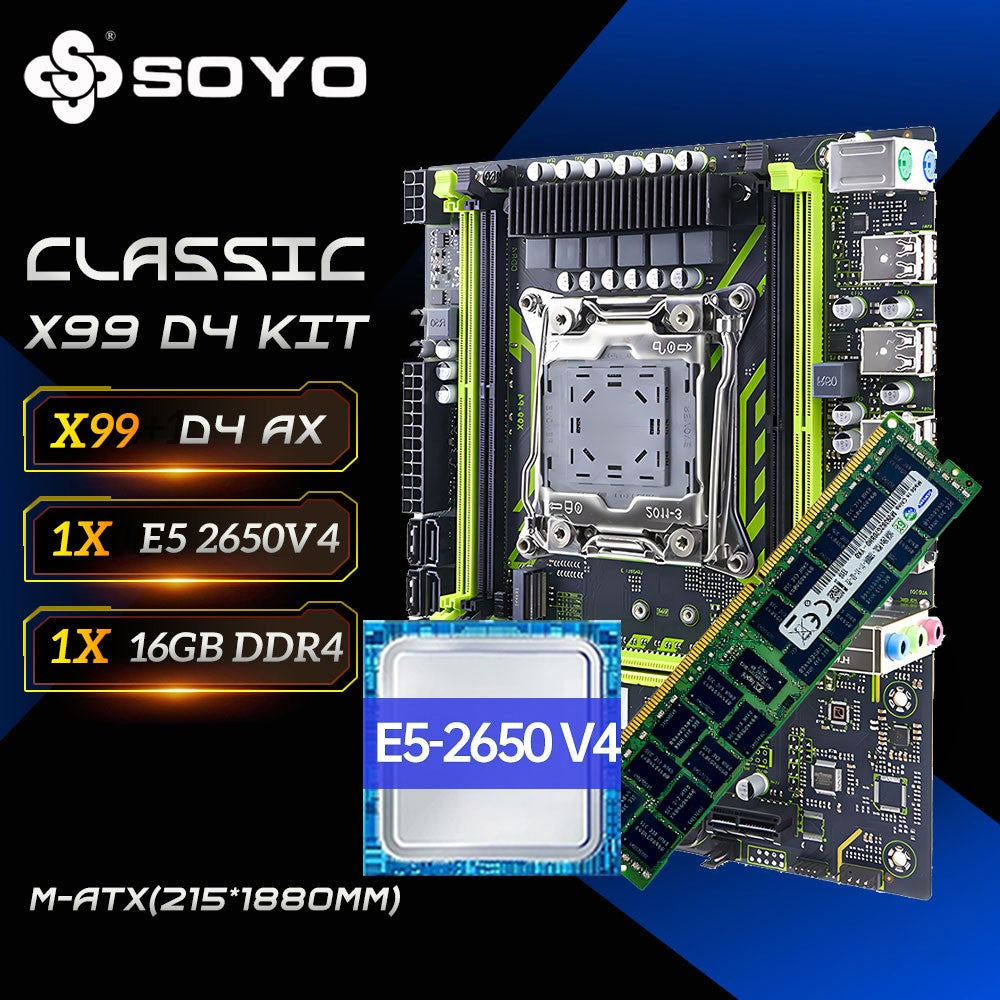

X99-8D4 SOYO Motherboard Set Kit With Intel LGA2011-3 Xeon E5 2650 V4 CPU DDR4 16GB (1*16GB) 2133MHZ RAM Memory NVME M.2 SATA
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: SOYO
Chipset: Intel H55
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Battery Included: No
Processor compatibility: Intel Xeon E Series
With CPU: No
Support Memory Type: DDR4
Number of PCI: 1
Special Features: None
Storage Interface Type: SATA 2
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: Yes
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
Back I/O Ports: 6 x USB 2.0
Back I/O Ports: 3 x Audio Jacks
Back I/O Ports: PS/2
PCI - E standards: PCI-E 3.0
Socket Type: LGA 2011-3
High-concerned chemical: None
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Design
Usage Scenario: Video Production
Usage Scenario: Video Rendering
Origin: Mainland China
Number Of Memory Slots: 4
Ports: PCI-Express X1
Support USB Type: USB 2.0
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Onboard Connectors & Header: USB 3.0 Connector
Onboard Connectors & Header: 8-pin +12V Power Connector
Onboard Connectors & Header: USB 2.0 Connector
Memory channel: Double
Number of SATA Ports: 2
SATA RAID: 0
Max LAN Speed: 1000Mbps
Number of PCIe x 1: 1
Form Factor: Micro-ATX
Supports M.2 SSD: 2280
Supports M.2 SSD: 22110
Number of M.2: 1
Differences Between Packages

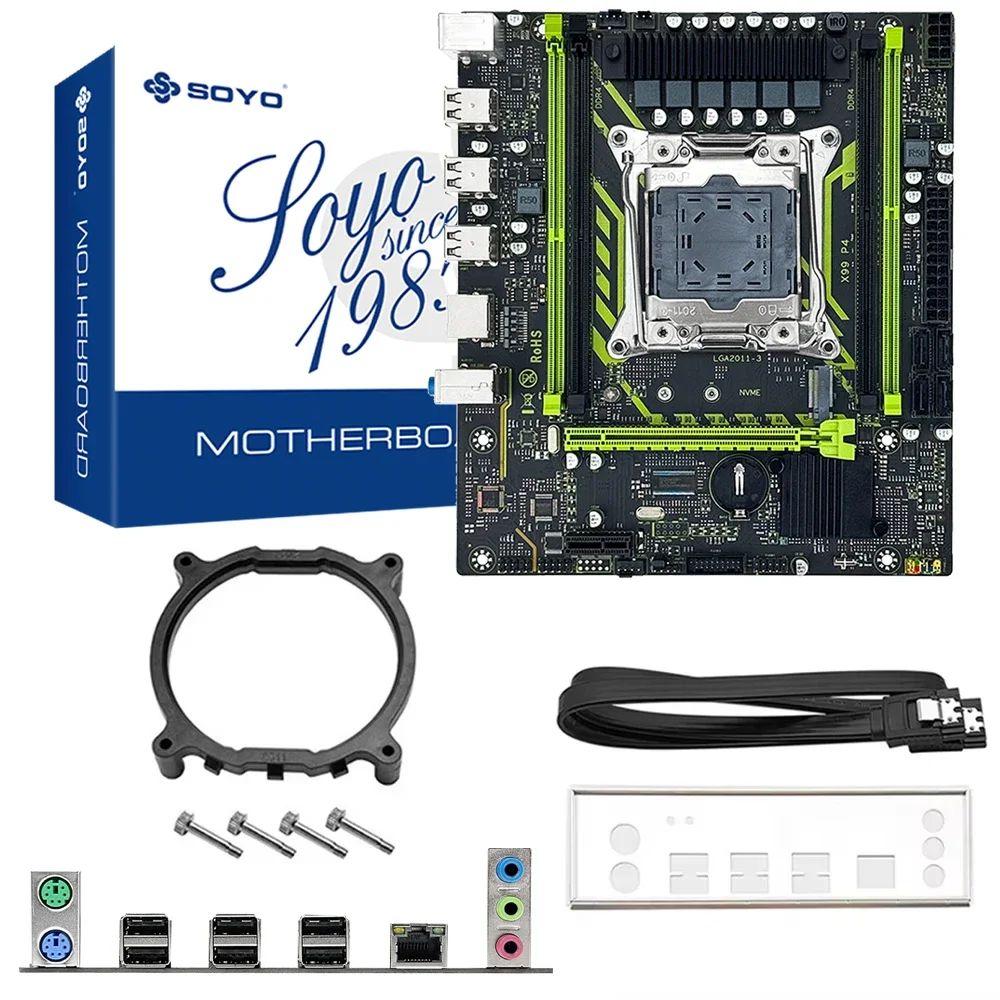

Motherboards: 1*SY-X99 D4 motherboard
Motherboard+CPU: SY-X99 D4+E5 2650 V4 CPU

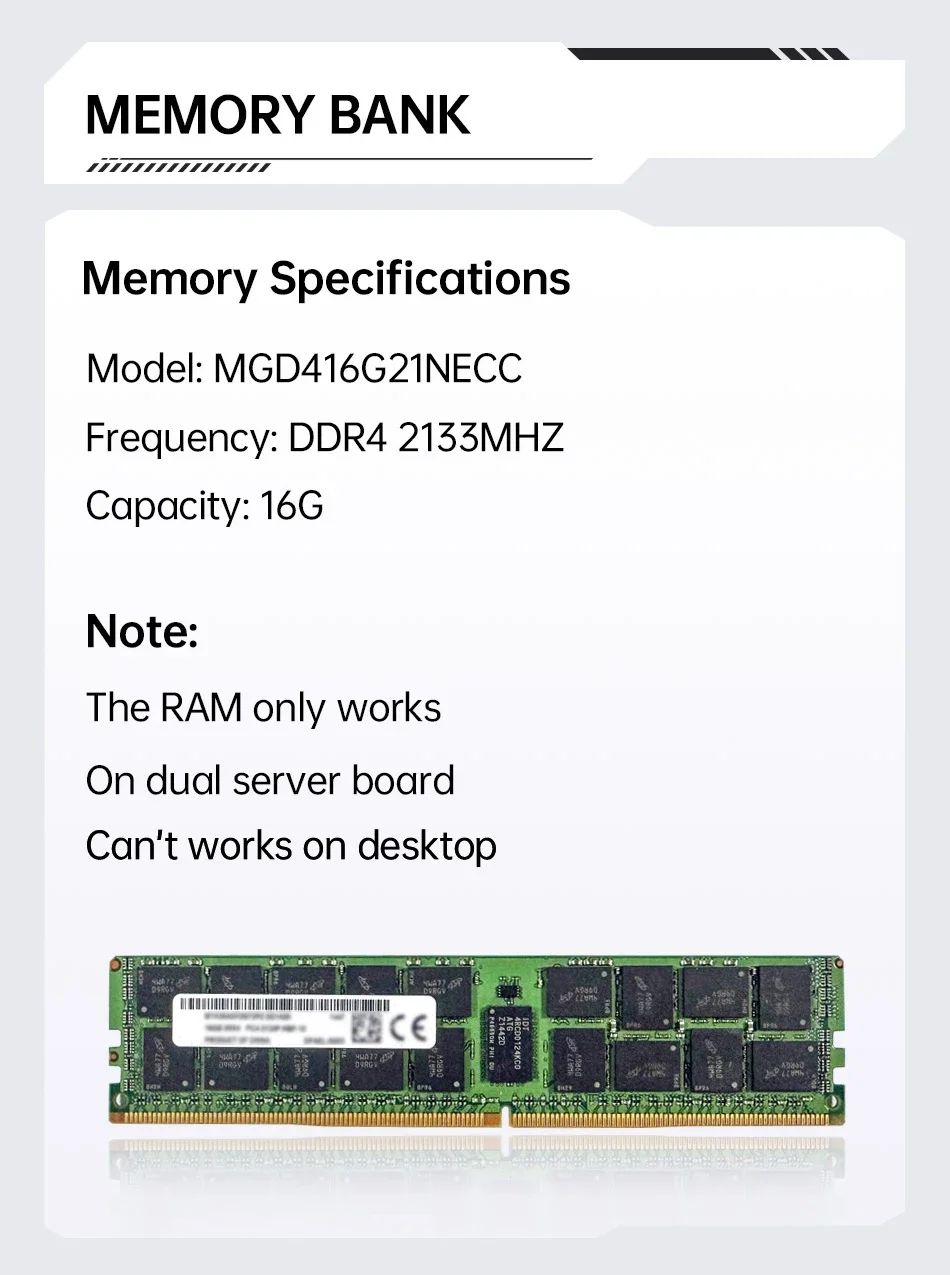

Motherboard+CPU+RAM: SY-X99 D4+E5 2650 V4 CPU*DDR4 16G*1
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

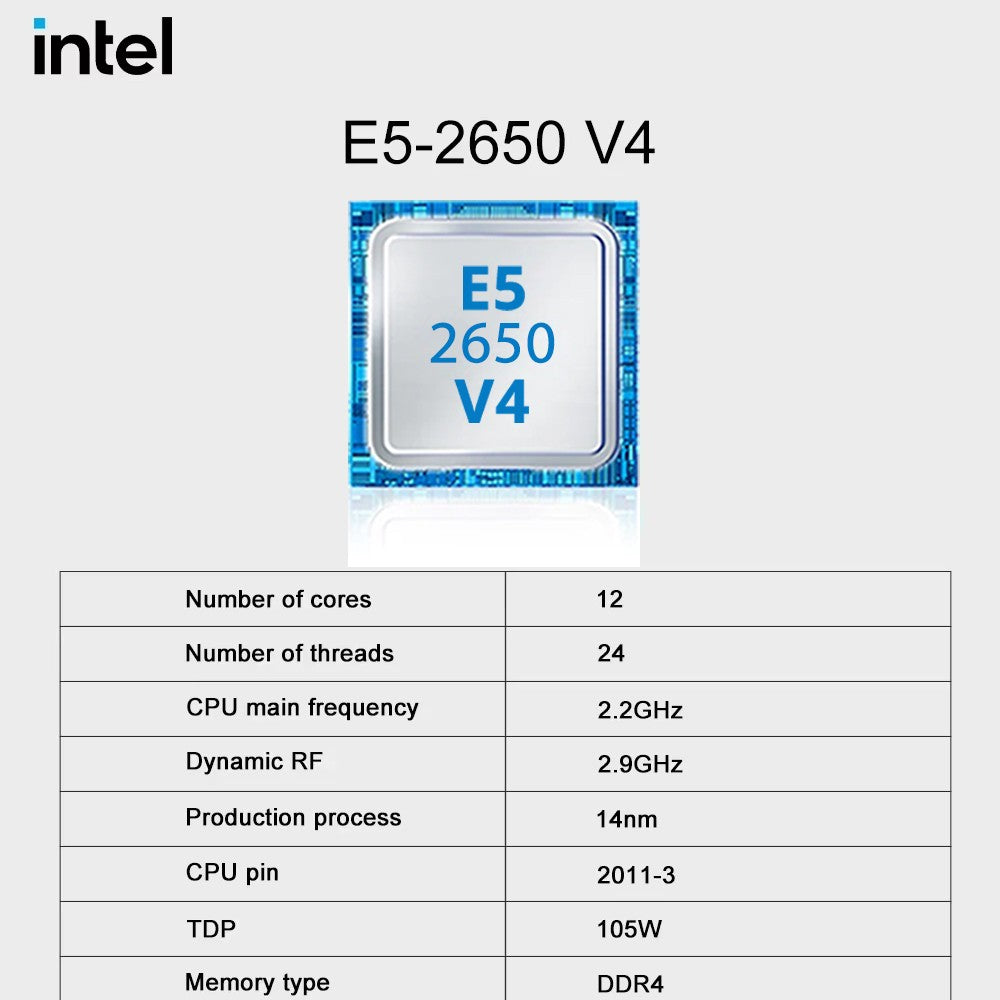

CPU:
Processor Series: Intel Xeon
Model number: E5 2650 V4
Processor Speed: 2.2GHz
Maximum core frequency: 2.9GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 12
The number of threads: 24
L3 cache size (MB): 30 MB
Wattage:105 Watts
cpu will be final double tested before shipping
The CPU is used , please don't buy it if you mind

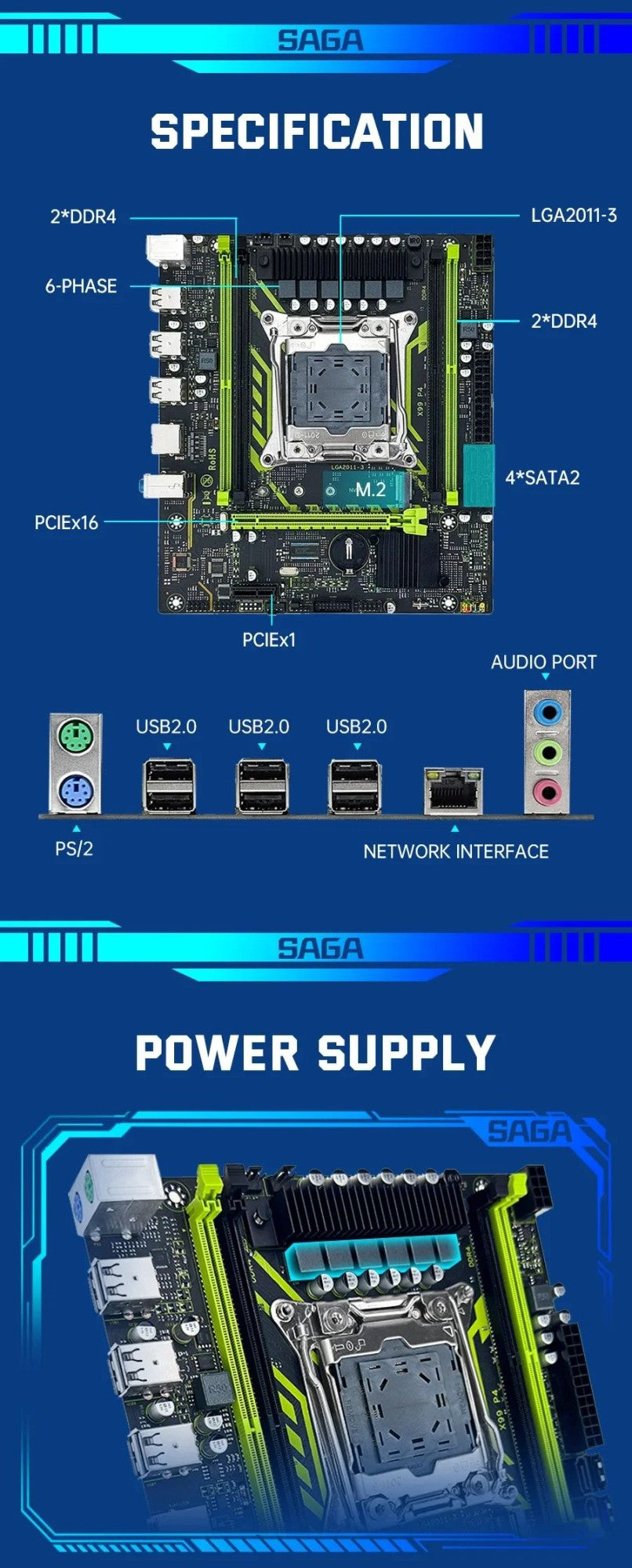

Specification:
Ethernet: 1 Realtek Gigabit Ethernet card
Audio: 1 audio interface (MIC-IN, LINE OUT, LINE IN)
USB Port: 6 USB ports 2.0 interface;
PCIE: 2 (1 PCIE X16, 1 PCIE X1)
USB ports: 4 (one USB port can be connected to two USB 2.0 ports)
Internal connectors
SATA interface: 4 SATA interfaces ( SATA2.0)
ATXPWR interface: 1 standard 1X8PIN power socket: 1 standard 1X24PIN power socket
Audio: 1 2x5PIN pin
Jlpc: 1 2x5pin battery
M. 2 interfaces: 1 M.2 interface (supporting PCIE M. 2/SATA M. 2)

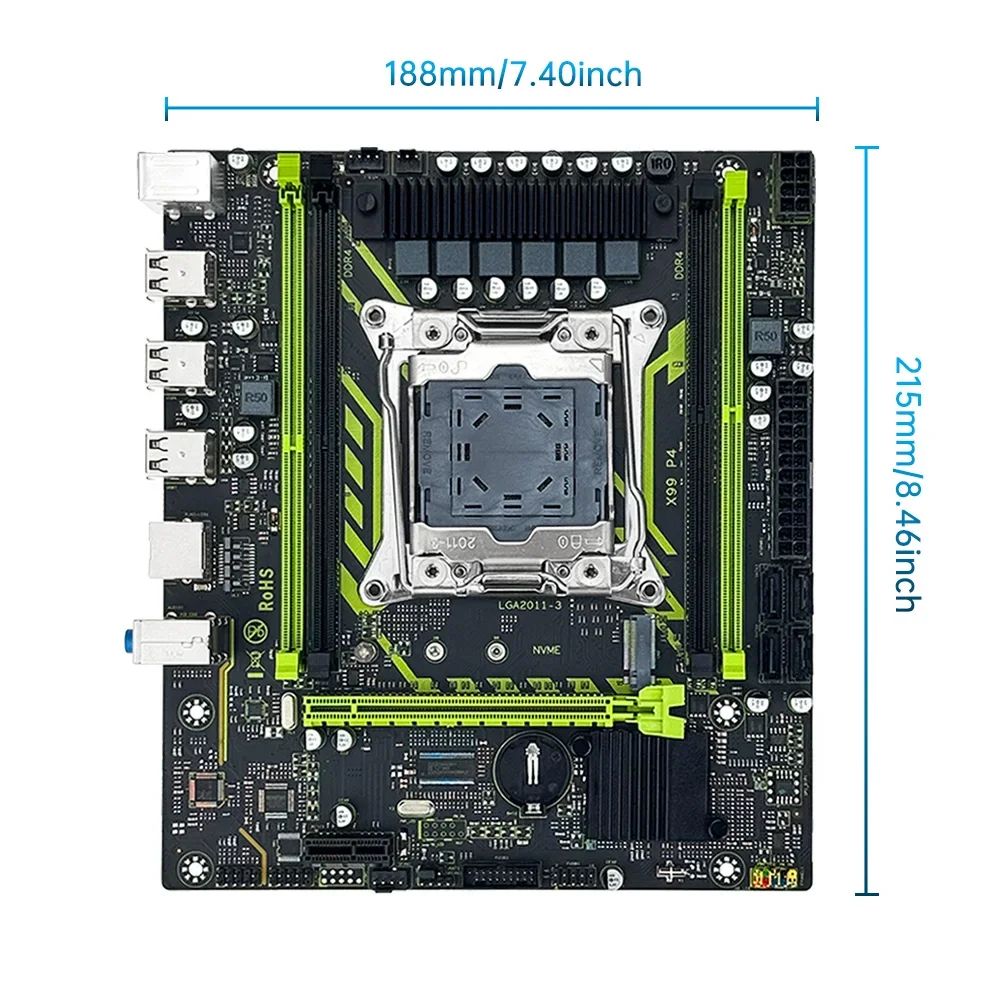

:M-ATX【215 x 190】mm
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
