Wuque Studio WS Flux HE Switches Deep Clacky Sound 35g Magnetic Linear Switches Prelubed Keyboard Switch Hall Effect Keyboard

Wuque Studio WS Flux Switch Compatible with Hall Effect Keyboard

Magnet Switch-Linear | Factory lubed

Type: Magnetic Linear Switch

Initial force: 35士5gf

Total Travel: 3.50士0.10mm

Bottom Out Force: 50士7gf

Trigger stroke can be freely defined

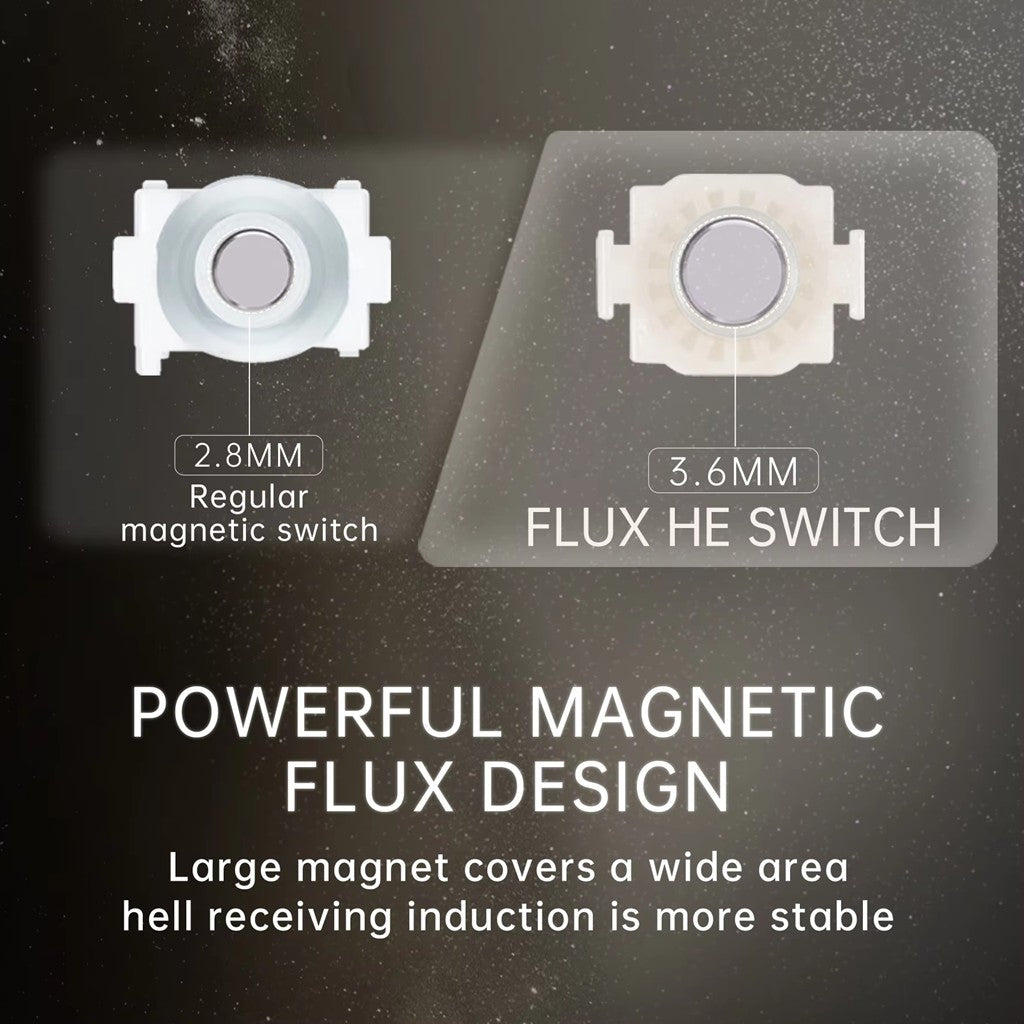

Initial magnetic flux:

130±15Gs (1.2mmPCB)

115±15Gs (1.6mmPCB)

Bottom-out magnetic flux:

750±70Gs (1.2mmPCB)

635±50Gs (1. 6mmPCB)

Lifetime: 100 million

Pre-Lubed: Yes

Features:

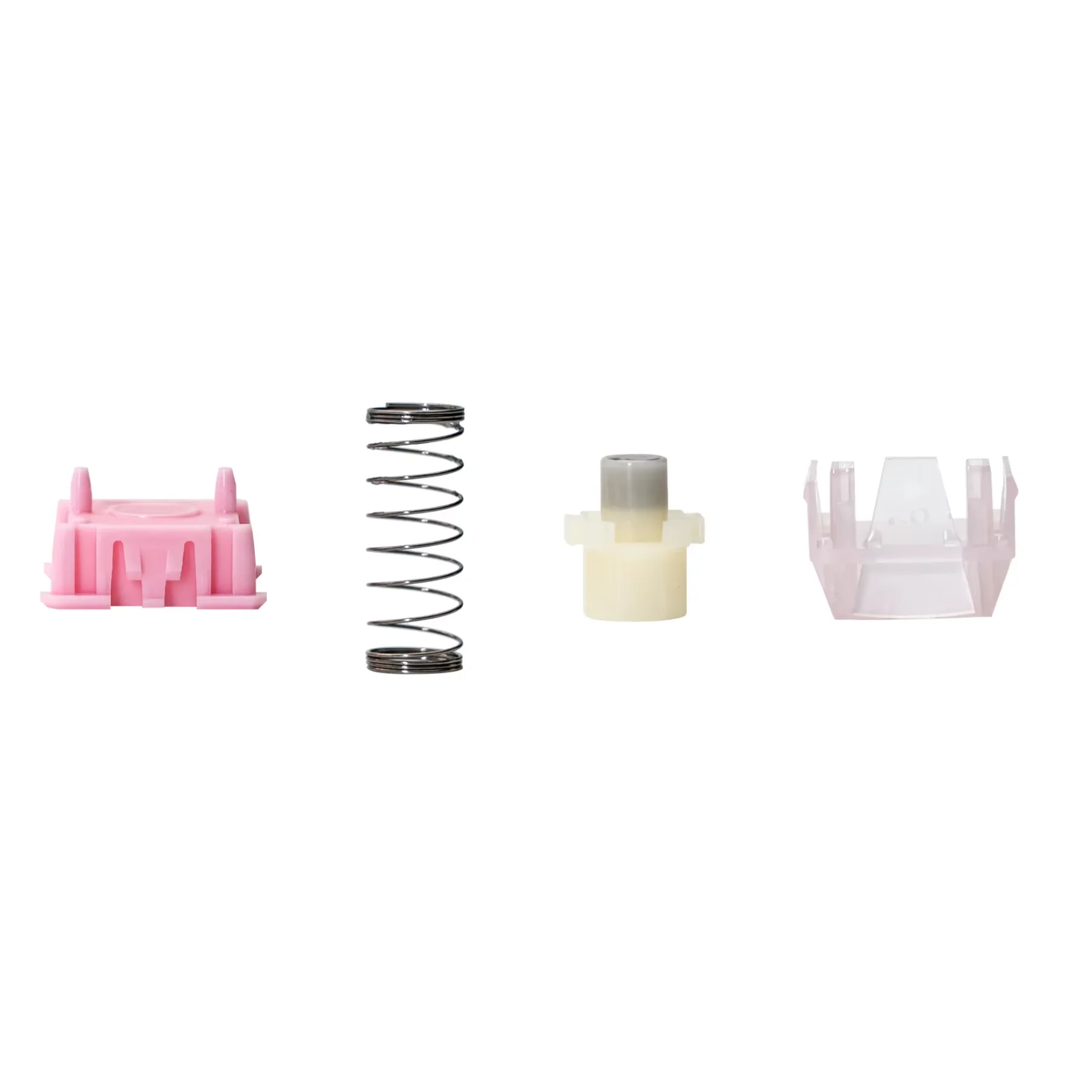

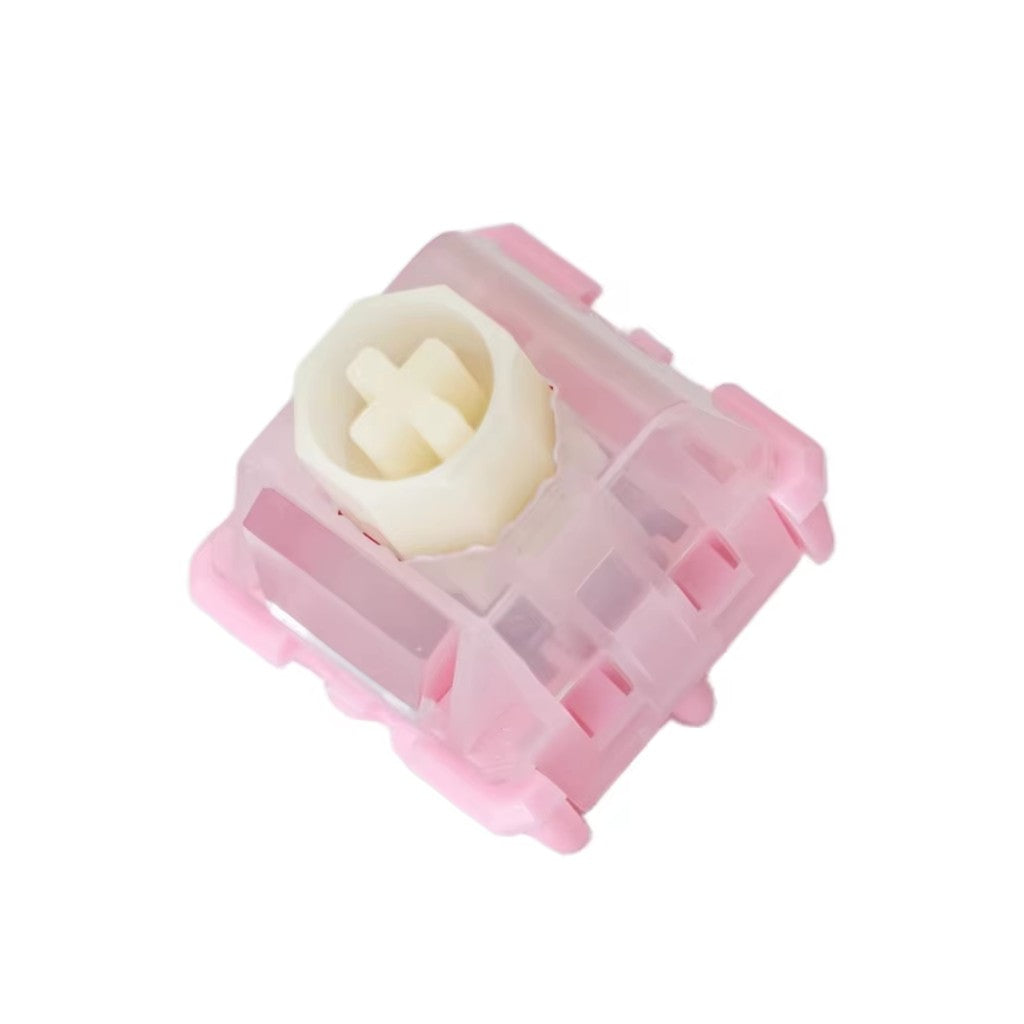

1 - Octagon Stem - Moving away from your typical rectangle design - the Eight-Sided Stem brings the minimum level of tolerance on every touch, from every position. Here, we've been able to create the most stable switch available

2 - T-Style Rail System - Implementing the new rail system works hand in hand with the new Stem. Together, the Stem and the Rail System work harmoniously in creating not only an extremely smooth experience, again, it also helps in creating the most stable switch.

3 - Four Point Rebound System - While not so obvious, the Four Point Rebound System continues the trend of creating stability and smoothness.

4 - Precision Lubing - Using top of the line machinery, we've been able to create a lube process that is extremely consistent across four points including the two rail systems, center core, and spring.
