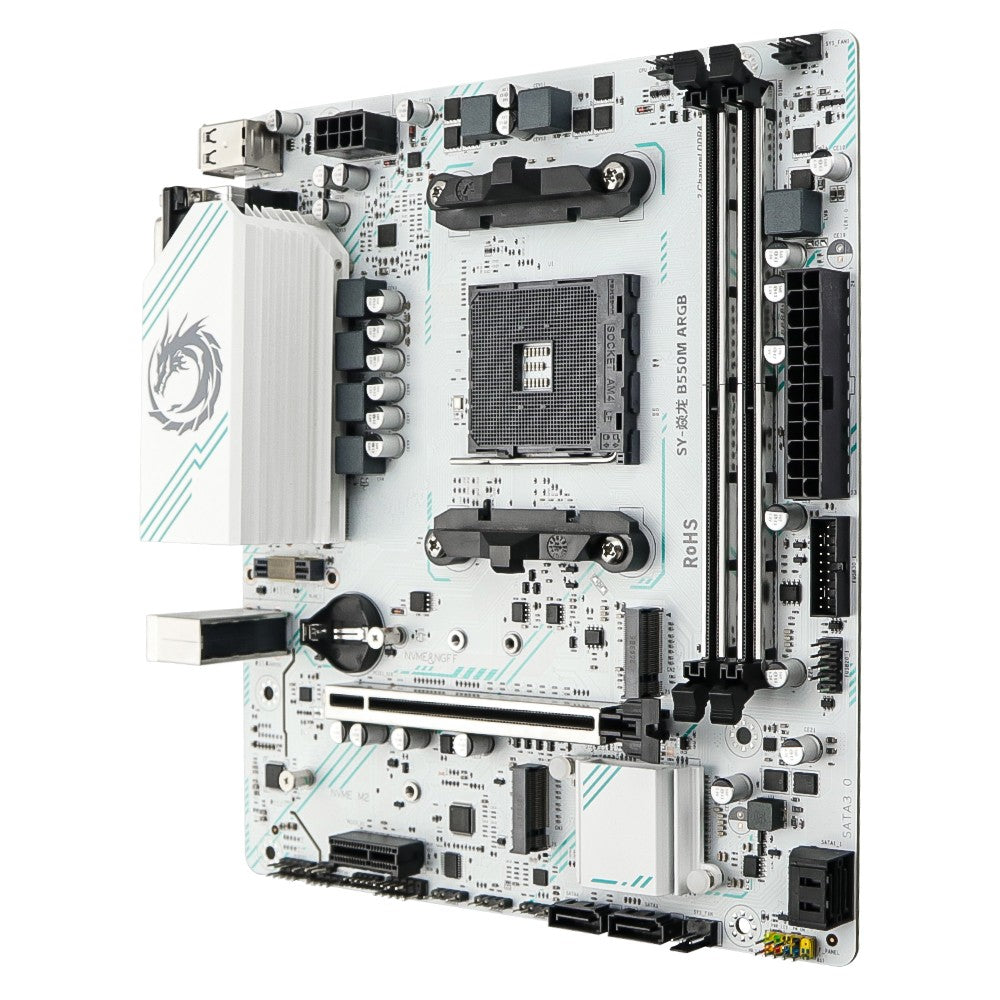

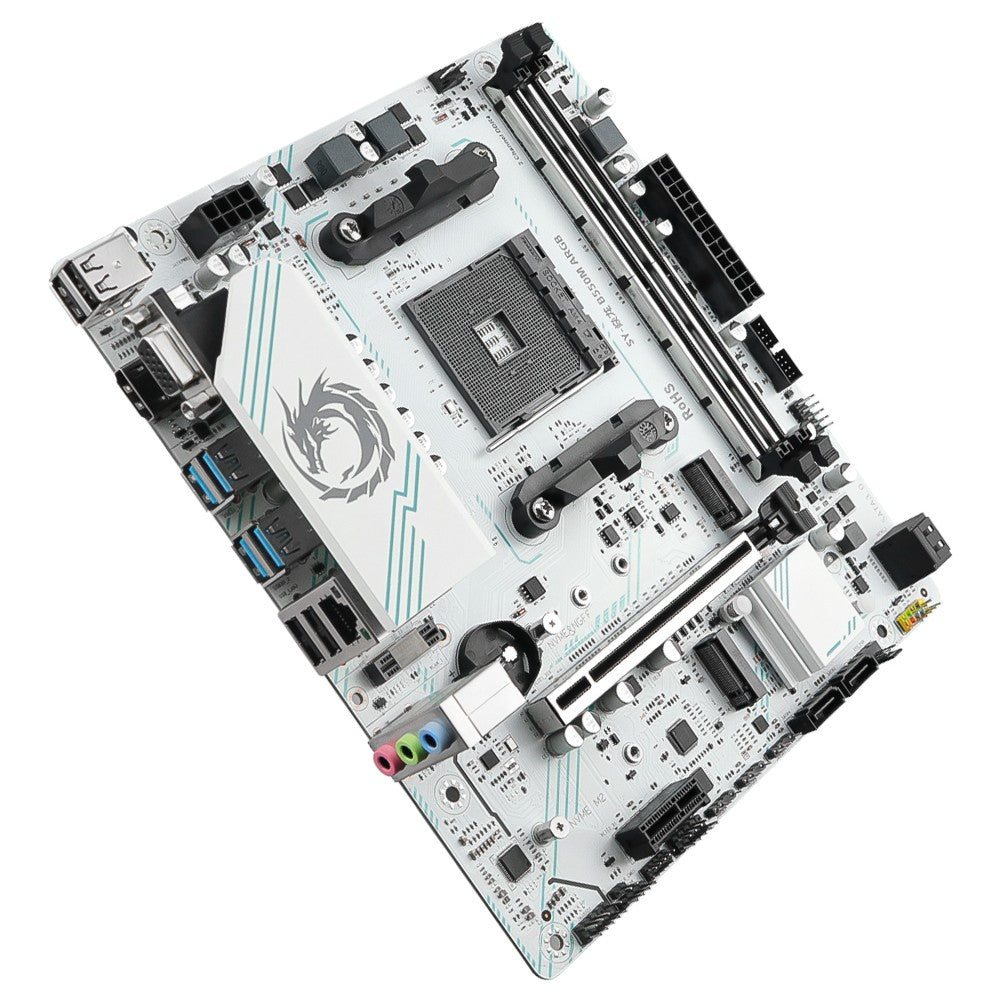

SOYO World Premiere AMD B550M Gaming Motherboard USB3.2 PCIE3.0 M.2 NVME Dual Channel DDR4 AM4 Socket supports Ryzen 5700X CPU

Brand Name: SOYO

Chipset: AMD B550

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 64 GB

Battery Included: No

Processor compatibility: AMD Ryzen 4000 Series-R3

Processor compatibility: AMD Ryzen 5000 Series-R5

Processor compatibility: AMD Ryzen 3000 Series-R7

Processor compatibility: AMD Ryzen 3000 Series-R3

Processor compatibility: AMD Ryzen 4000 Series-R5

Processor compatibility: AMD Ryzen 3000 Series-R5

Processor compatibility: AMD Ryzen 5000 Series-R3

With CPU: No

Support Memory Type: DDR4

Number of PCI: 3

Special Features: RGB

Special Features: Cooling Armor

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: Yes

Application: Desktop

Chipset Manufacturer: AMD

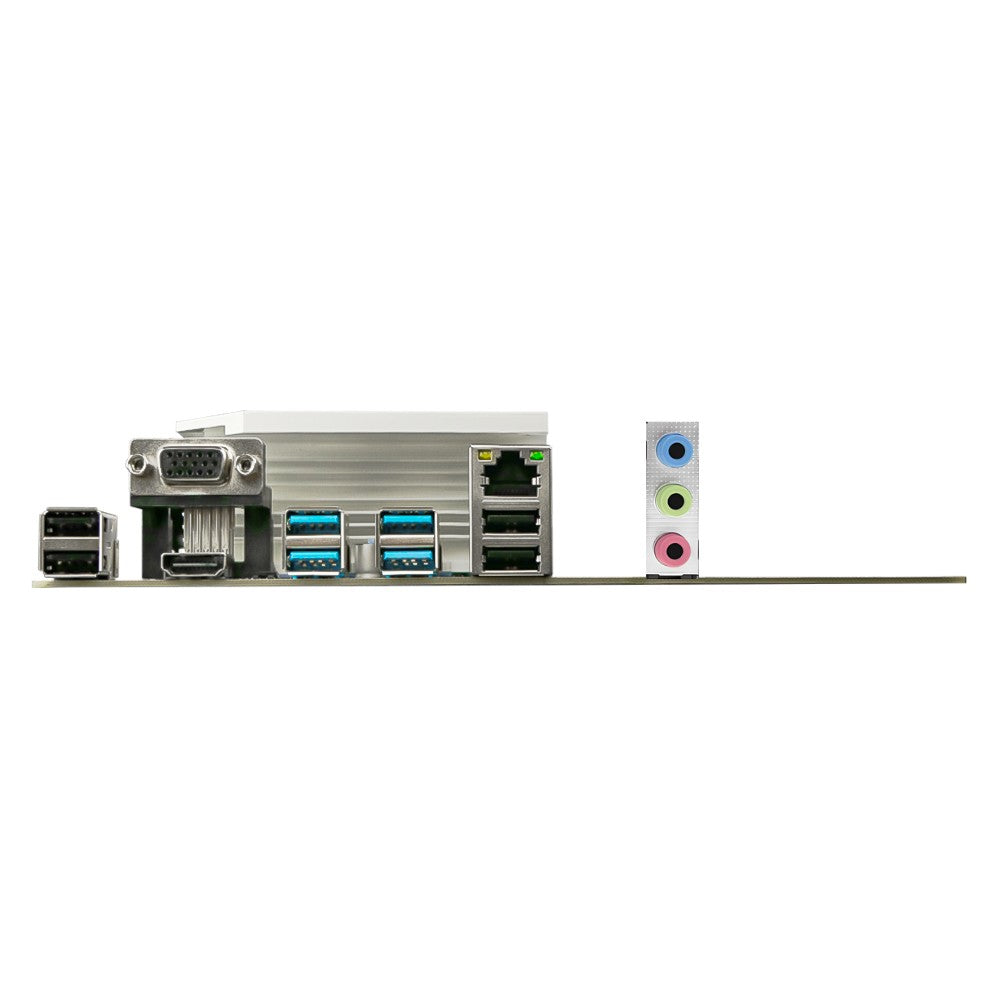

Back I/O Ports: 1x RJ45

Back I/O Ports: VGA (D-Sub)

Back I/O Ports: 3 x Audio Jacks

Back I/O Ports: 4x USB 3.2/3.1 Gen 2

Back I/O Ports: 4 x USB 2.0

Back I/O Ports: HDMI 2.0

PCI - E standards: PCI-E 4.0

Socket Type: AM4

High-concerned chemical: None

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Usage Scenario: Design

Usage Scenario: Video Production

Usage Scenario: Scientific Computing

Origin: Mainland China

Number Of Memory Slots: 2

Ports: PCI-Express X1

Support USB Type: USB 2.0

Support USB Type: USB 3.2 Gen1

Number of PCIe x 16: 1

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: Chassis(SYS) Fan Connector(s)

Onboard Connectors & Header: RGB Header

Onboard Connectors & Header: 8-pin +12V Power Connector

Memory channel: Double

Number of SATA Ports: 4

SATA RAID: 0

Max LAN Speed: 1000Mbps

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Supports M.2 SSD: 2242

Supports M.2 SSD: 2280

Number of M.2: 2

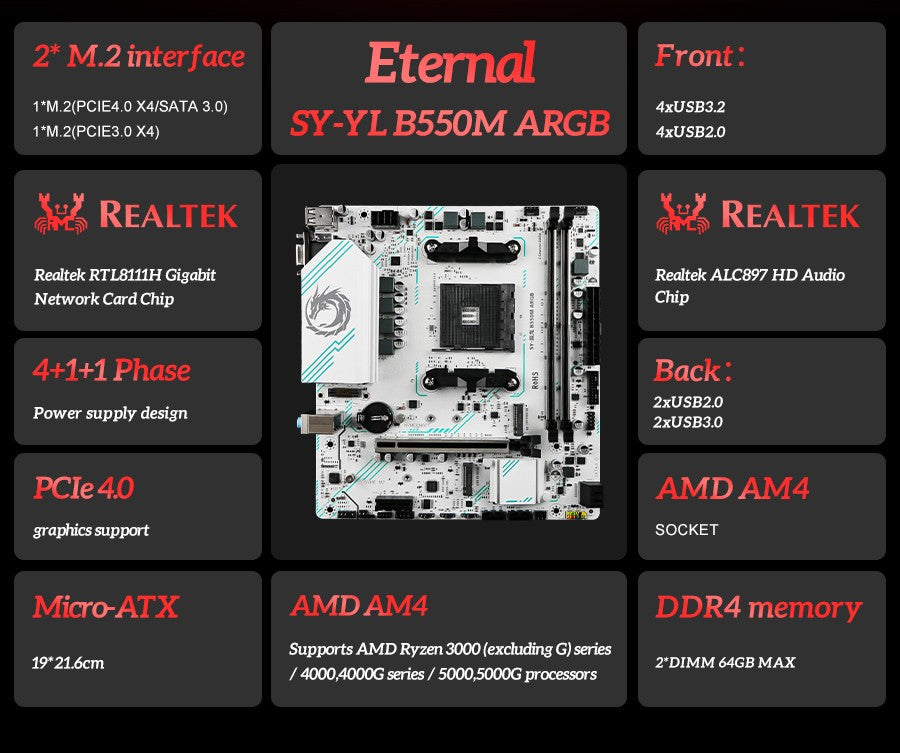

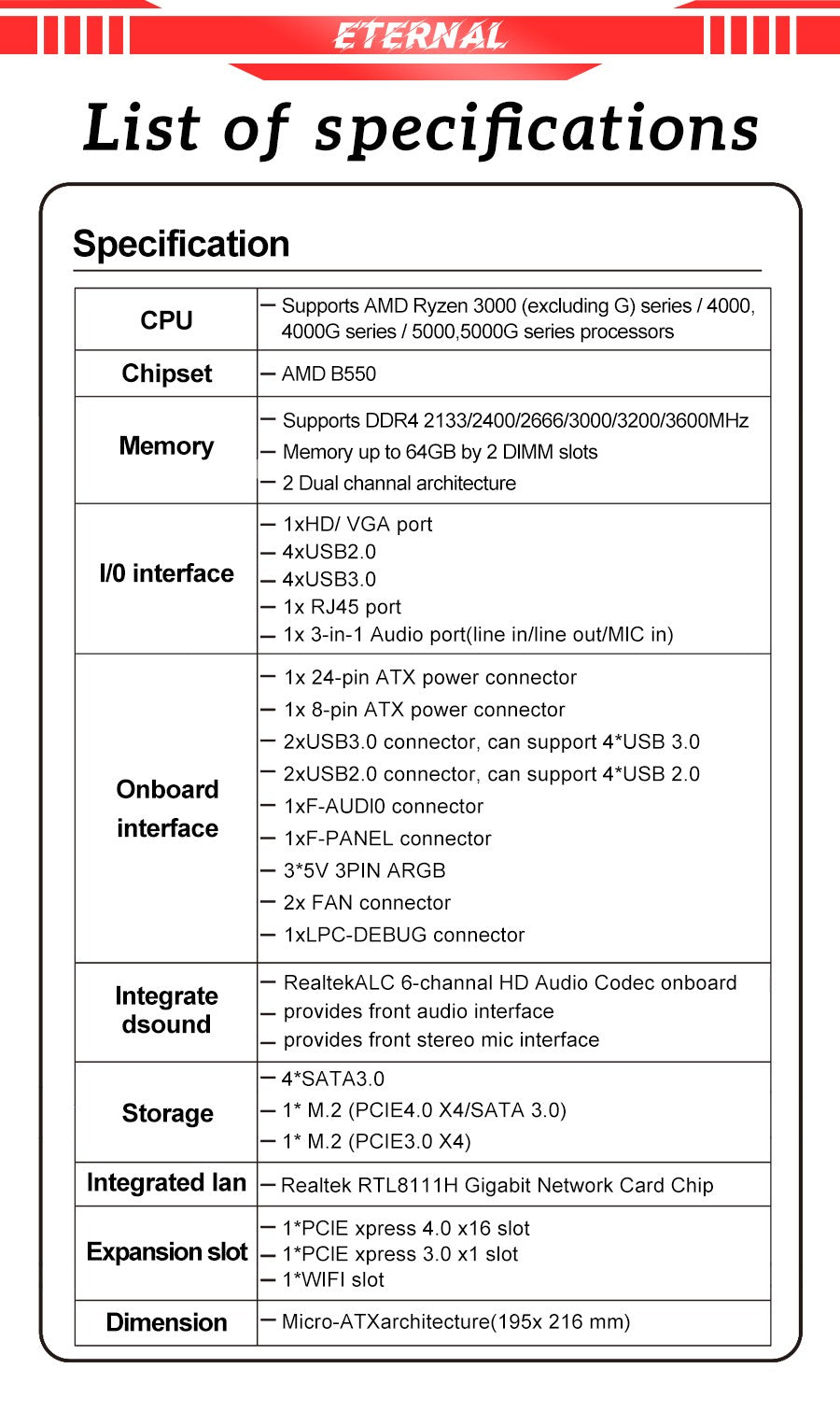

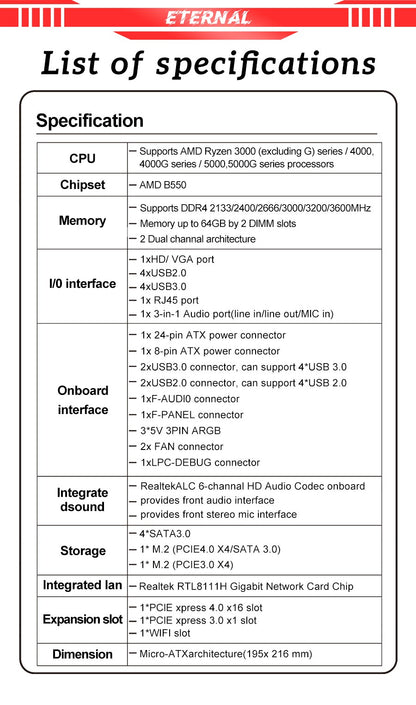

Specification

Motherboard chip: AMD B550
CPU: Support AMD Ryzen 3000 (excluding G) series/4000, 4000G series/5000, 5000G series processors

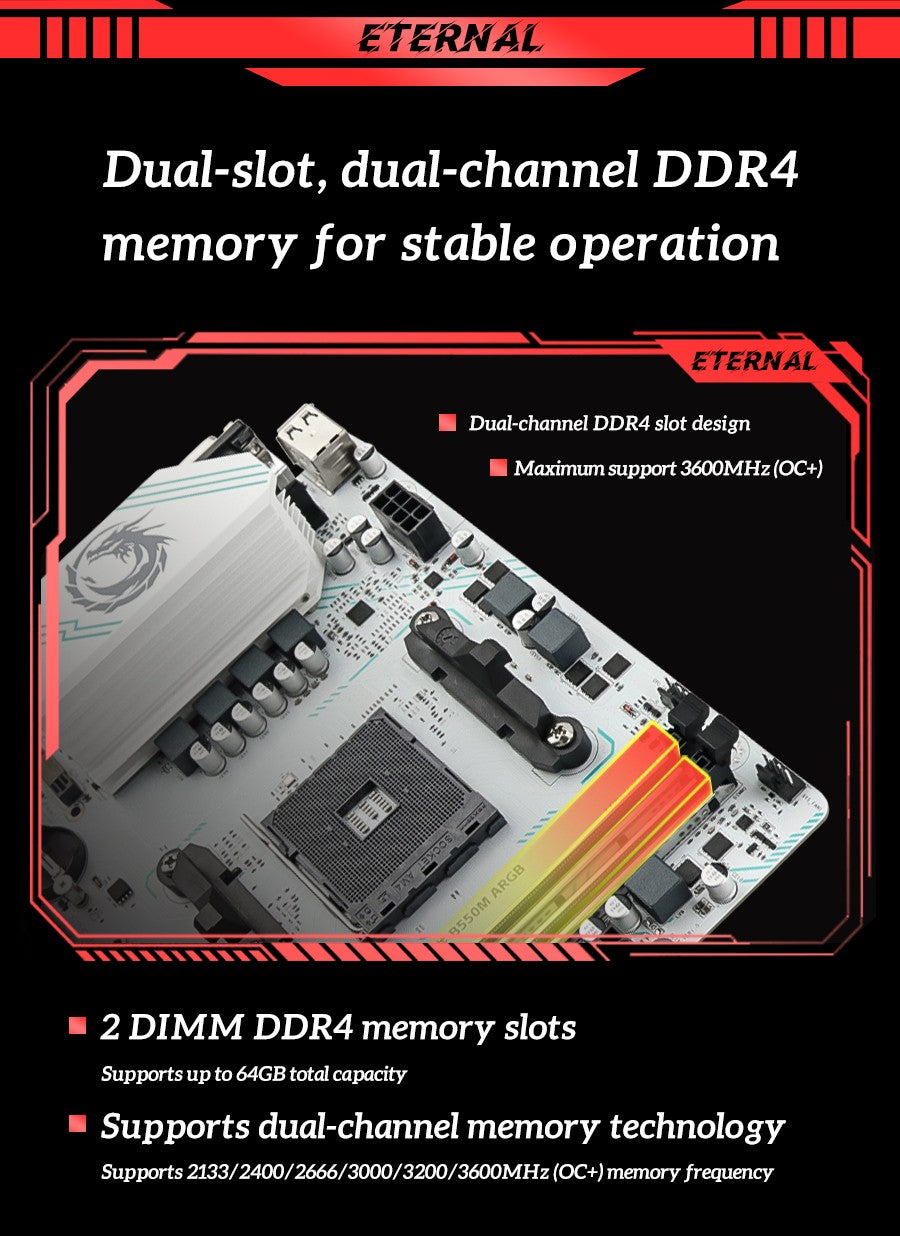

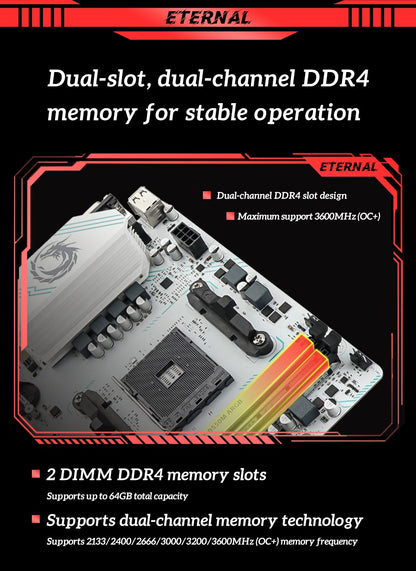

Memory: DDR4*2 dual channel; support 2133/2400/2666/3000/3200/3600MHz (OC+), support XMP, maximum support 64G (32G*2)

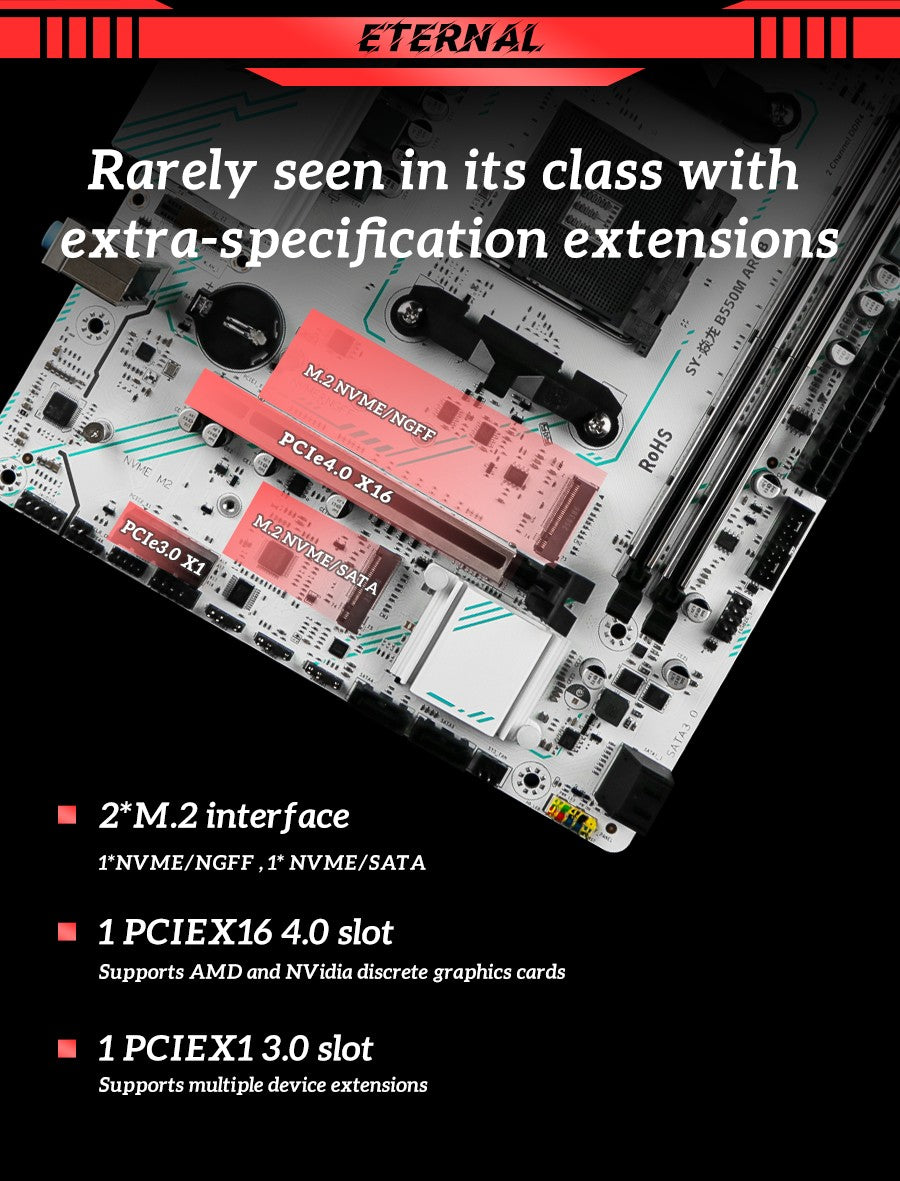

Storage: 2* M.2 slot (CN2: PCIE4.0 X4/SATA 3.0) (CN3: PCIE3.0 X4); 4*SATA 3.0 interface
Display interface: 1*HDMI 2.0 interface, 1*VGA interface
Network: 1*RJ45 interface
Network card chip: Realtek RTL8111H Gigabit network card chip
PCIE slot: 1*PCIE X16 slot (PCIE4.0 X16) ; 1*PCIE X1 slot (PCIE3.0 X1); 1*WIFI slot (PCIe protocol)
Audio: 1*Line out; 1*MIC In; 1*Line In; 1*F_Audio built-in pin
Audio chip: Realtek ALC897 high-definition audio chip

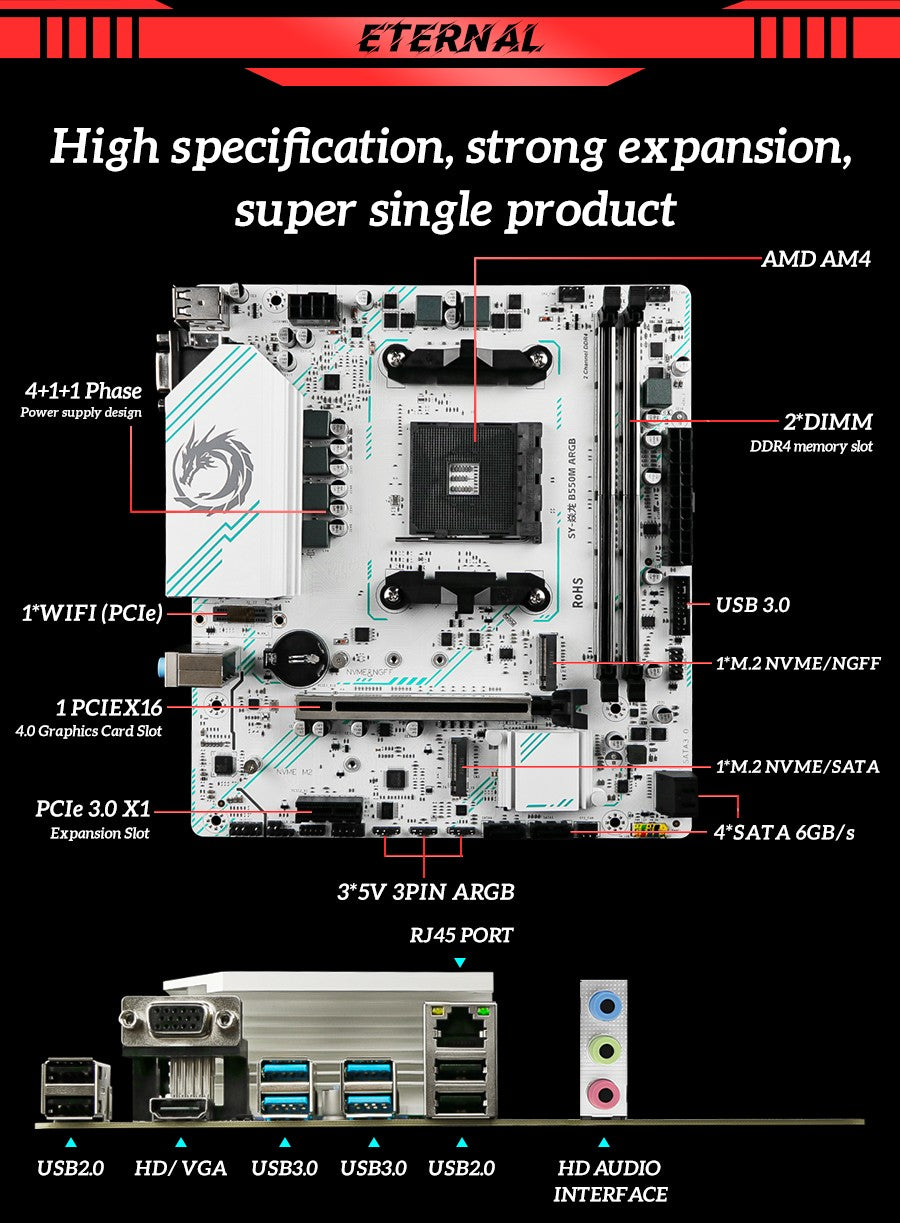

IO interface: 4*USB3.2 GEN1 (5Gbps), 4*USB2.0
Built-in pins: 1 set of USB2.0 pins (can be expanded to 2 USB2.0 ports); 1 set of USB3.0 pins (can be expanded to 2 USB3.0 ports); 5Gbps

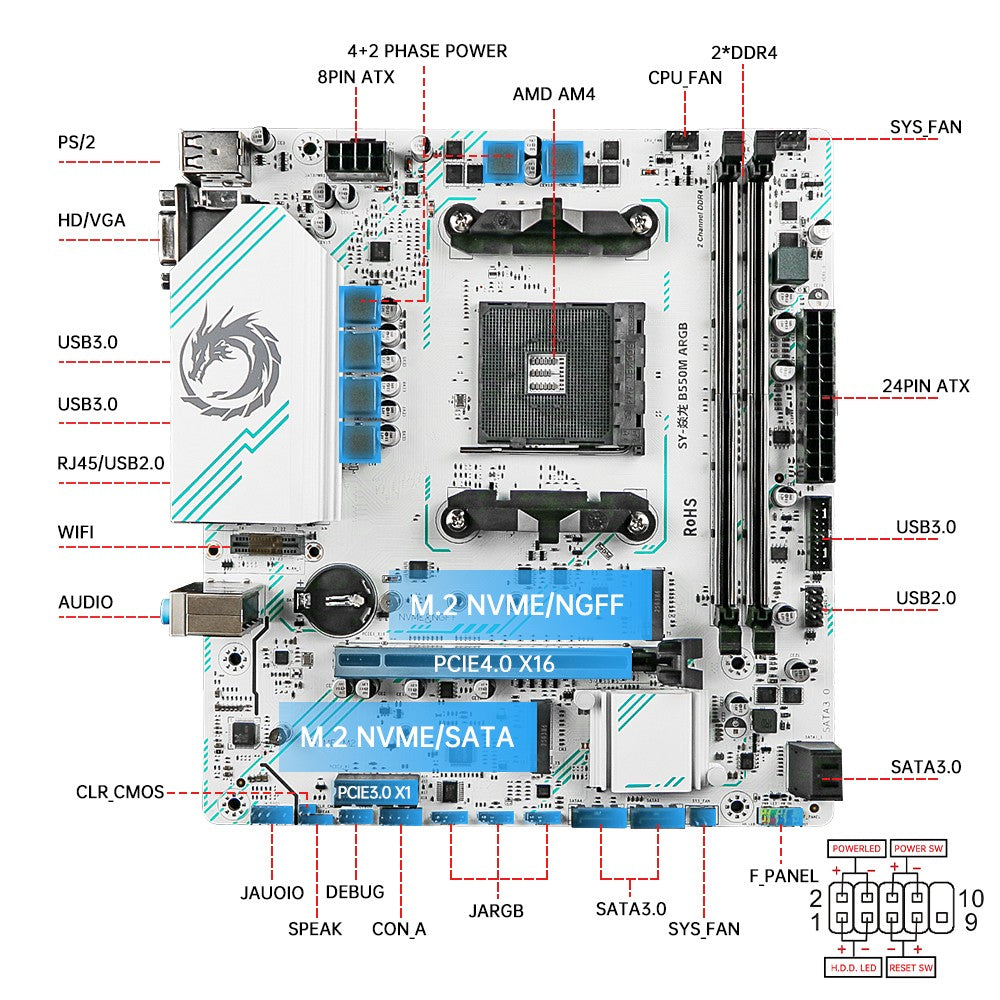

Function pins: 1*FPANEL panel pin; 1*4Pin CPU fan; 1*4Pin+ 1*3Pin SYS fan; 1*4Pin Speak pin; 2*5Pin COM pin; 2*5Pin Debug pin; 3*5V 3PIN ARGB pin
Power input: 24Pin+8Pin ATX power socket
Others 1*CLR CMOS 2PIN pin

Note:

(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 600w brand power supply).

(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.

(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.

# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
