SOYO Motherboard Set H610M LGA1700 with Intel CPU i3 12100F DDR4 (8G*2) 16GB 3200MHz Desktop Computer components SATA3.0 M.2
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: SOYO
Chipset: Intel H610
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 64 GB
Battery Included: No
Processor compatibility: 13th Intel Core i7
Processor compatibility: 12th Intel Core i5
Processor compatibility: 13th Intel Core i5
Processor compatibility: 12th Intel Core i3
Processor compatibility: 12th Intel Core i9
Processor compatibility: 13th Intel Core i3
Processor compatibility: 12th Intel Core i7
Processor compatibility: 13th Intel Core i9
With CPU: No
Support Memory Type: DDR4
Number of PCI: 1
Special Features: None
Storage Interface Type: SATA 3
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: Yes
Application: Desktop
Chipset Manufacturer: Intel

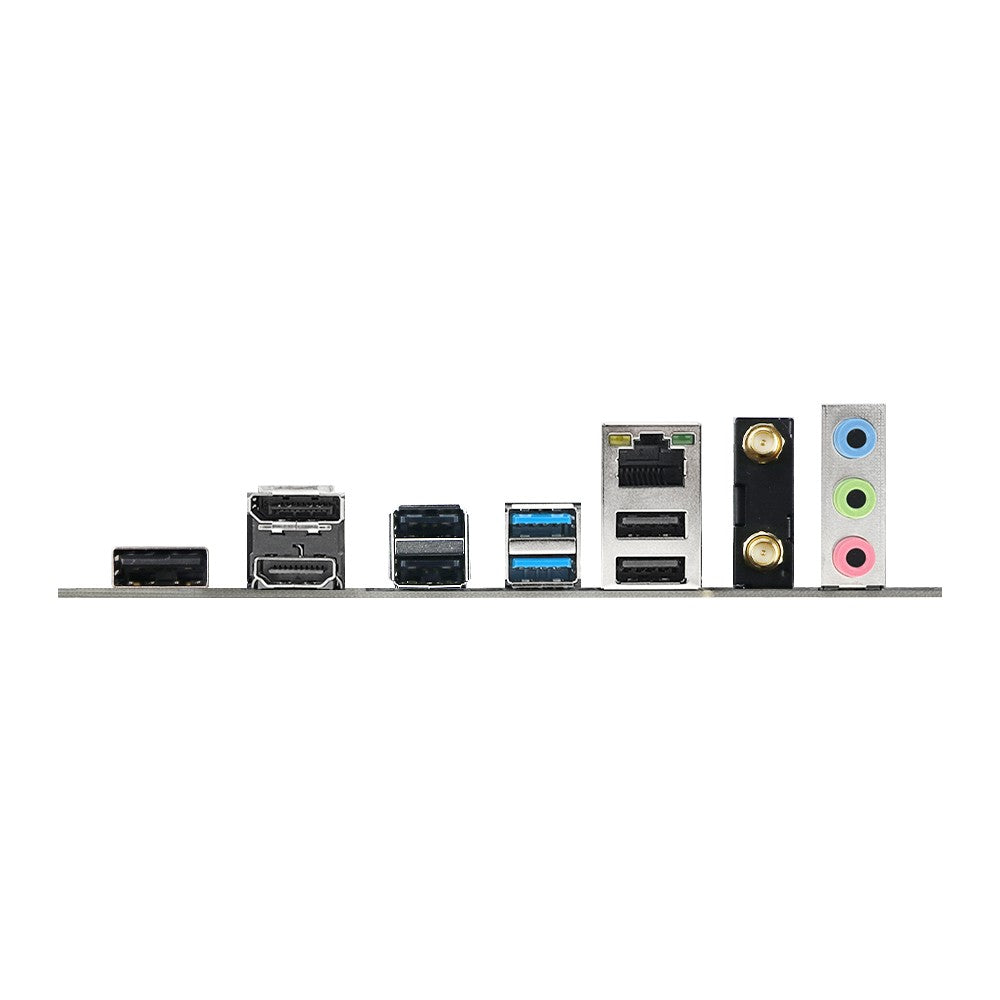

Back I/O Ports: VGA (D-Sub)
Back I/O Ports: HDMI 1.3
Back I/O Ports: 2x USB 3.2/3.1 Gen 1
Back I/O Ports: 4 x USB 2.0
PCI - E standards: PCI-E 4.0
Socket Type: LGA 1700
High-concerned chemical: None
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Video Production
Origin: Mainland China
Number Of Memory Slots: 2
Ports: PCI-Express X1
Support USB Type: USB 2.0
Support USB Type: USB 3.2 Gen1
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: AAFP Connector
Onboard Connectors & Header: USB 3.1 /3.2 Gen 1 Connector
Onboard Connectors & Header: Chassis(SYS) Fan Connector(s)
Onboard Connectors & Header: 8-pin +12V Power Connector
Onboard Connectors & Header: USB 2.0 Connector
Memory channel: Double
SATA RAID: 0
Max LAN Speed: 1000Mbps
Number of PCIe x 1: 1
Supports M.2 SSD: 2280
Supports M.2 SSD: 22110
Number of M.2: 1
Description
Report Item
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.
Differences between packages

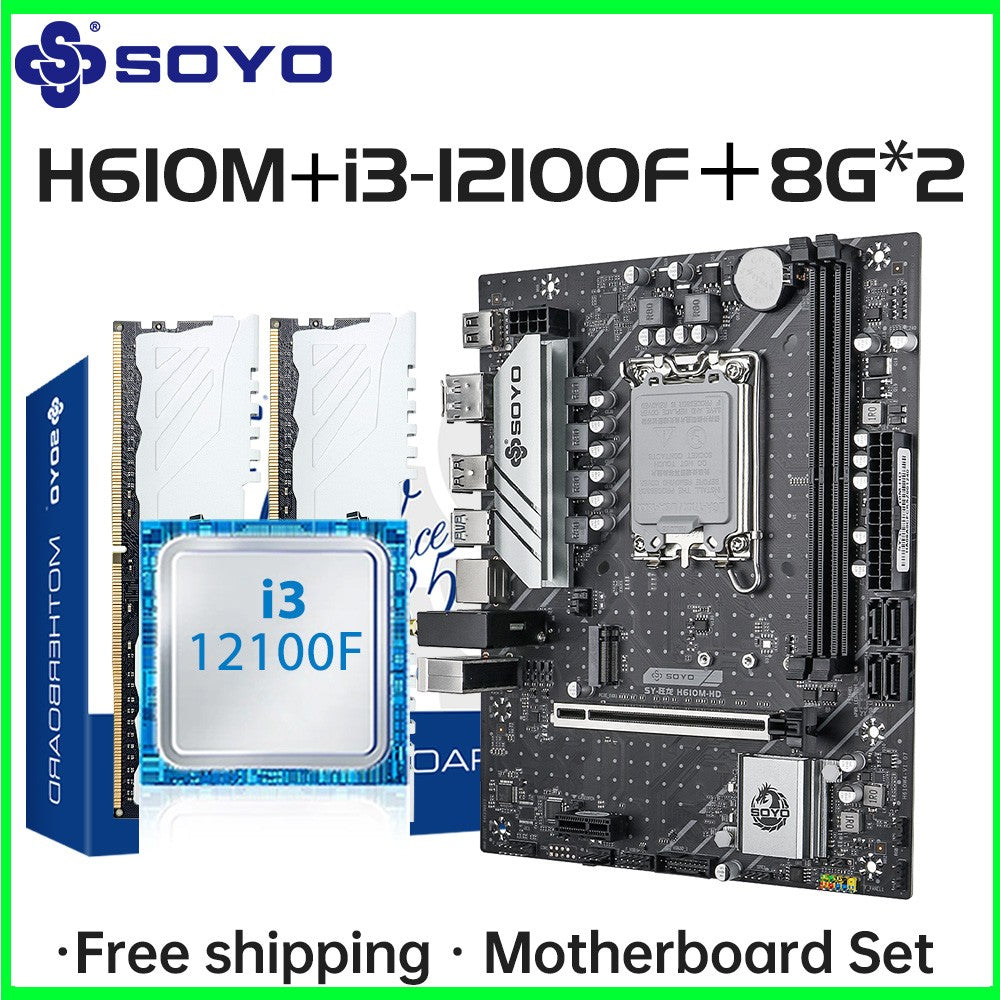

Motherboards: 1*SY H610M D motherboard
Motherboard+CPU: 1*SY H610M D+1*I3 12100F CPU
Motherboard+CPU+RAM: 1*SY- H610M D4+1*I3 12100F CPU+2*DDR4 3200 8GB
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order

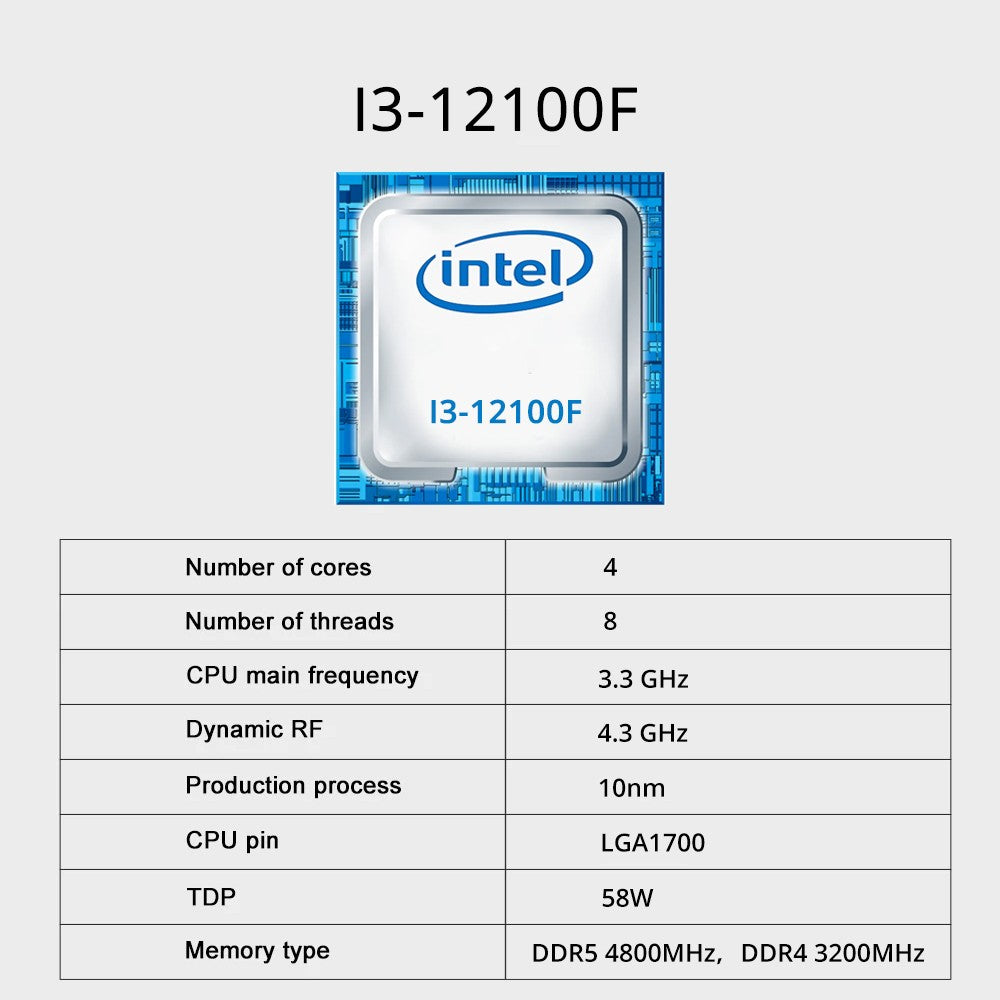

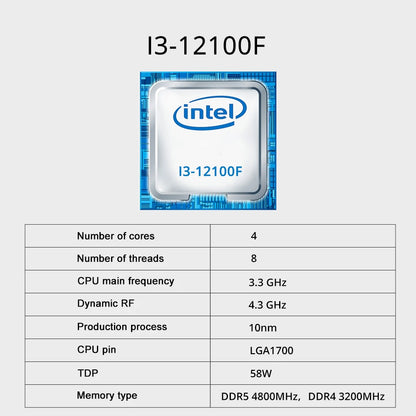

CPU:
Processor Series: Intel
Model number: I3 12100F
Processor Speed: 3.3GHz
Maximum core frequency: 3.7GHz
Processor Socket: LGA1700
Process: 32nm
Memory type: DDR5 4800/DDR4 3200
The number of CPU cores: 4
The number of threads: 8
L3 cache size (MB): 12 MB
Wattage: 58 Watts
cpu will be final double tested before shipping
RAM:
Frequency: DDR 4-3200mhz
Interface type: DDR4
Capacity: 8G
Quantity: 2
Working temperature: 0℃~70℃
XMP/A-XMP one-button overclocking (optional)

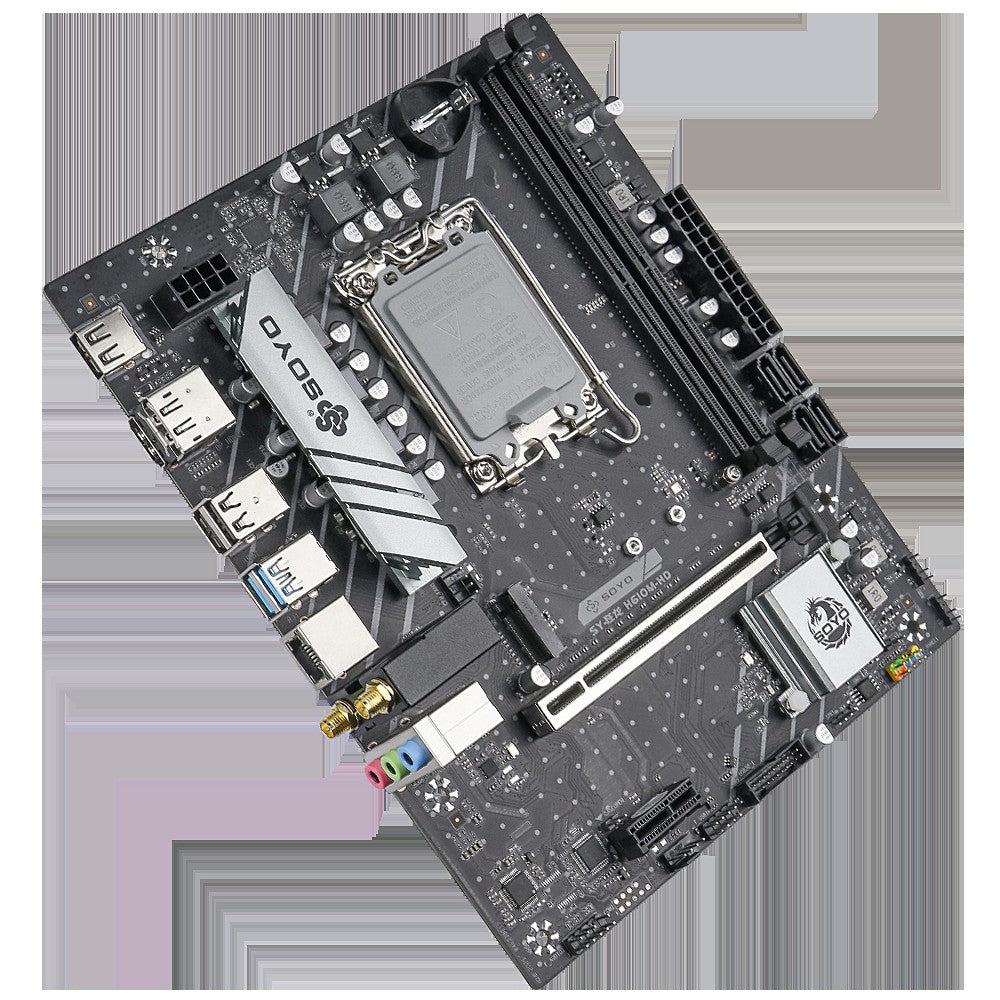

Mainboard Specification:
* Plate type: MATX
* chipset: Intel H610 chipset
*CPU support: Intel 12th, 13th and 14th generation Core(LGA1700).
* Memory support: DDR 4 dual slot
* Disk interface: 3 SATA3.0 and 1 PCIe 3.0 X4.
*PCIe slot: 1 PCIe4.0 X16 full-length slot and 1 PCIe X1 slot.
*USB interface: 2 USB3.2 Gen1 interfaces and 4 USB2.0 interfaces at IO; 1 set of USB3.2 Gen1 interface on the front panel and 1 set of USB2.0 interface on the front panel.
* Audio interface: HD audio
* Video interface: 1 HDMI interface and 1 VGA interface.
* Power interface: 24 pins+4 pins

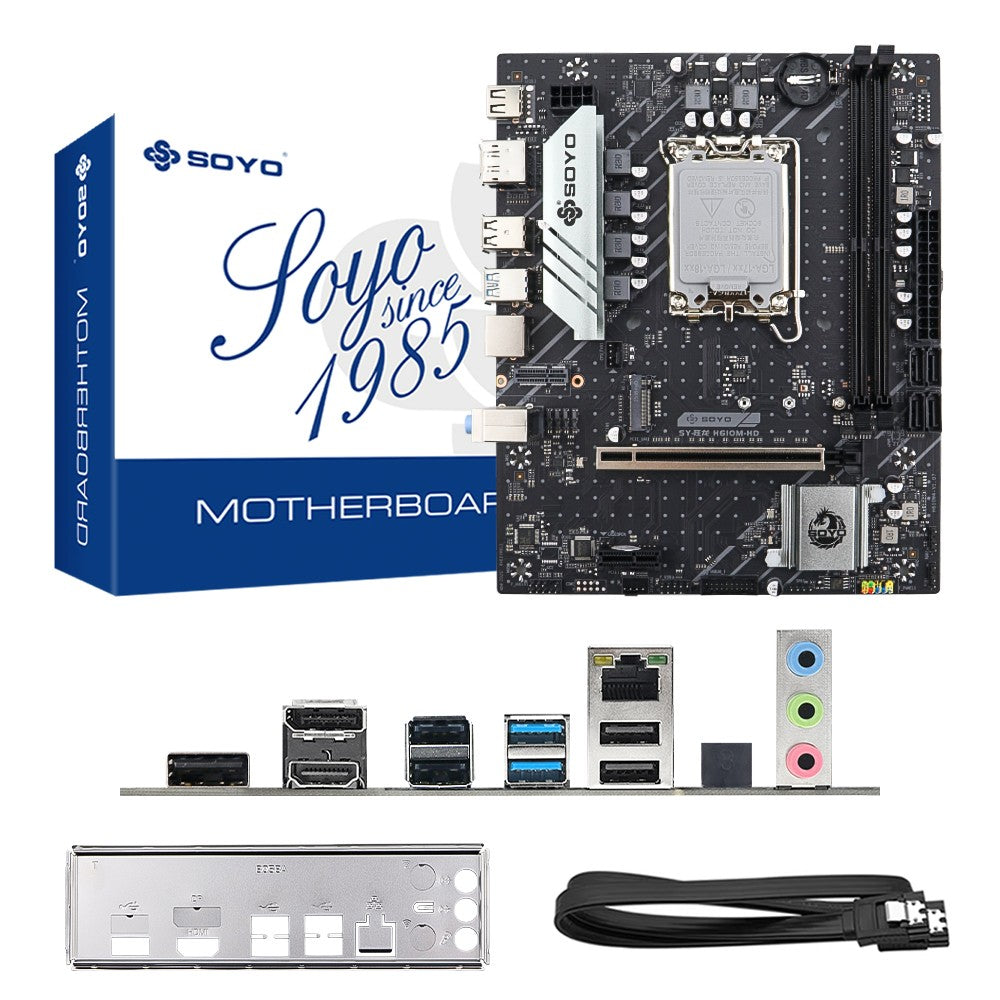

* motherboard accessories: instruction manual, SATA data cable and I/O baffle.
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 300w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3) Install the memory. All RAM needs to be installed in
