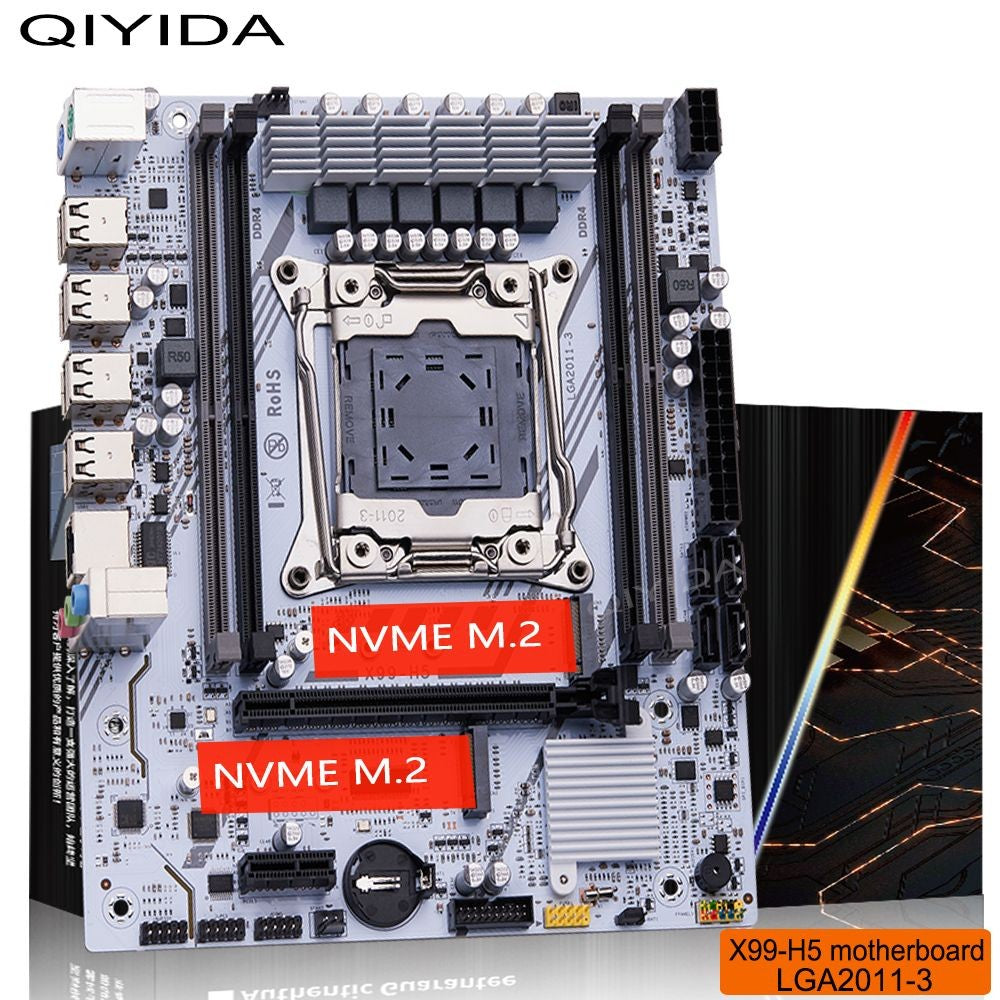

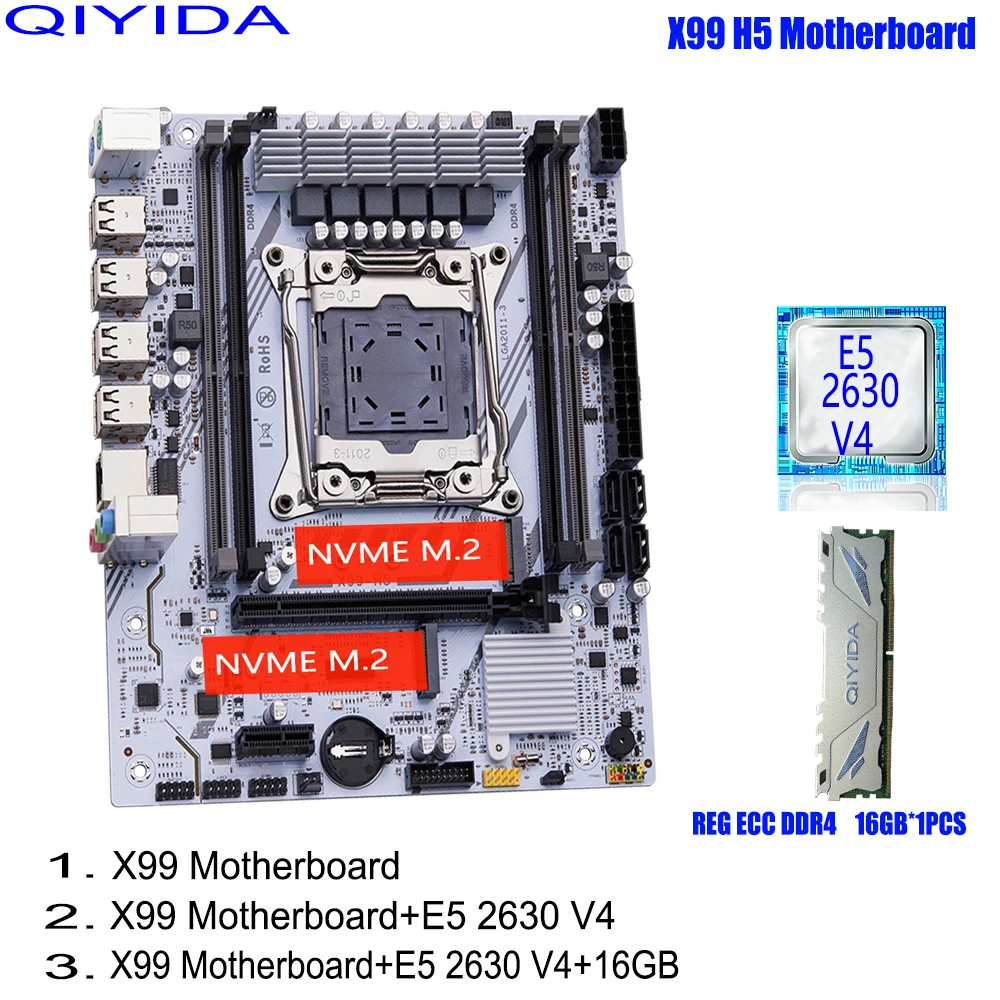

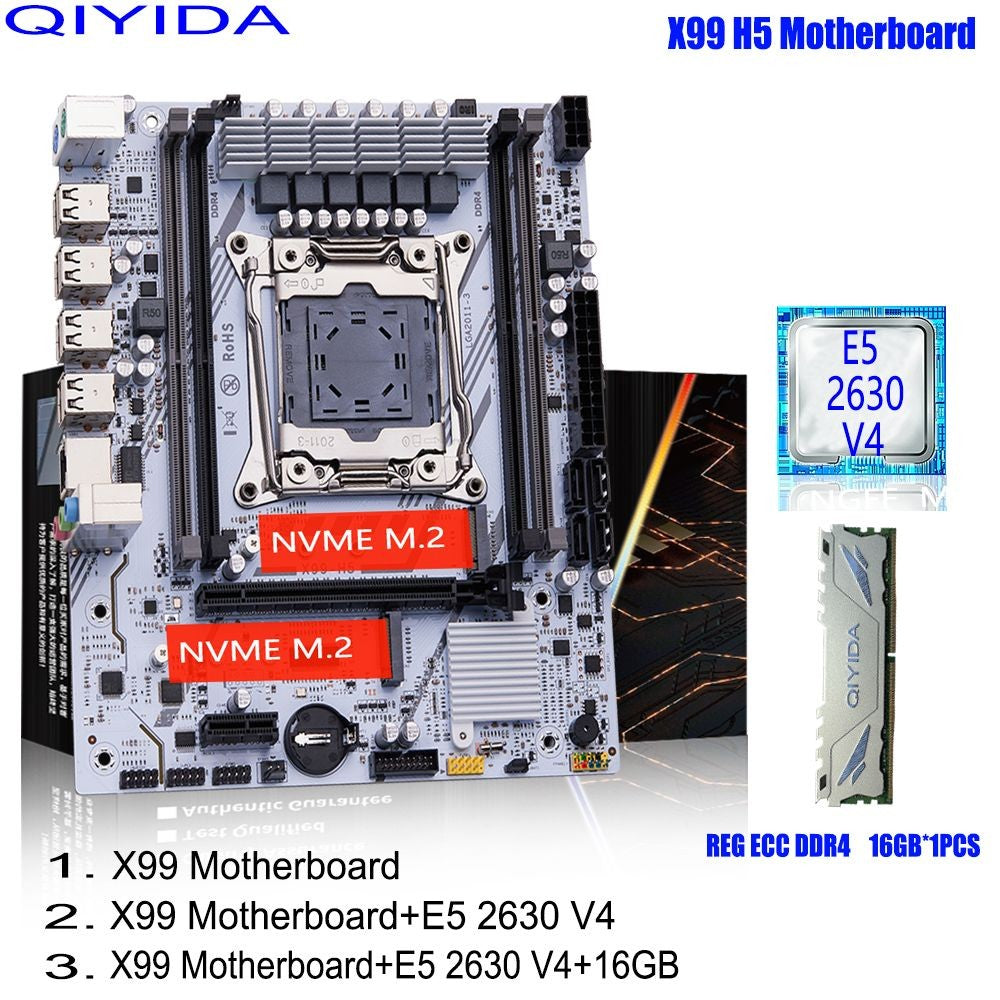

QIYIDA X99 Motherboard Set Kit With LGA2011-3 Xeon E5 2630 V4 CPU DDR4 16GB REG ECC memory PCI 16x NVME M.2 SATA x99 H5
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: QIYIDA
Chipset: Intel Others
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Battery Included: No
Processor compatibility: Intel Xeon
Processor compatibility: Intel Others
Processor compatibility: Intel Xeon E Series
With CPU: No
Support Memory Type: DDR4
Number of PCI: 2
Special Features: Cooling Armor
Storage Interface Type: SATA 2
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: No
Application: Desktop
Chipset Manufacturer: Intel

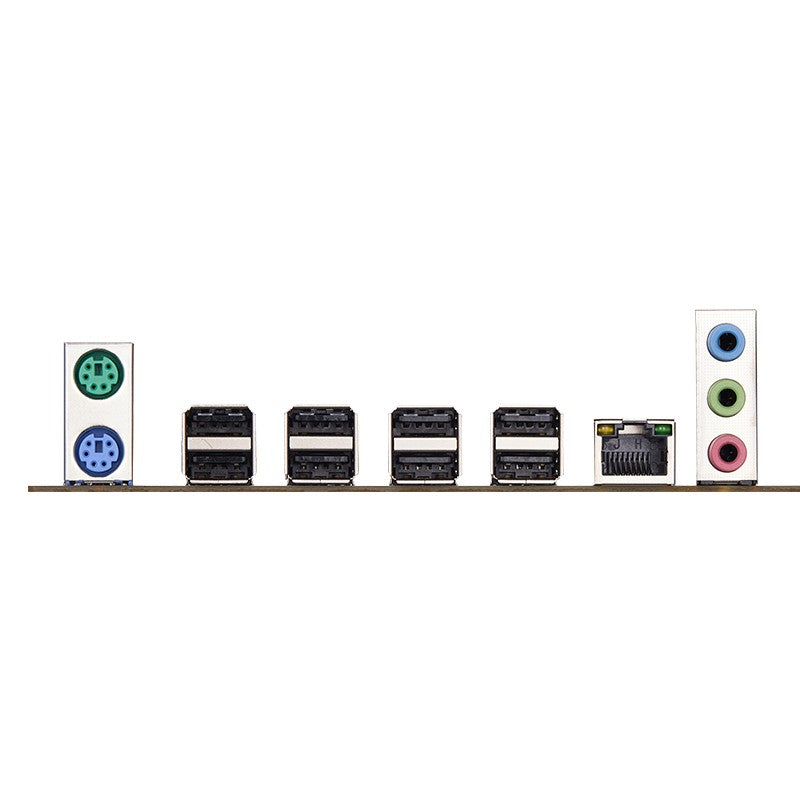

Back I/O Ports: 1x RJ45
PCI - E standards: PCI-E 3.0
Socket Type: LGA 2011-3
High-concerned chemical: None
Usage Scenario: Enthusiast & Overclocking
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Design
Usage Scenario: Video Production
Usage Scenario: Industrial Computer
Usage Scenario: Workstation
Usage Scenario: Server
Usage Scenario: Mining
Usage Scenario: Scientific Computing
Usage Scenario: 3-D Modeling
Usage Scenario: Video Rendering
Usage Scenario: MaxCompute
Usage Scenario: others
Usage Scenario: HPC
Origin: Mainland China
Number Of Memory Slots: 4
Number of PCIe x 16: 1
Memory channel: Double
Number of SATA Ports: 4
Number of PCIe x 1: 1
Form Factor: Micro-ATX
Number of M.2: 2
Notice：
ALL RAM needs to install in slot (grey slot)priority，Inserting the black memory slot alone is invalid.
A 2032 battery needs to be installed to start the computer, otherwise it cannot be started
If inserted in the wrong location, it can cause the computer to not start.

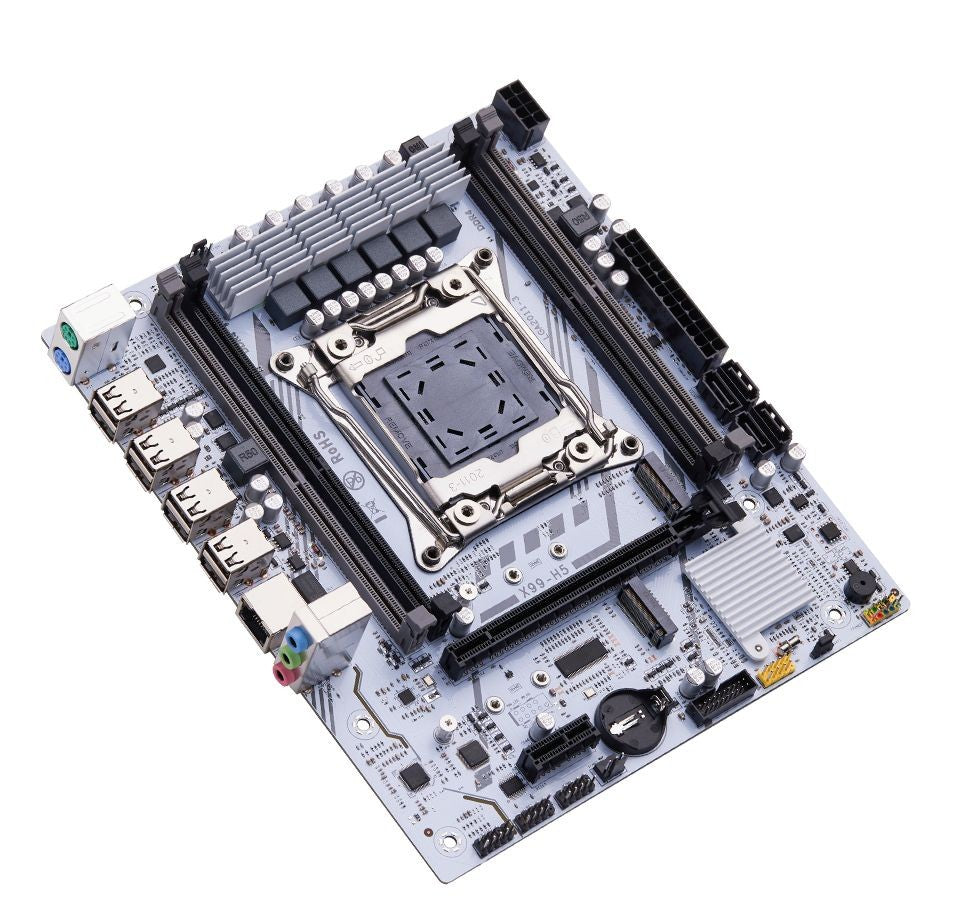

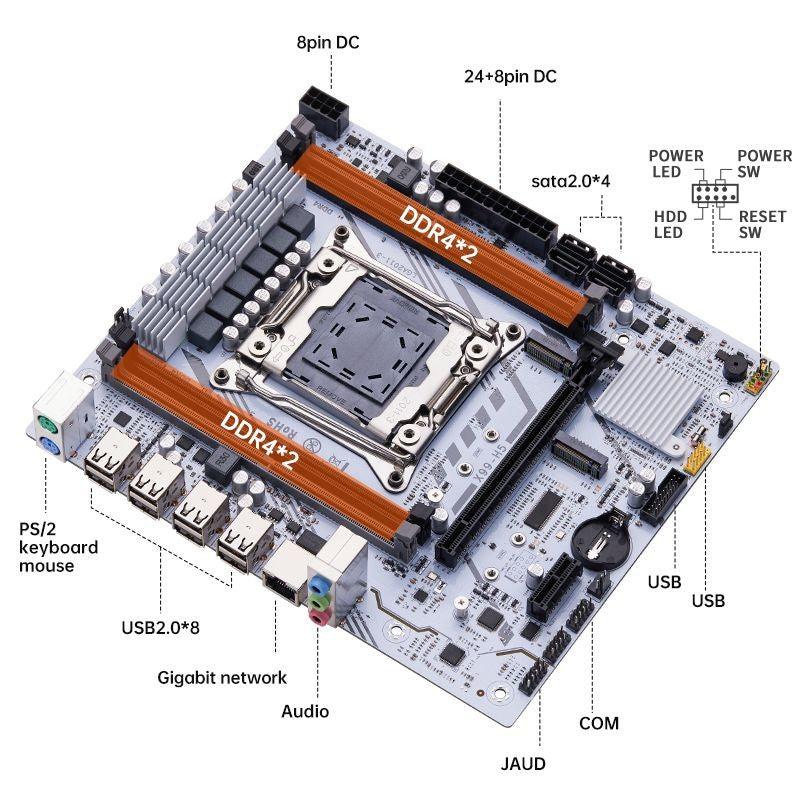

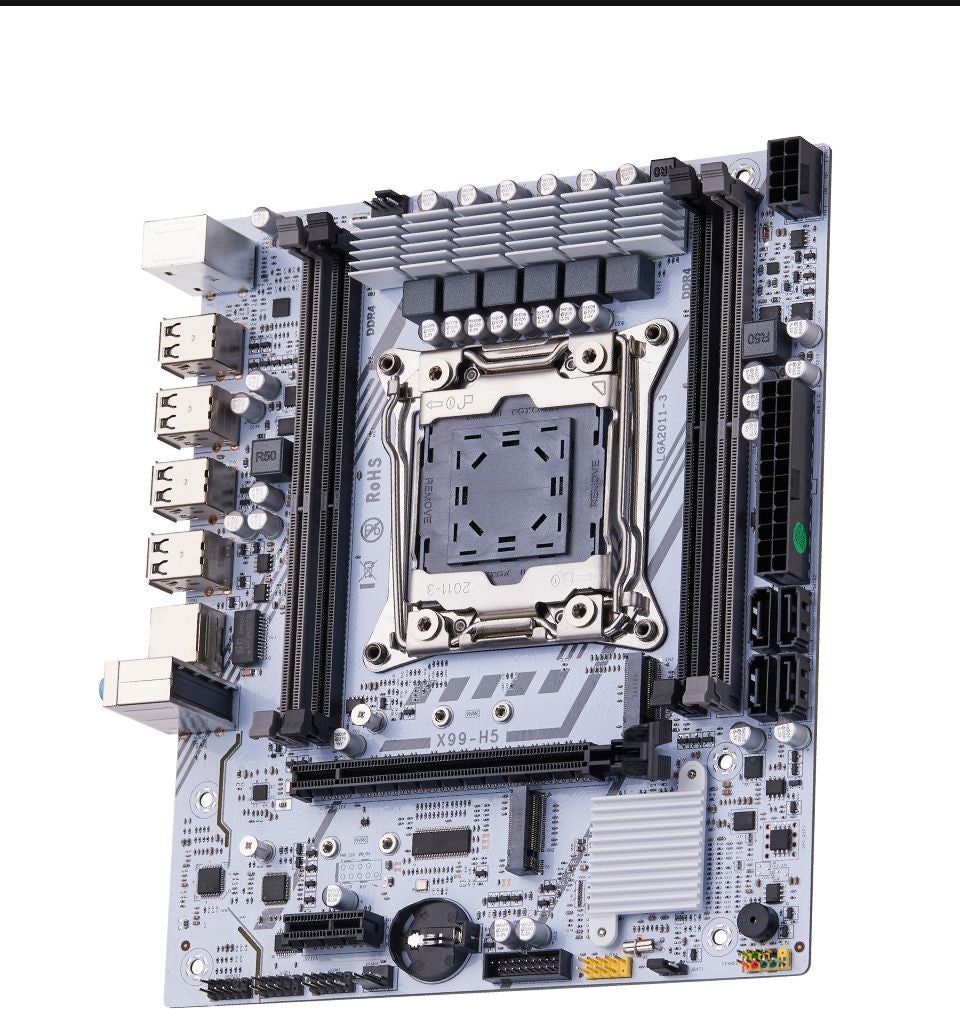

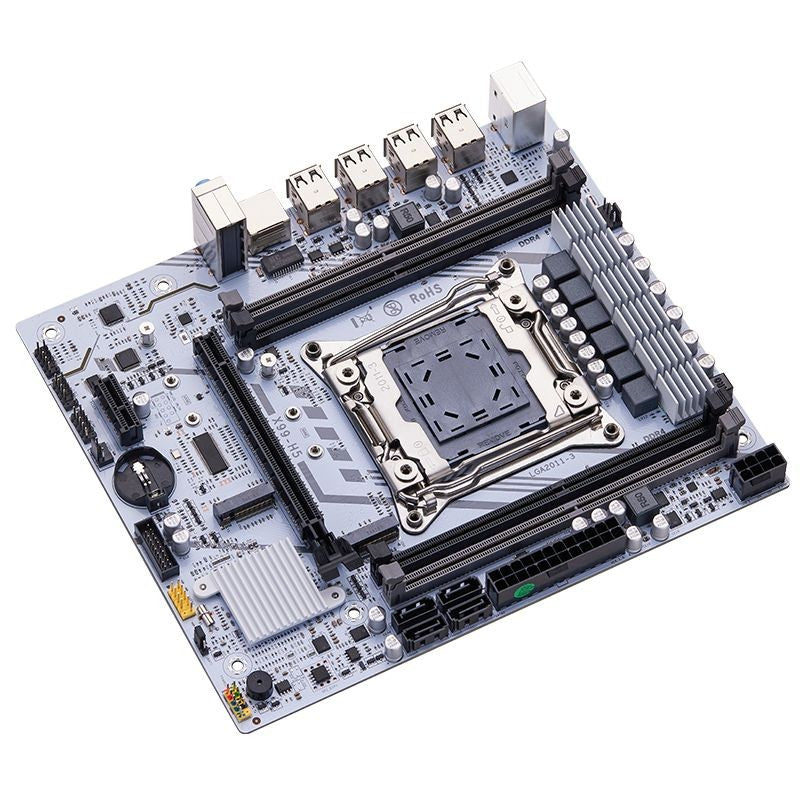

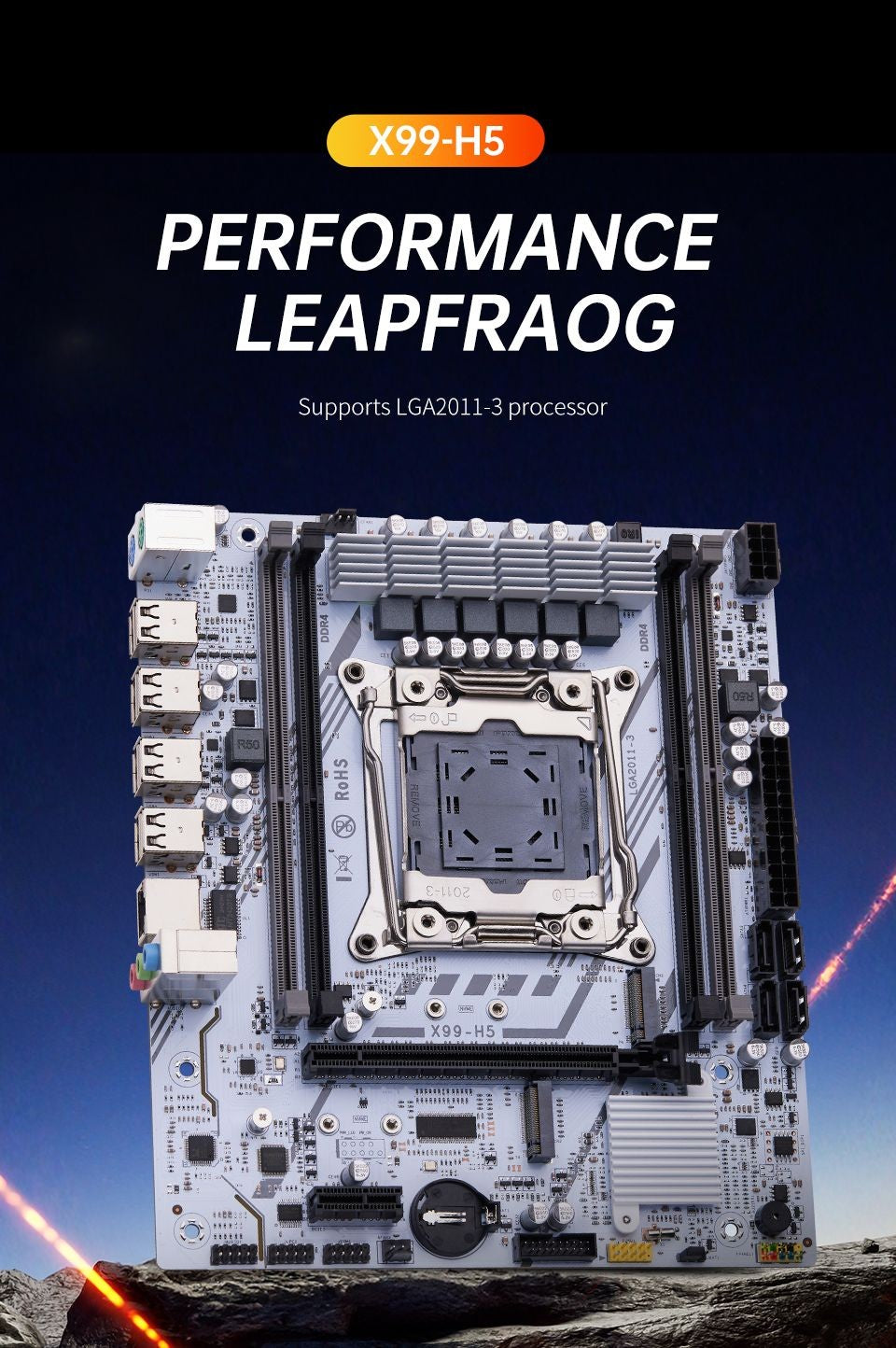

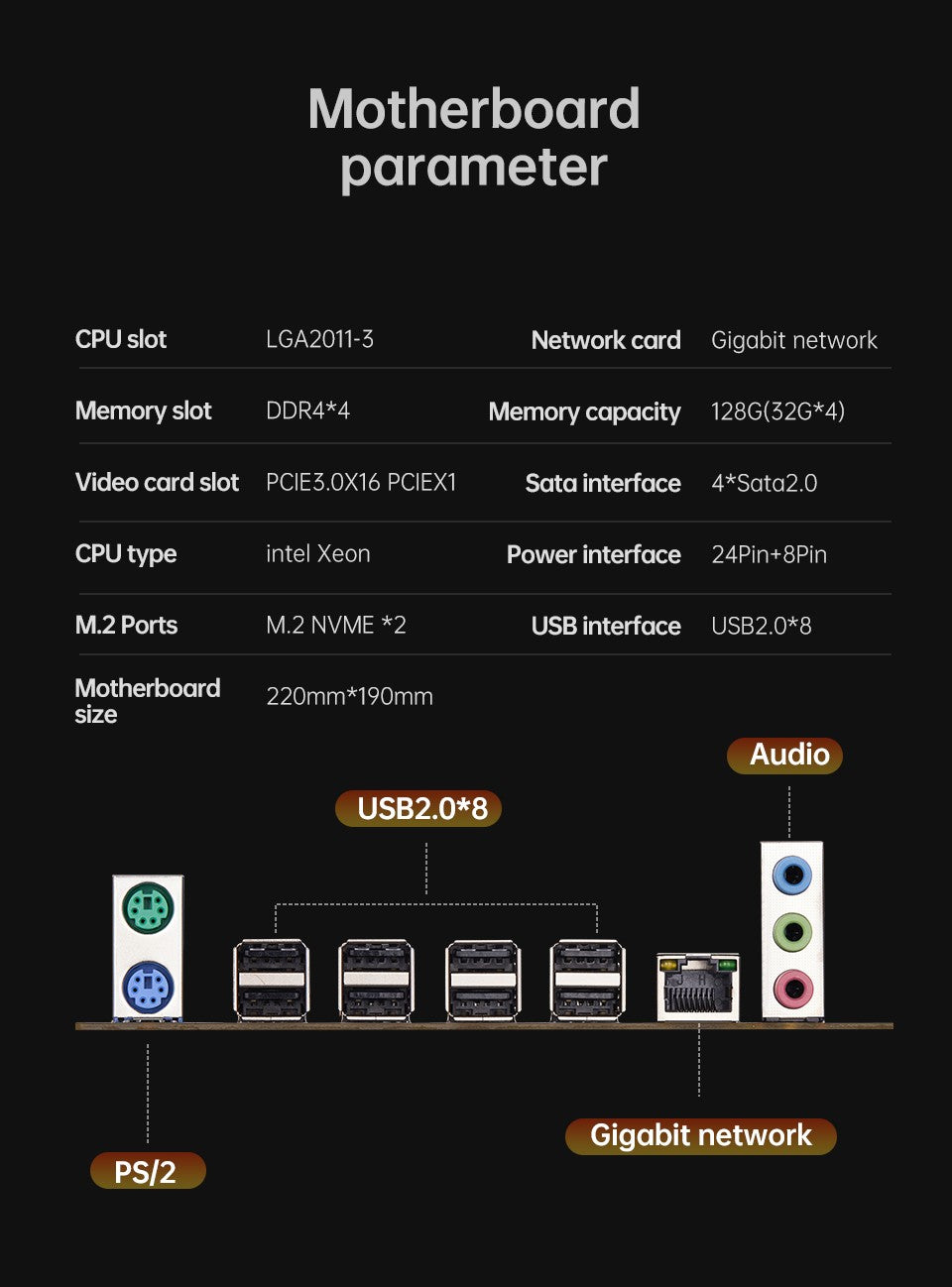

X99 motherboard slot LGA2011-3 SATA USB2.0 NVME M.2 SSD support DDR4 REG ECC memory and Xeon E5 V3 V4 processor
Model: Qiyida
Chipset: H51/H55/H5,etc
Condition: Full new
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16
Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No

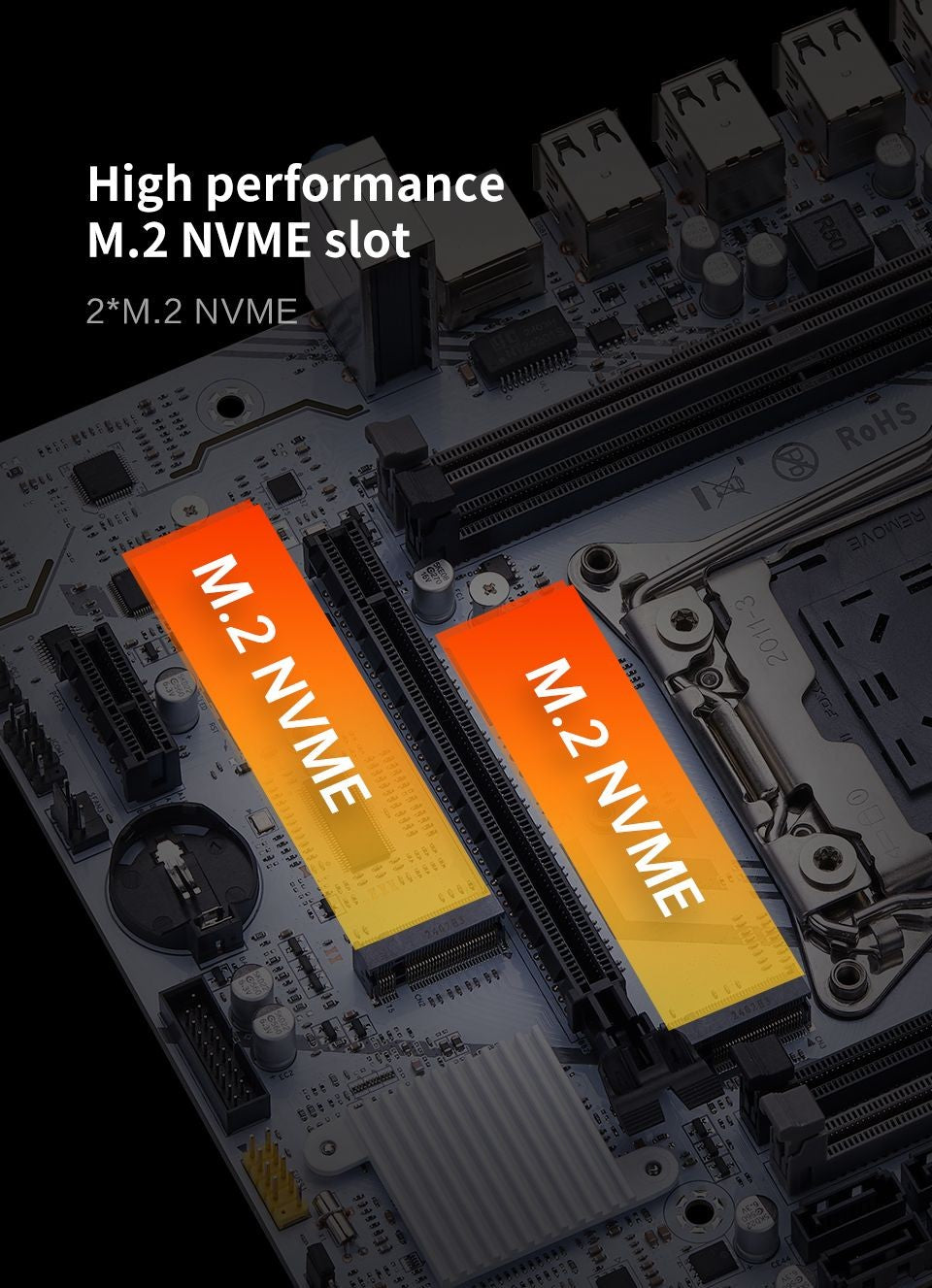

Support NVME M.2
Motherboard dimension: 22cm*19cm
The motherboard chipset is H55 or H51,etc,If you can't accept, please don't buy.
For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.
Note:
1:The motherboard chips have difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.
2:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500wbrand power supply)
Due to different production batch, X99H5 motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.

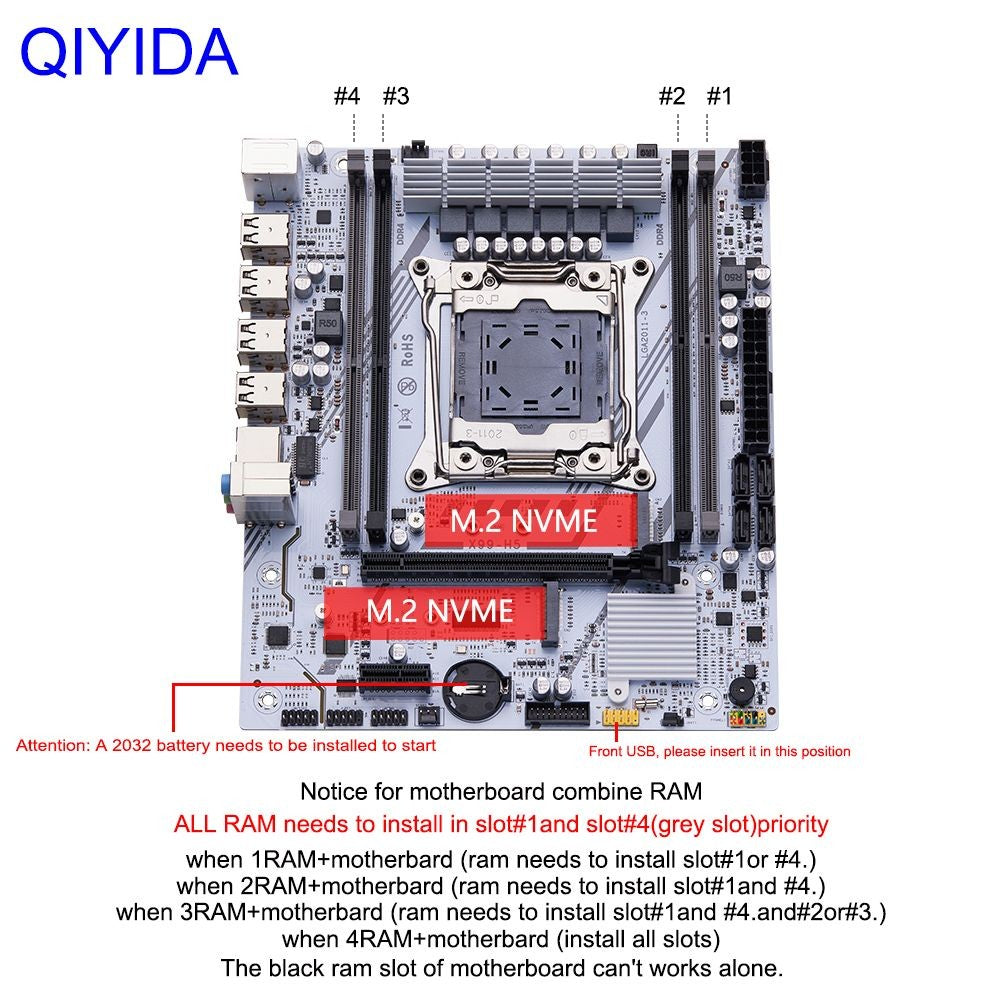

Notice for motherboard combine RAM
ALL RAM needs to install in slot#1and slot#4(grey slot)priority
when 1RAM+motherbard (ram needs to install slot#1or #4.)
when 2RAM+motherbard (ram needs to install slot#1and #4.)
when 3RAM+motherbard (ram needs to install slot#1and #4.and#2or#3.)
when 4RAM+motherbard (install all slots)
The black ram slot of motherboard can't works alone.The memory needs to be inserted into the grey main slot first.
Attention: A 2032 battery needs to be installed to start the computer, otherwise it cannot be started
