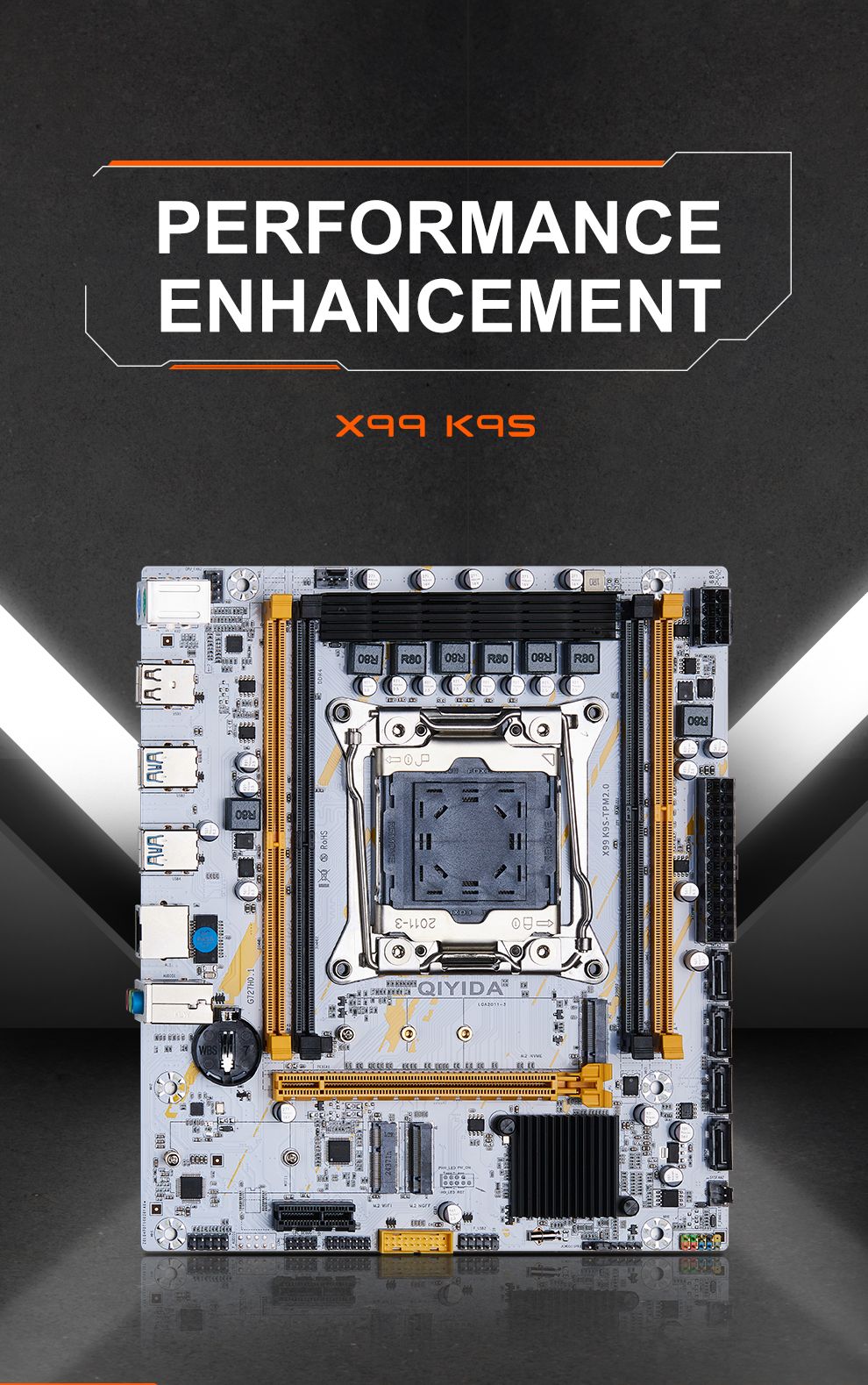

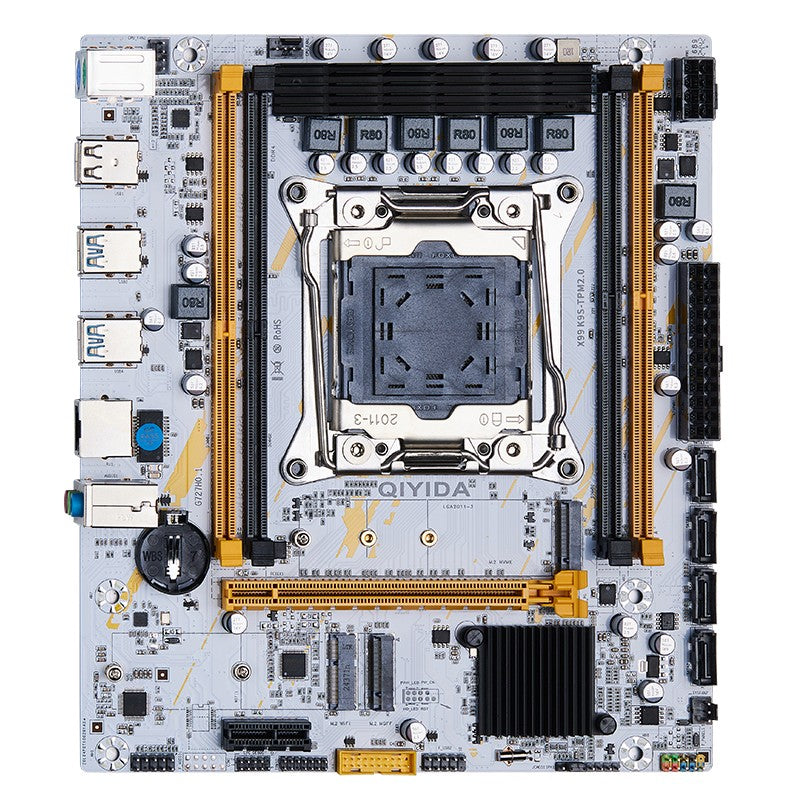

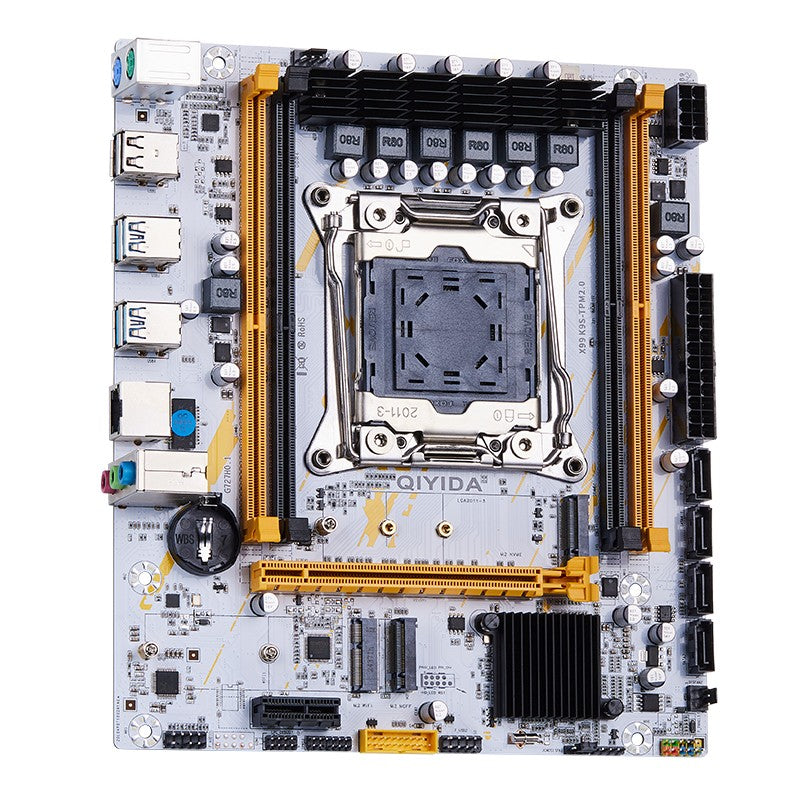

QIYIDA X99 Motherboard LGA2011-3 Slot SATA3.0 USB3.0 NVME M.2 NGFF WIFI Support DDR4 Memory and Xeon E5 V3 V4 Processor TPM14PIN
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: QIYIDA
Chipset: Intel X99
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Battery Included: No
Processor compatibility: Intel Xeon
Processor compatibility: Intel Others
Processor compatibility: Intel Xeon E Series
With CPU: No
Support Memory Type: DDR4
Number of PCI: 2
Special Features: Cooling Armor
Storage Interface Type: SATA 3
Storage Interface Type: M.2 (NVMe)
Storage Interface Type: M.2 (SATA)
Package: Yes
RAID Supported: Yes
Application: Desktop
Chipset Manufacturer: Intel

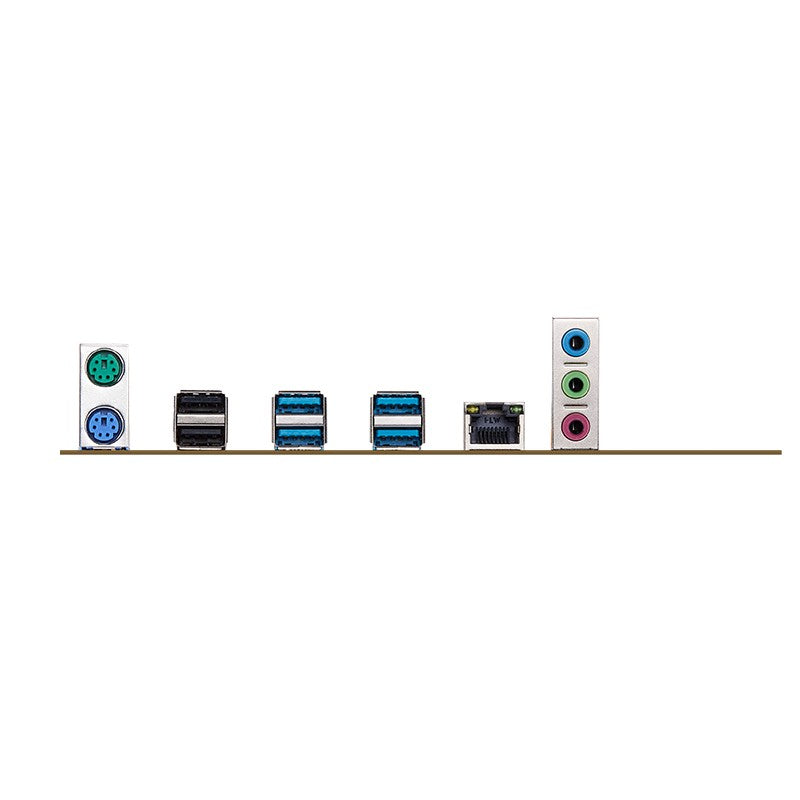

Back I/O Ports: 1x RJ45
PCI - E standards: PCI-E 3.0
Socket Type: LGA 2011-3
High-concerned chemical: None
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Design
Usage Scenario: Video Production
Usage Scenario: Industrial Computer
Usage Scenario: Workstation
Usage Scenario: Server
Usage Scenario: Mining
Usage Scenario: Scientific Computing
Usage Scenario: 3-D Modeling
Usage Scenario: Video Rendering
Usage Scenario: MaxCompute
Usage Scenario: others
Usage Scenario: HPC
Origin: Mainland China
Number Of Memory Slots: 4
Support USB Type: USB 2.0
Support USB Type: USB 3.0

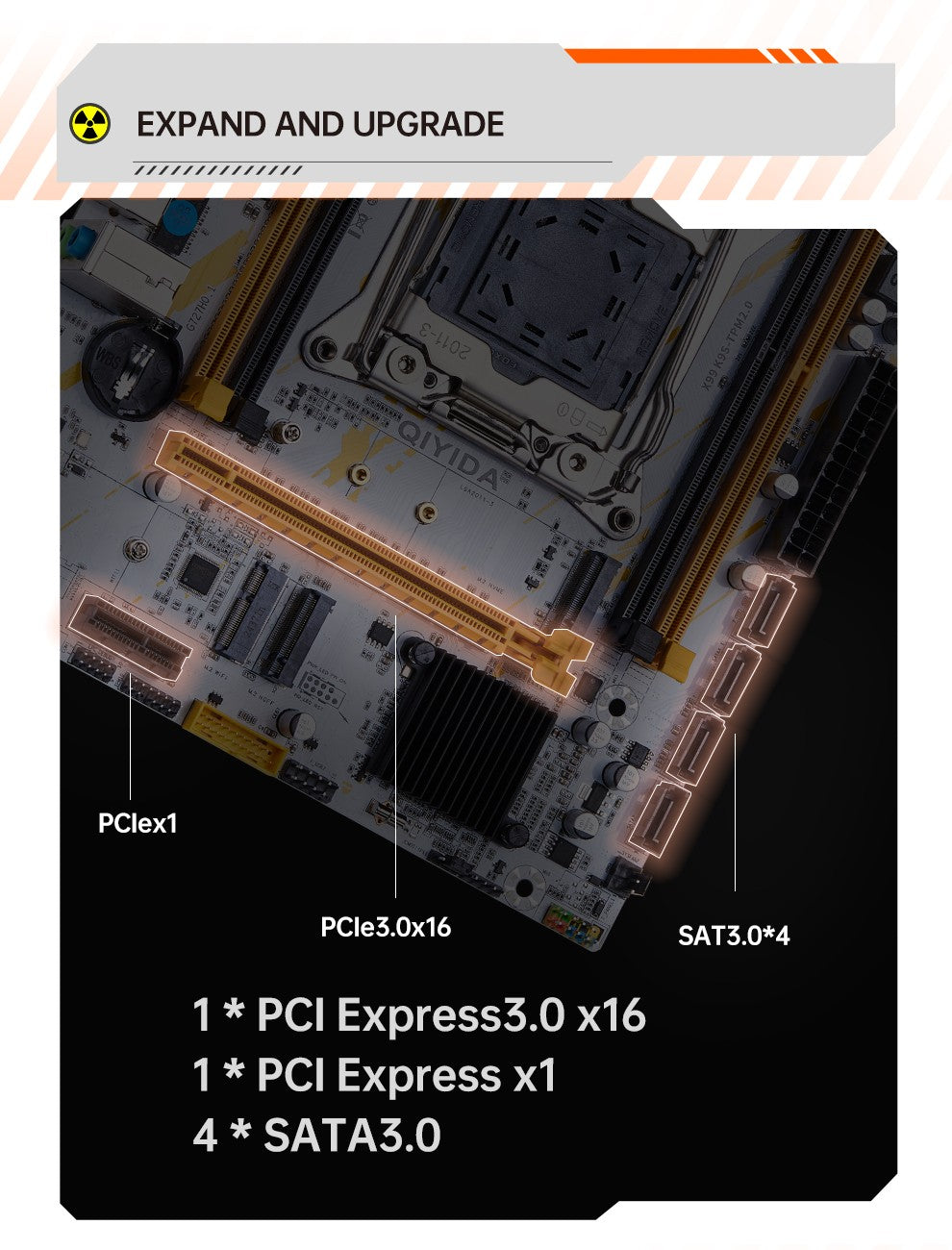

Number of PCIe x 16: 1
Number of PCIe x 1: 1
Form Factor: Micro-ATX
Number of M.2: 2
Notice：

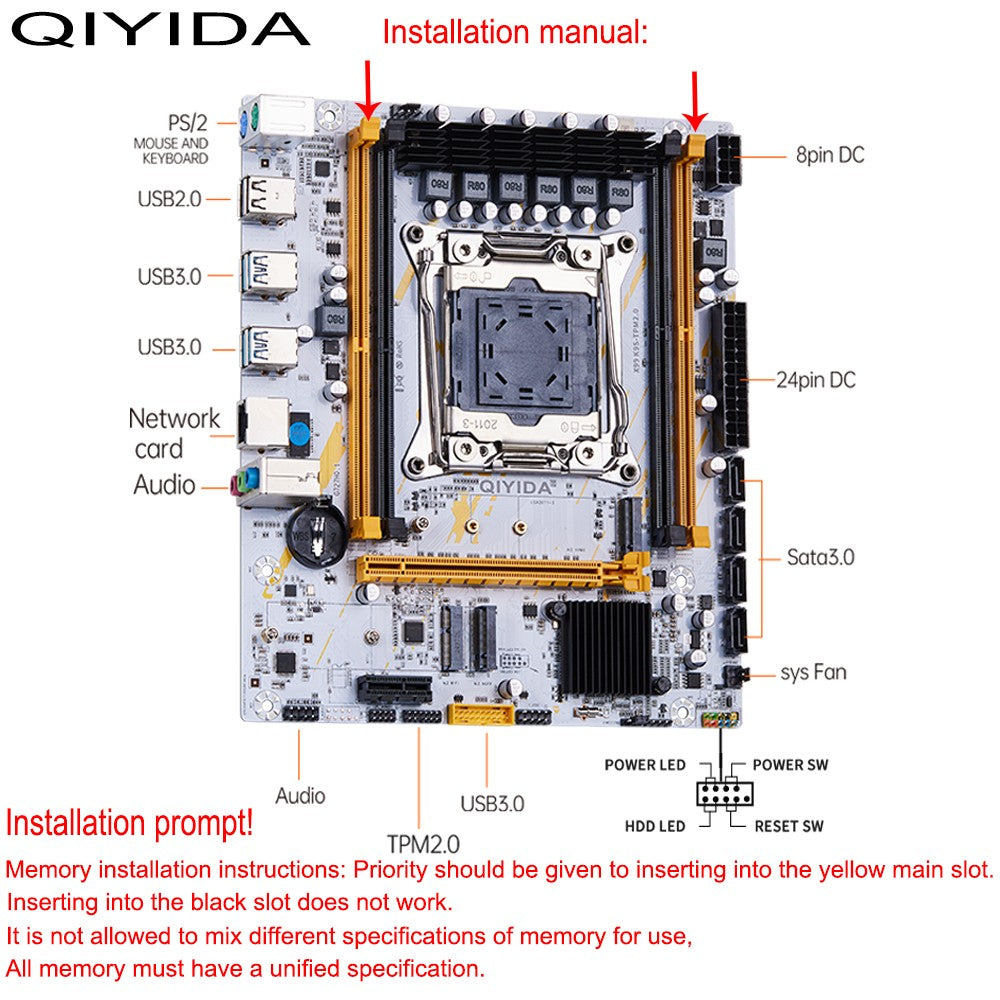

ALL RAM needs to install in slot (yellow slot)priority

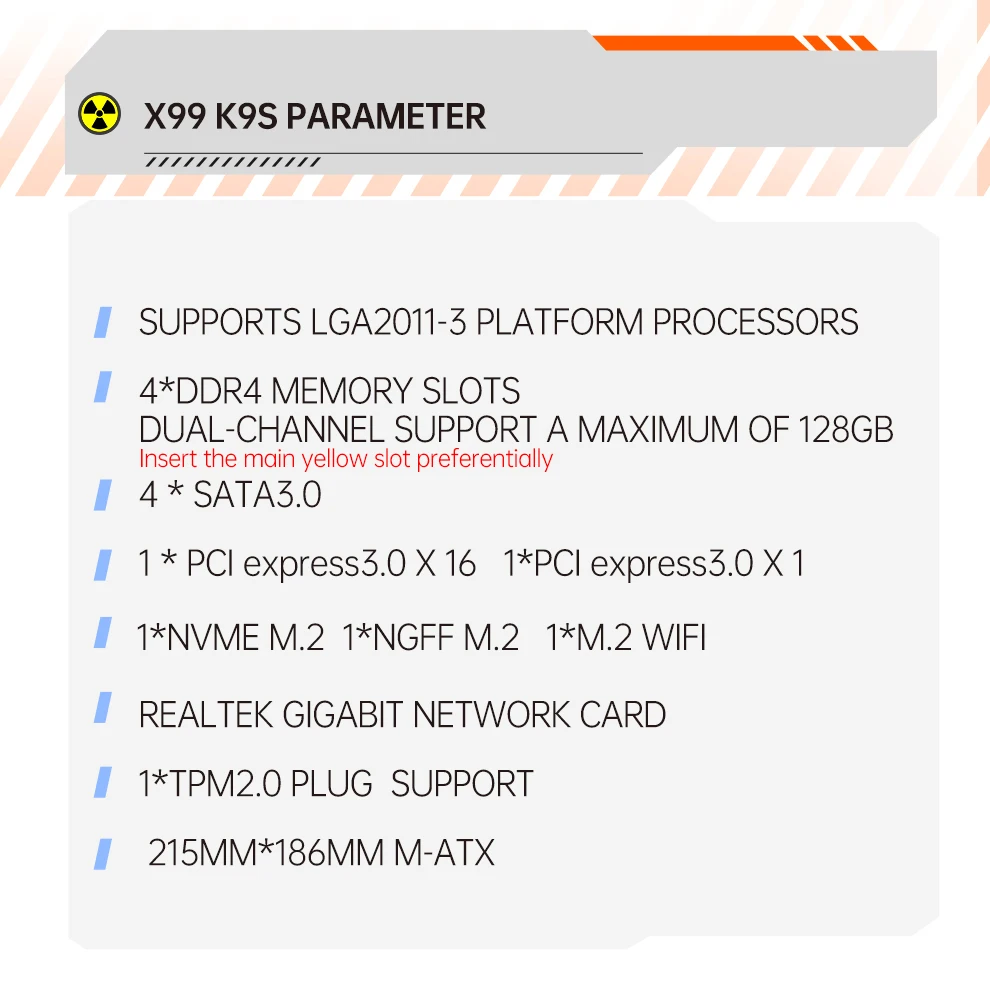

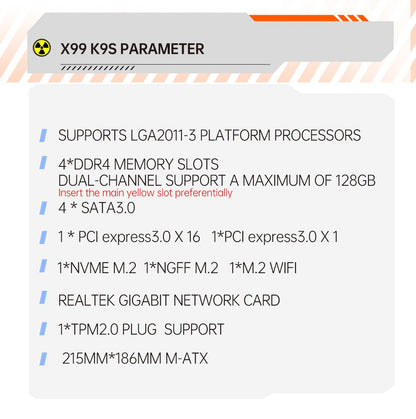

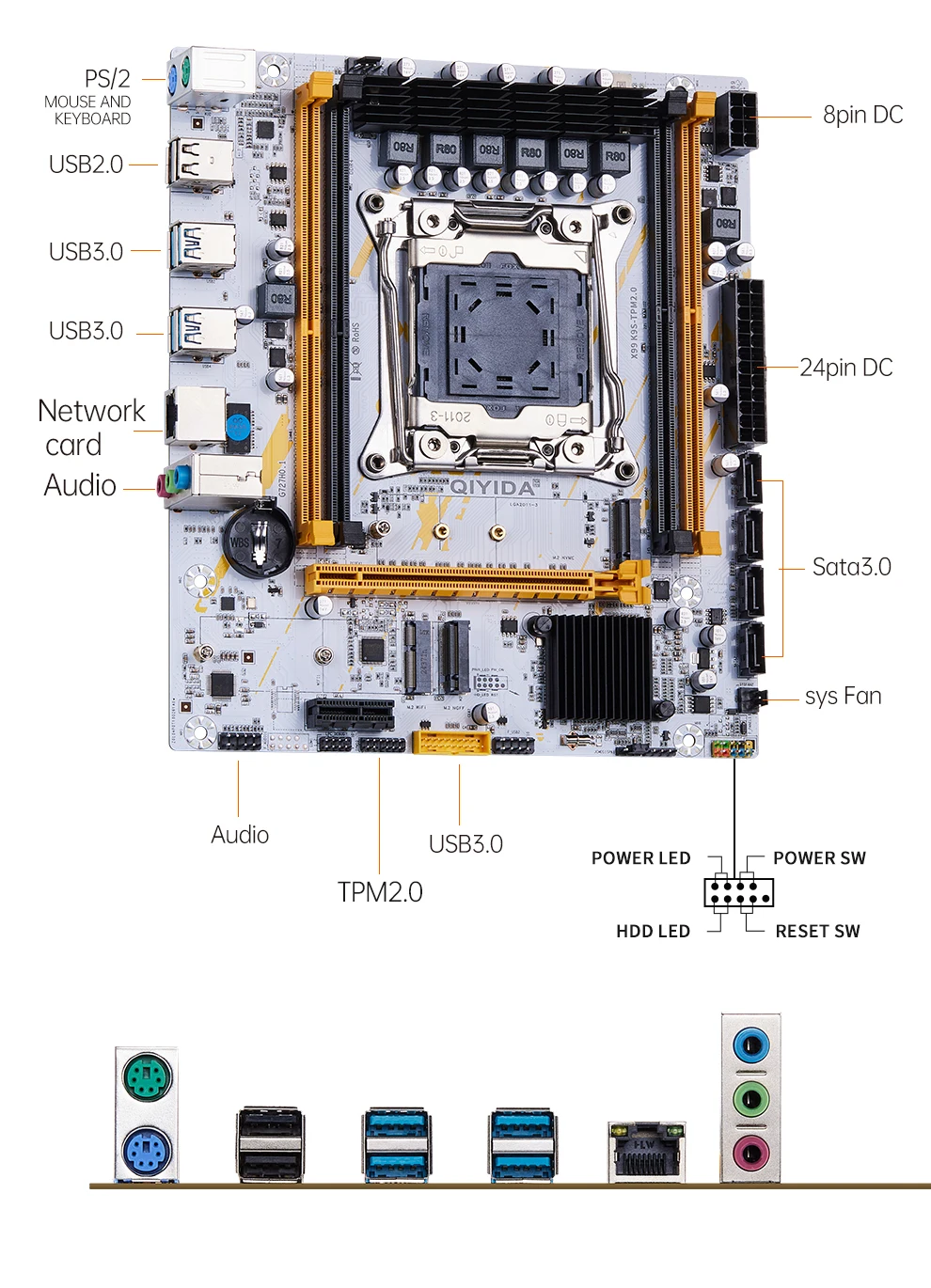

Motherboard:
Model: Qiyida
Chipset: X99 C612
Condition: Full new
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16

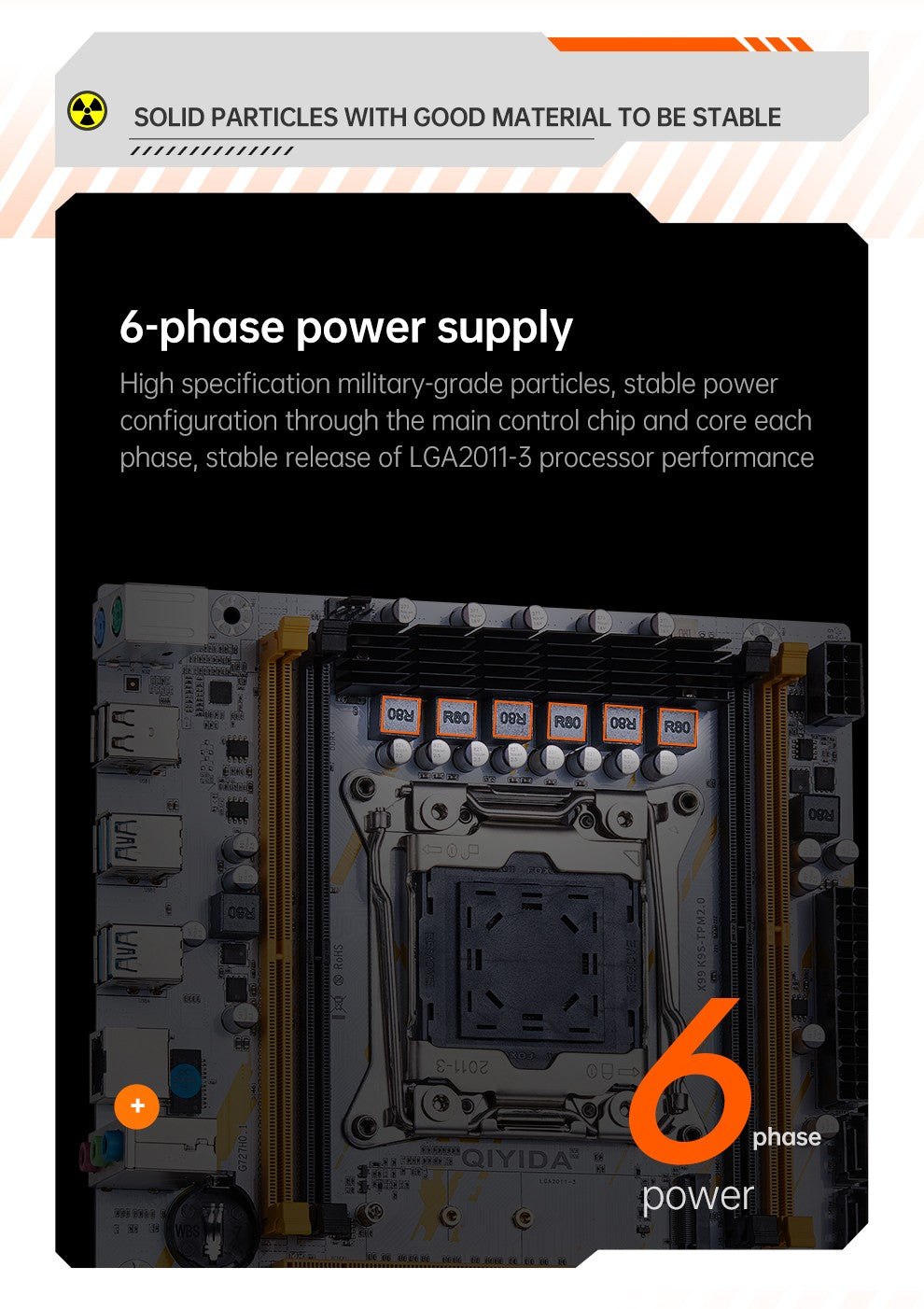

Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 32G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No

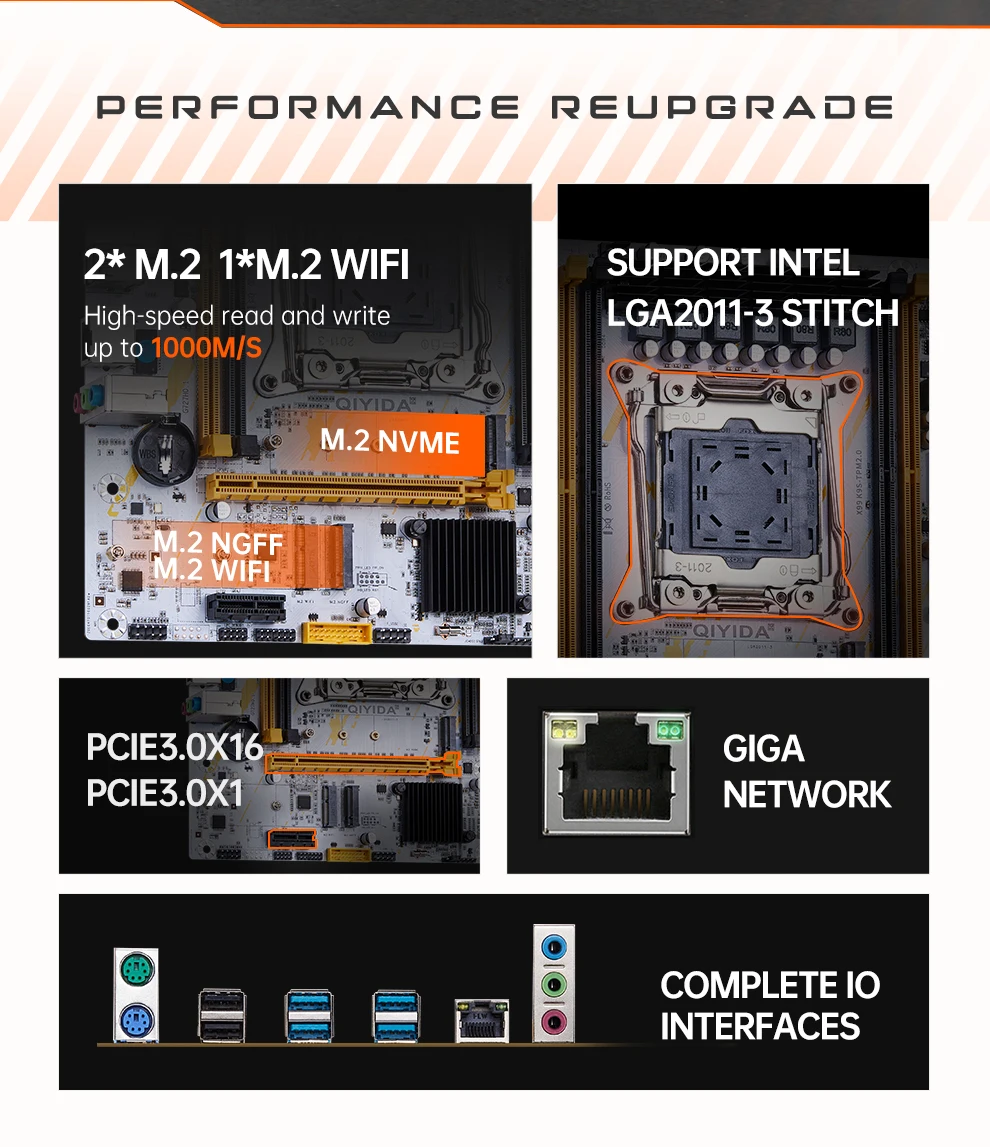

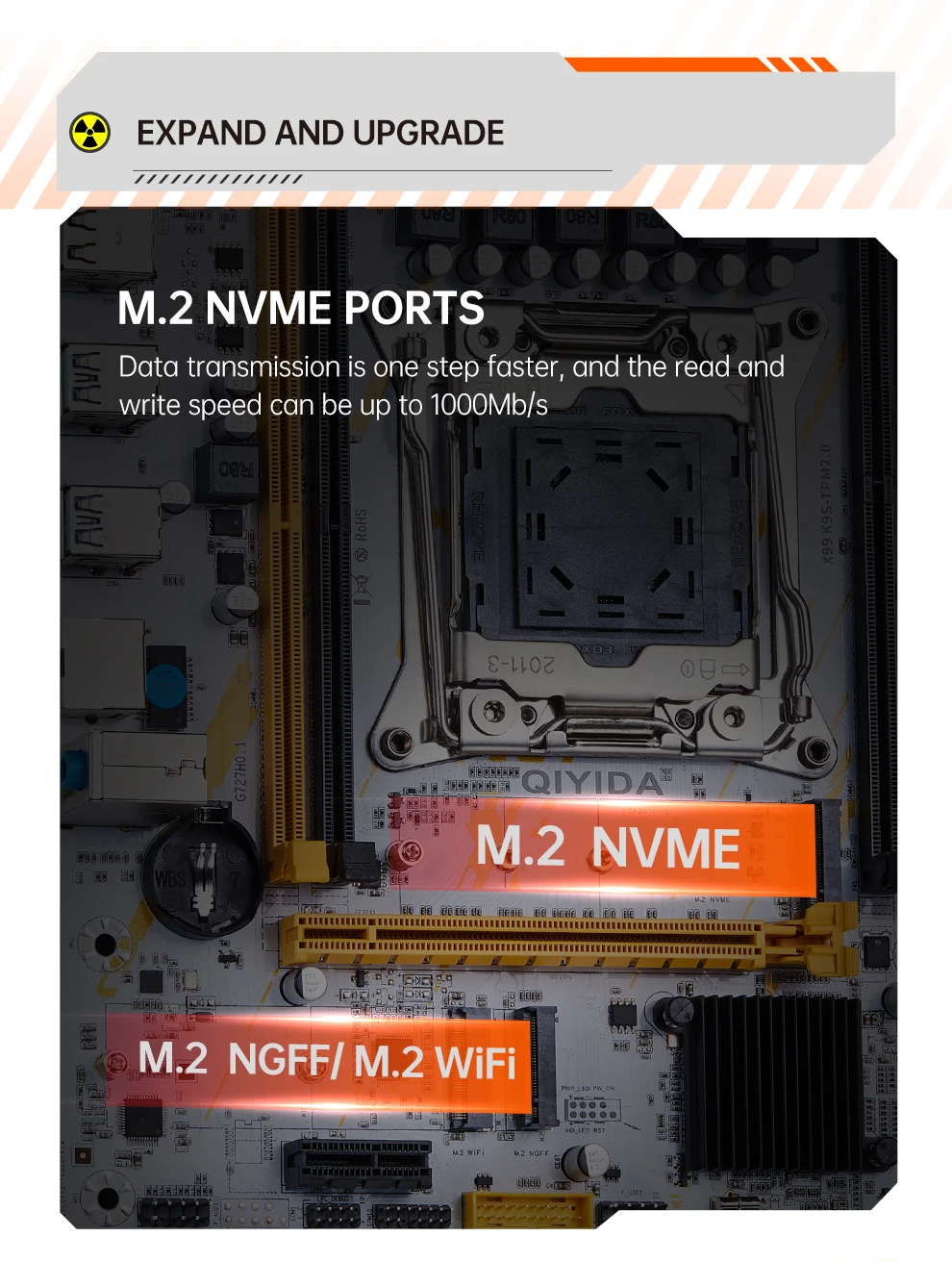

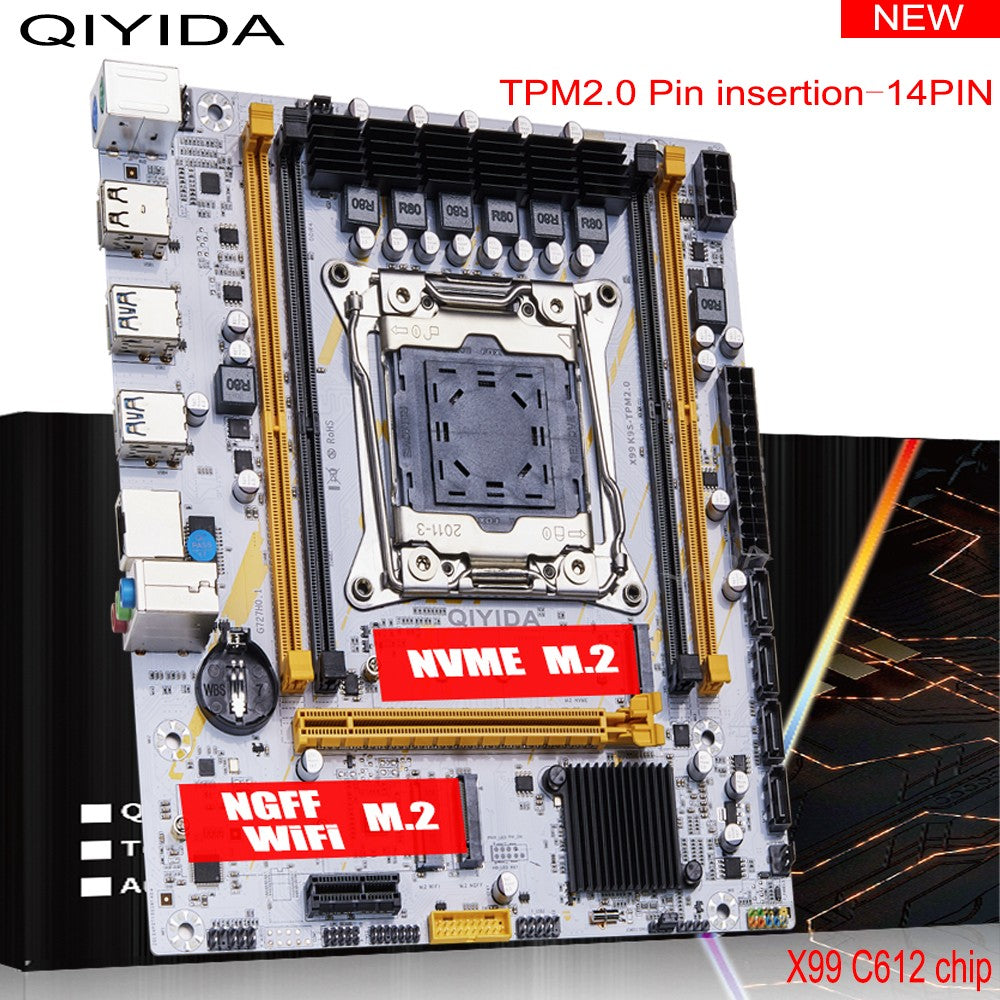

Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard
Motherboard dimension: 21.5cm*18.6cm
Note:
1:The motherboard chips have difference band chips,because of the different product batches,we will send the goods by random,please refer to the actual product.
2:this planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500wbrand power supply)
Due to different production batch, X99 motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.
For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.
The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
