Brand Name: HCSTVCON

Origin: Mainland China

High-concerned chemical: None

Model Number: NKB300

Smart home platform: None

Color: Black

Maximum preset bits: 255

Keyboard lock: one key lock

Key tone: support

POE: 802.3af

Tally: 8

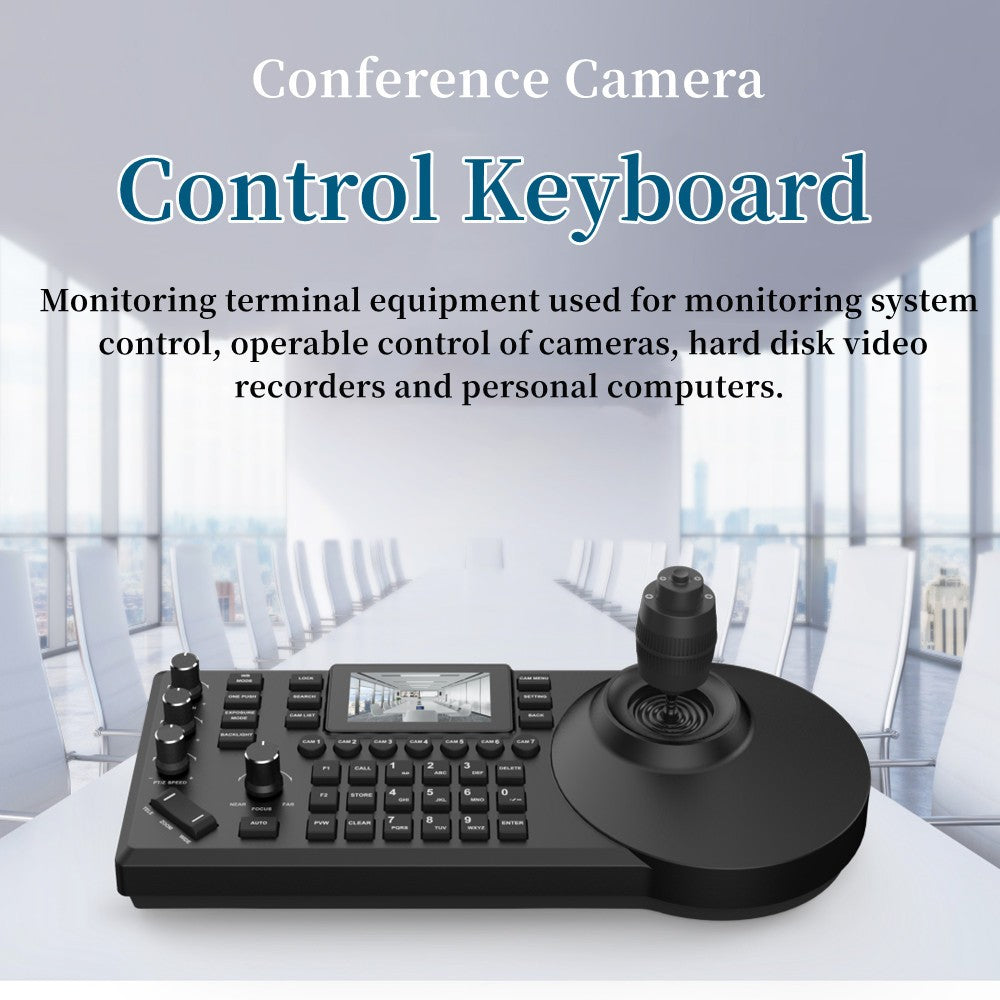

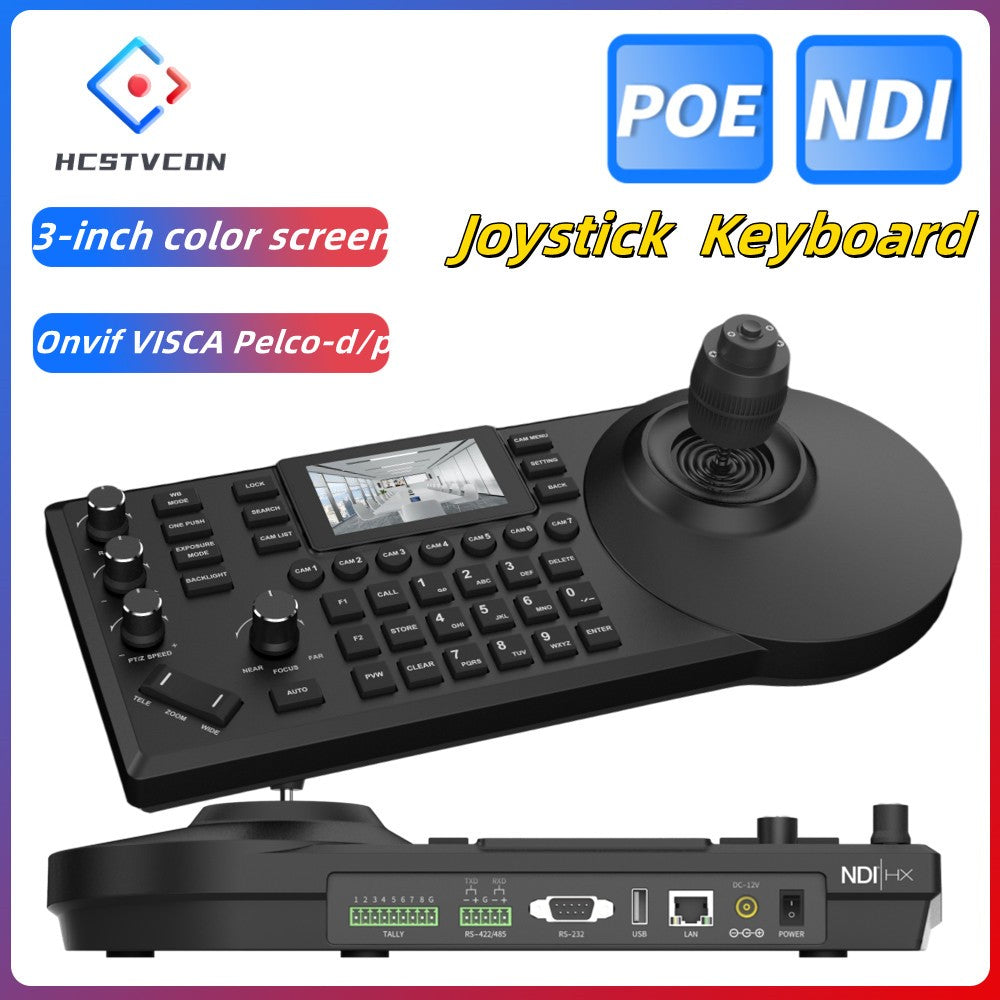

NDI Video Conference Camera Control Keyboard 3-inch Color Screen Network Visca Pelco-d/p Protocol Rocker Console 8 Channel POE

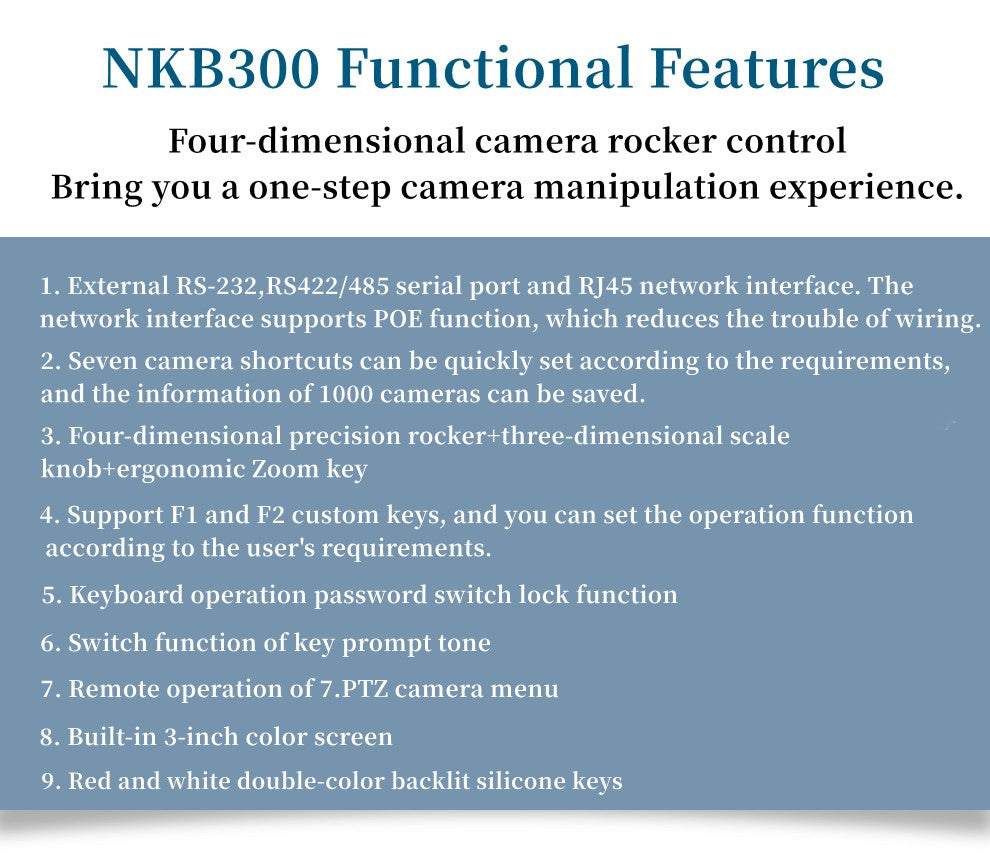

Features:

🍒External RS-232,RS422/485 serial port and RJ45 network interface. The network interface supports POE function, which reduces the trouble of wiring.

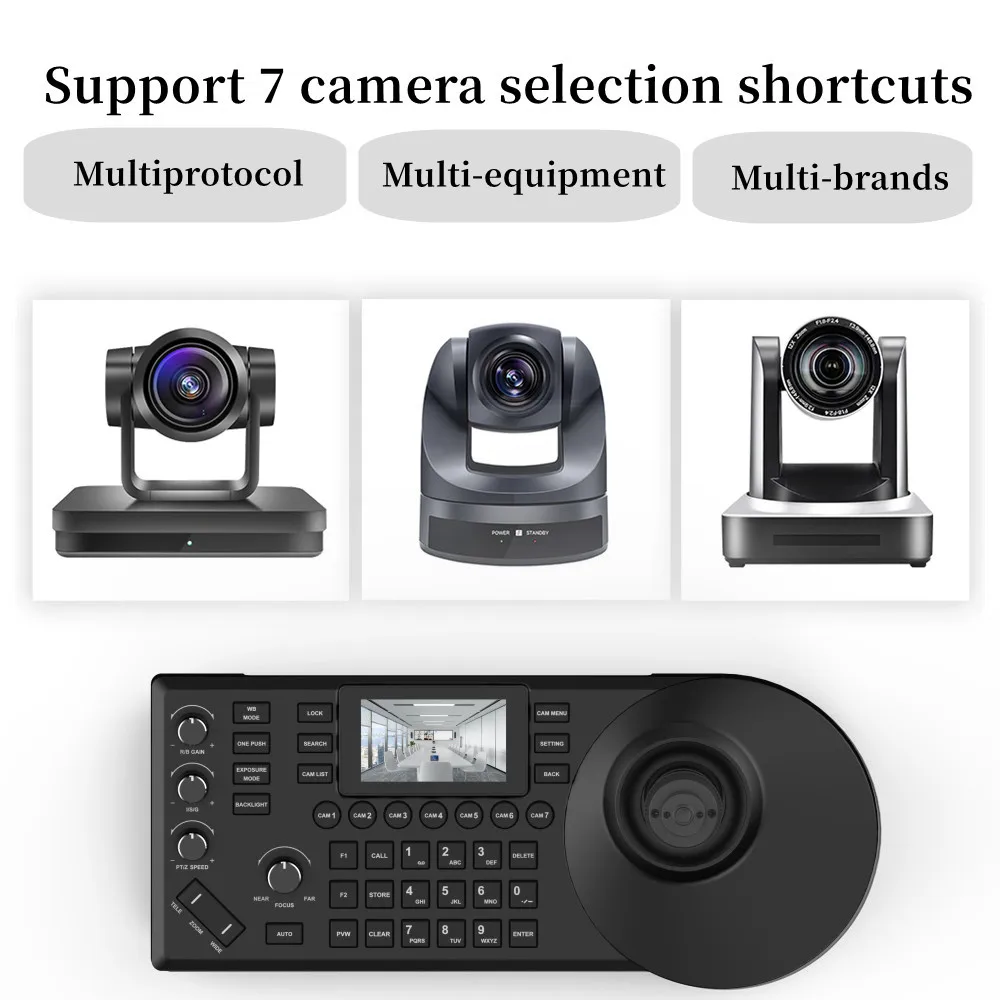

🍒Seven camera shortcuts can be quickly set according to the requirements, and the information of 1000 cameras can be saved.

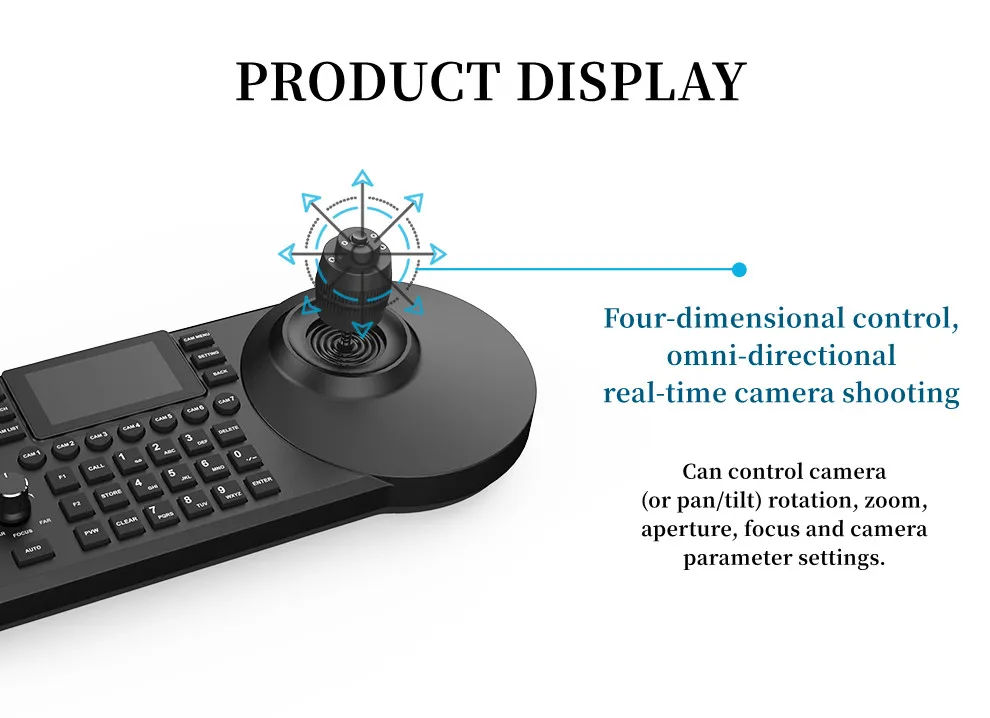

🍒Four-dimensional precision rocker+three-dimensional scale knob+ergonomic Zoom key.

🍒Support F1 and F2 custom keys, and you can set the operation function according to the user's requirements.

🍒Keyboard operation password switch lock function

🍒Switch function of key prompt tone

🍒Remote operation of 7 PTZ camera menu

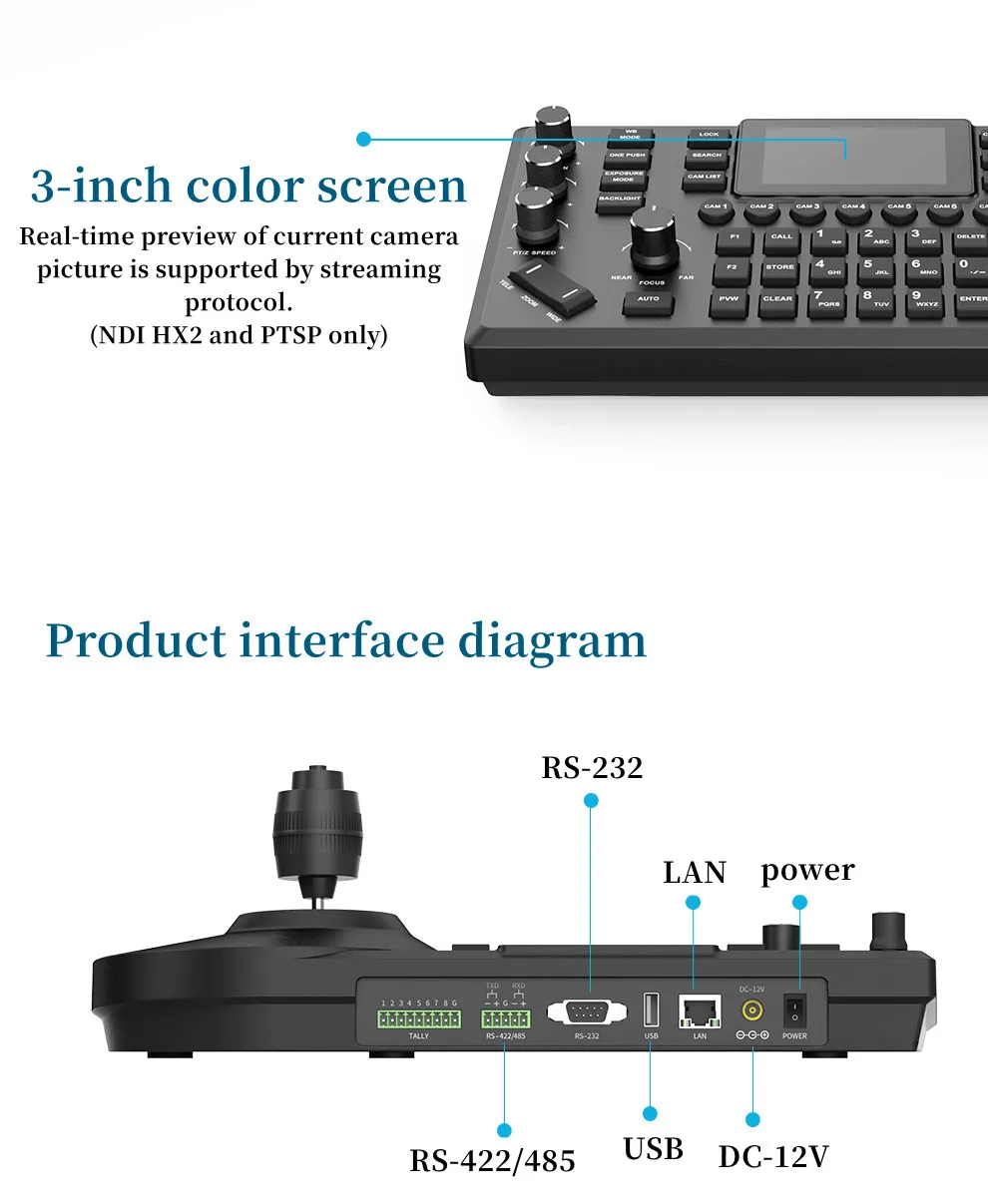

🍒Built-in 3-inch color screen

🍒Red and white double-color backlit silicone keys

Specifications

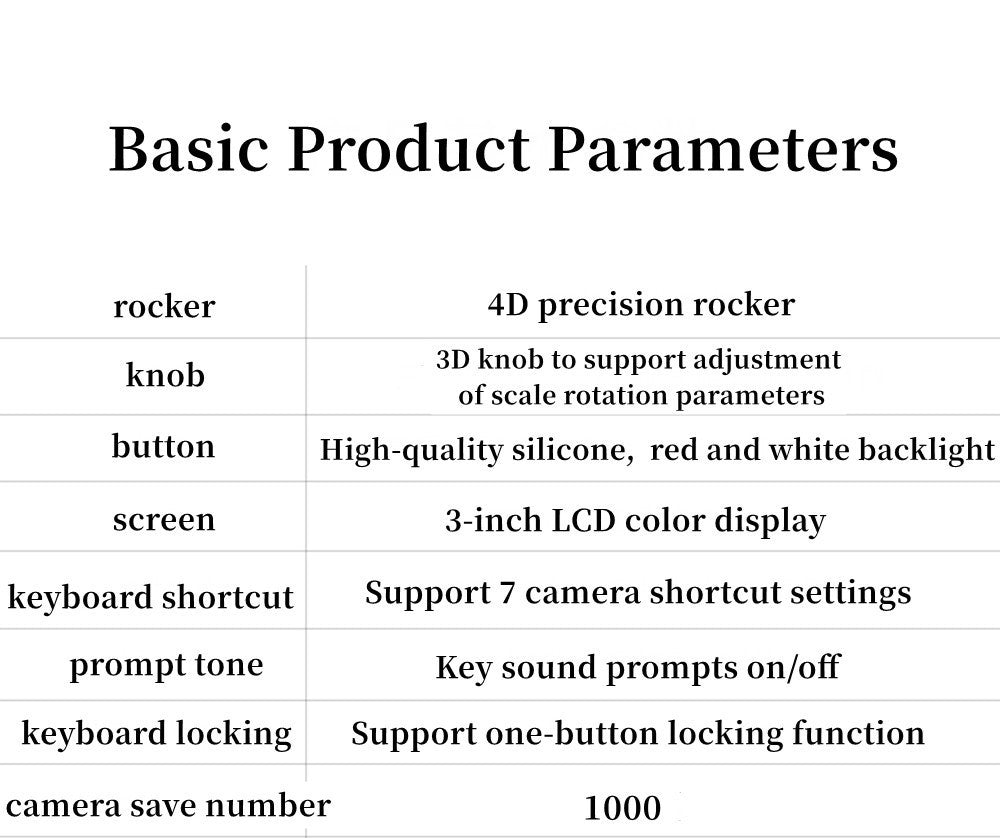

🍒Keyboard parameters:

Rocker: Four-dimensional precision rocker

Knob: three-dimensional knob, which supports scale rotation adjustment parameters and key function selection mode.

Keys: High-quality silicone keys, supporting white and red dual-color backlight.

Screen: 3-inch LCD color display

Shortcut keys: seven camera shortcuts are supported.

Prompt sound: key sound prompts on/off.

Keyboard lock: one-key lock function is supported.

Maximum number of cameras that can be saved: 1000.

Maximum preset number of digits that can be saved: 255.

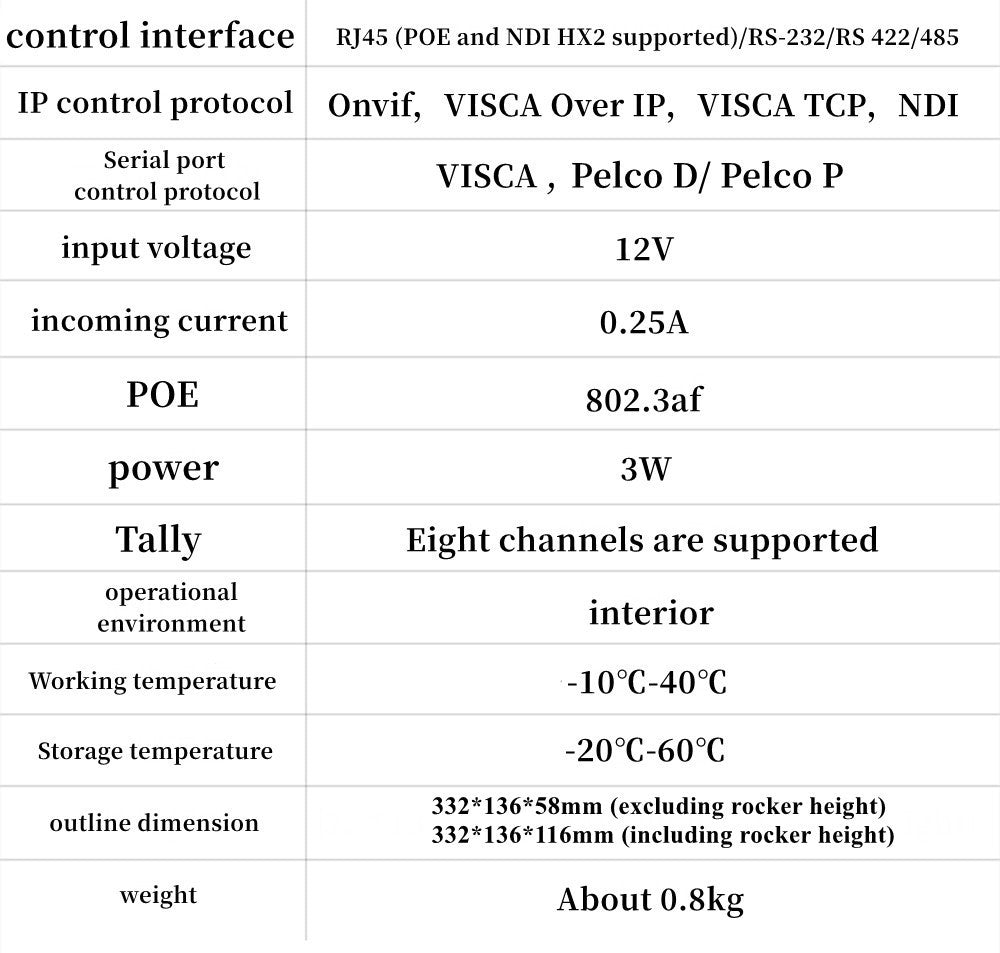

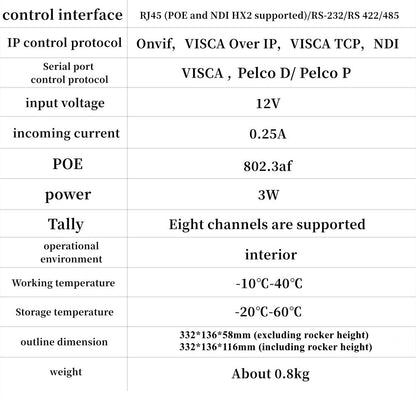

🍒Control:

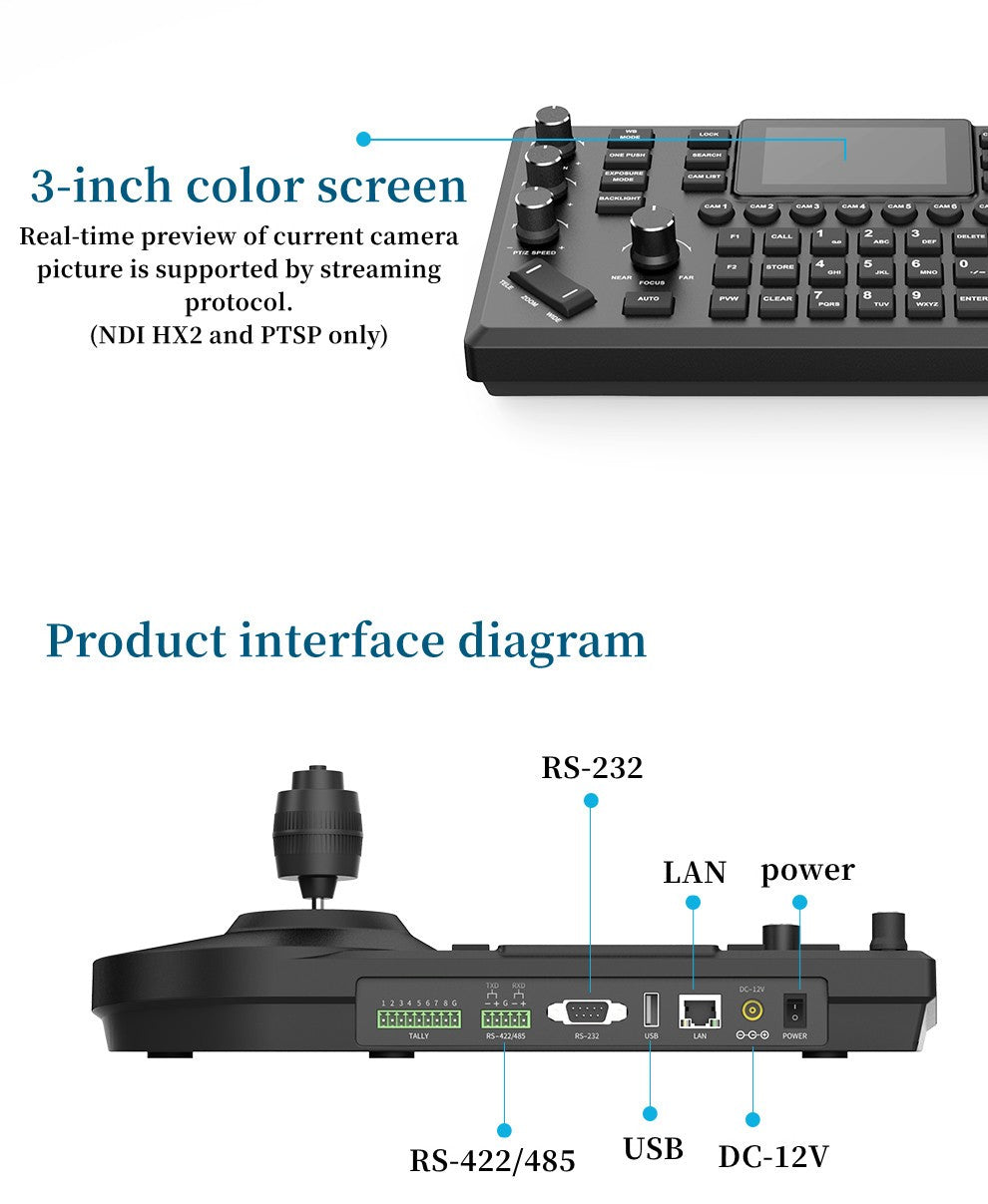

Control interface: RJ45 (POE and NDI HX2 supported), RS-232, RS-422/485IP

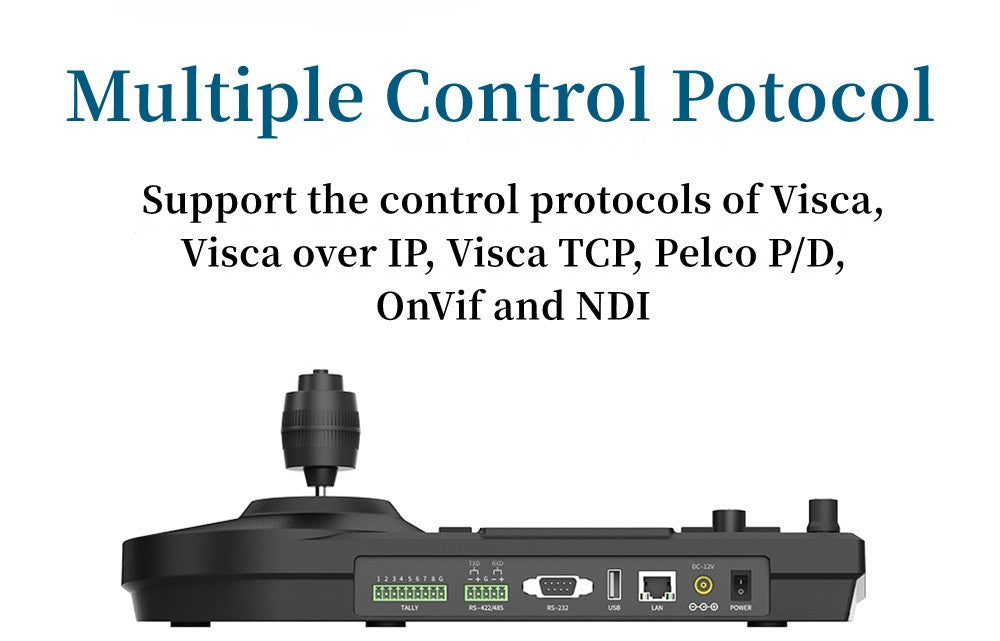

Control protocol: Onvif, VISCA Over IP, VISCA TCP, NDI

Serial port control protocol: VISCA, Pelco D, Pelco P

🍒Power Supply:

Input voltage: 12V

Input current: 0.25A

POE:802.3af

Rated power: 3W

🍒Other:

Tally: Up to eight channels are supported

Use environment: indoor

Operating temperature: -10 -40 degrees

Storage temperature: -20 -60 degrees

Dimensions: 332*136*58mm (excluding rocker height),

                     332*136*116mm (including rocker height)

Mass: about 0.8kg
