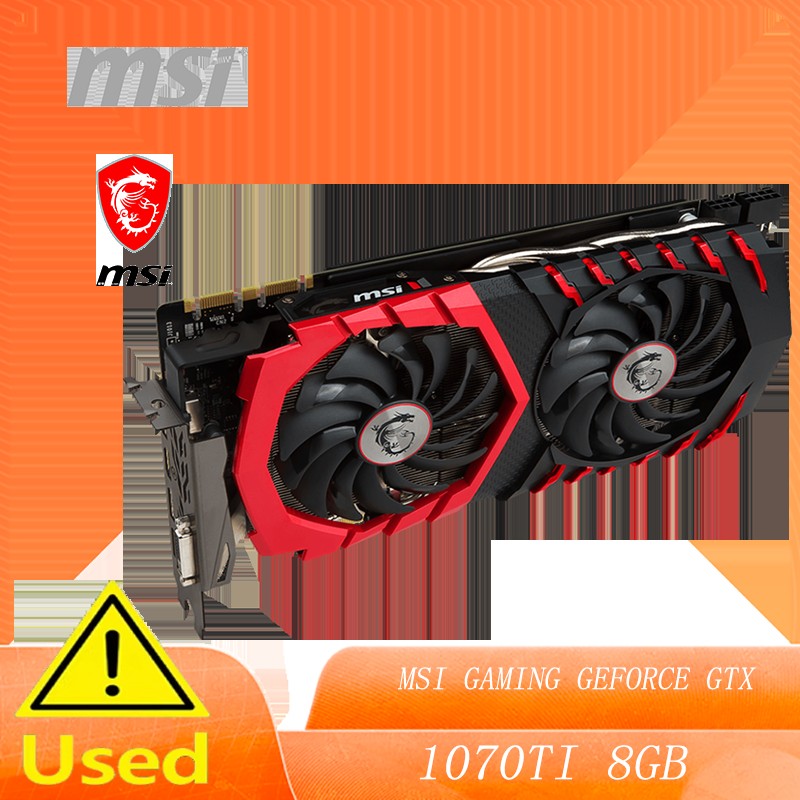

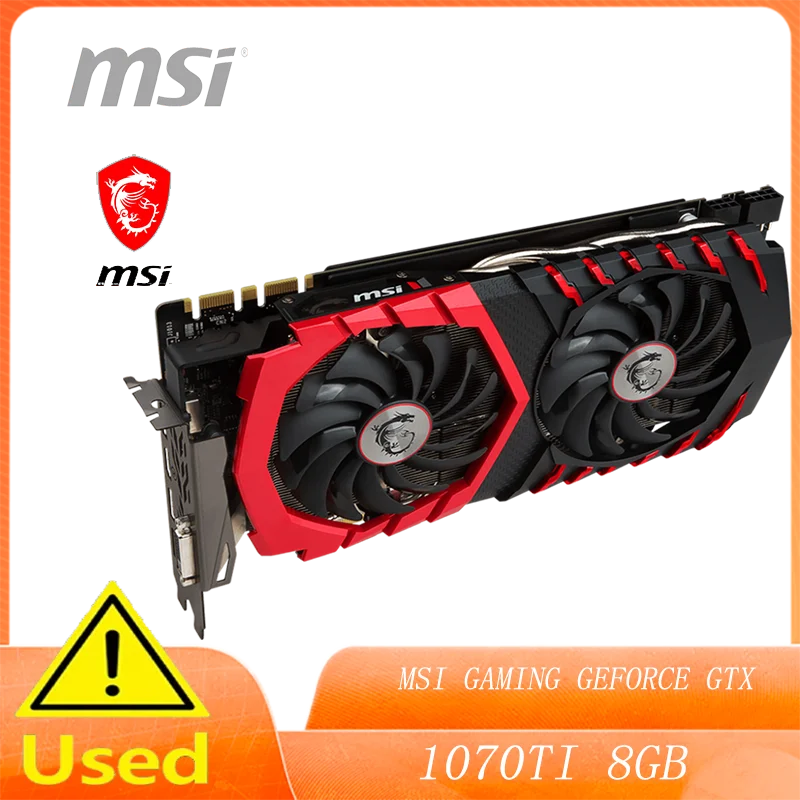

MSI Gaming GeForce GTX 1070 Ti 8GB GDRR5 256-bit HDCP Support DirectX 12 SLI Twin Frozr Heat Pipes Dua Fan Graphic Card

Brand Name: MSI

Cooler Type: Double Fan

High-concerned chemical: None

Product Features: NVLINK

Video Memory Type: GDDR5

Usage Scenario: Enthusiast & Overclocking

Chipset Manufacturer: NVIDIA

Chip Process: 16nm

Product Category: Desktop Graphics Cards

Application: Desktop

Origin: Mainland China

Output Interface Type: DVI-D

Output Interface Type: DisplayPort x3

Output Interface Type: HDMI 2.0x1

Interface Type: PCI Express 3.0x16

RGB: No

Overclocked: No

Memory Clock(Mhz): 8008

Power Connector: 6pin + 8pin

Video Memory Capacity: 8 GB

Memory Interface: 256 BIT

Graphics card core

Chip manufacturer NVIDIA

Graphics card chip: GeForce GTX 1070Ti

Display chip series: GeForce GTX 10 series

The manufacturing process is 16 nanometers

The core code name is GP104-300-A1

Core frequency: 1607/1683 MHZ

There are 2,432 CUDA cores

Video memory specification

The video memory frequency is 8008MHz

Video memory type: GDDR5

The video memory capacity is 8GB

The video memory bit width is 256 bits

Graphics card interface

Interface type: PCI Express 3.0 16X

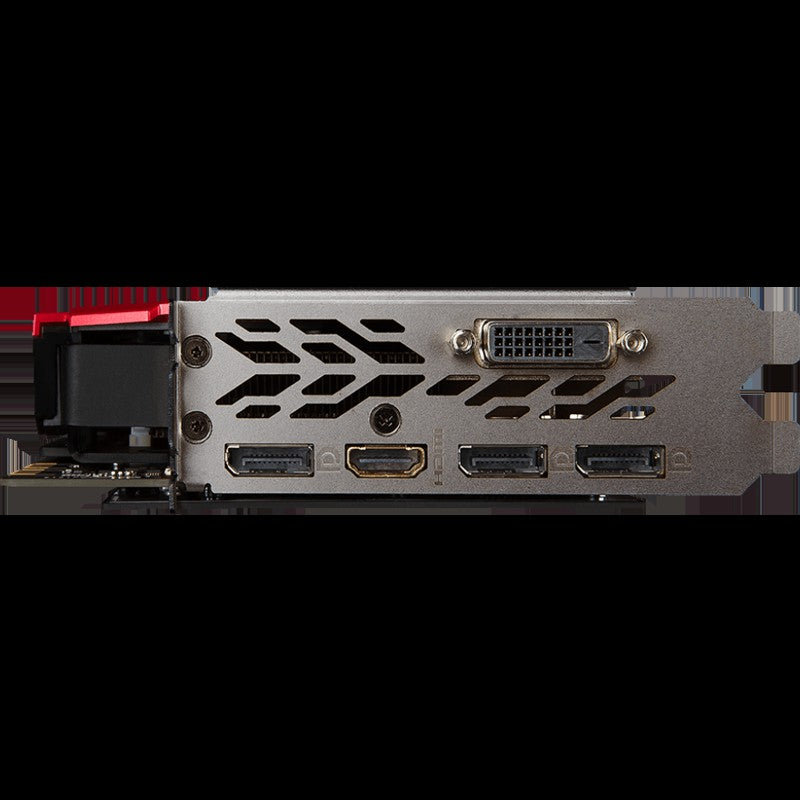

I/O interfaces: 1×HDMI interface, 1×DVI interface, 3×DisplayPort interface

The power interface is 6-pin + 8-pin

Other parameters

The graphics card type is mainstream level

The cooling method is dual-fan cooling

3D API OpenGL 4.5

Support for HDCP is

The product dimensions are 279×140×42mm

Maximum power consumption: 180W

It is recommended that the power supply be above 500W

The listing date is October 2017

Performance score: 121,862
