MACHINIST X99 TPM2.0 Motherboard Optional Xeon E5 2666 V3 CPU And DDR4 16GB RAM Kit Set Four Channel ATX MR9A PRO USB3.0

Brand Name: MACHINIST

Chipset: Q87

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Battery Included: No

Processor compatibility: Intel Xeon

With CPU: Yes

Support Memory Type: DDR4

Number of PCI: 0

Special Features: None

Storage Interface Type: SATA

Package: Yes

RAID Supported: No

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI - E standards: PCI-E 3.0

Socket Type: LGA 2011-3

High-concerned chemical: None

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Office

Usage Scenario: Video Production

Usage Scenario: others

Origin: Mainland China

Number of PCIe x 8: 0

Number Of Memory Slots: 4

Ports: M.2

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 4: 1

Number of PCIe x 16: 2

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: AAFP Connector

Memory channel: Four

Number of SATA Ports: 6

Audio Channels: 5.1

SATA RAID: 0

Max LAN Speed: 1000Mbps

Quality Certification: ce

Quality Certification: ROHS

Number of PCIe x 1: 1

Form Factor: ATX

Supports M.2 SSD: 2280

Number of M.2: 3

>> Please pay attention to the bundle options before purchasing. If purchasing a single motherboard. We do not send CPU and memory. Please make sure to confirm the required kits before placing an order.

1>Bundle: Motherboards: MACHINIST X99 MR9A PRO LGA 2011-3 Motherboard *1 PCS.

2>Bundle: Motherboard+CPU: X99 MR9A PRO + Used Xeon E5 2666 V3*1pcs.

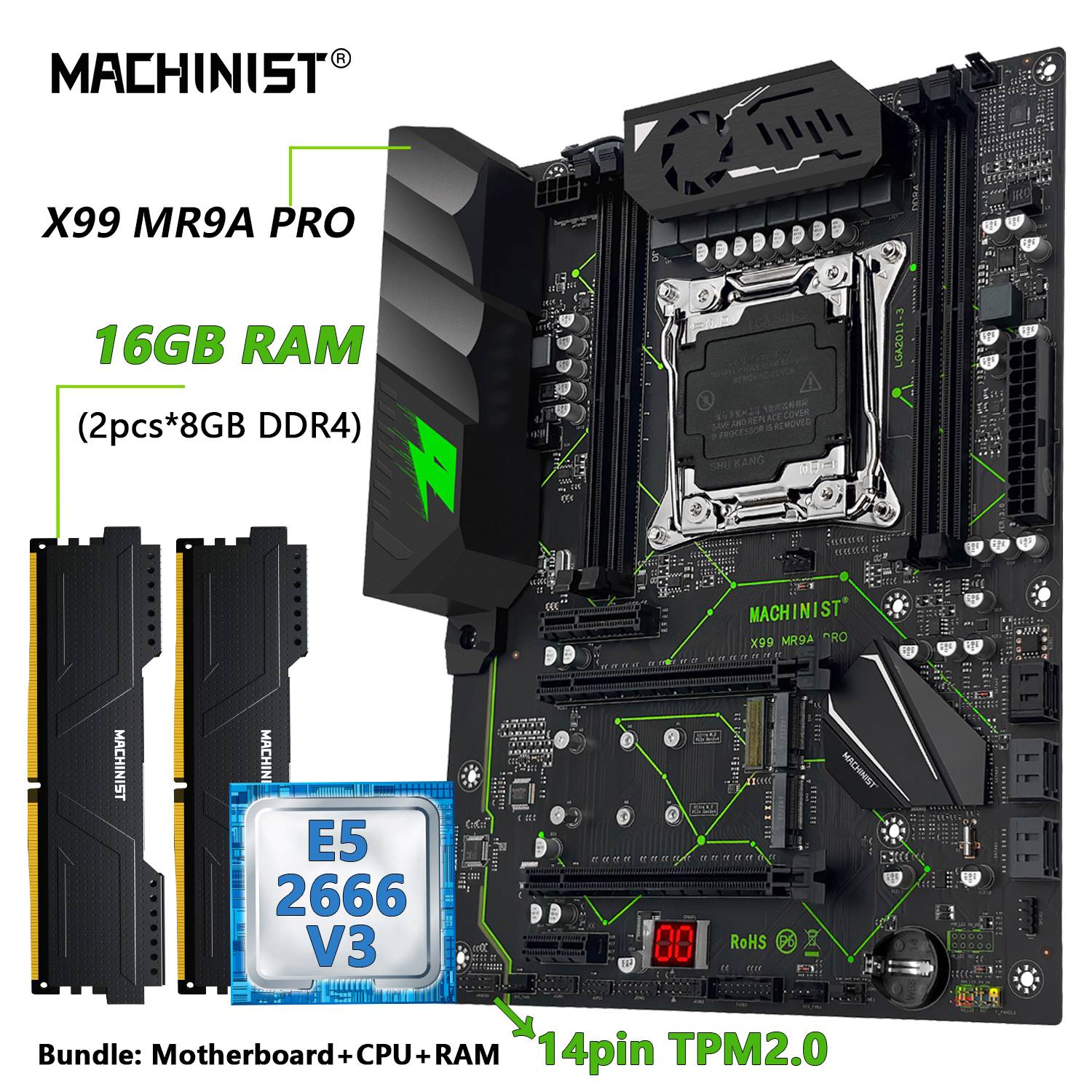

3>Bundle: Motherboard+CPU+RAM: X99 MR9A PRO + Used Xeon E5 2666 V3+DDR4 8GB 2133MHz Desktop memory *2pcs(Black heat dissipation vest).

>> Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 MR9A PRO TPM2.0.

Processor: Supports Intel LGA2011-3-pin series processors.

Chipset :B85/C226/Q87Chipset.

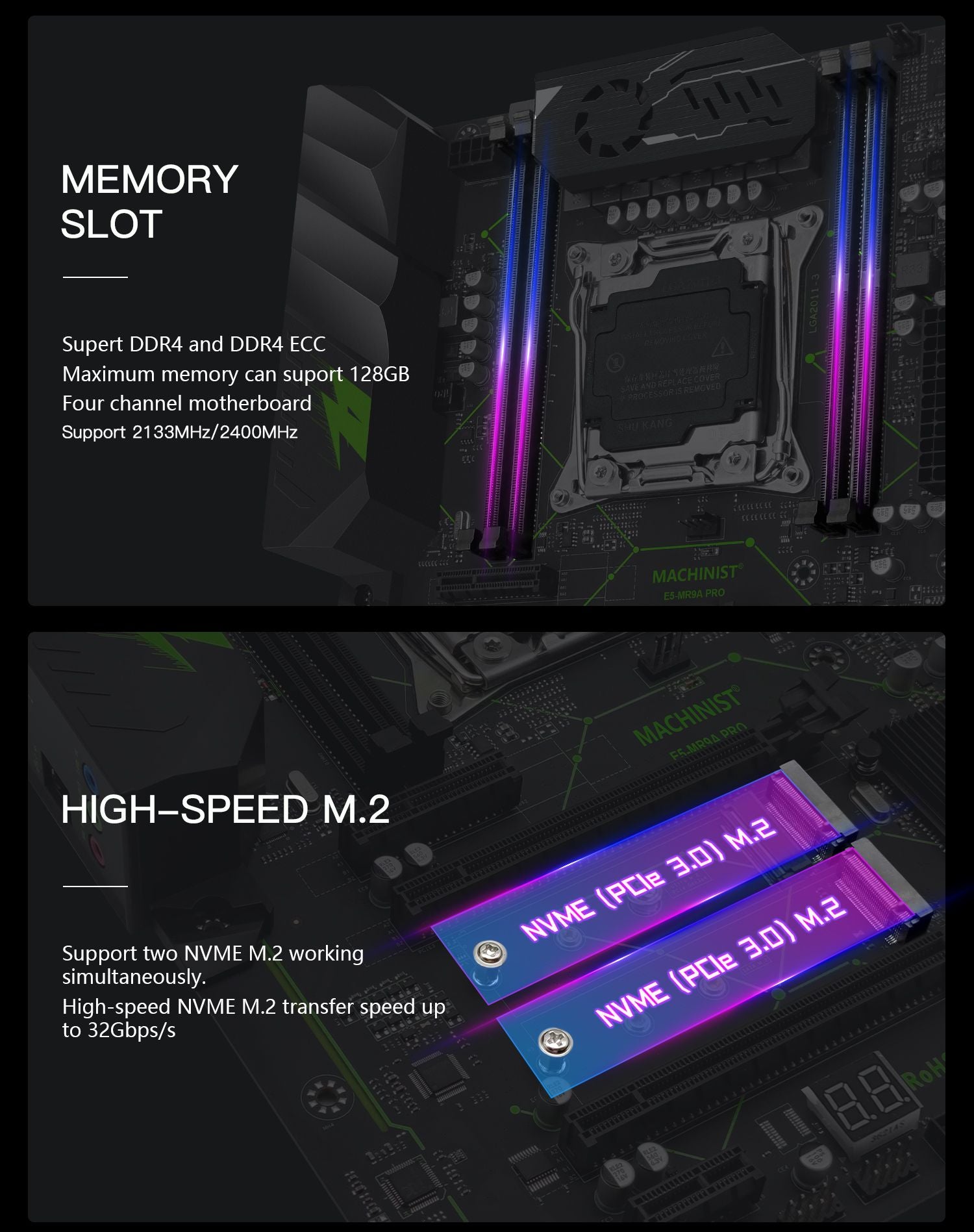

> > Memory:

Technology: Four-channel DDR4. Supports 2133/2400/2666/3200MHZ.

The maximum capacity is 128GB (32G x 4).

Memory slot :4 * 288-pin DDR4.

Supported memory types: The memory type supports DDR4 desktop and server memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, and Hynix. Other brands may be incompatible.

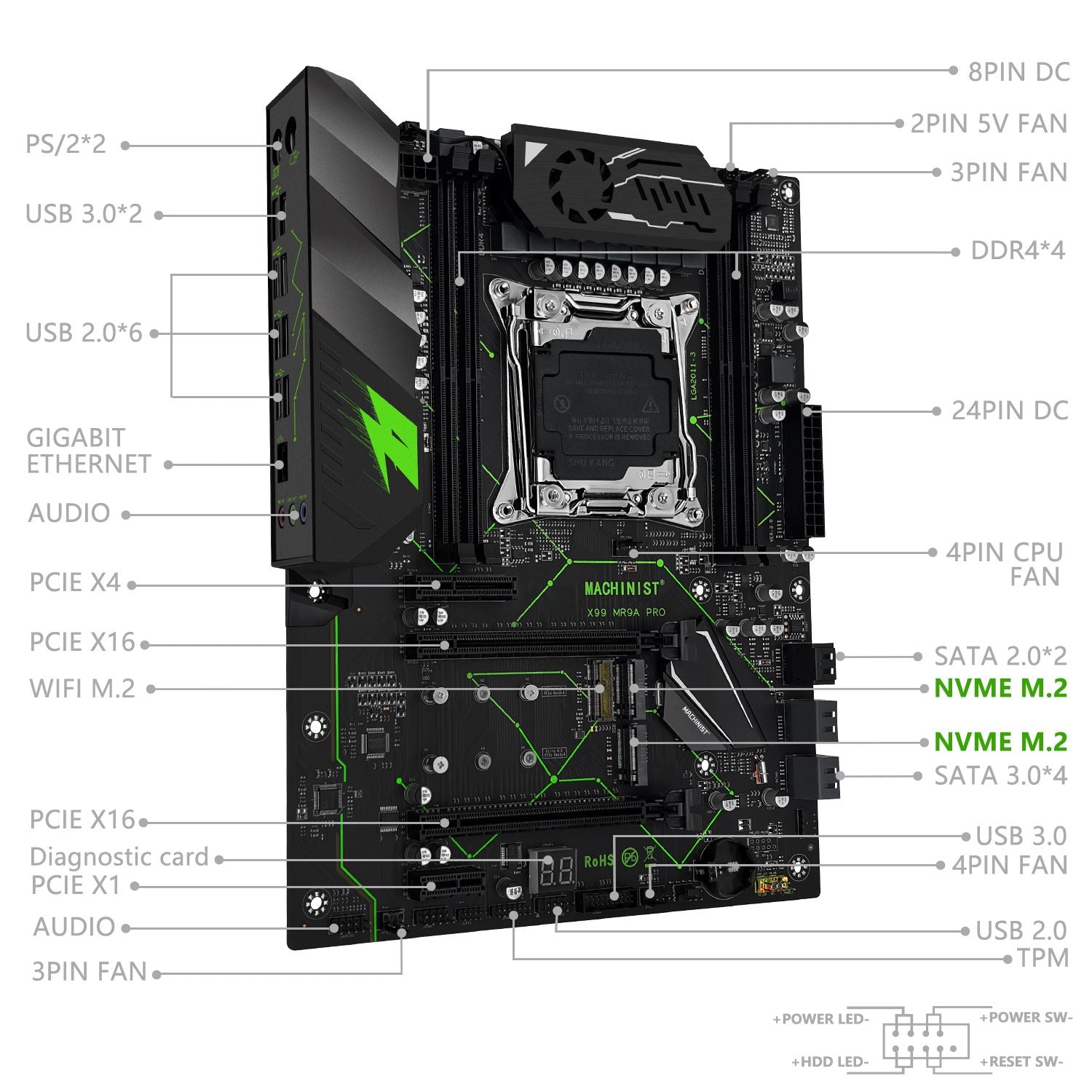

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interfaces :6 USB2.0 ports and 2 USB3.0 ports.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

>> Internal connector:

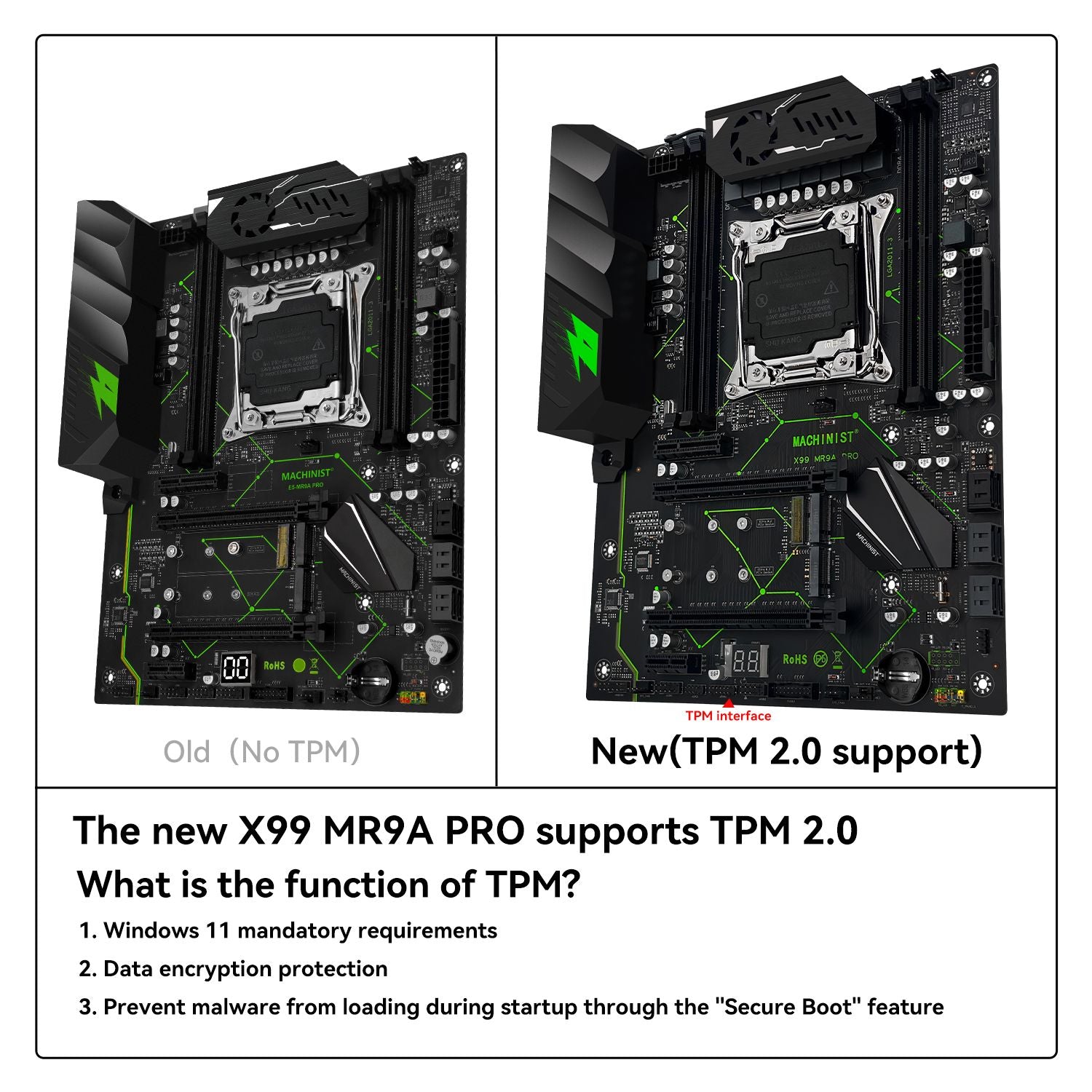

TPM2.0: Applicable to the MSI 14-pin interface.

Diagnosis card: 1

PCIe: 2 PCIe 16x, 1 PCIe 4x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

SATA ports: 6 (4 SATA2.0; 2 SATA3.0)

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

M.2 interface: 2 PCIE interfaces. One wifi SATA interface.

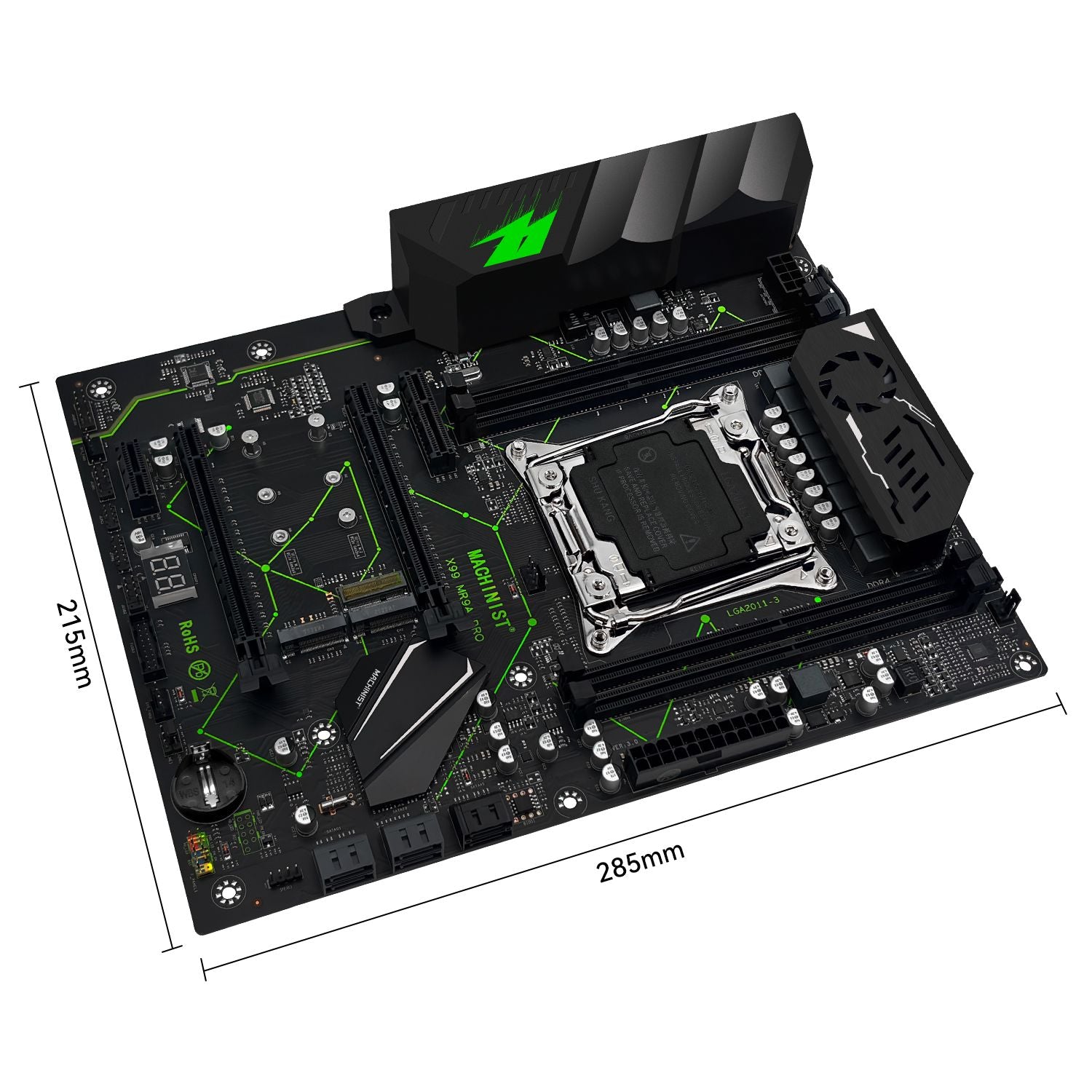

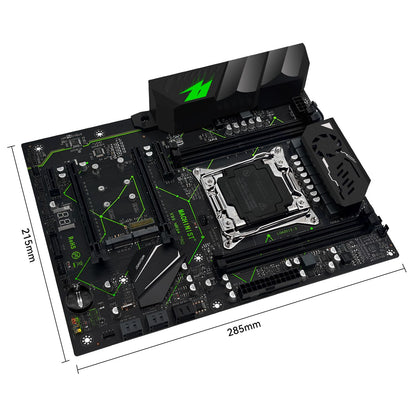

Overall dimensions :280mm * 215mm.

Motherboard weight (including packaging) : approximately 1.3 kilograms.

>> The packaging box and the new and old versions will be sent randomly. The parameters of the packaging content may vary. The actual parameters are subject to the details in the link.>> Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
