MACHINIST X99 Motherboard Kit Set With Intel LGA2011-3 Xeon E5 2696 V3 CPU DDR3 16GB 2400MHz ECC RAM NVME M.2 SATA White PR8-H

Brand Name: MACHINIST

Chipset: h55

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 128 GB

Battery Included: No

Processor compatibility: Intel Xeon

With CPU: Yes

Support Memory Type: DDR3

Number of PCI: 0

Special Features: None

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: No

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI - E standards: PCI-E 3.0

Socket Type: LGA 2011-3

High-concerned chemical: None

Usage Scenario: Audio & Video

Usage Scenario: Office

Usage Scenario: Video Production

Usage Scenario: others

Origin: Mainland China

Number of PCIe x 8: 0

Number Of Memory Slots: 4

Number of PCIe x 4: 0

Onboard Connectors & Header: 24-pin Main Power Connector

Onboard Connectors & Header: CPU Fan Connector(s)

Onboard Connectors & Header: 4-pin +12V Power Connector

SATA RAID: 0

Max LAN Speed: 1000Mbps

Quality Certification: ce

Quality Certification: ROHS

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Supports M.2 SSD: 2280

Number of M.2: 1

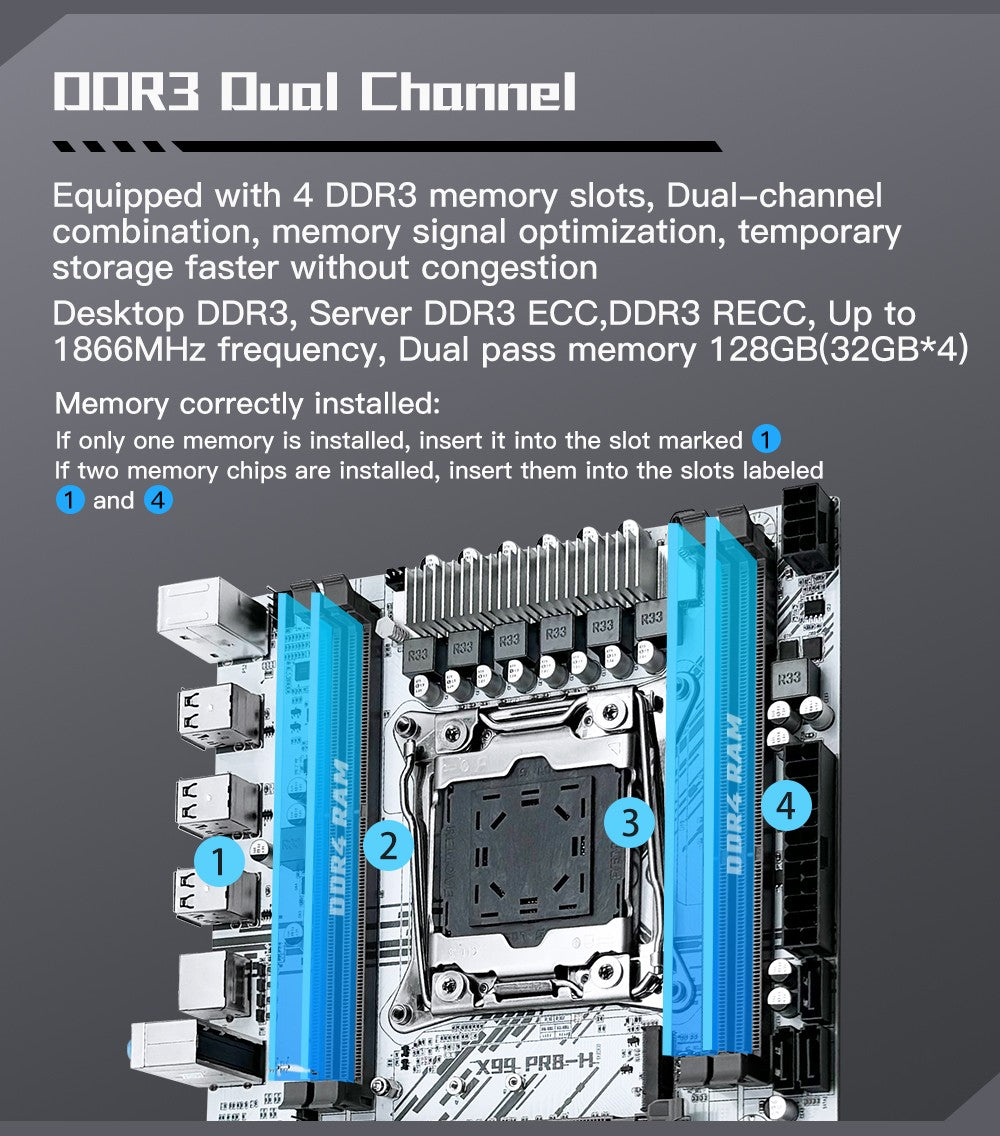

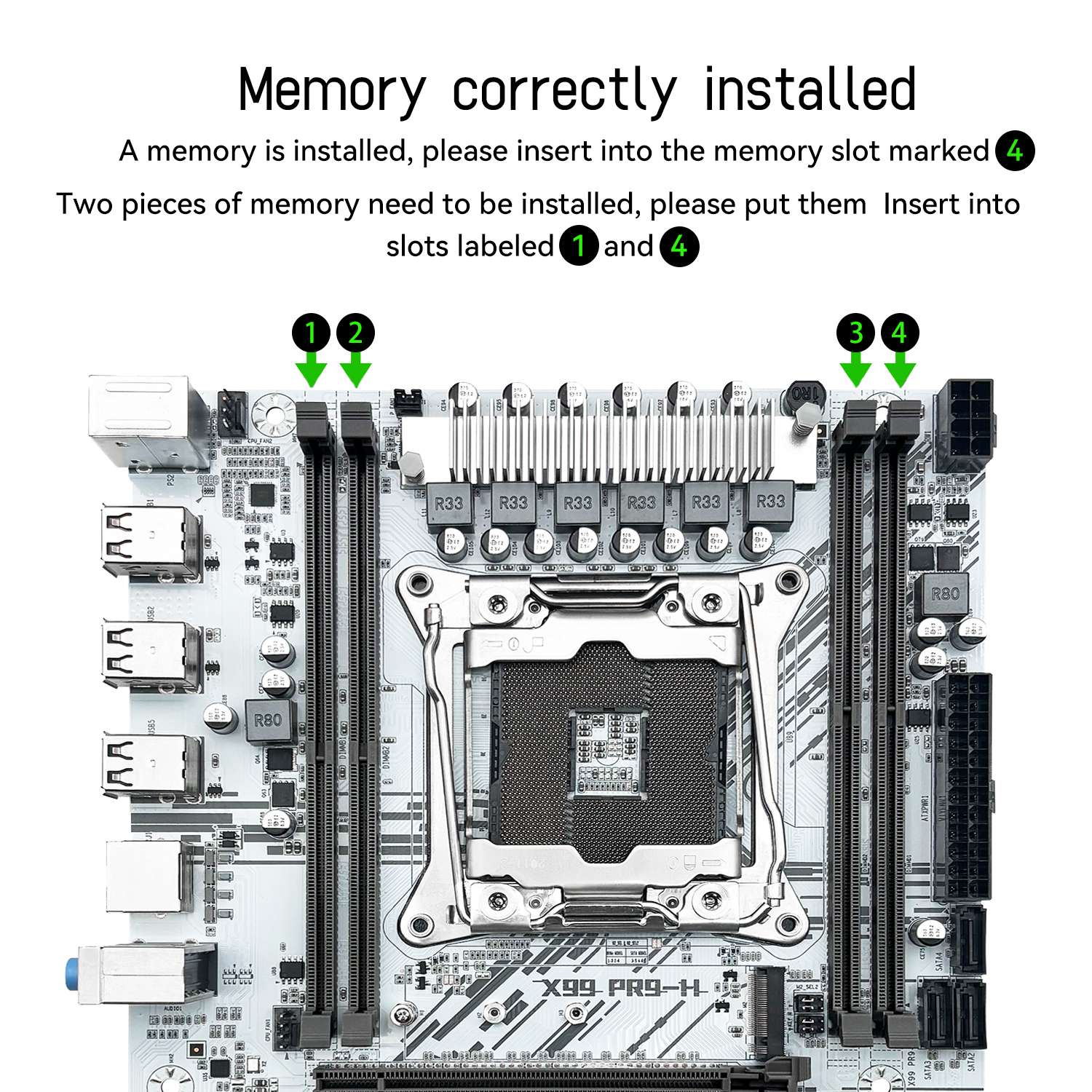

> >There is a memory limit for installing this motherboard. A single RAM needs to be installed in slot #1 (the rightmost outer slot) and slot #4 (the leftmost outer slot) first. Installing the middle memory slot (#2/#3) of the motherboard separately cannot start.

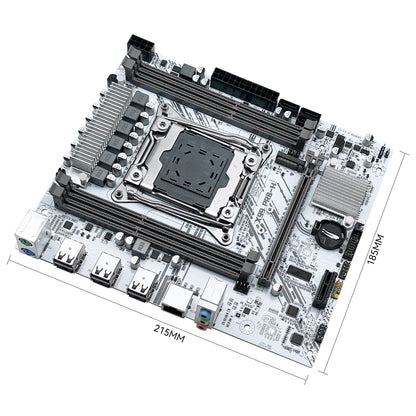

> >Motherboard:MACHINIST white X99 PR8-H LGA 2011-3 motherboard *1pcs.

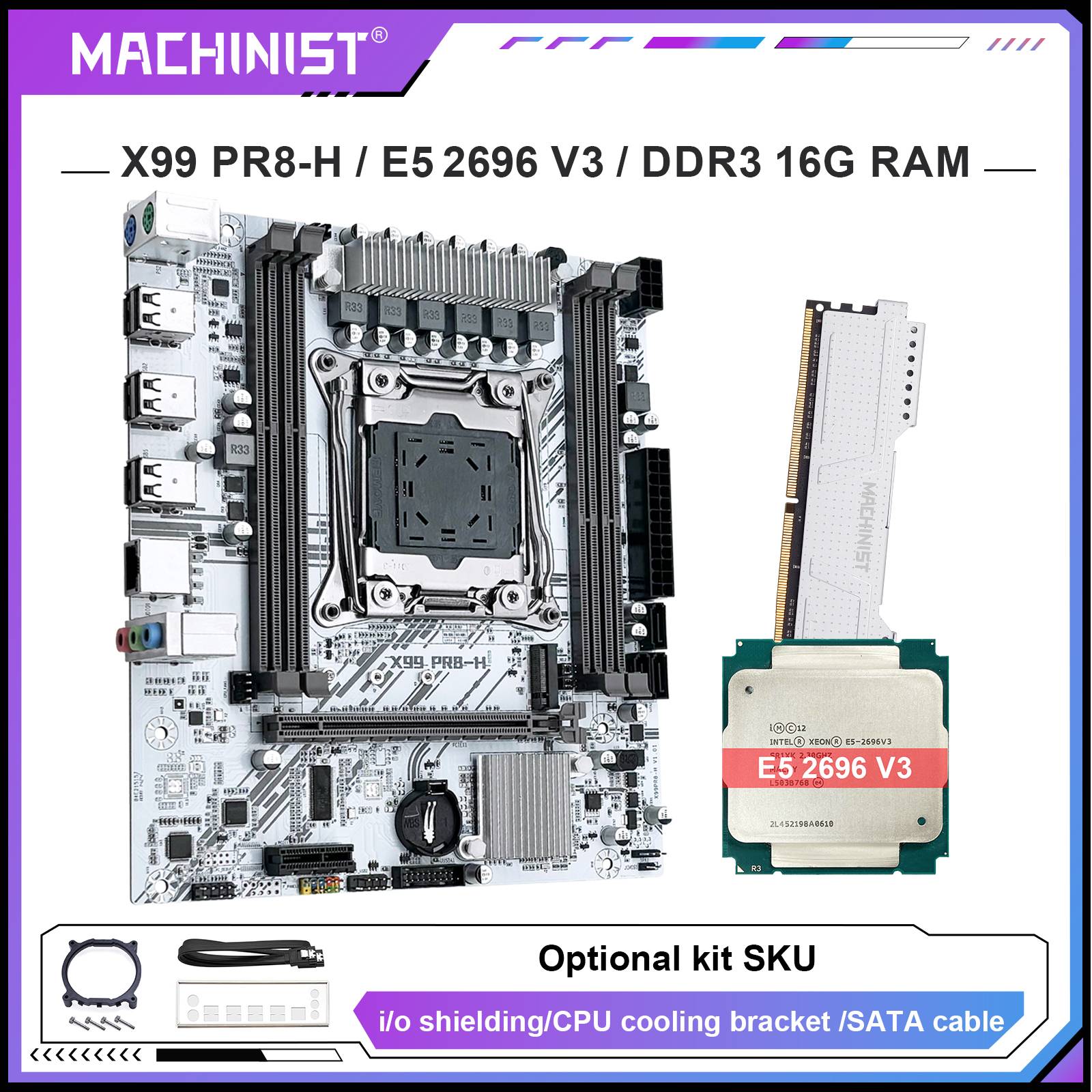

> >Motherboard+CPU+RAM:

Motherboard: MACHINIST white X99 PR8-H LGA 2011-3 motherboard *1pcs.

CPU: used Xeon CPU E5 2696 V3 *1pcs.

RAM: 16GB DDR3 1333MHz ECC memory *1pcs.

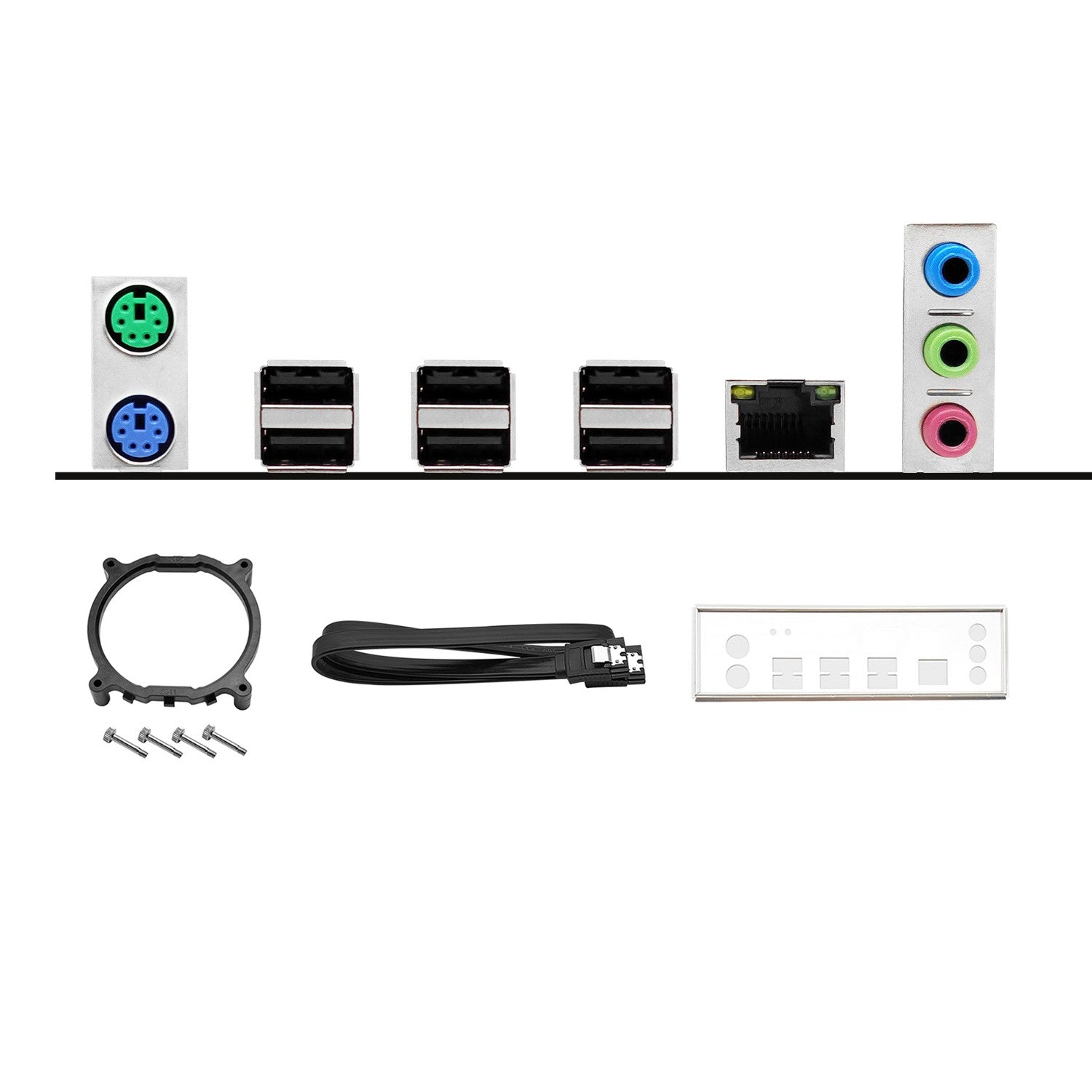

Complimentary accessories: I/O shield *1, SATA cable *1.

All samples are manually tested before sending and then packaged. If there are any missing gifts, they cannot be used as grounds for dispute. Please understand!

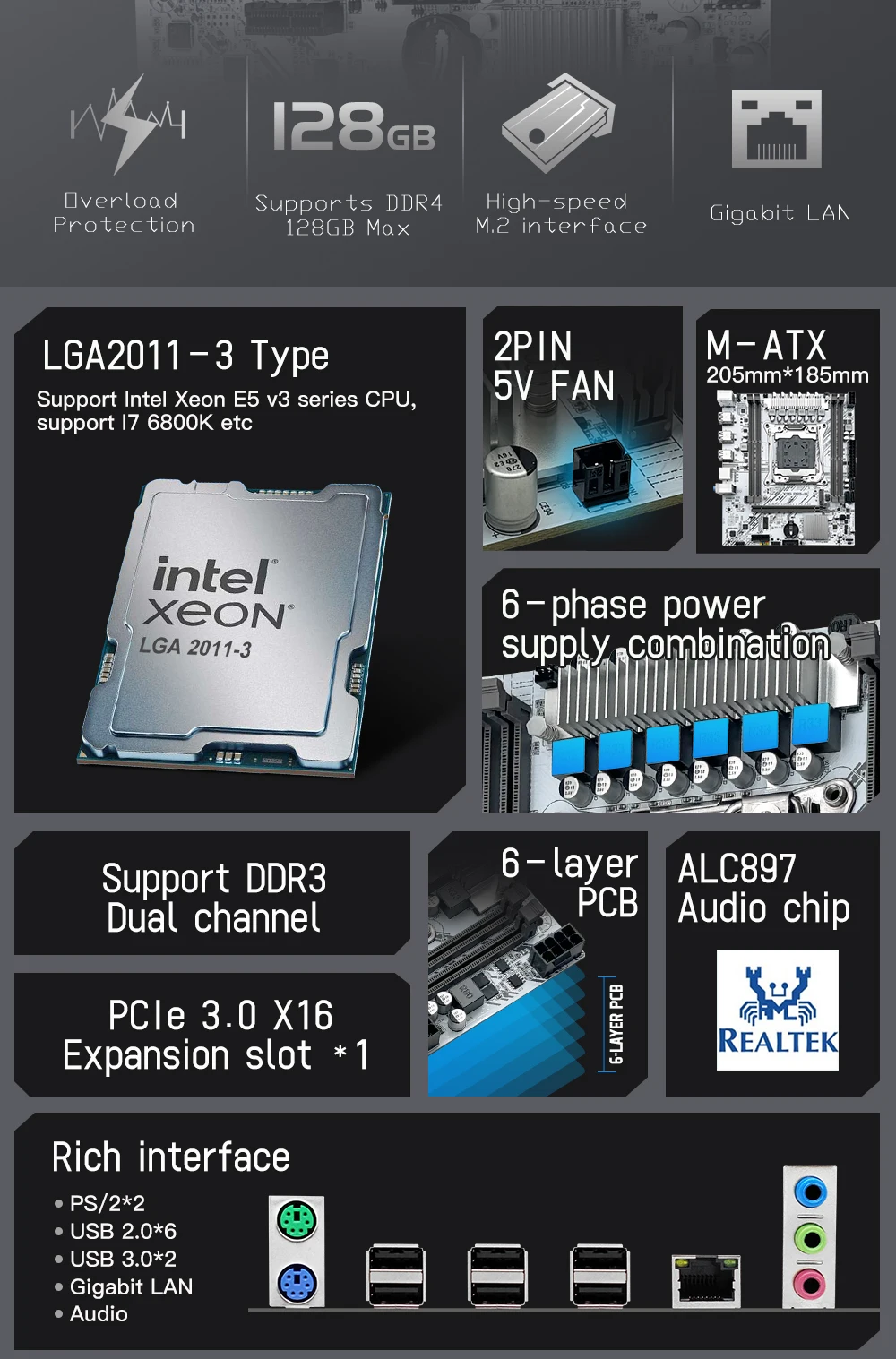

> >Motherboard information:

Brand: MACHINIST.

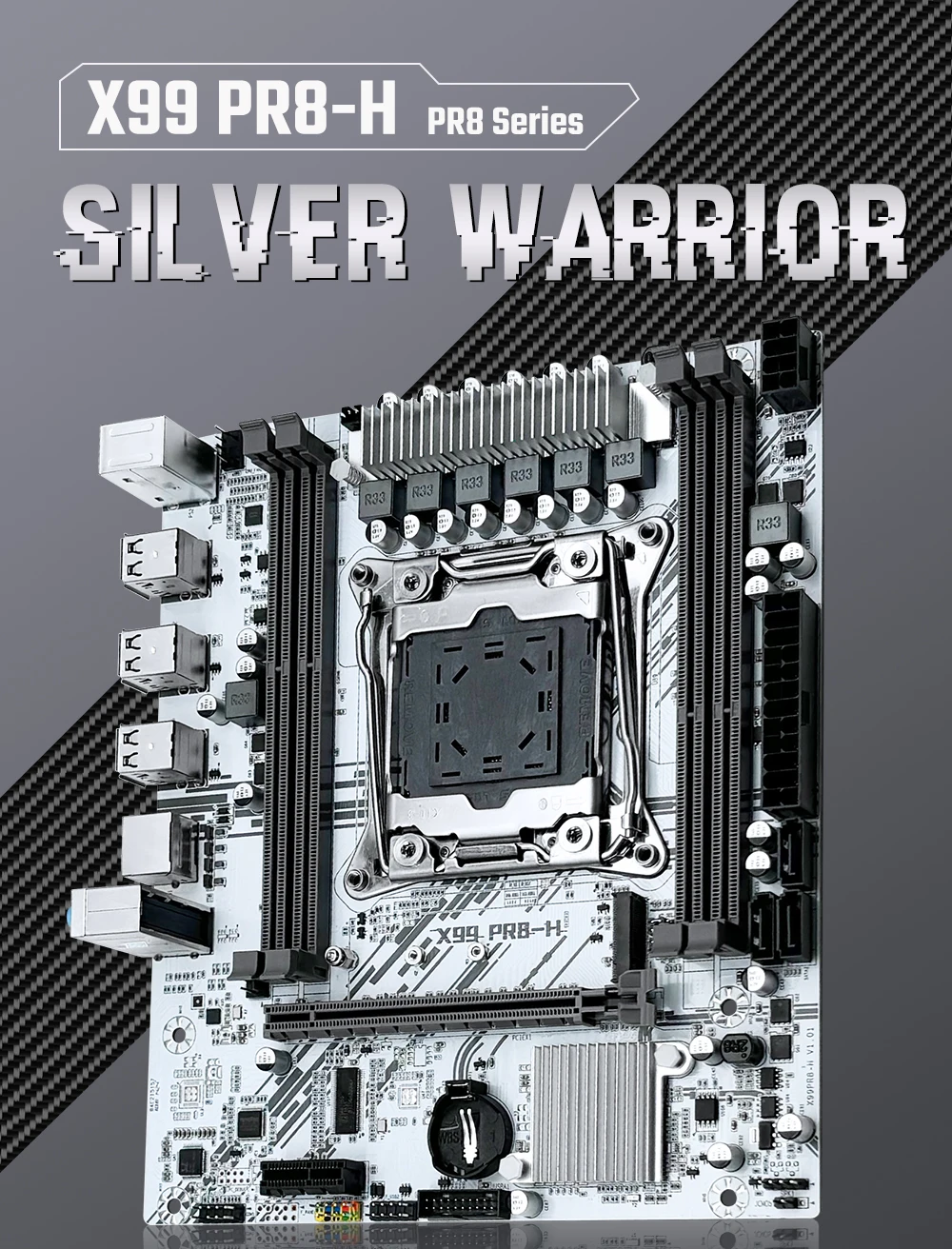

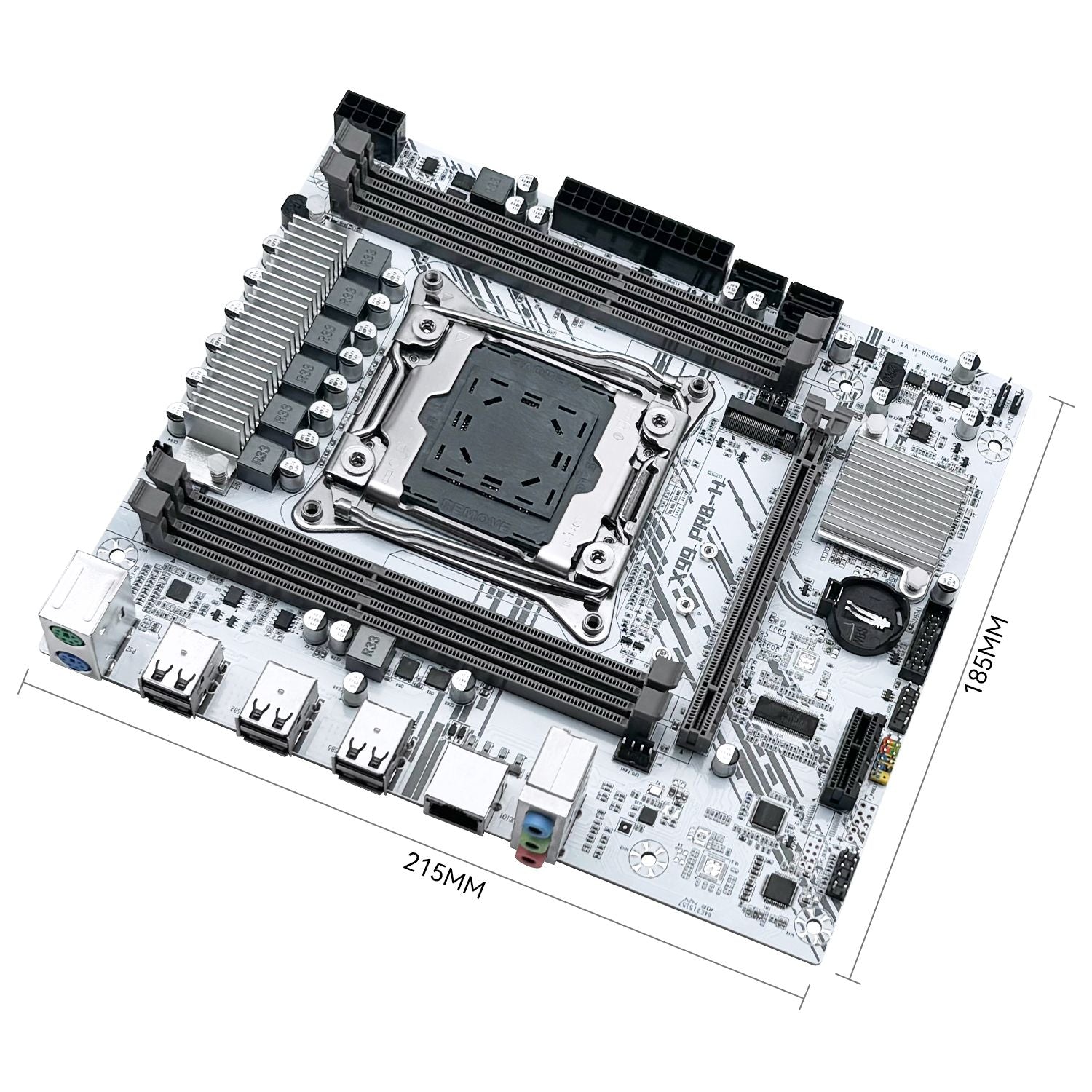

Motherboard model: White X99 PR8-H.

Chipset: P55/H55 Chipset.

Processor: Supports Intel LGA2011-3-pin series processors. The processor is currently tested to support only: E5 2629 V3,E5 2649 V3,E5 2669 V3,E5 2666 V3,E5 2673 V3,E5 2676 V3,E5 2678 V3,E5 2696 V3, and E5 2686 V4.

> > Memory:

Technology: Dual-channel DDR3. Supports 1066/1333/1600/1866 MHZ.

Maximum capacity: 128GB (32G x 4).

Memory slot :4 * 240-pin DDR3.

Supported memory types: Memory types support DDR3 desktop and server memory.

Please use international brands such as Samsung, Kingston, Sandee, Micron, Hynix, etc. Other brands may be incompatible.

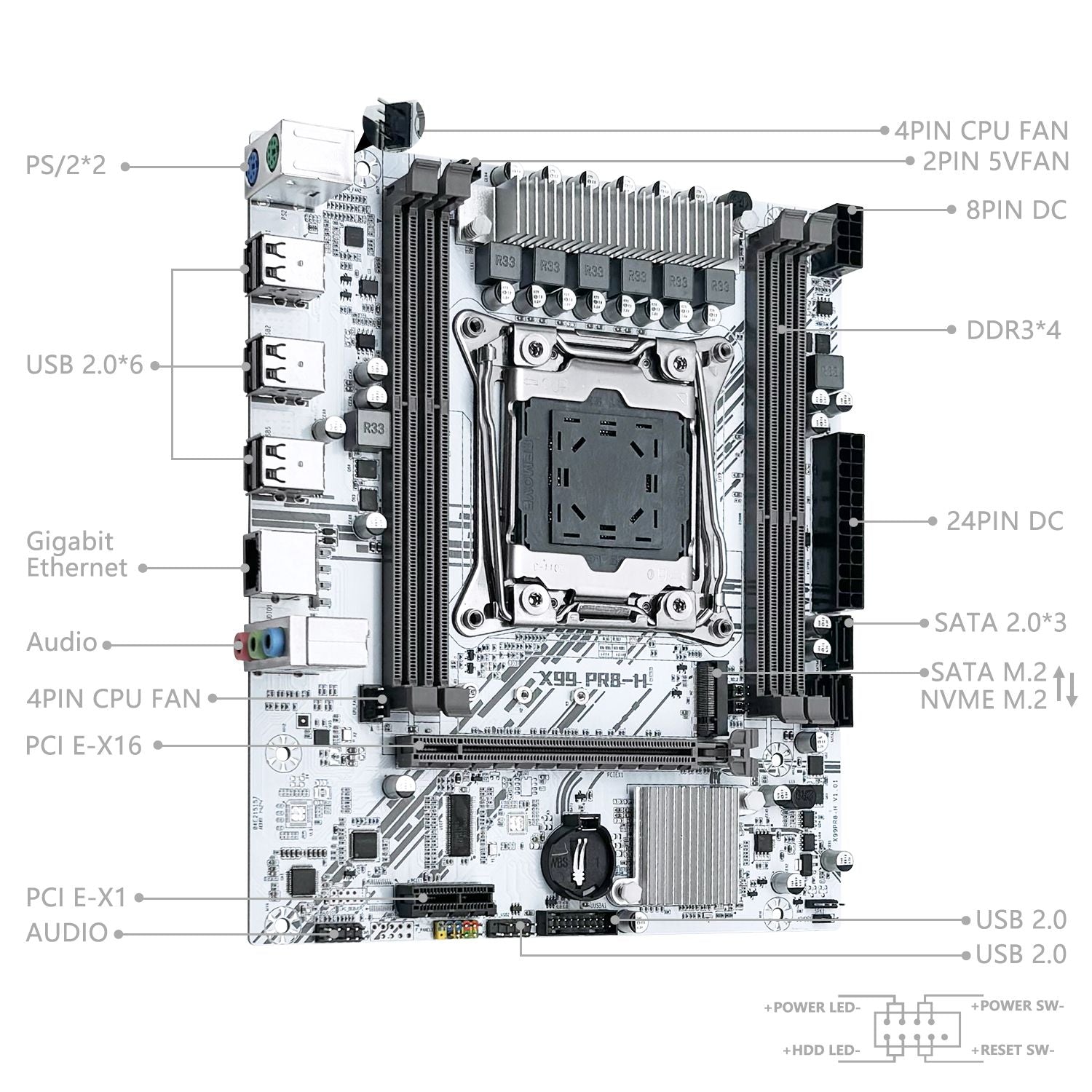

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface :6 USB2.0 ports

Ethernet: 1 gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

>>Internal connector:

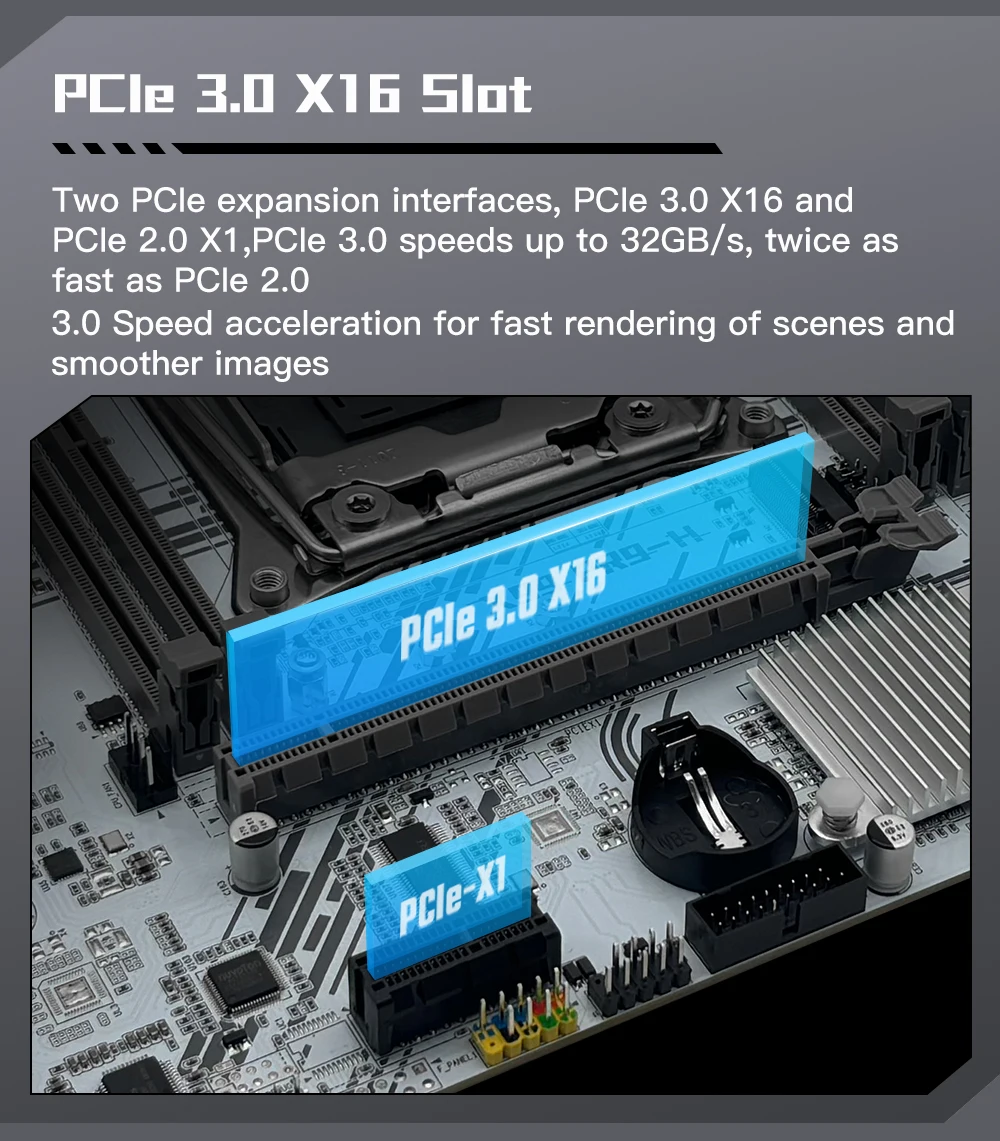

PCIe: 1 PCIe 16x, 1 PCIe 1x.

F_PANEL: 1 2x5Pin.

SATA ports: 3 (2 SATA2.0;) 1 SATA3.0;

One standard 1x8-pin power socket; One standard 1x24-pin power socket;

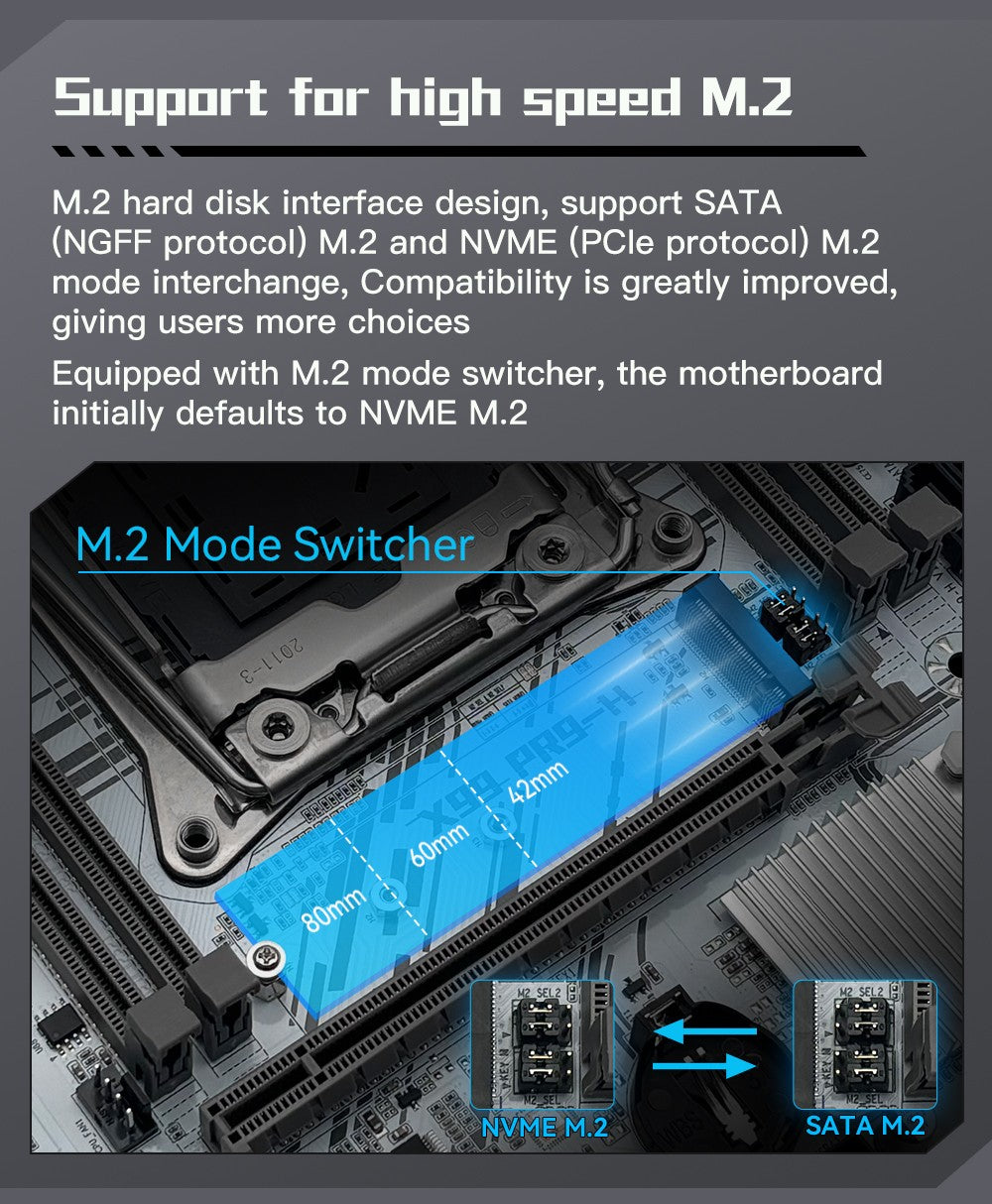

M.2 interface: By factory default, it is set to the NVME interface, and all four jumper caps are short-circuited with one or two pins. Switch all four jumper caps to short-circuit 2 or 3 pins to SATA mode.>>Regarding the tariff issue, please ensure that you can solve the customs clearance problem by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>> Note:

The color of the bottom plate of the tank may vary by batch, but it will not affect the use of the product. The product is constantly being optimized and upgraded.

(2) Due to manual measurement, an error of 1-3mm is allowed.

(3) Due to different displays and different lighting conditions, the picture may not show the actual color of the object. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply)

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics department requires that the use of this battery be prohibited.
