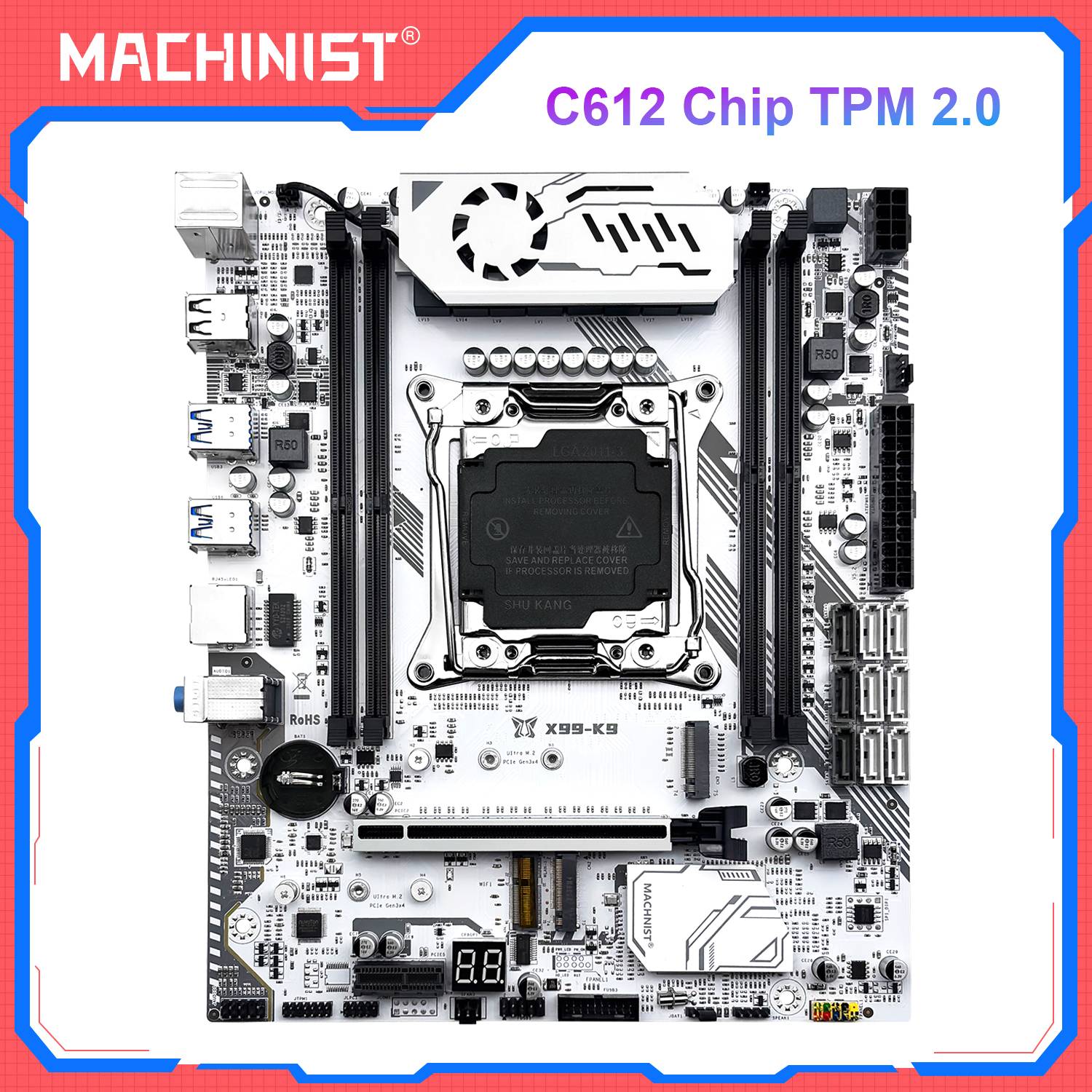

MACHINIST K9 X99 Motherboard Support TPM 2.0 intel Xeon E5 V3/V4 LGA 2011-3 CPU and DDR4 RAM NVME M.2 Four channel memory
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: MACHINIST
Chipset: C612
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Battery Included: No
Processor compatibility: Intel Xeon
With CPU: No
Support Memory Type: DDR4
Number of PCI: 0
Special Features: None
Storage Interface Type: M.2 (NVMe)
Package: Yes
RAID Supported: No
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: PS/2
PCI - E standards: PCI-E 3.0
Socket Type: LGA 2011-3
High-concerned chemical: None
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Office
Usage Scenario: Video Production
Usage Scenario: others
Origin: Mainland China
Number of PCIe x 8: 0
Number Of Memory Slots: 4
Ports: PS2
Support USB Type: USB 2.0
Support USB Type: USB 3.0
Number of PCIe x 4: 0
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)

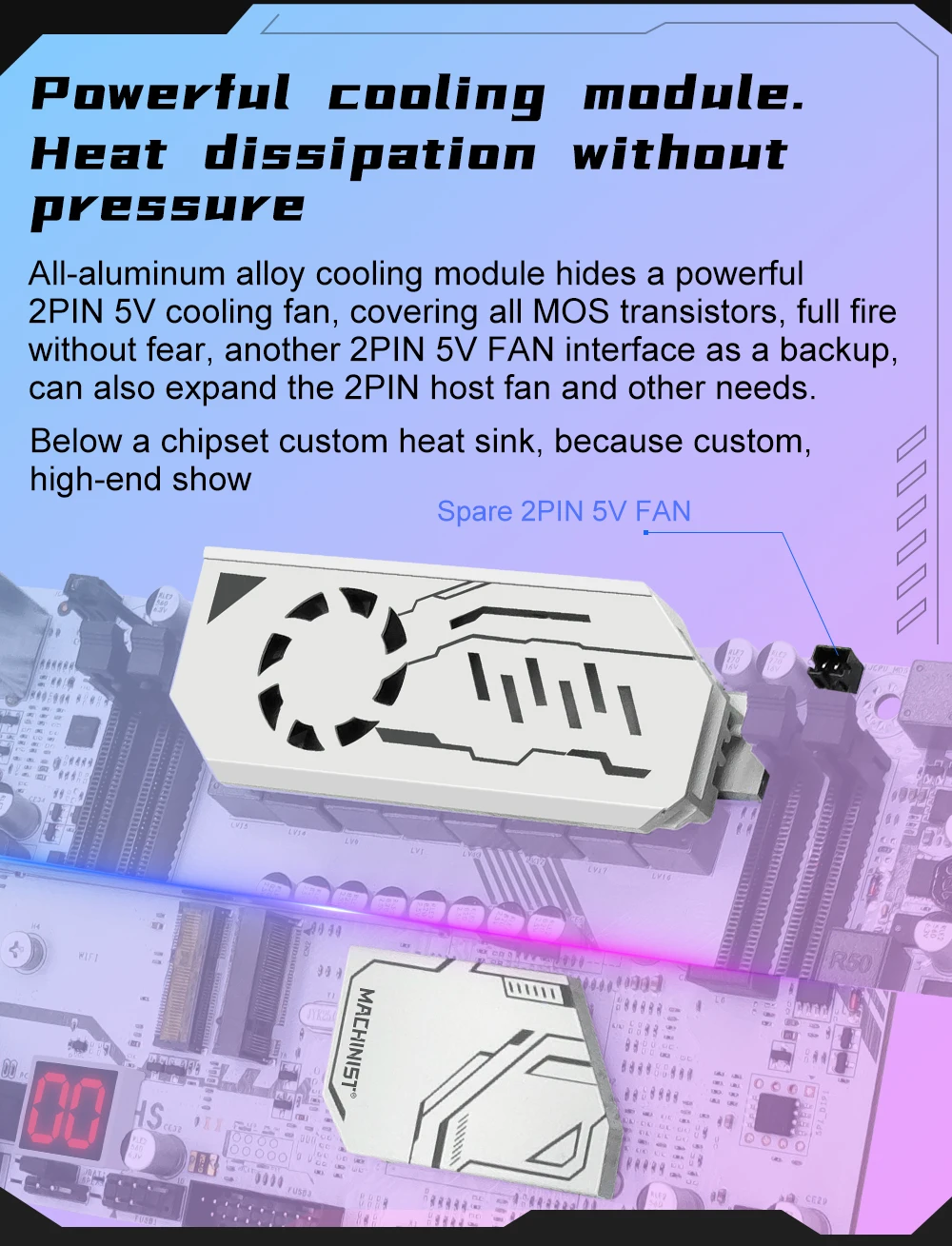

Onboard Connectors & Header: PWR_FAN Connector
Onboard Connectors & Header: 4-pin +12V Power Connector
Memory channel: Four
Number of SATA Ports: 9
SATA RAID: 0
Max LAN Speed: 1000Mbps
Quality Certification: ce
Quality Certification: ROHS
Number of PCIe x 1: 1
Form Factor: Micro-ATX
Supports M.2 SSD: 2280
Number of M.2: 3
> > Due to the continuous update of product batches, new and old packaging boxes will be sent randomly. The appearance and content parameters of the packaging boxes are for reference only!

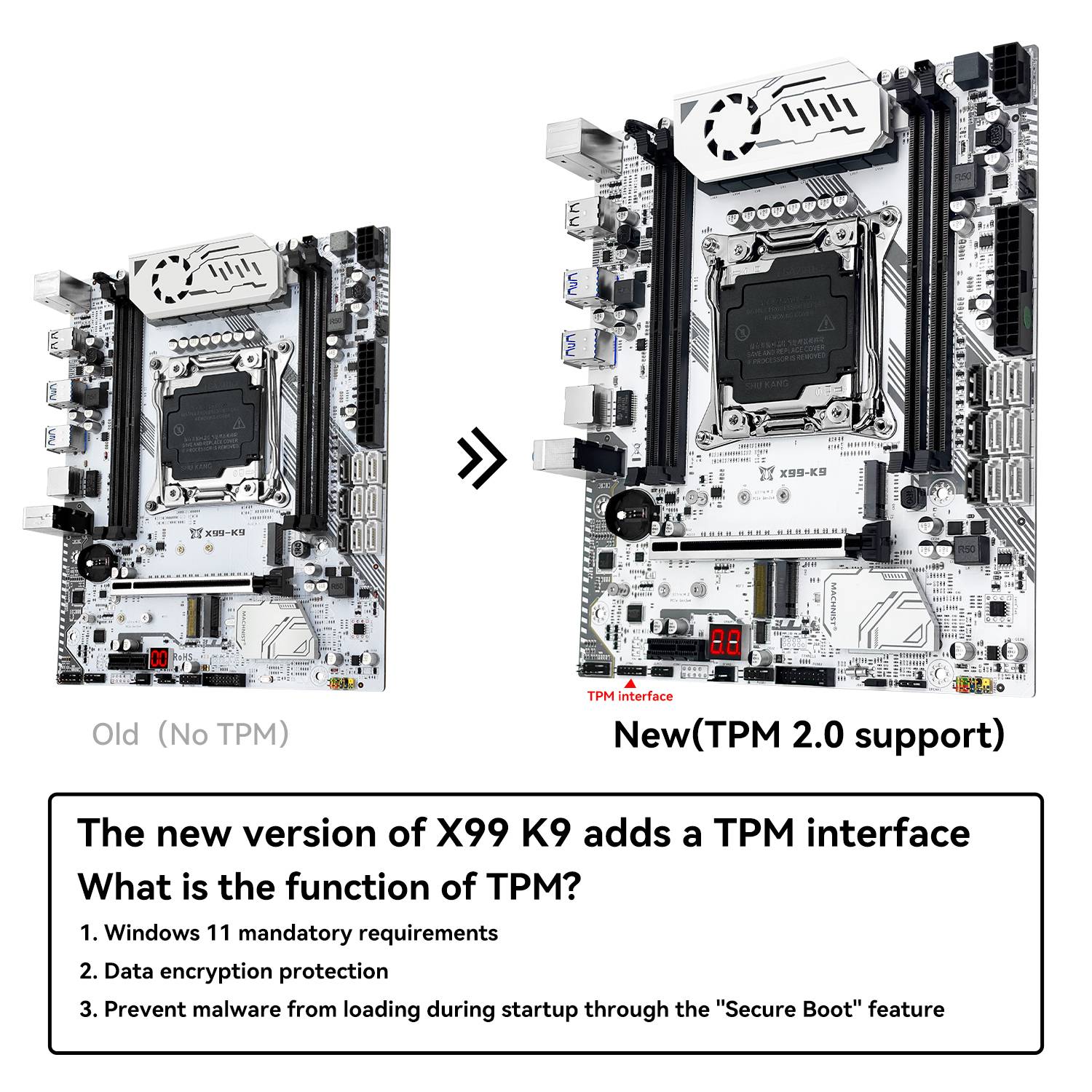

> > This link sends the latest version that supports TPM 2.0.
> > Motherboard information:
Brand :MACHINIST.

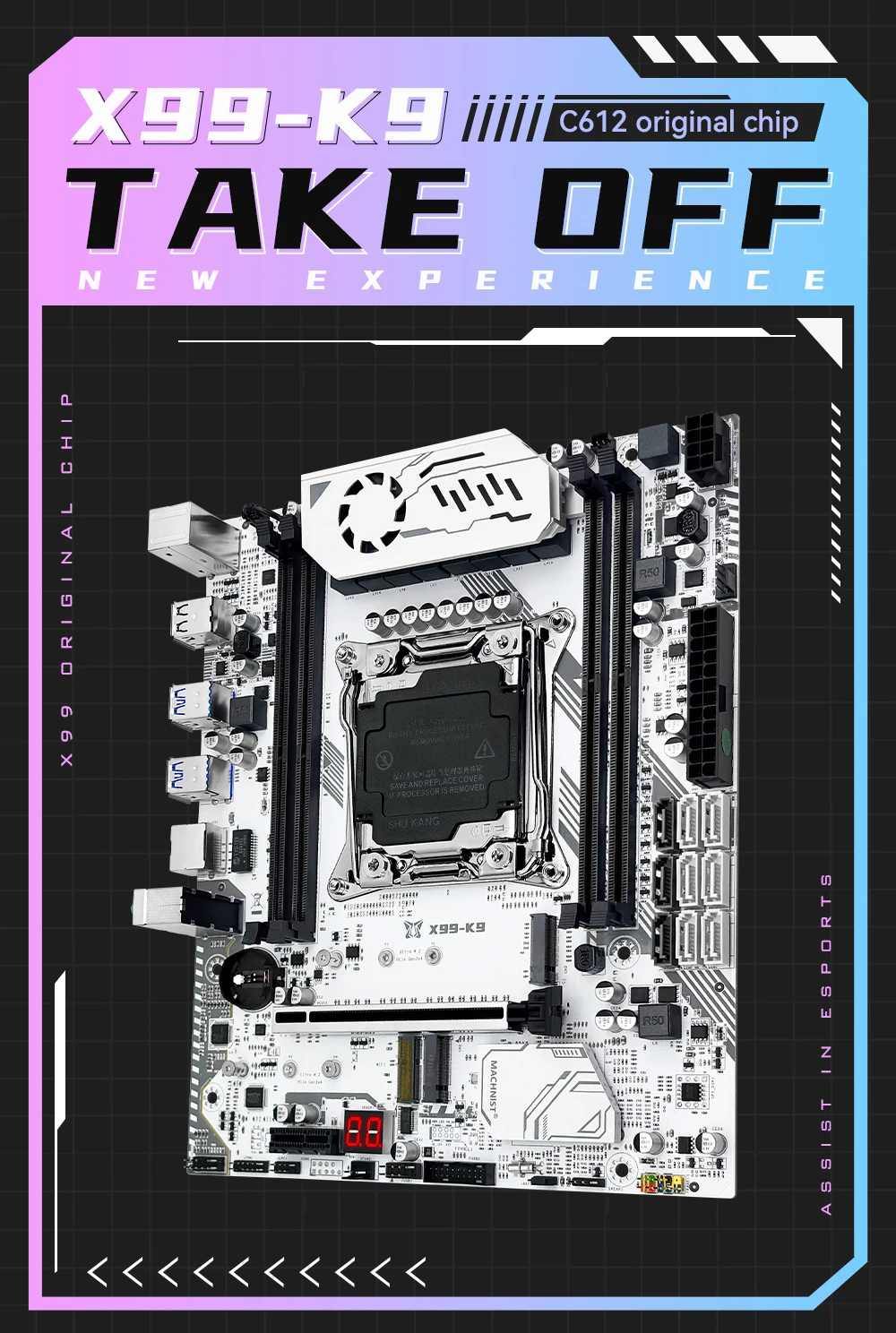

Motherboard model :X99 K9(tpm 2.0).
Processor: Supports Intel LGA 2011-3-pin series processors.
Chipset :X99/C612 Chipset.

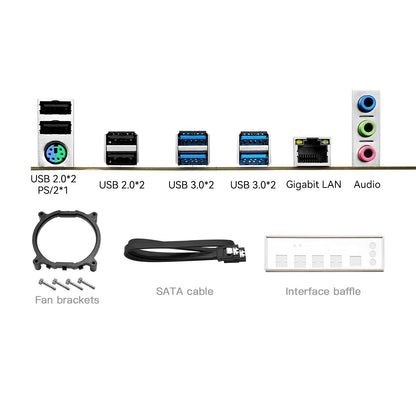

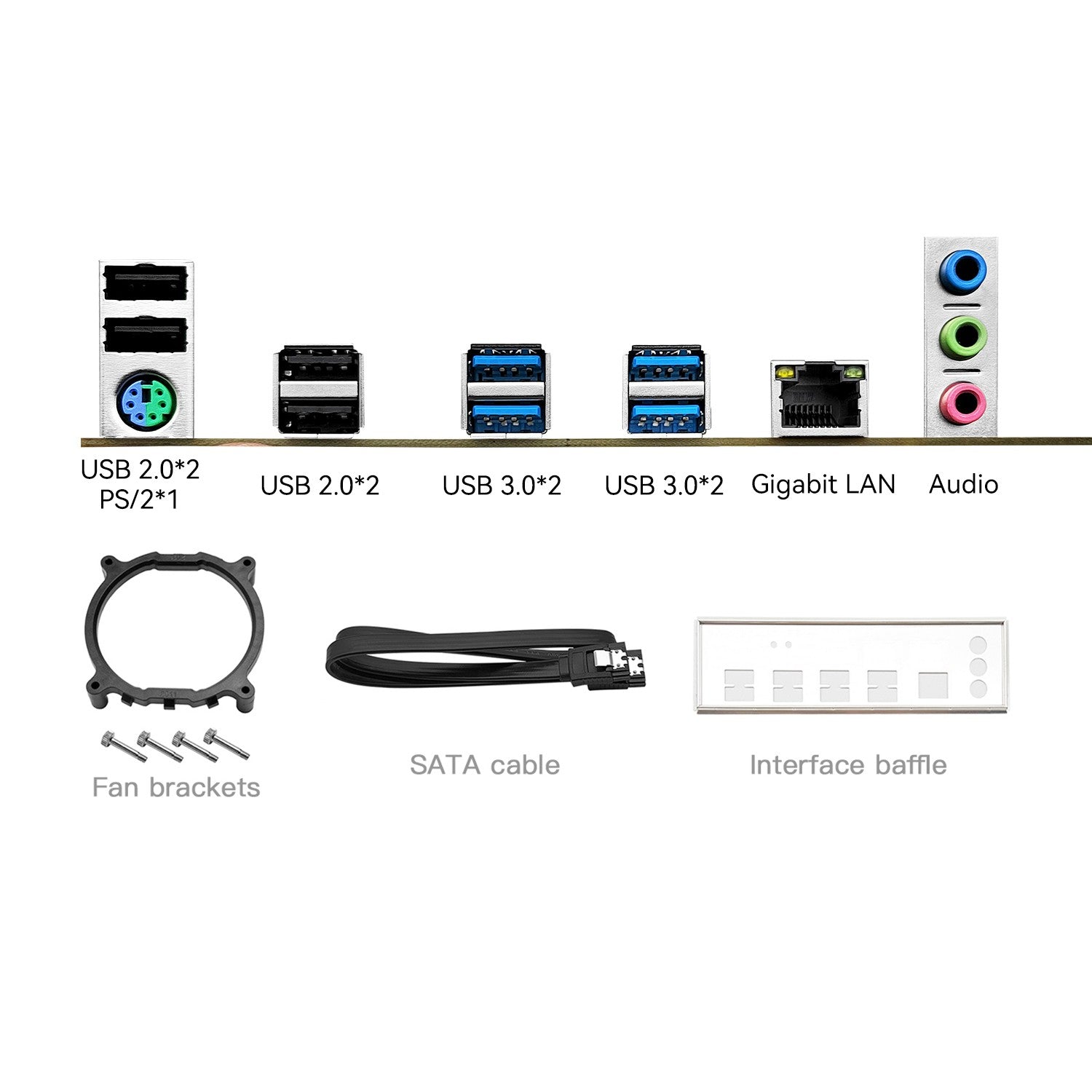

Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink *1.
(All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!)"

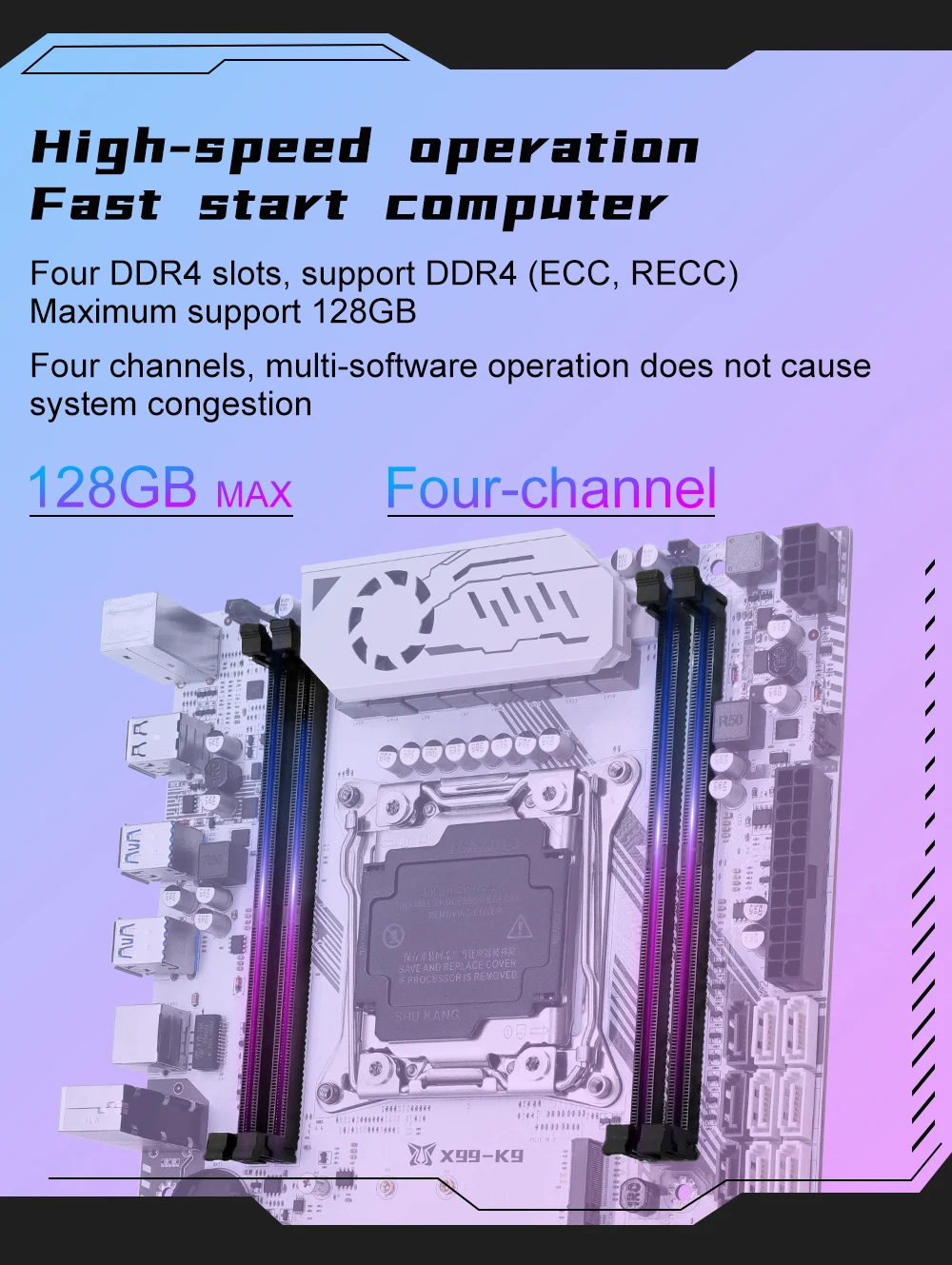

> > Memory:
Technology: Four-channel DDR4. The maximum capacity is 128GB (32G x 4).
Memory slot :4 * DDR4.
Supported memory types: The memory type supports DDR4 desktop and server memory.
Please use international brands such as Samsung, Kingston, Sandisk, Micron, and Hynix. Incompatibility issues may exist with other brands.

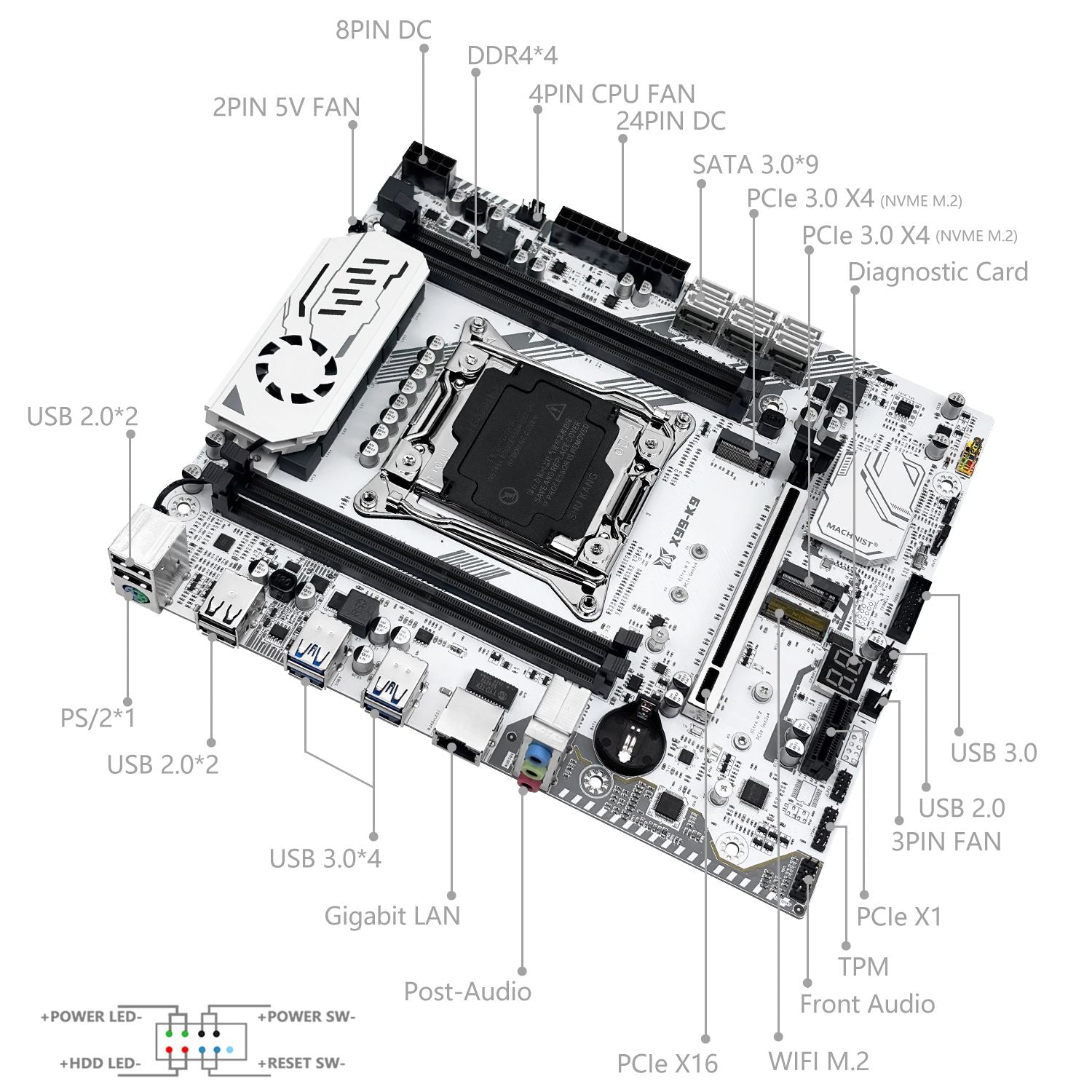

>> Others:

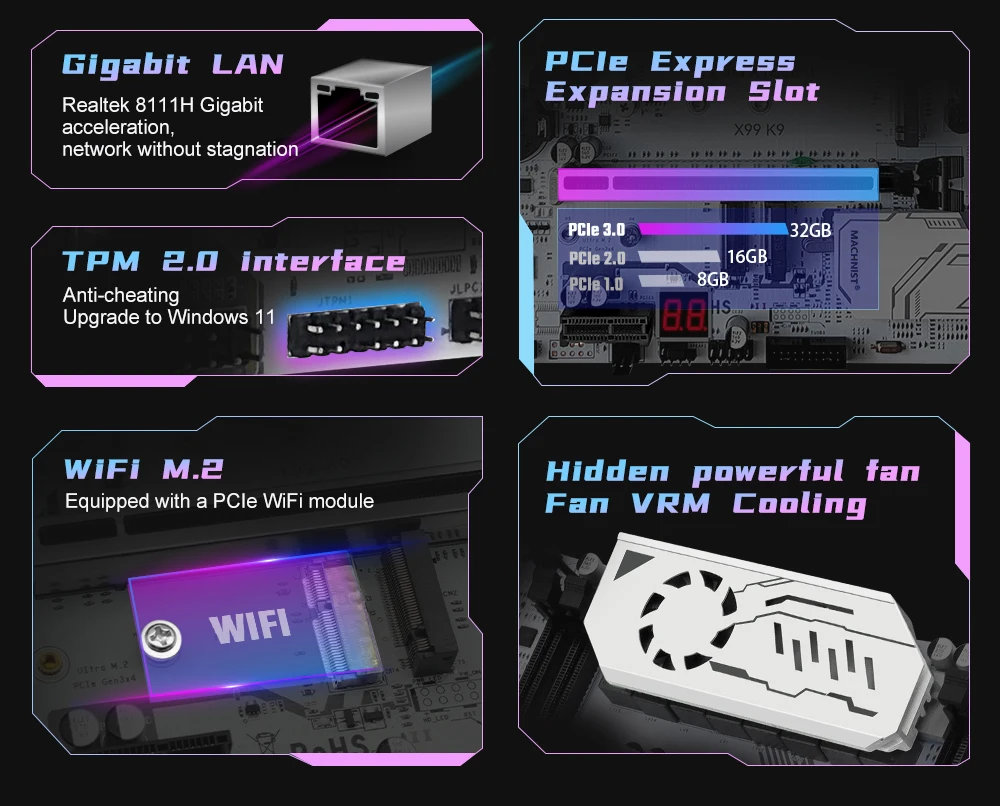

TPM2.0: Applicable to 14-pin interfaces;
PS/2: 1 2-in-1 interface;
Ethernet: Gigabit network card;

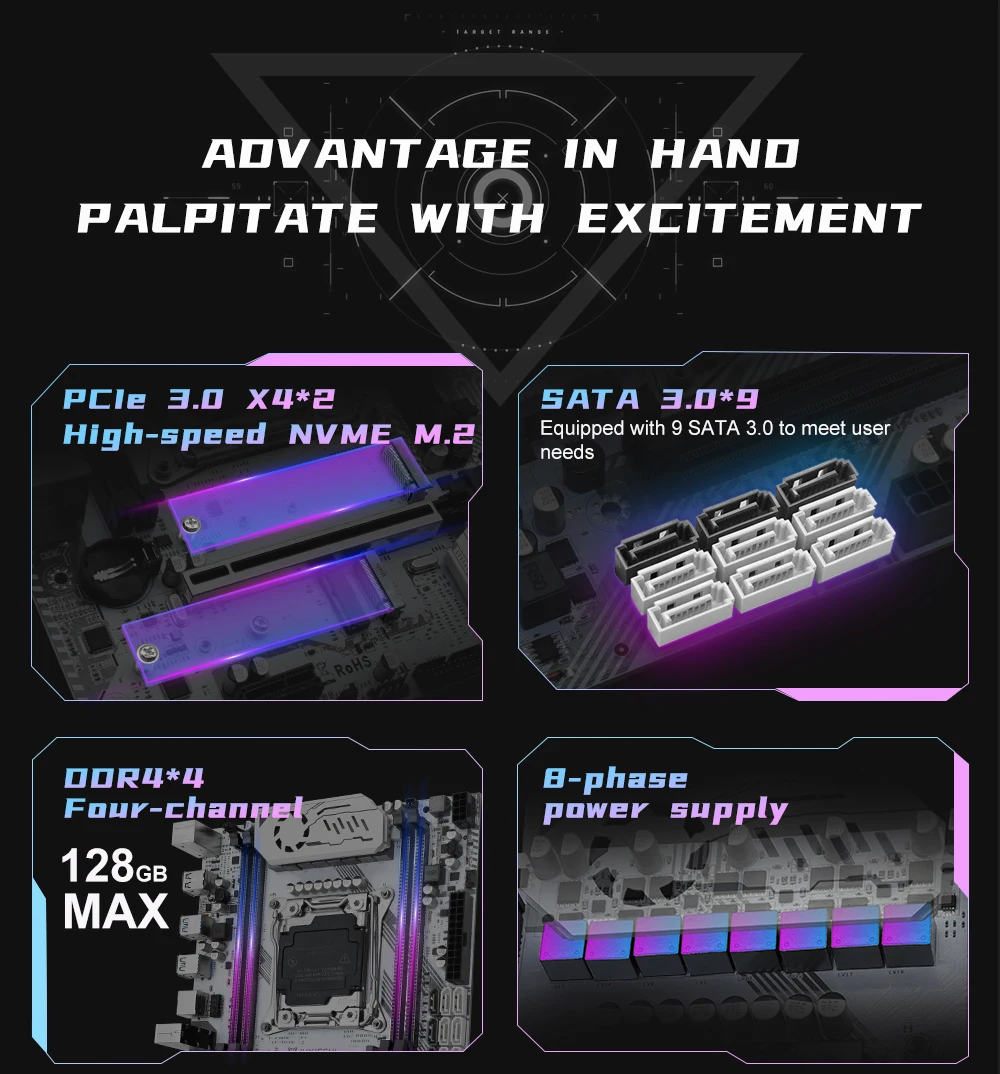

PCIe: 1*PCIe 3.0 16x, 1*PCIe 1x;
USB interface :4 USB2.0 ports; Four USB3.0 ports;
SATA ports: 9 (9 SATA3.0);

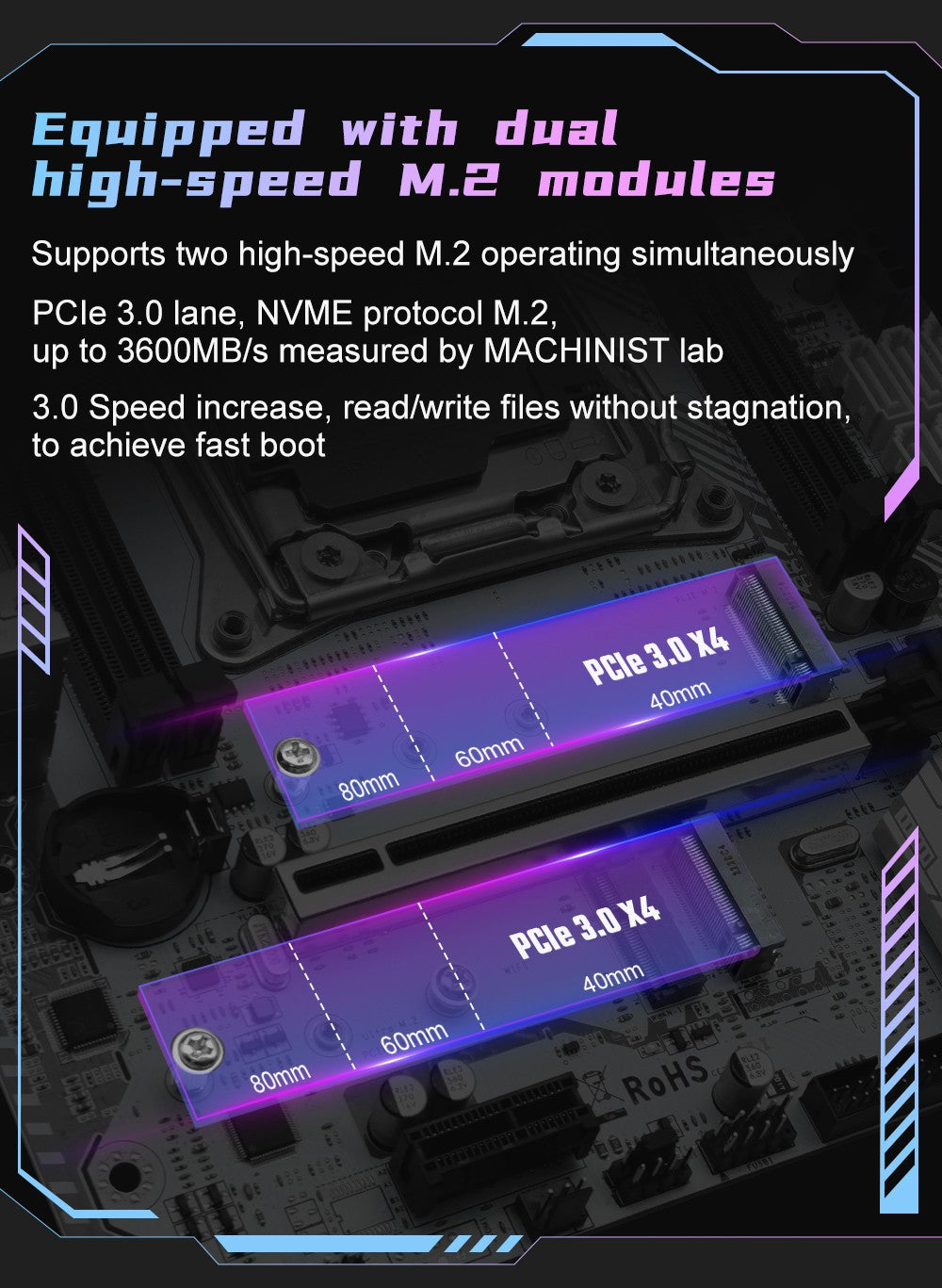

M.2 interface: 2 NVME M.2 interfaces. One NGFF M.2 WIFI card interface.

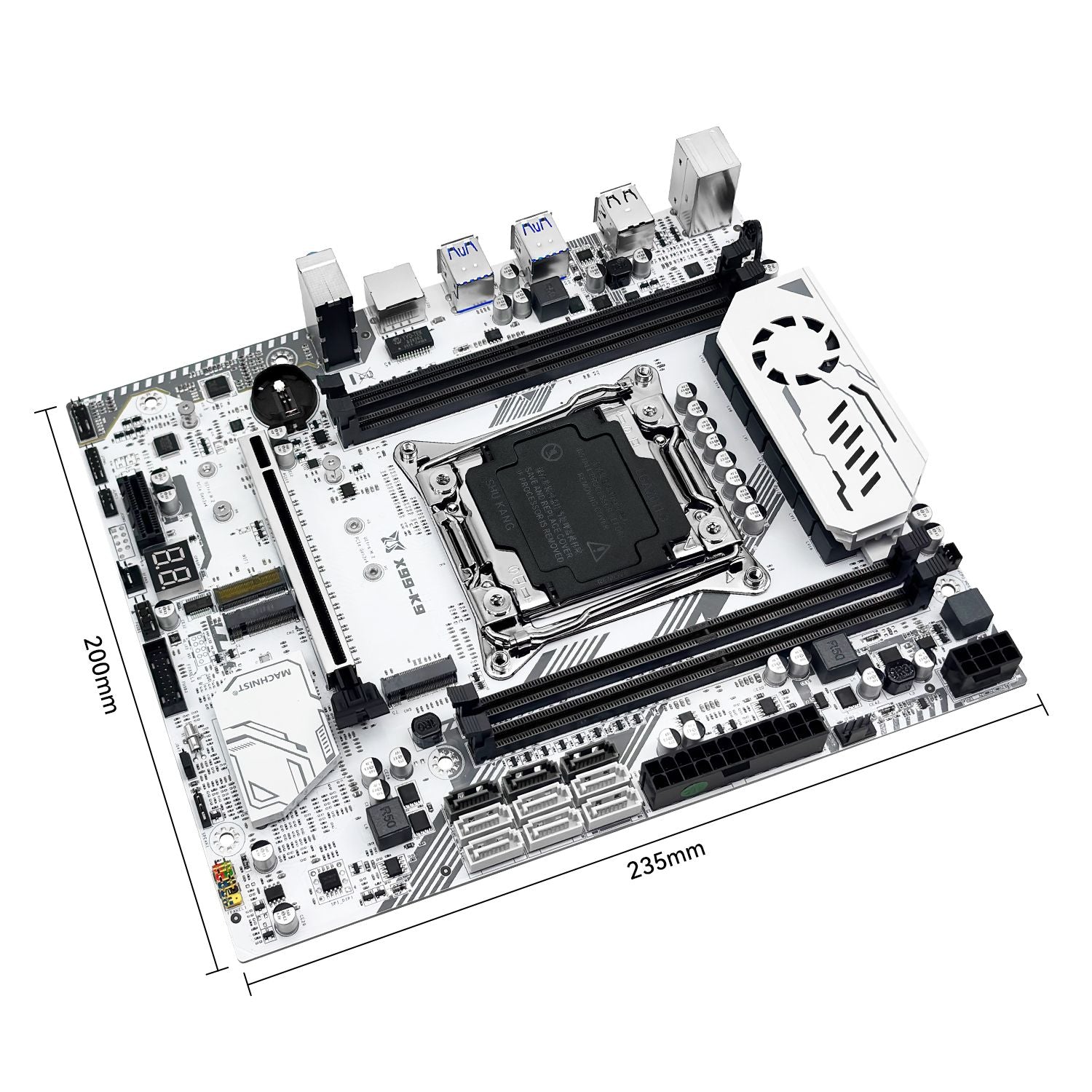

Overall dimensions :235mm * 200mm.
Motherboard weight (including packaging) : approximately 0.92 kilograms.
> > Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
> > Note:
(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1 to 3mm.
(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.
(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply
(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
