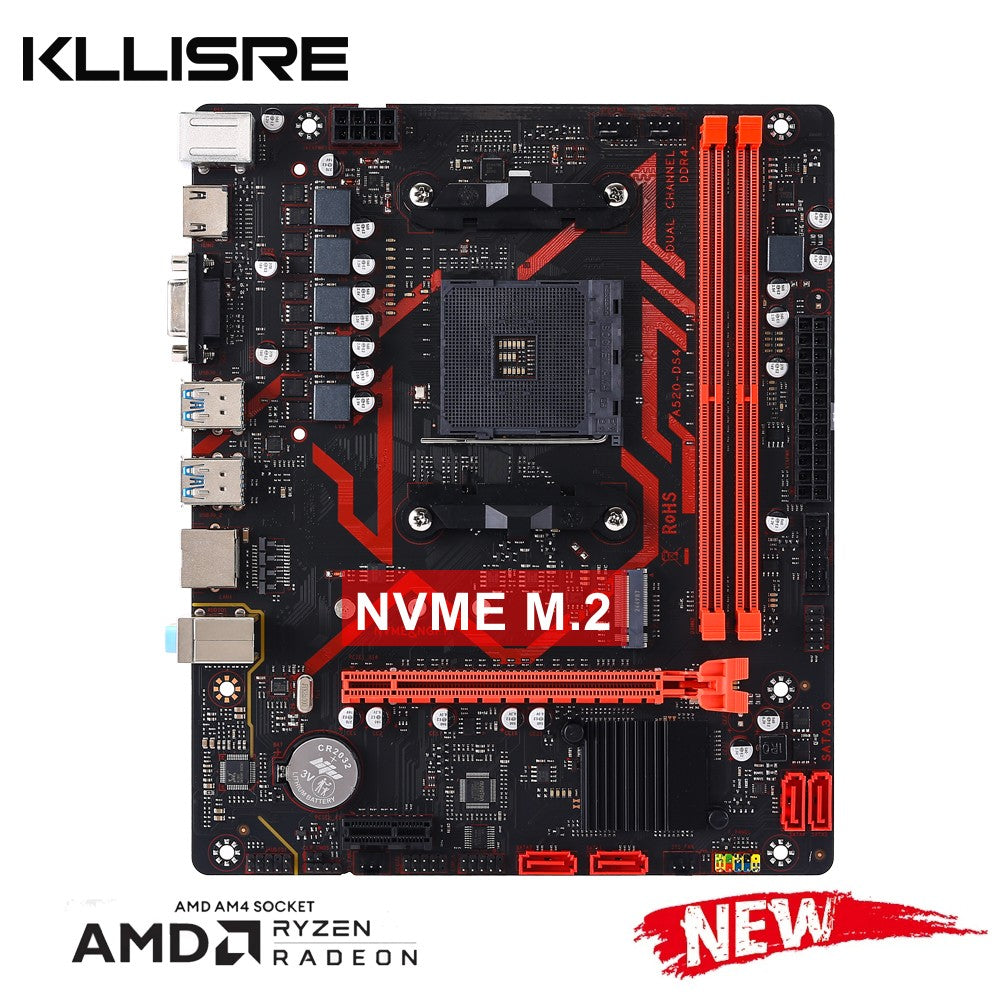

Kllisre A520 Motherboard Dual-channel DDR4 NVME M.2 SATA3.0 Micro ATX Supports AM4 Ryzen CPU

Brand Name: Kllisre

Chipset: AMD A520

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 64 GB

Battery Included: No

Processor compatibility: AMD Ryzen 5000 Series-R5

Processor compatibility: AMD Ryzen 3000 Series-R3

Processor compatibility: AMD Ryzen 5

With CPU: No

Support Memory Type: DDR4

Number of PCI: 2

Special Features: None

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Package: Yes

RAID Supported: No

Application: Desktop

Chipset Manufacturer: AMD

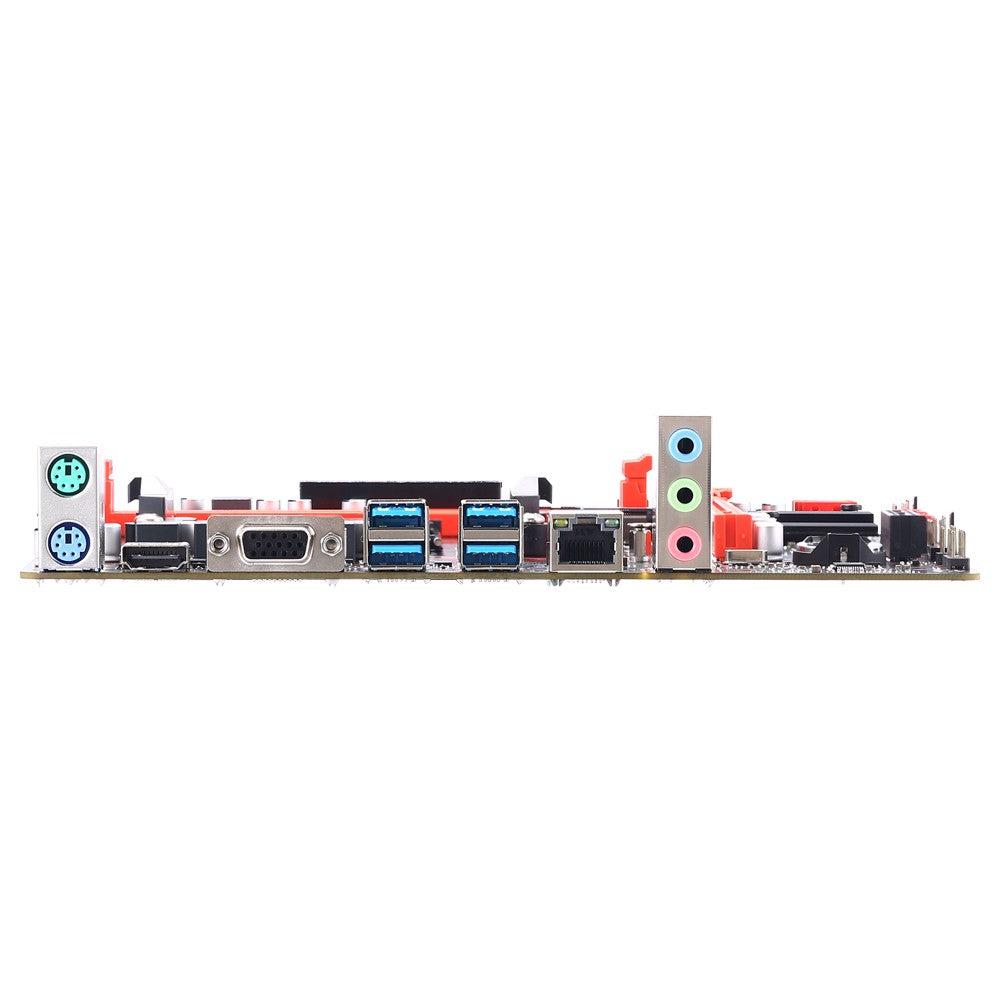

Back I/O Ports: PS/2 Combo

Back I/O Ports: PS/2

PCI - E standards: PCI-E 3.0

Socket Type: AM4

High-concerned chemical: None

Usage Scenario: Gaming

Usage Scenario: Household

Usage Scenario: Office

Origin: Mainland China

Number Of Memory Slots: 2

Ports: USB 3.0

Support USB Type: USB 3.0

Number of PCIe x 16: 1

Memory channel: Double

Number of SATA Ports: 4

Audio Channels: 5.1

Launch Date: 2013

Max LAN Speed: 1000Mbps

Quality Certification: ce

Number of PCIe x 1: 1

Form Factor: Micro-ATX

Supports M.2 SSD: 2280

Number of M.2: 1

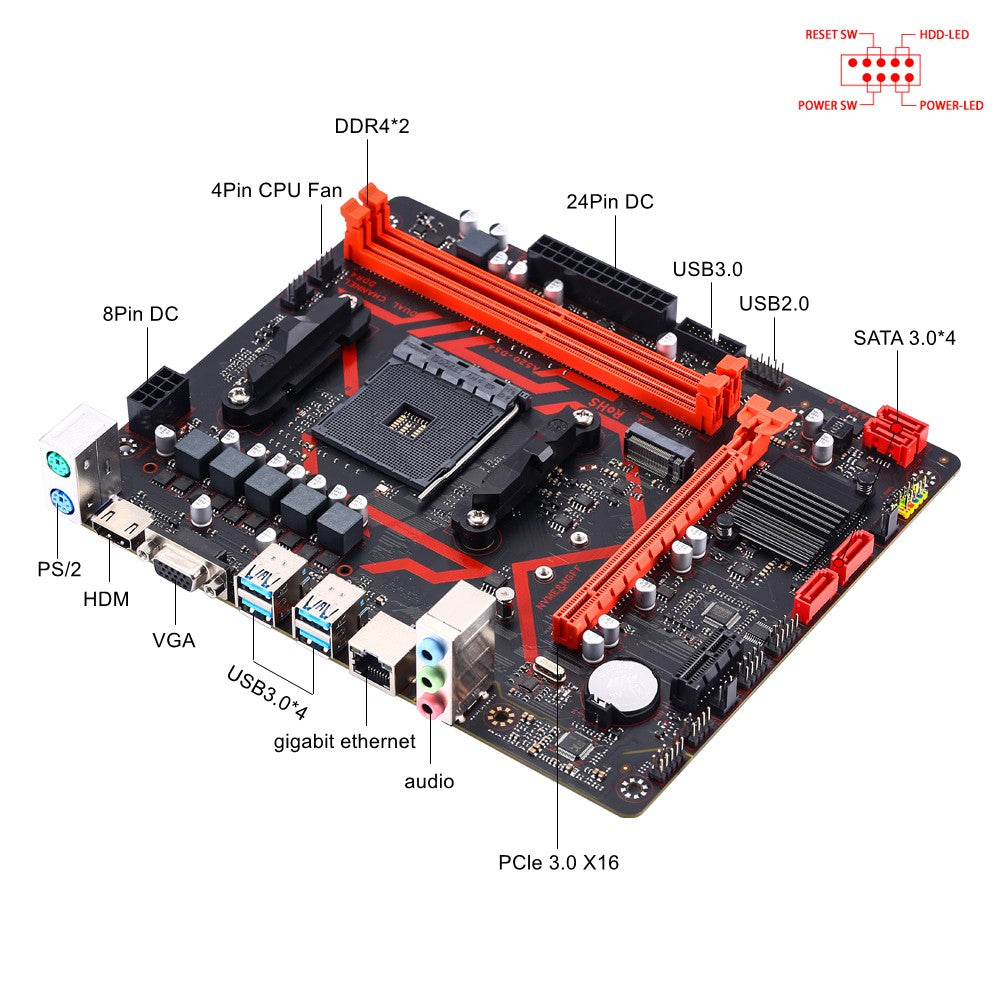

Feature:

Brand:Kllisre

Item Type: A520 Motherboard

Main Chip:A520

Socket Type: LGA AM4

Graphics Card Slot:1*PCI-Ex16 1*PCI-Ex1

Expansion Slot:NVME M.2

Integrated Video Card: No (Also requires the processor to support integrated graphics.)

PCB Layers:6

Ethernet: Gigabit

CPU supported: Ryzen 3/4/5/6/7 Series Processor

Memory type supported: 2400/2666/3200mhz Desktop Memory

Memory Slot: Dual channel

Memory Capacity Peak: 32Gx2 DDR4

SATA Interface:SATA3.0*4

USB Interface: USB3.0x4(not including expansion)

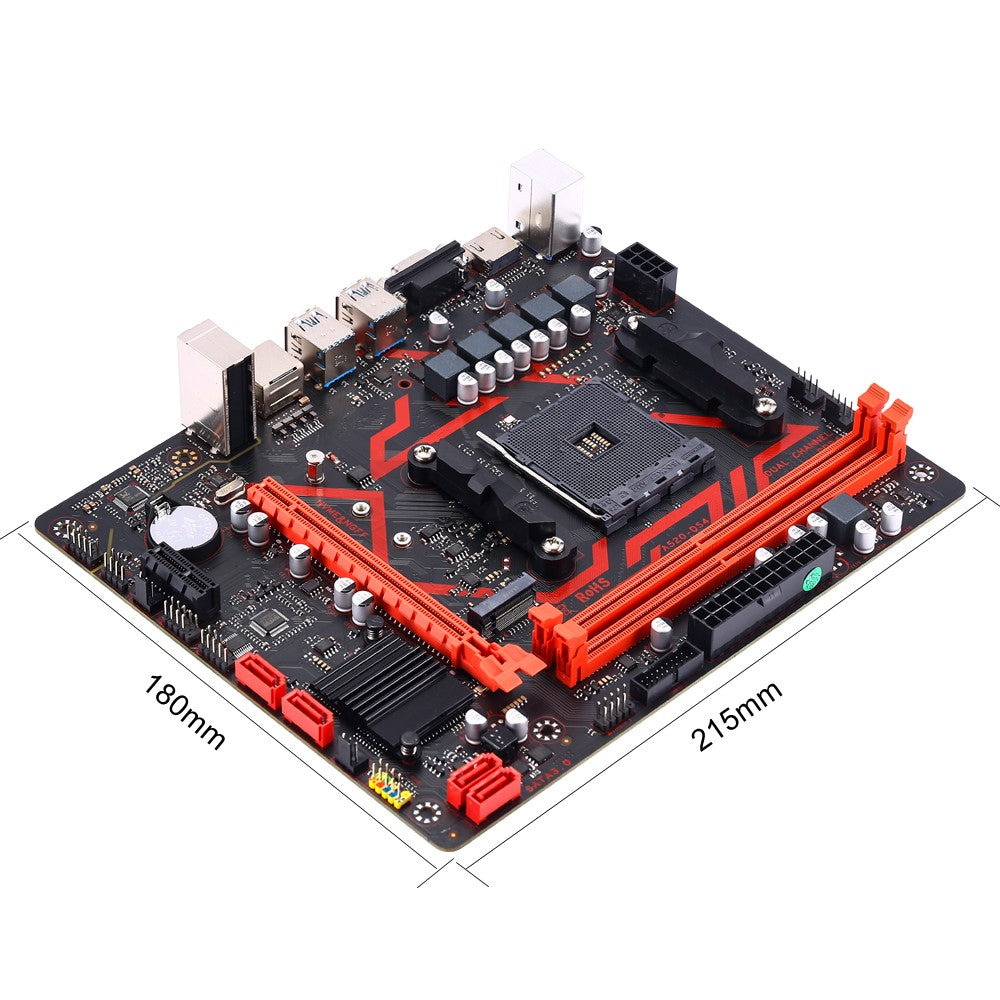

Size: 216x180mm



Note :

1:Please allow 1-3mm differs due to manual measurement.

2:Due to the different display and different light, the picture may not show the actual color of the item.Thanks for your understanding.

3:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.

4:We show photos of motherboard, pictures are for reference only, subject to our available products.
