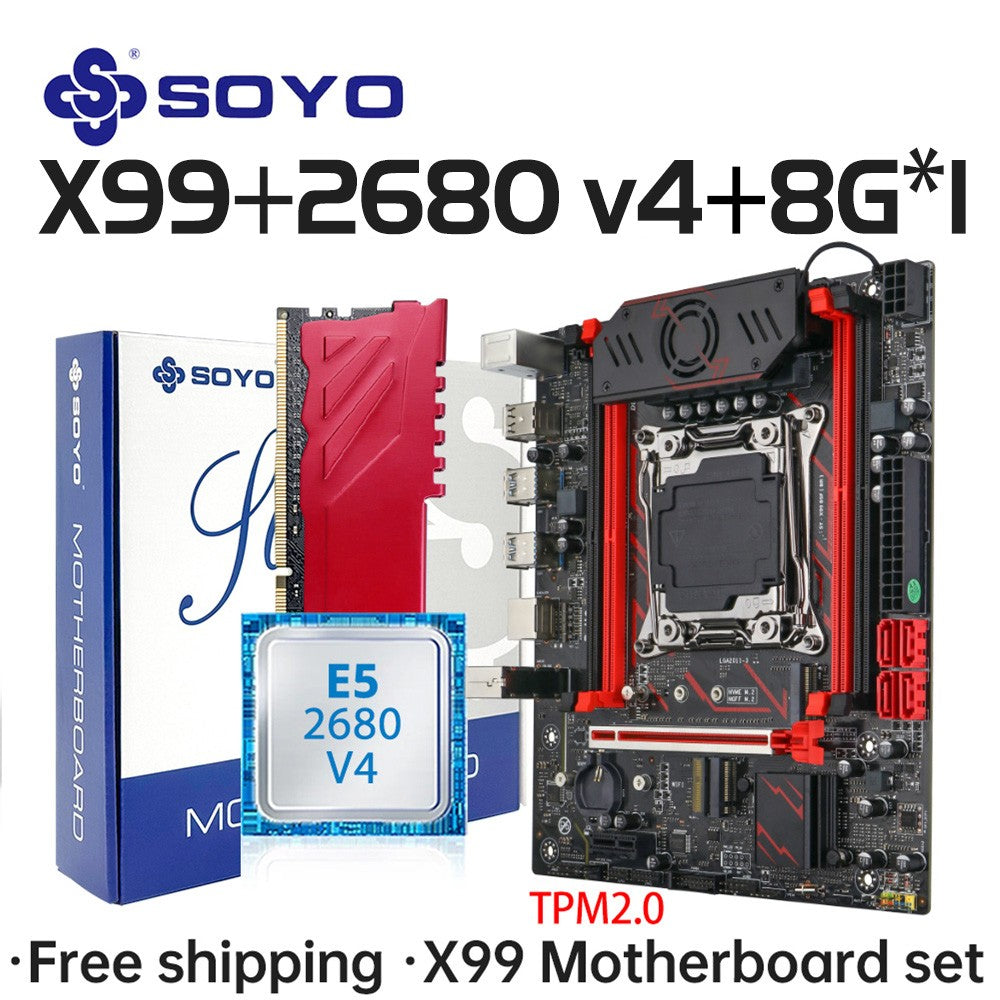

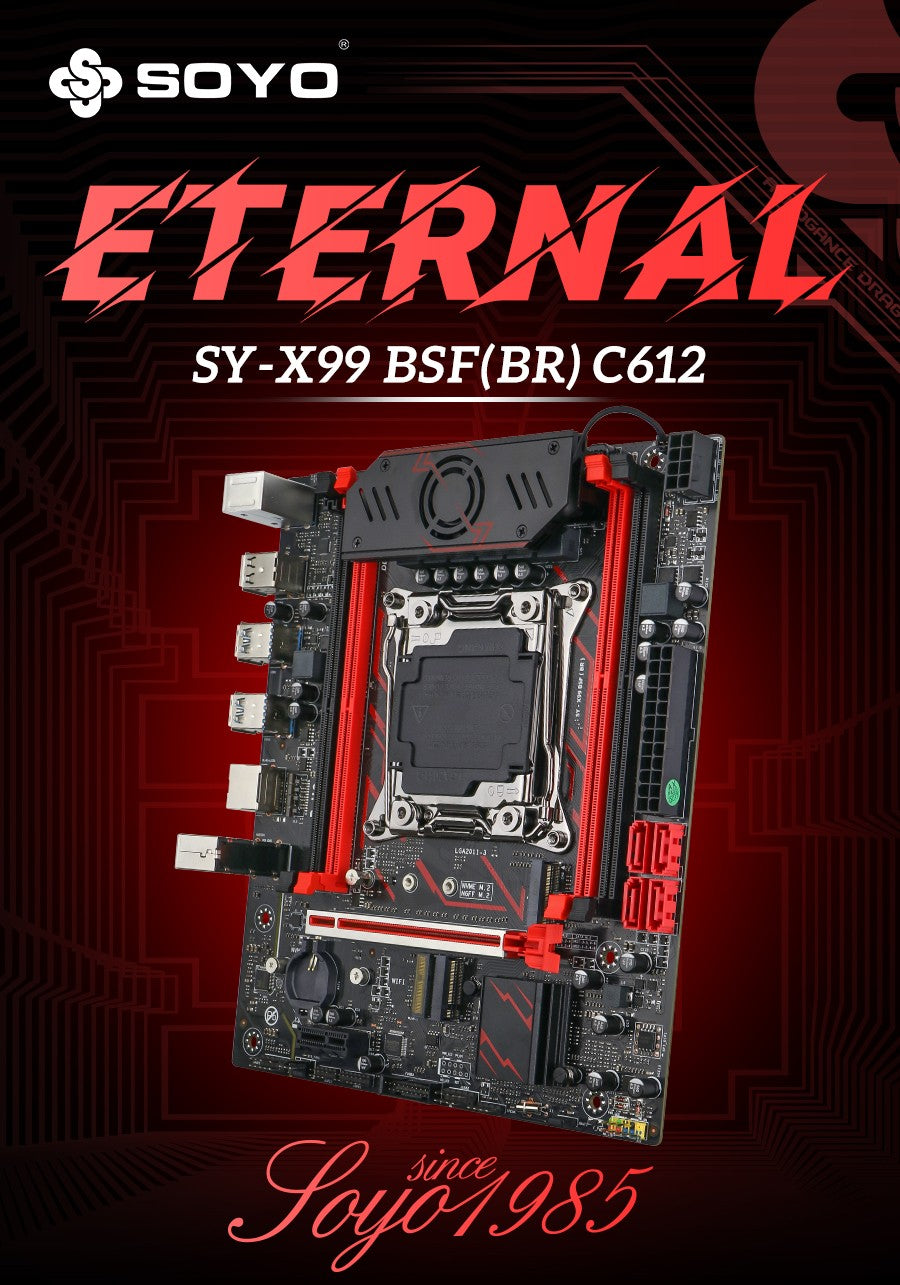

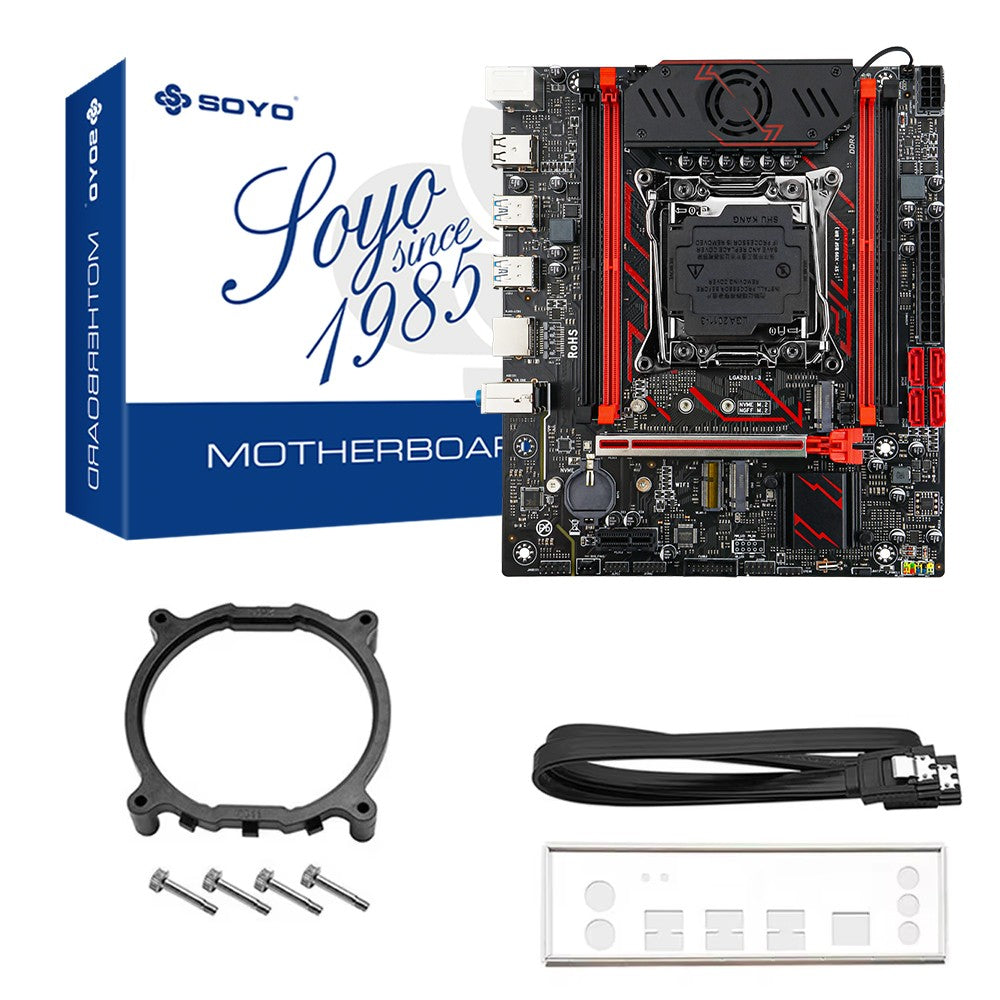

Gaming Motherboard Set SOYO X99 C612chip with Intel Xeon E5 2680 V4 CPU DDR4 8G*1 2133MHz RAM Computer components Mainboard TPM2
Não foi possível carregar a disponibilidade de retirada
"Pagamento Seguro"
– Compre com confiança sempre"
Envio rápido e confiável
Direto na Sua Porta
- Entrega Expressa
- 12 Meses de Garantia
- 7 Dias para Troca Fácil
Brand Name: SOYO
Chipset: Intel X99
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 128 GB
Battery Included: No
Processor compatibility: Intel Xeon E Series
With CPU: Yes
Support Memory Type: DDR4
Number of PCI: 2
Special Features: None
Storage Interface Type: SATA 3
Storage Interface Type: M.2 (NVMe)
Storage Interface Type: M.2 (SATA)
Package: Yes
RAID Supported: Yes
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 2x USB 3.2/3.1 Gen 1
Back I/O Ports: 4 x USB 2.0
Back I/O Ports: PS/2
PCI - E standards: PCI-E 3.0
Socket Type: LGA 2011-3
High-concerned chemical: None
Usage Scenario: Enthusiast & Overclocking
Usage Scenario: Gaming
Usage Scenario: Audio & Video
Usage Scenario: Household
Usage Scenario: Office
Usage Scenario: Design
Usage Scenario: Video Production
Usage Scenario: Server
Usage Scenario: Scientific Computing
Origin: Mainland China
Number Of Memory Slots: 4
Ports: Ethernet
Support USB Type: USB 2.0
Support USB Type: USB 3.2 Gen2
Number of PCIe x 16: 1
Onboard Connectors & Header: 24-pin Main Power Connector
Onboard Connectors & Header: CPU Fan Connector(s)
Onboard Connectors & Header: USB 3.0 Connector
Onboard Connectors & Header: 8-pin +12V Power Connector
Memory channel: Four
Number of SATA Ports: 4
Max LAN Speed: 1000Mbps
Number of PCIe x 1: 1
Form Factor: Micro-ATX
Supports M.2 SSD: 2280
Supports M.2 SSD: 22110
Number of M.2: 2
Note:
(1) Please allow 1-3mm differs due to manual measurement.
(2) Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
(3) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).

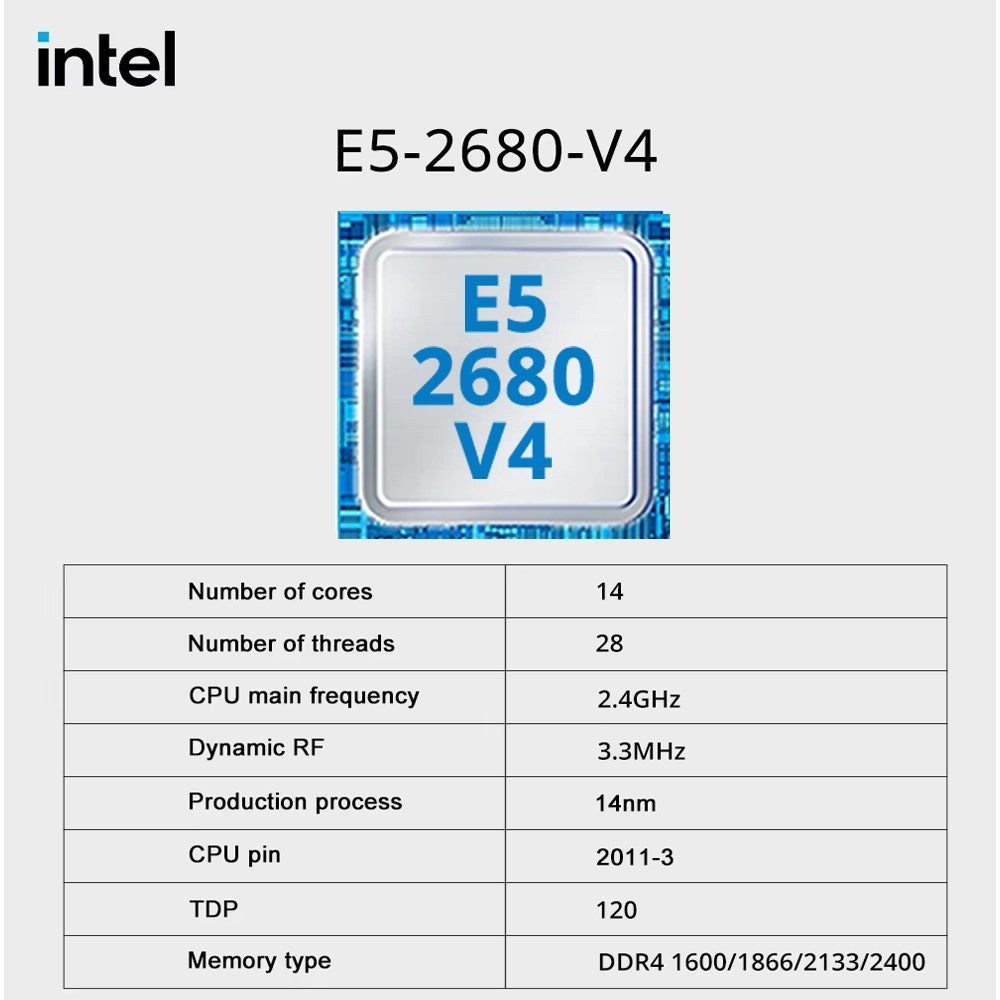

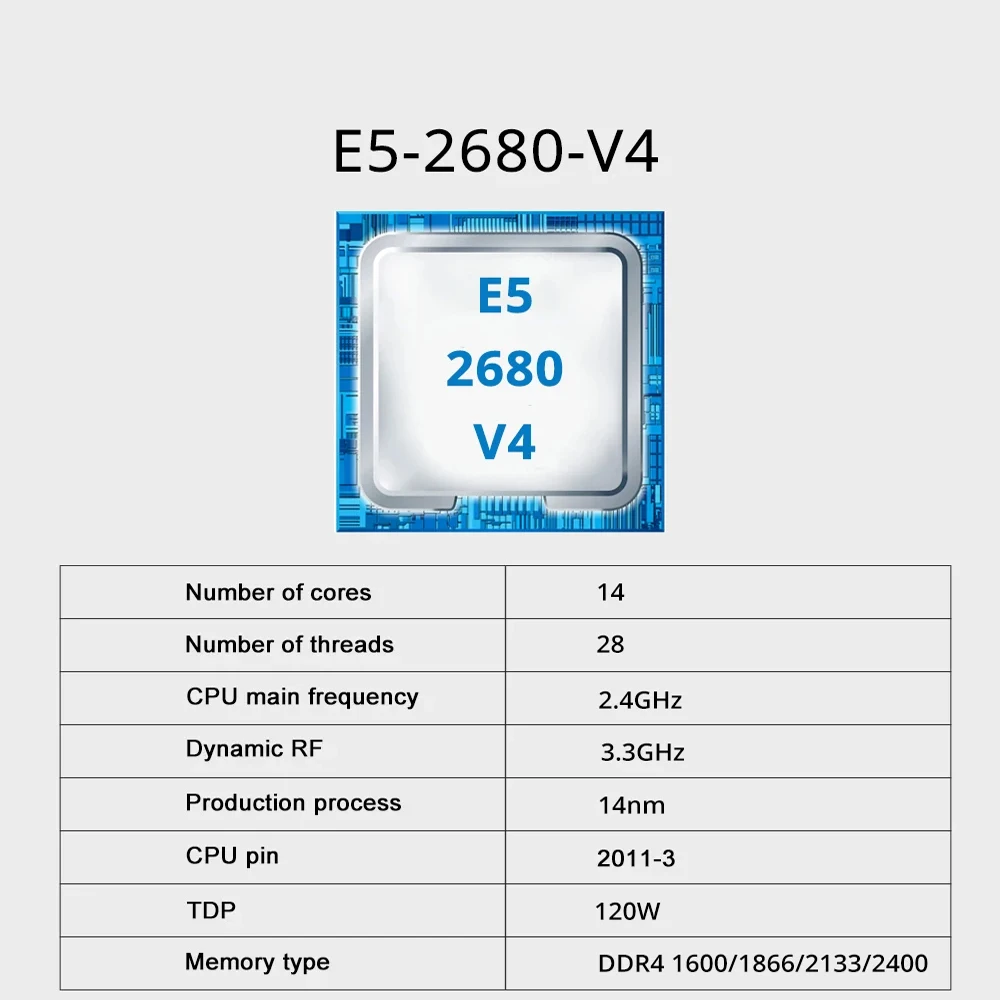

• Powerful Intel Xeon E5 CPU :Equipped with an Intel Xeon E5 2680 v4 CPU, this SOYO X99 gaming motherboard set ensures high performance and stability for serious gaming and modeling tasks.
• High-speed DDR4 ECC RAM :The onboard DDR4 ECC RAM with a speed of 2133MHz provides fast data transfer and smooth operation, enhancing your computing experience.
• M.2 NVMe Storage Interface :Featuring a M.2 NVMe storage interface, this motherboard set offers high-speed storage access, significantly improving the speed of your PC.
• Double Channel RAM Configuration :The dual-channel RAM configuration allows for faster data transfer and improved system stability, making it ideal for heavy-duty computing tasks.
• Robust Quality Certification :With a ROHS quality certification, this motherboard set meets high standards of safety and reliability, giving you peace of mind.
• Versatile Usage Scenarios :Whether you're into serious gaming, 3-D modeling, or server applications, this SOYO X99 motherboard set has got you covered.

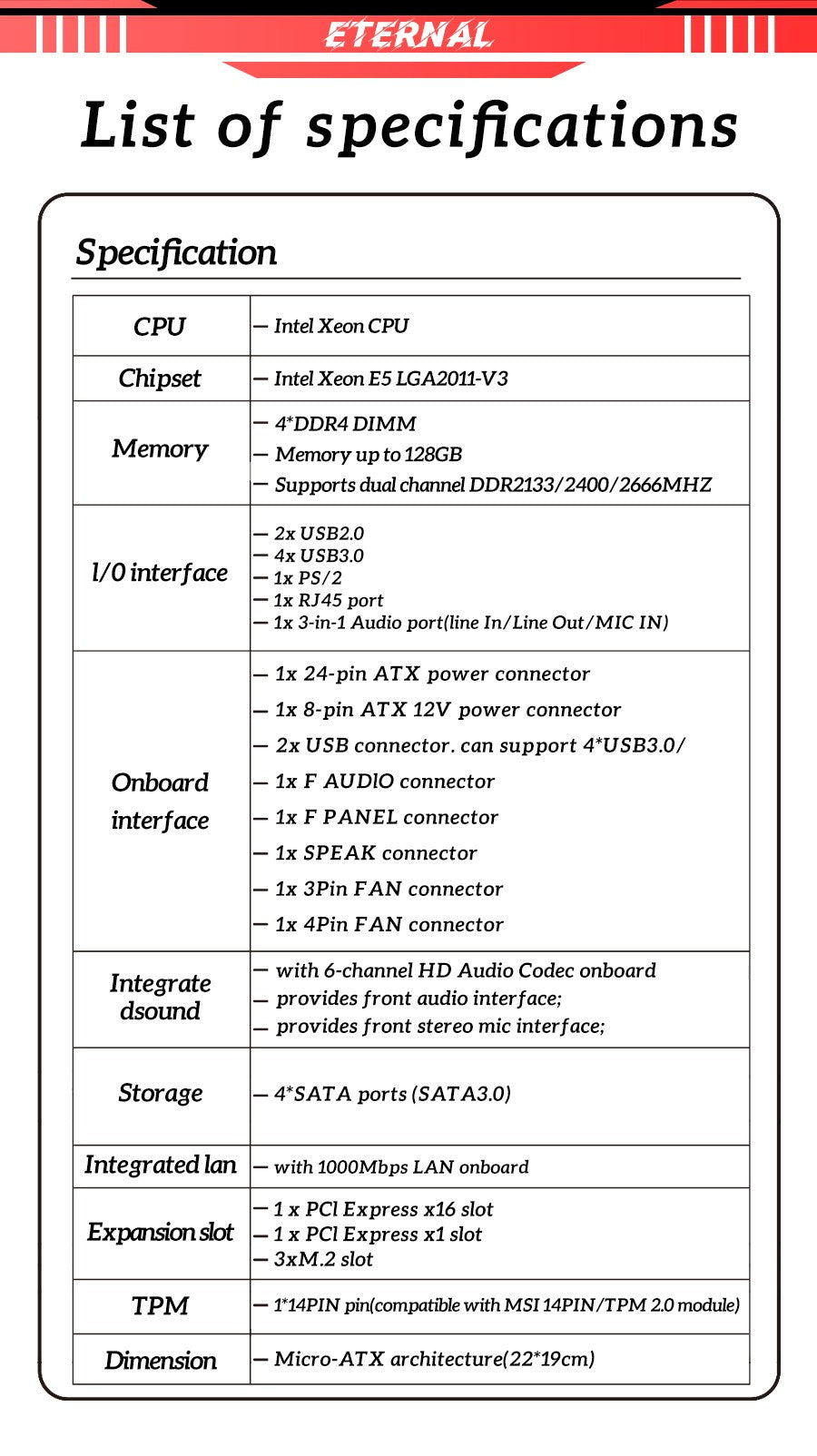

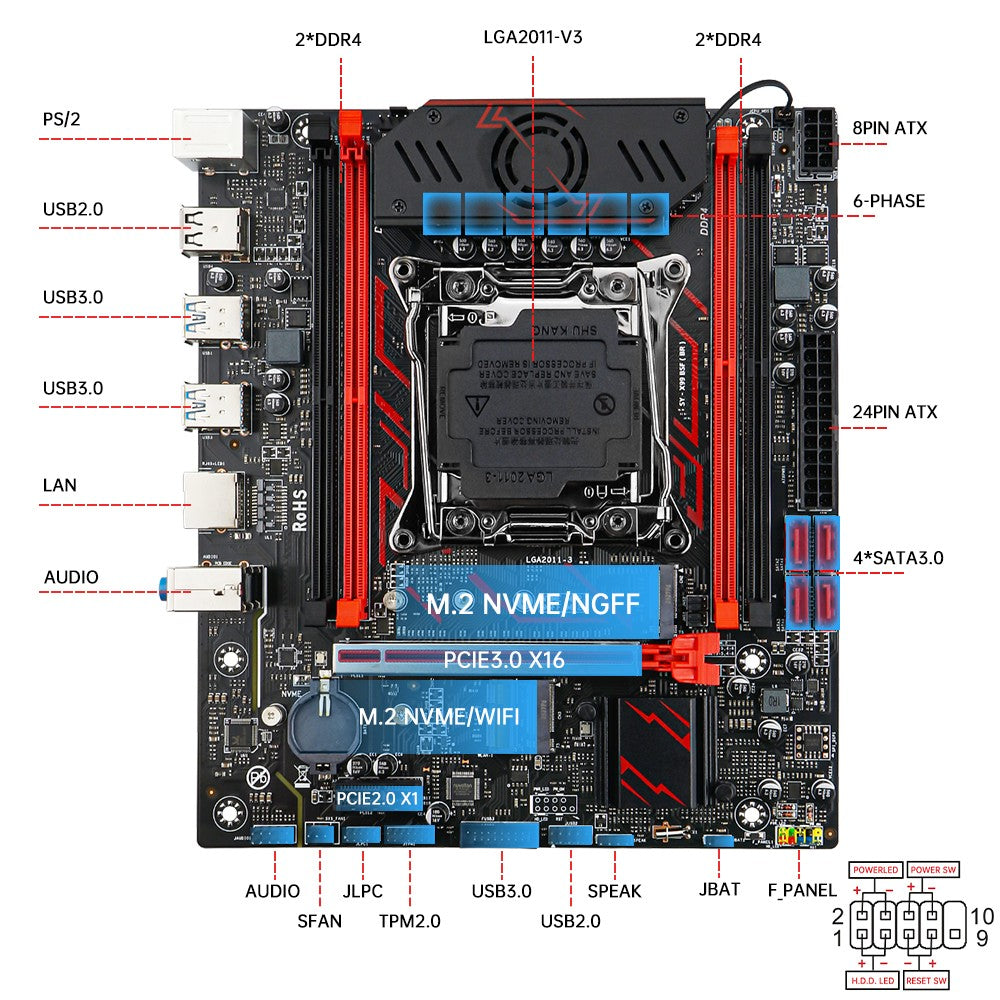

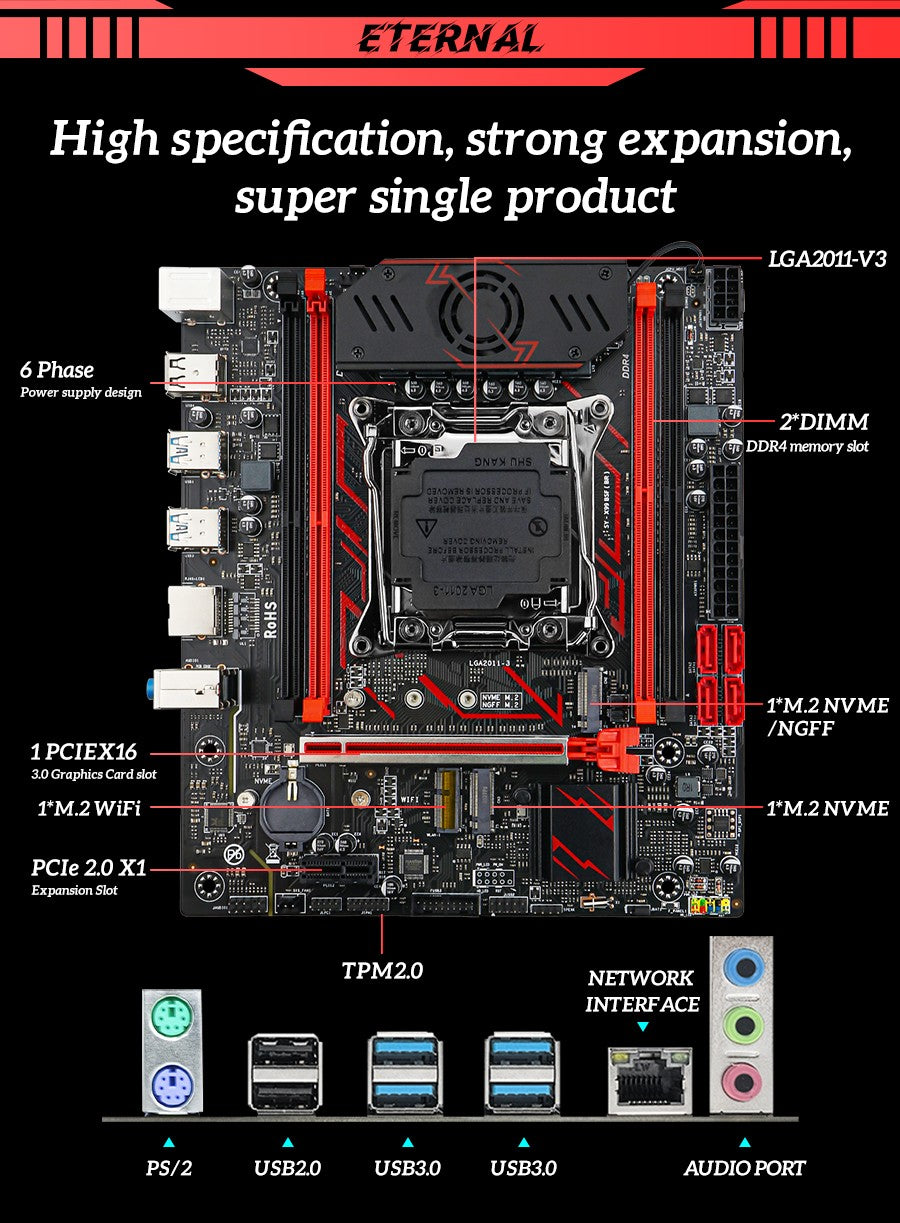

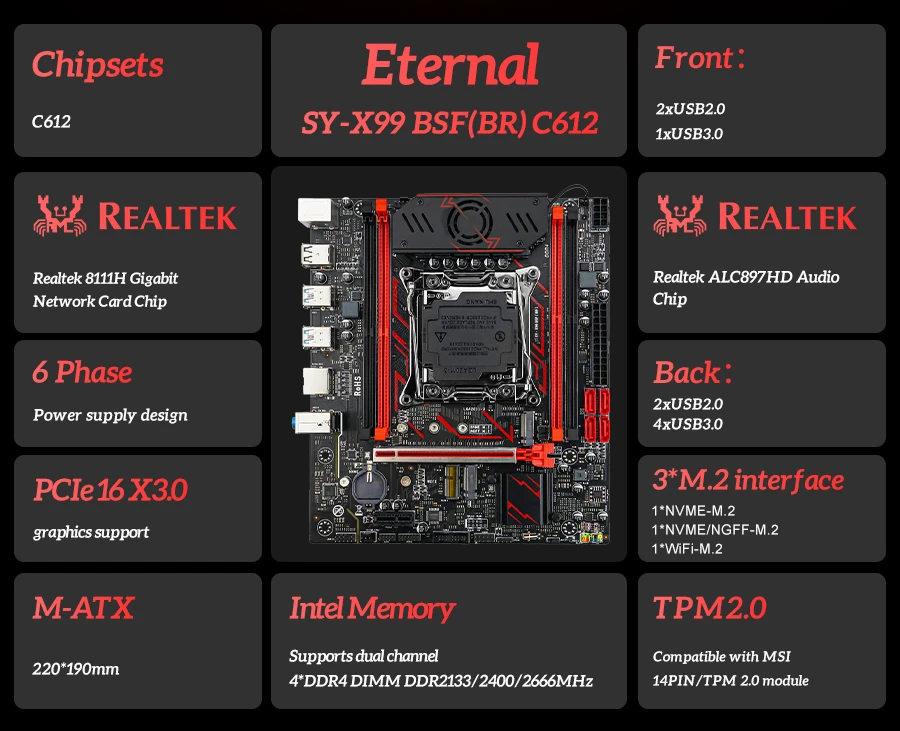

> > > motherboard chip: Intel C612
> > > CPU Intel Xeon E5 LGA 2011-3 processorOptional: E5266v3, E5 2680 V3, E5 2673V3, E5 2696V3, etc.

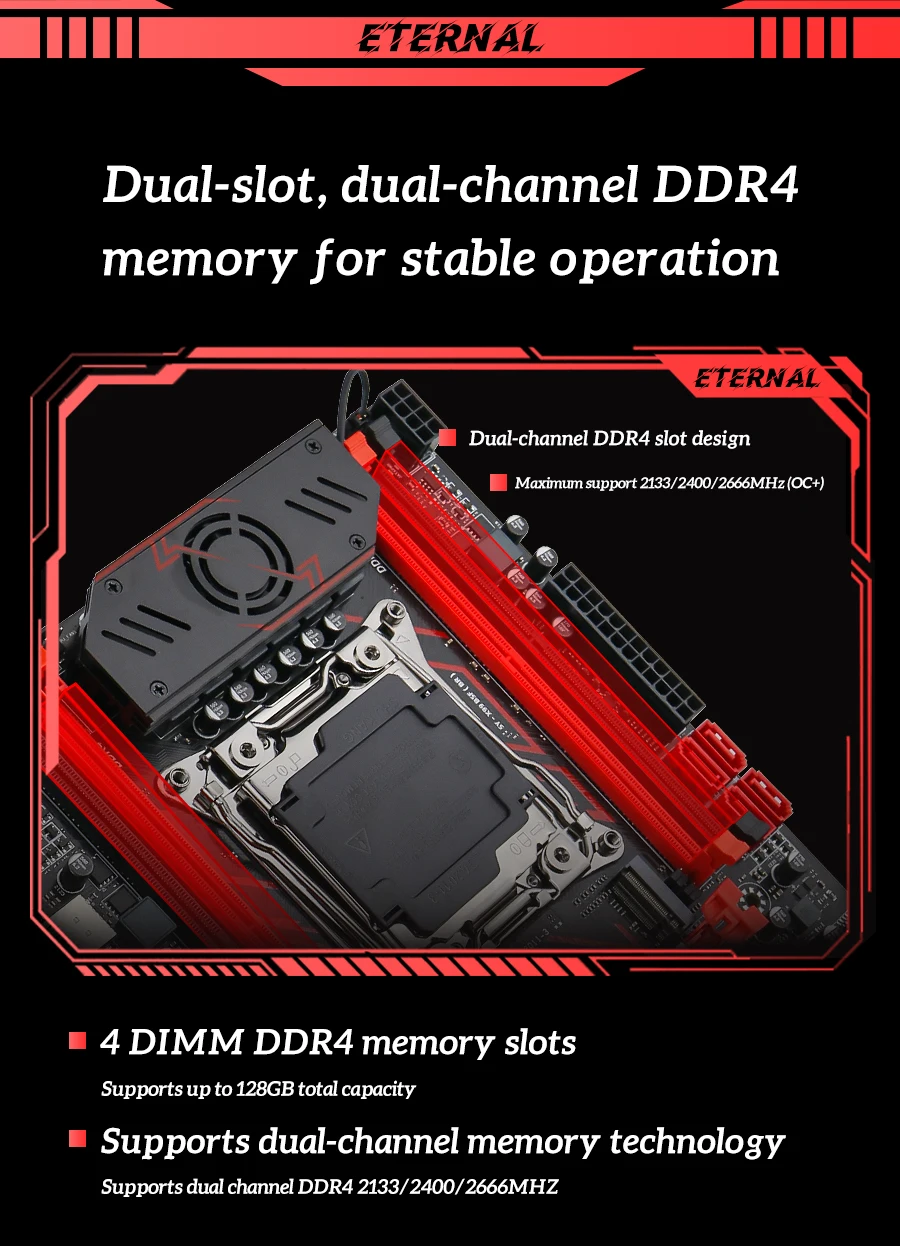

> > > Memory: 4 * DDR 4 DIMM, dual channel, with black slot as the main channel and red slot as the auxiliary channel; 2133/2400/2666MHZ, single slot maximum support 32G.

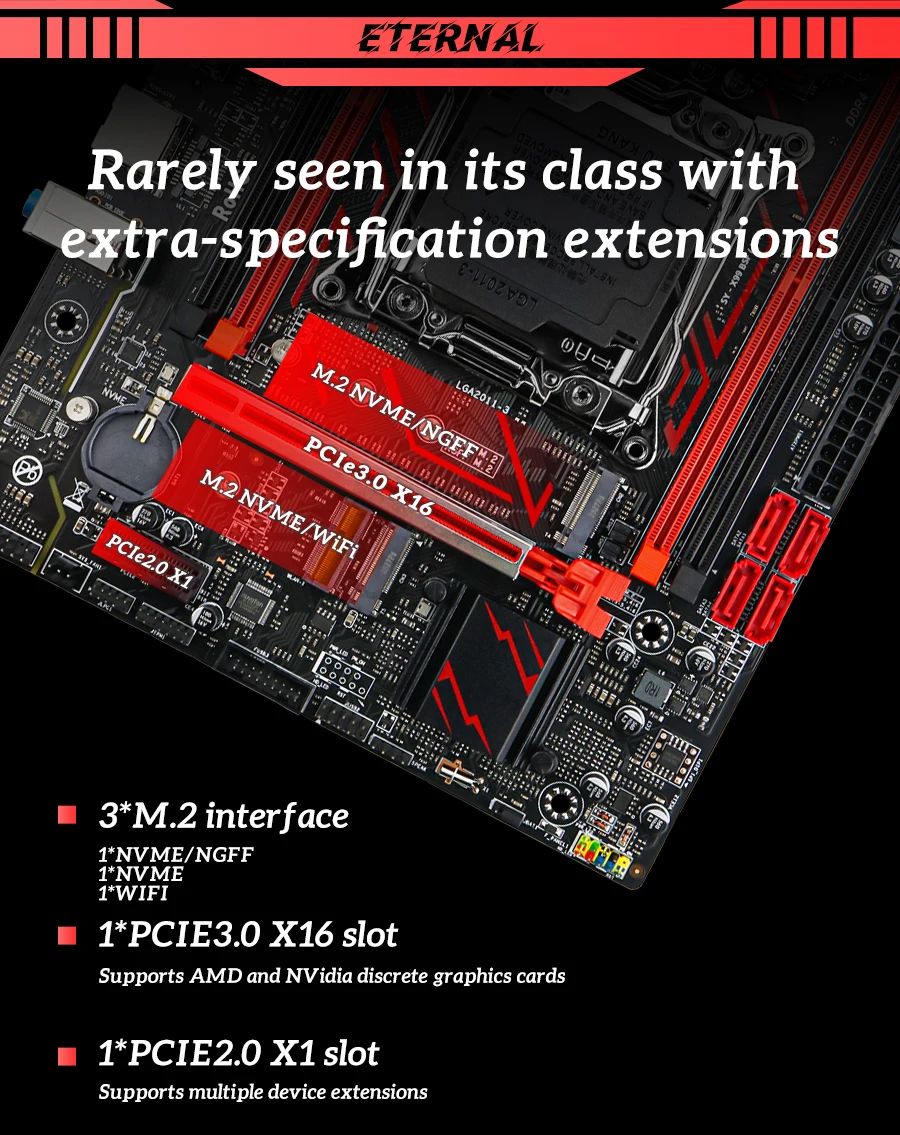

> > > Save the 1* M.2 slots (NGFF/NVME toggle) and 1 * M.2 slots (NVMe only); 4*SATA 3.0 interface
> > > Network 1 * RJ45 interface
> > > NIC chip: Realtek Gigabit NIC chip.
> > > PCIE slot: 1 * PCIe X16 slot; 1*PCIE X1 slot
> > > audio: 1 * line out; 1*MIC In； 1*Line In； 1*F_Audio built-in pin
> > > Audio chip: Realtek HD audio chip.
> > > PS/2: 1 * PS/2 interface

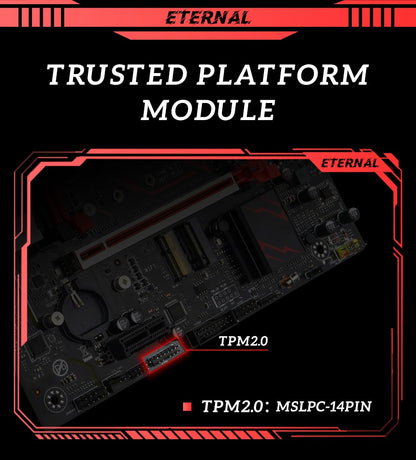

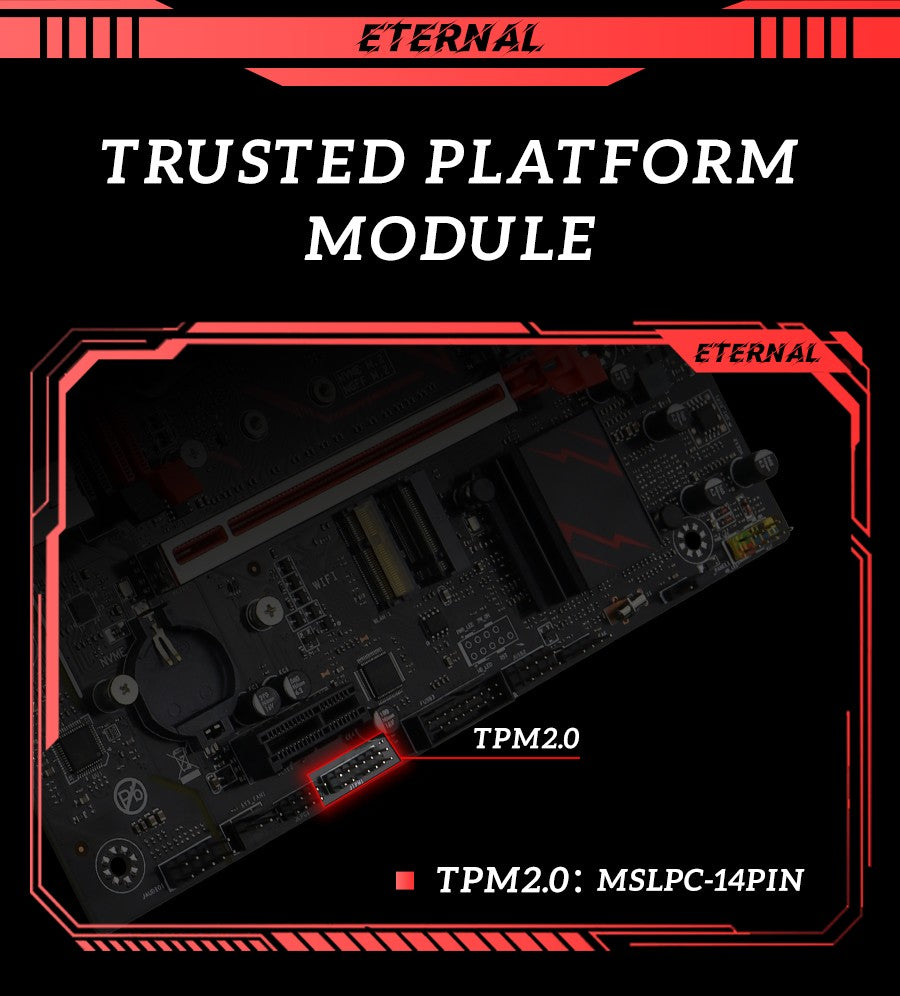

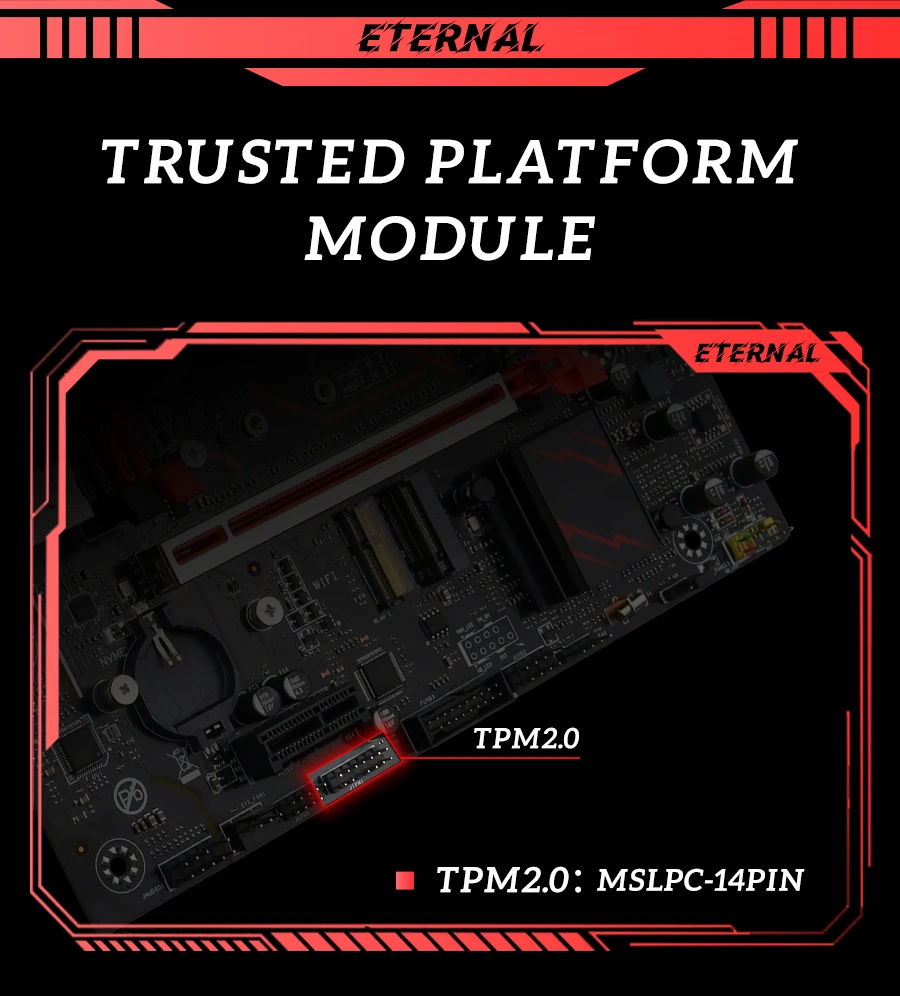

> > > TPM: 1 * external TPM
> > > wifi: 1 * pcie wifi slot

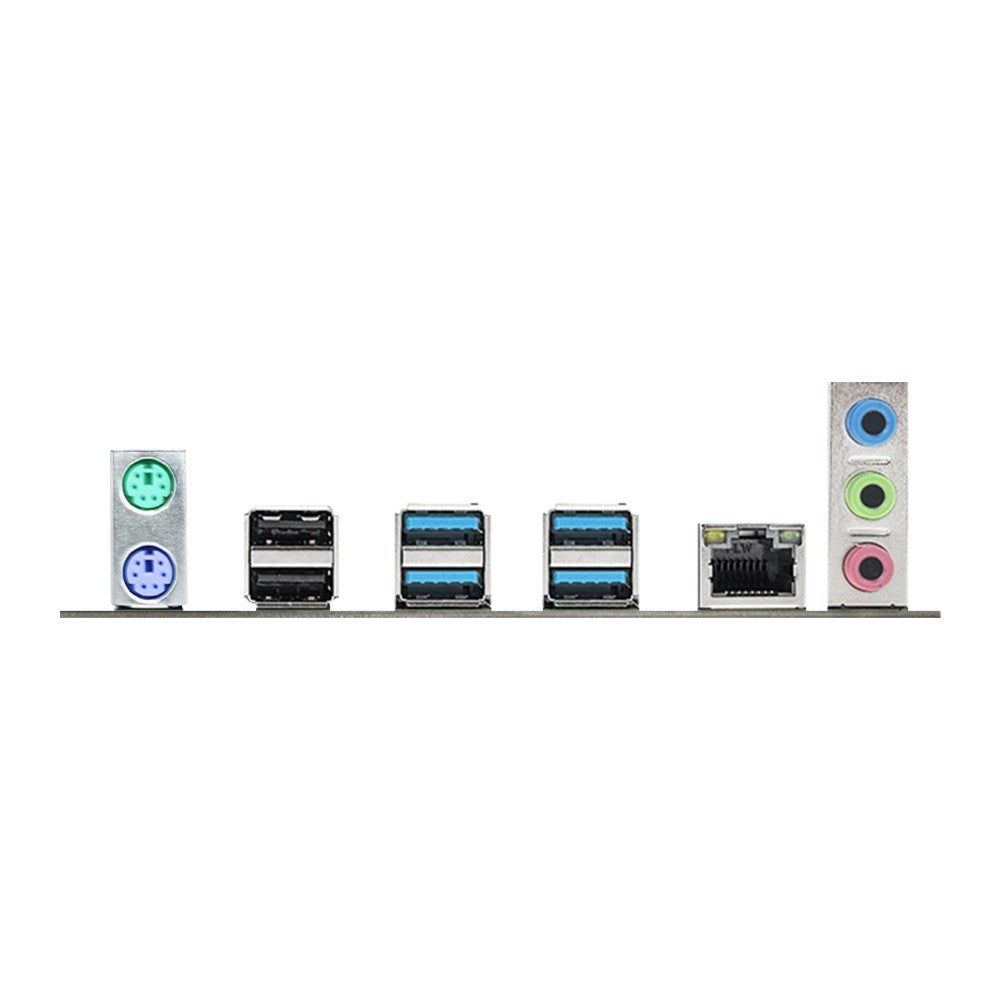

> > > USB interface: IO interface: 2*USB2.0 interface; 4*USB3.0 interface
> > > Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded)
> > > function pin: 1 * f panel face pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan
> > > power input: 24Pin+8Pin ATX power socket.
