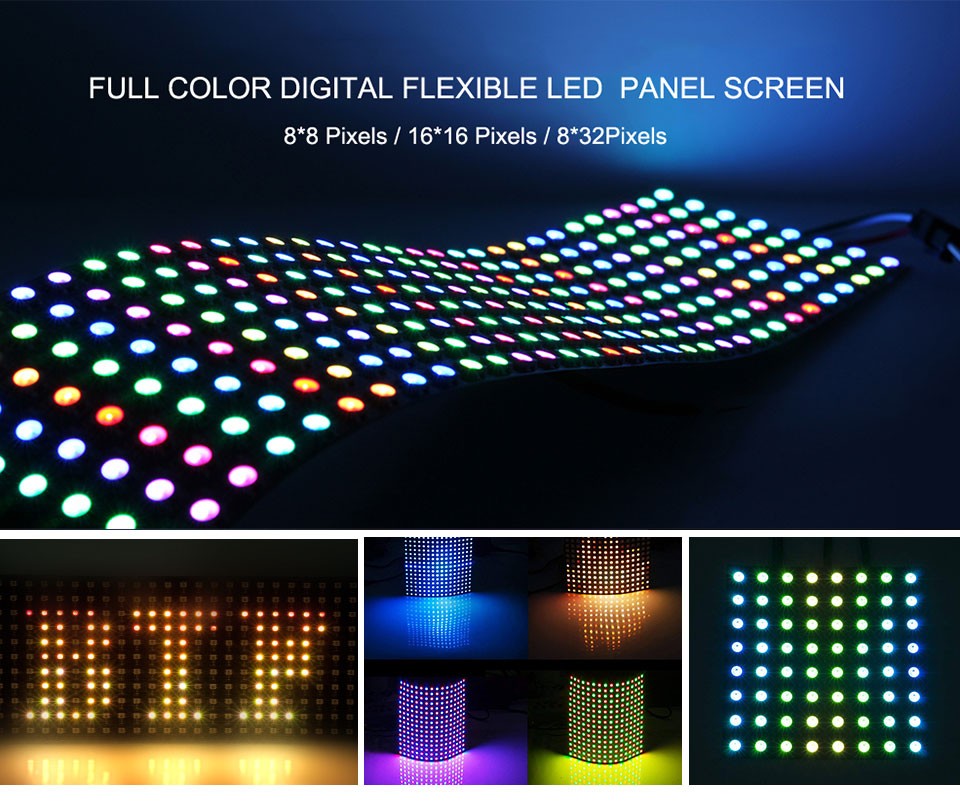

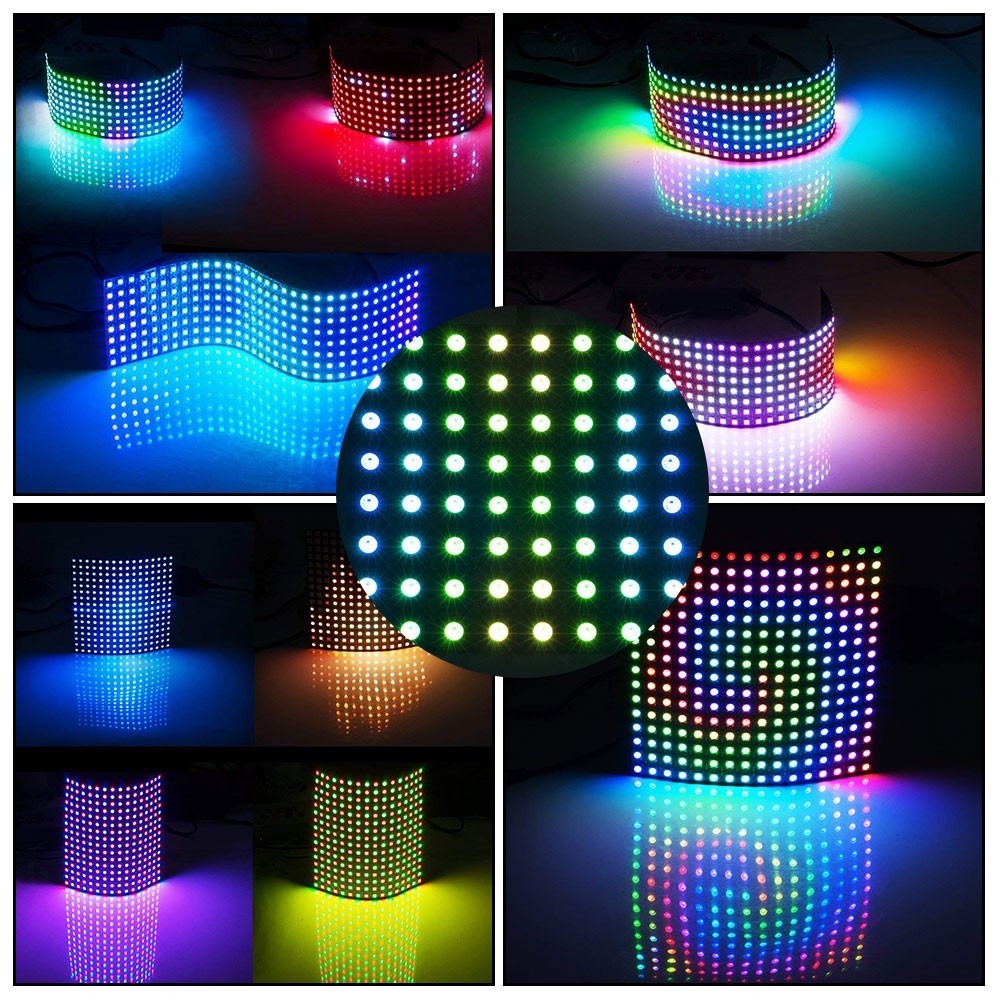

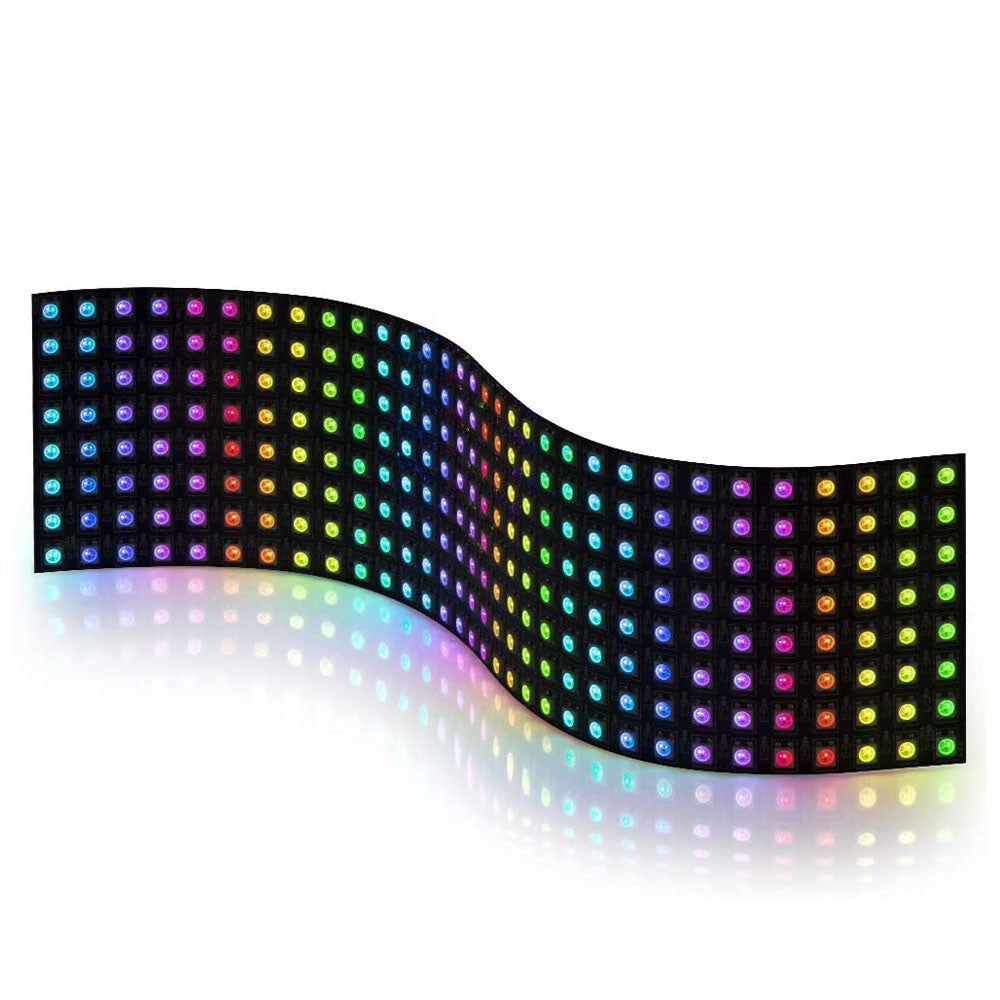

WS2812B RGB LED Panel Screen 8x8 16x16 8x32 256 Pixels Digital Flexible Programmed Individually Addressable Full Color DC5V
Couldn't load pickup availability
- 🔒 Secure Checkout
- 🚚 Fast Shipping
- 🔄 30-Day Returns
Brand Name: BTF-LIGHTING
High-concerned chemical: None
Luminous Flux: 2000-82000
Is Batteries Included: no
Nominal Voltage: 5V
Origin: Mainland China
Voltage: 5v
Certification: ce
Certification: FCC
Certification: ROHS
Certification: UL
Average Life (hrs): 50000
LED Chip Model: SMD5050
Strip type: SMD
Waterproof: No
Is Smart Device: Yes
Occasion: Living room
LED Chip Brand: Epistar
Power Source: DC
Model Number: WS2812B
Specifications (light beads / m): 64/256
LEDs Number/M: 64/256
Item Type: Strip
Power Consumption (W/m): 0.3w/led
Please Note:
Only Have Led Panel, Not Include Led Power And SPI Led Controller!
WS2812B Led Panel Must Use DC5V Power Supply.

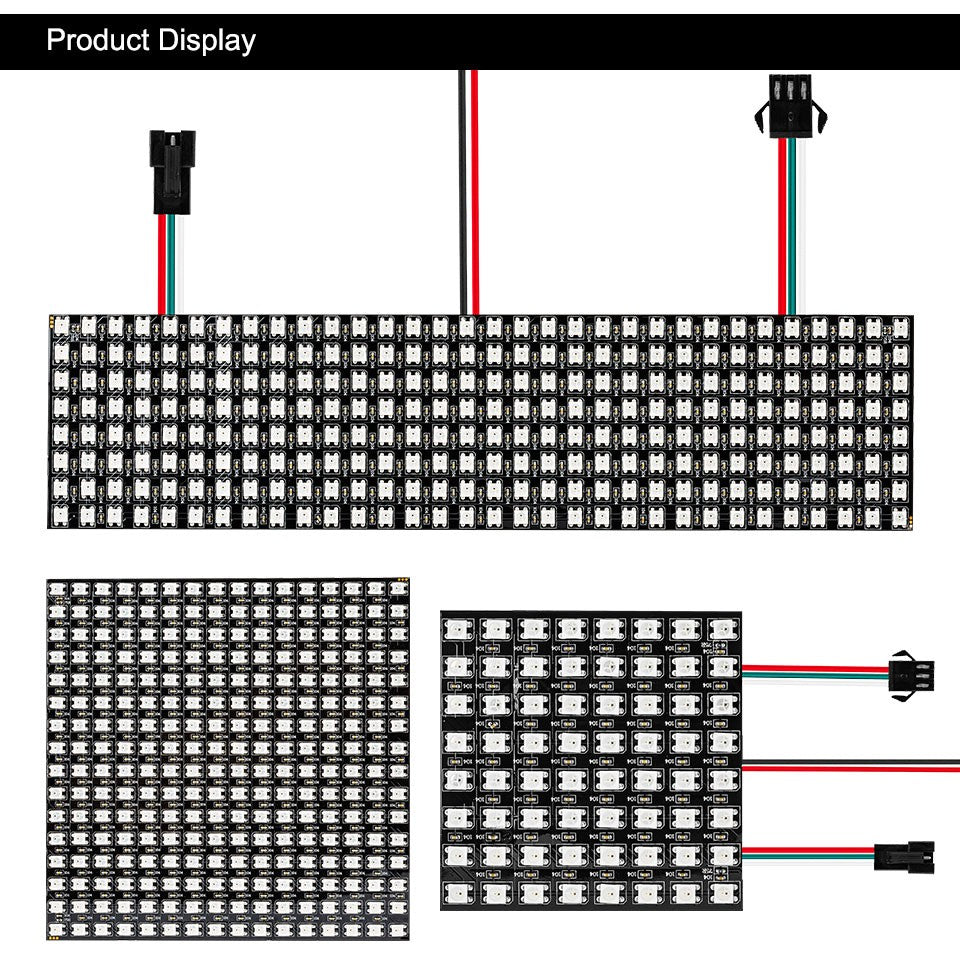

Three size:

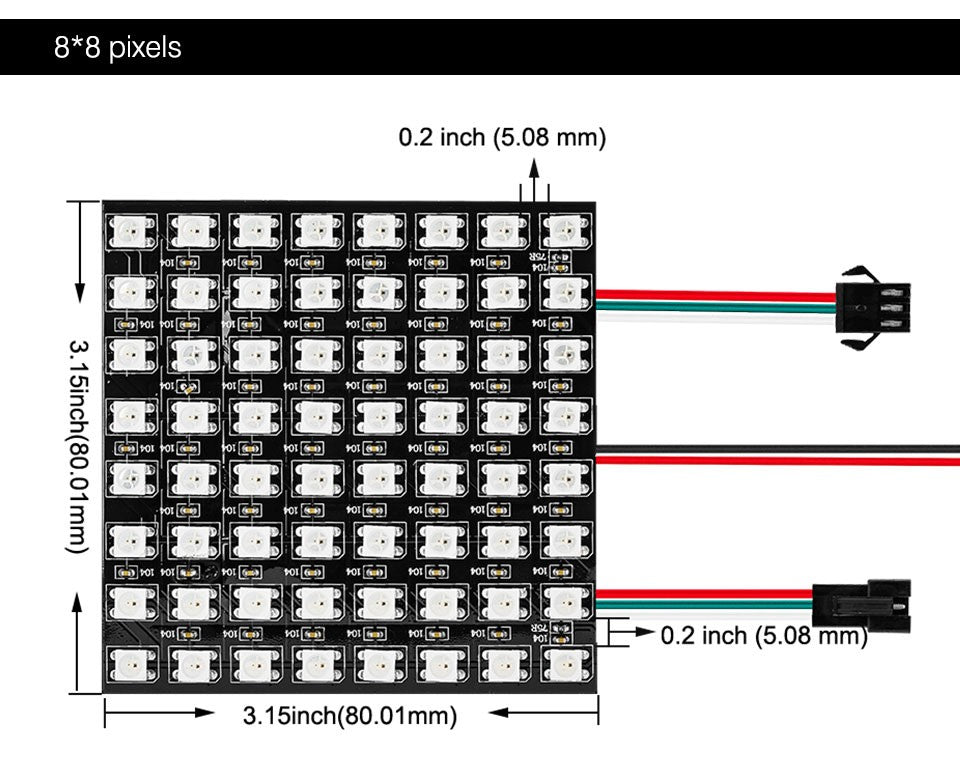

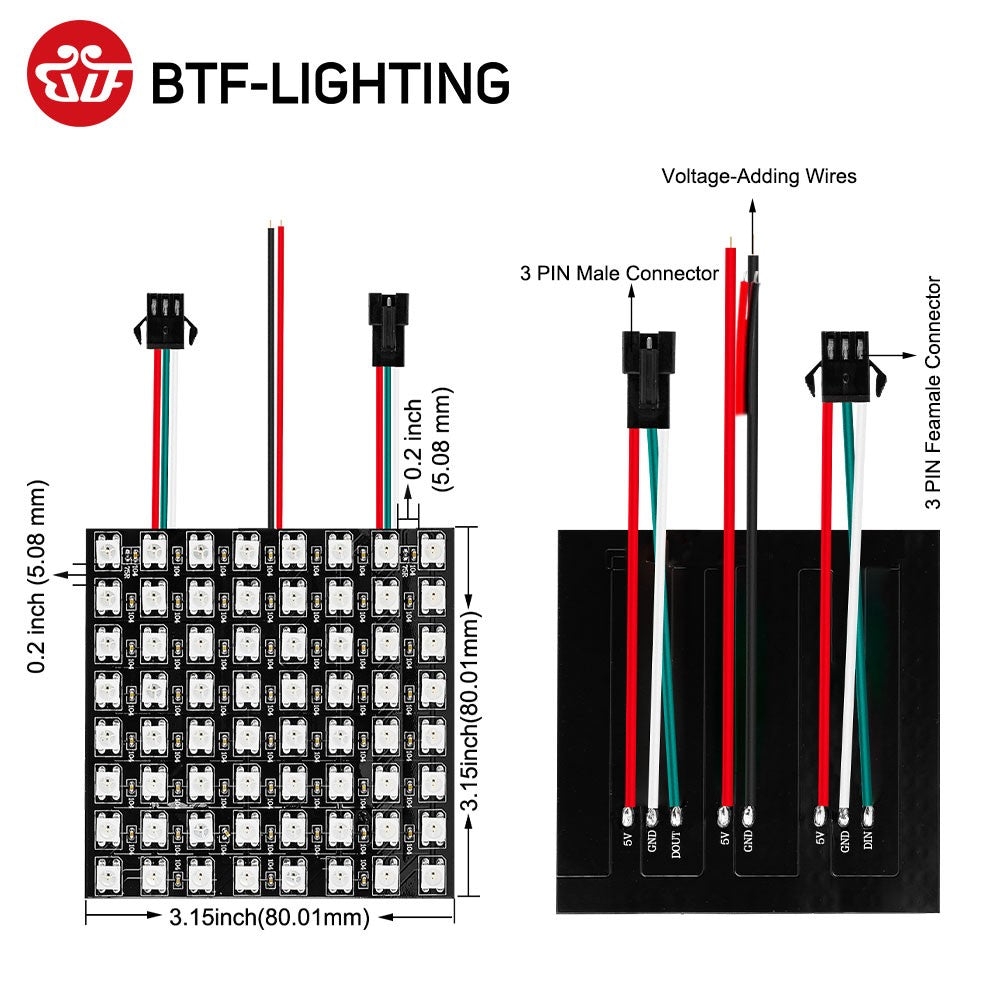

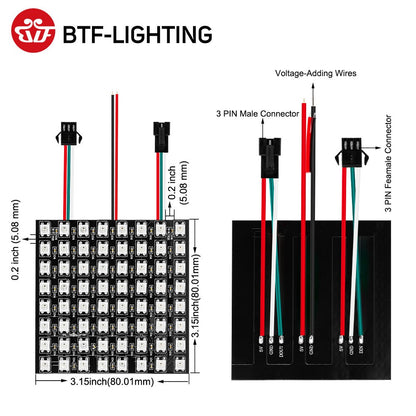

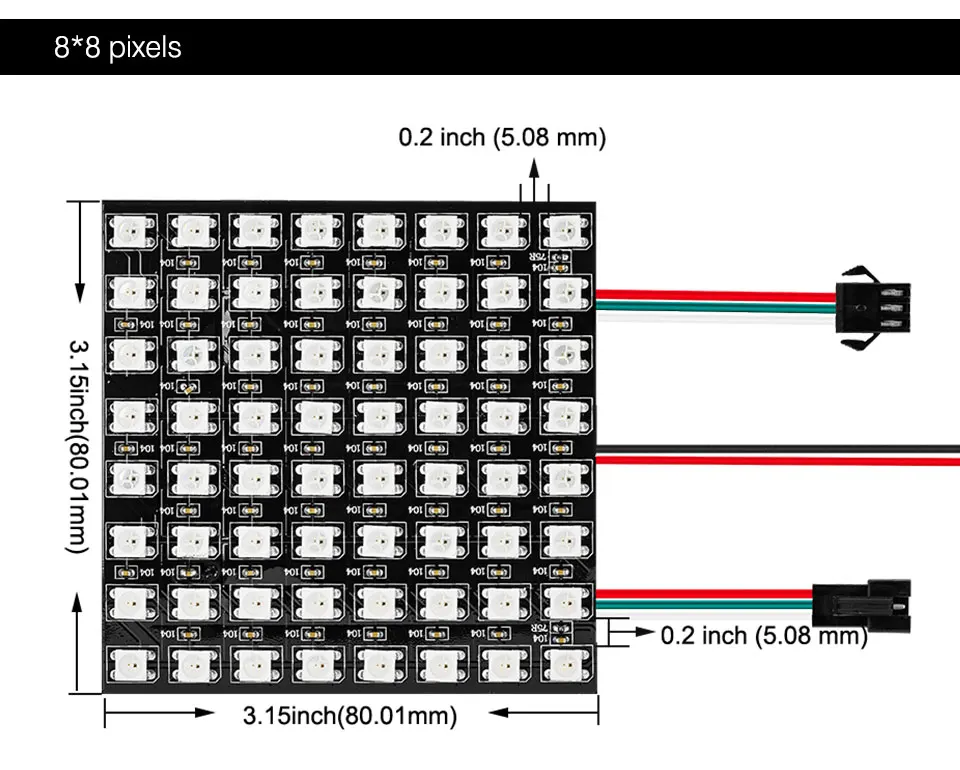

8*8, 64leds, 8cm*8cm.

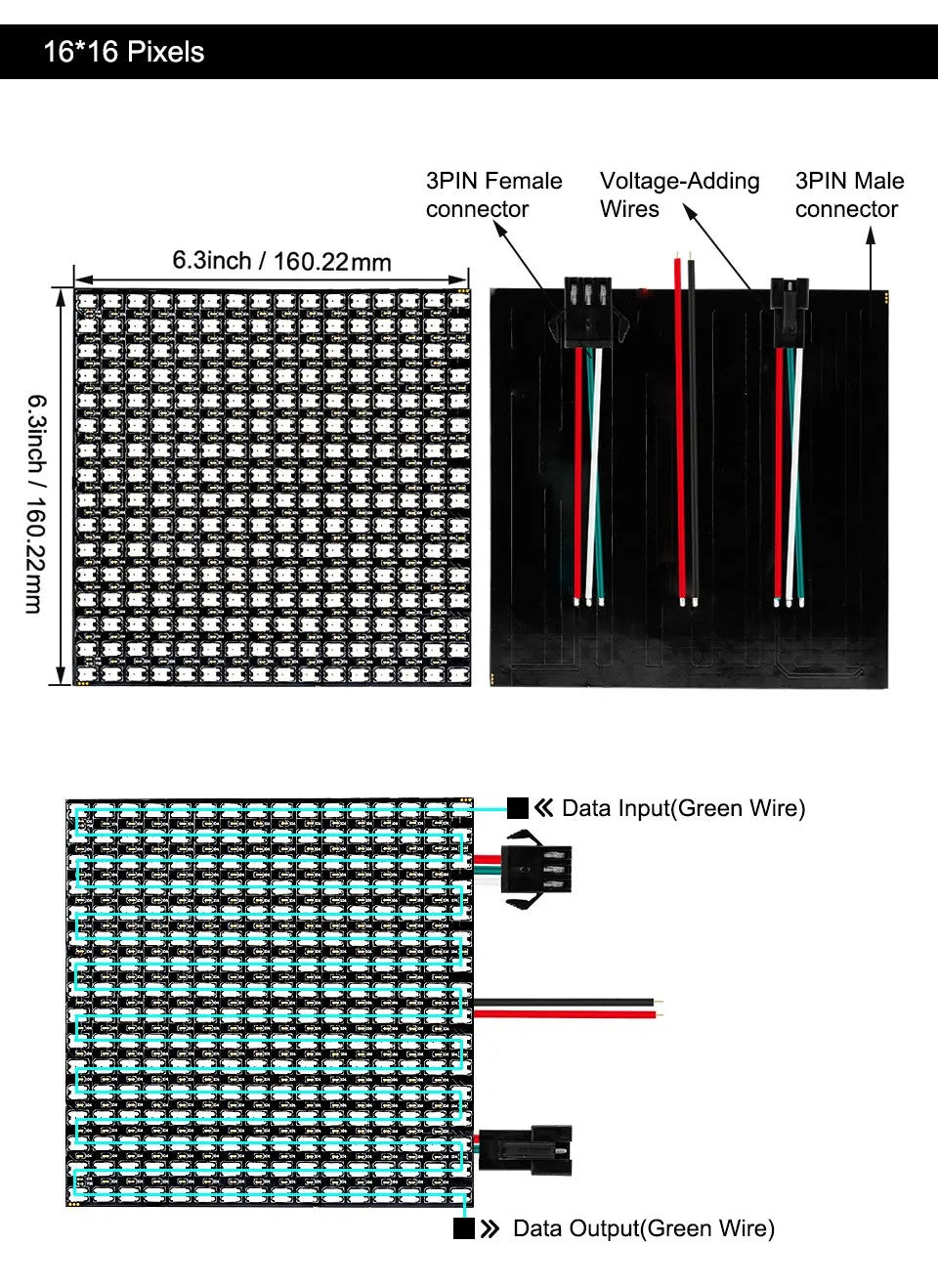

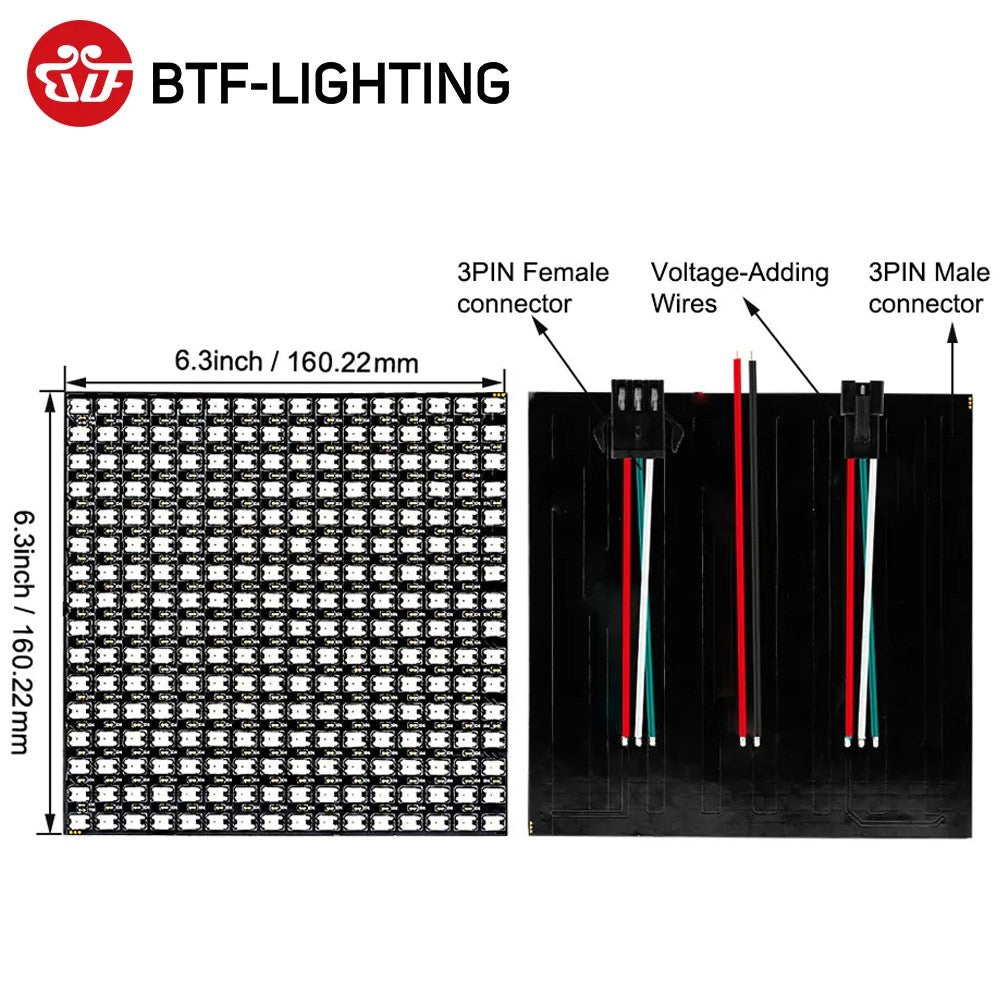

16*16, 256leds, 16cm*16cm.

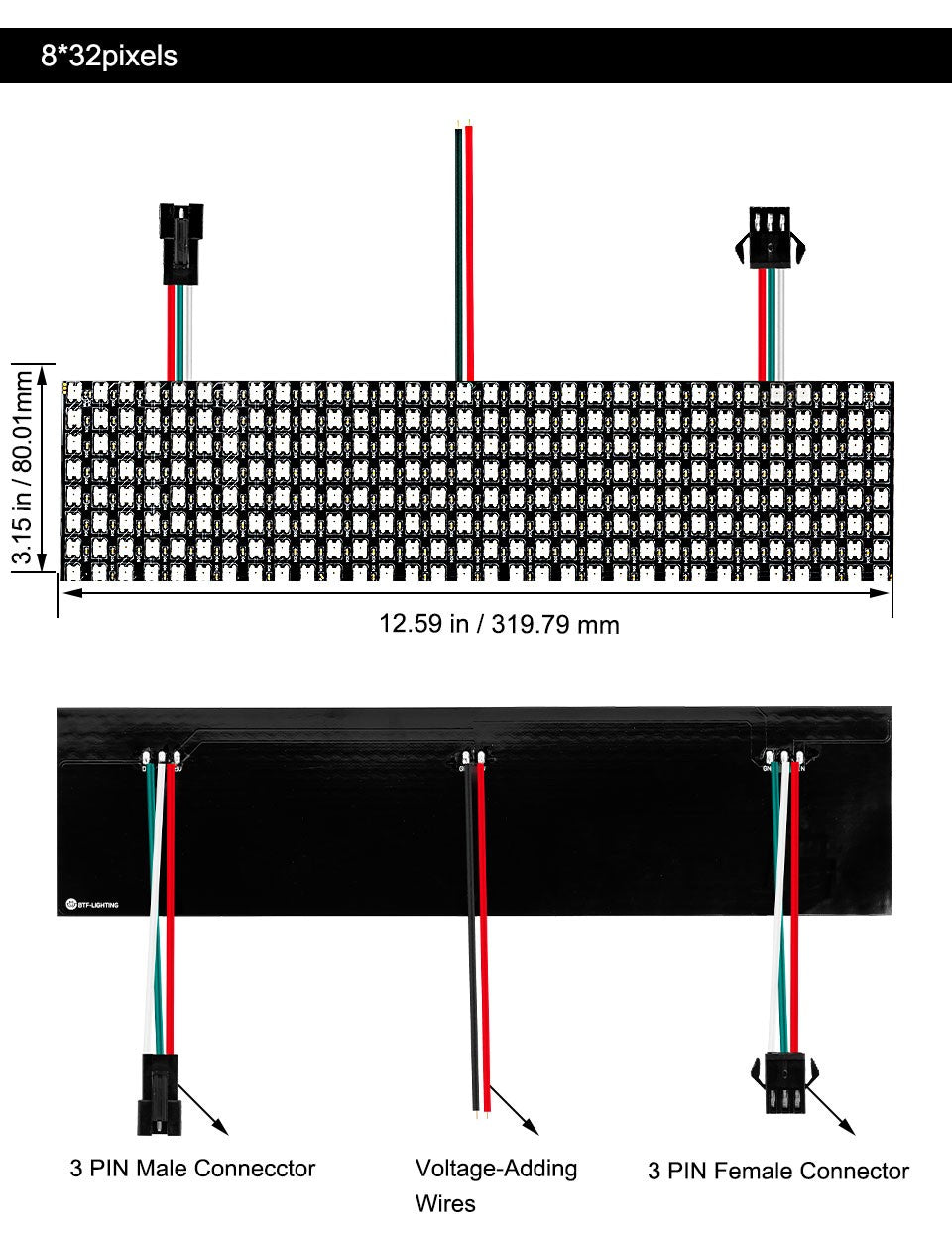

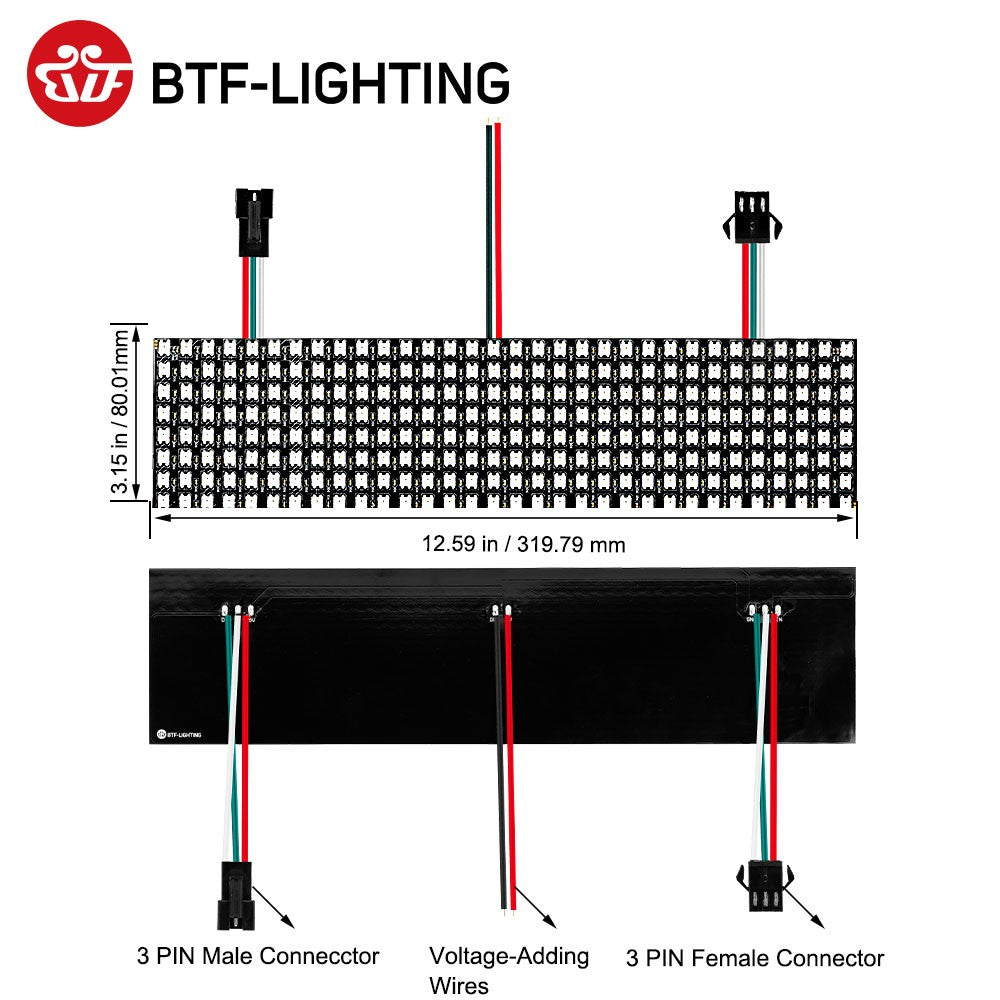

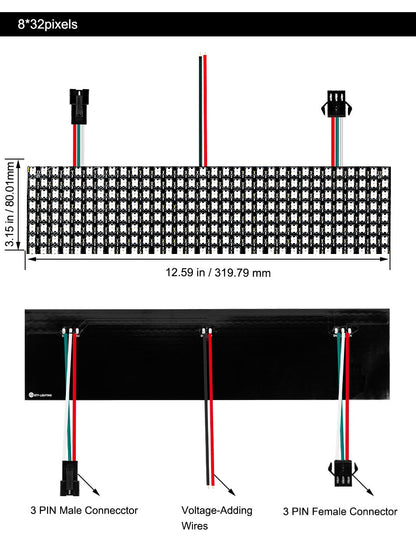

8*32, 256leds, 8cm*32cm.
Emitting color: pixel RGB , WS2812 IC.
Work voltage: DC5V.
Power: 0.3W/pixel.
Waterproof level: Non-waterproof.

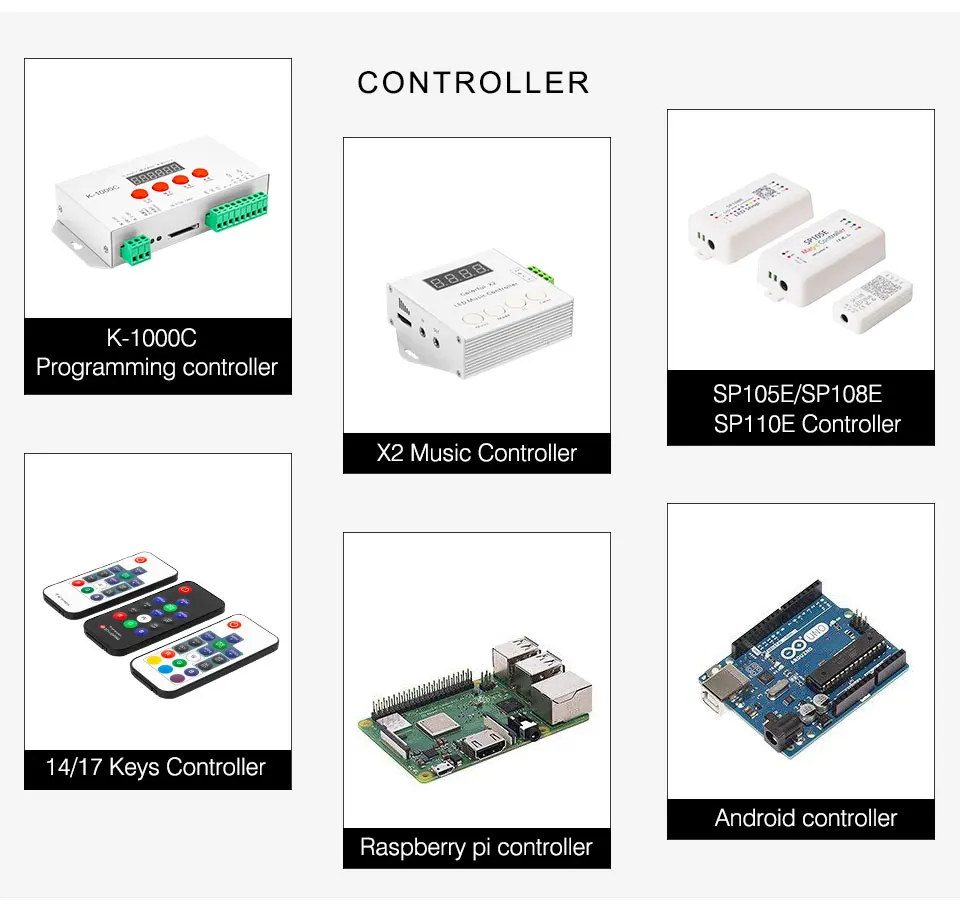

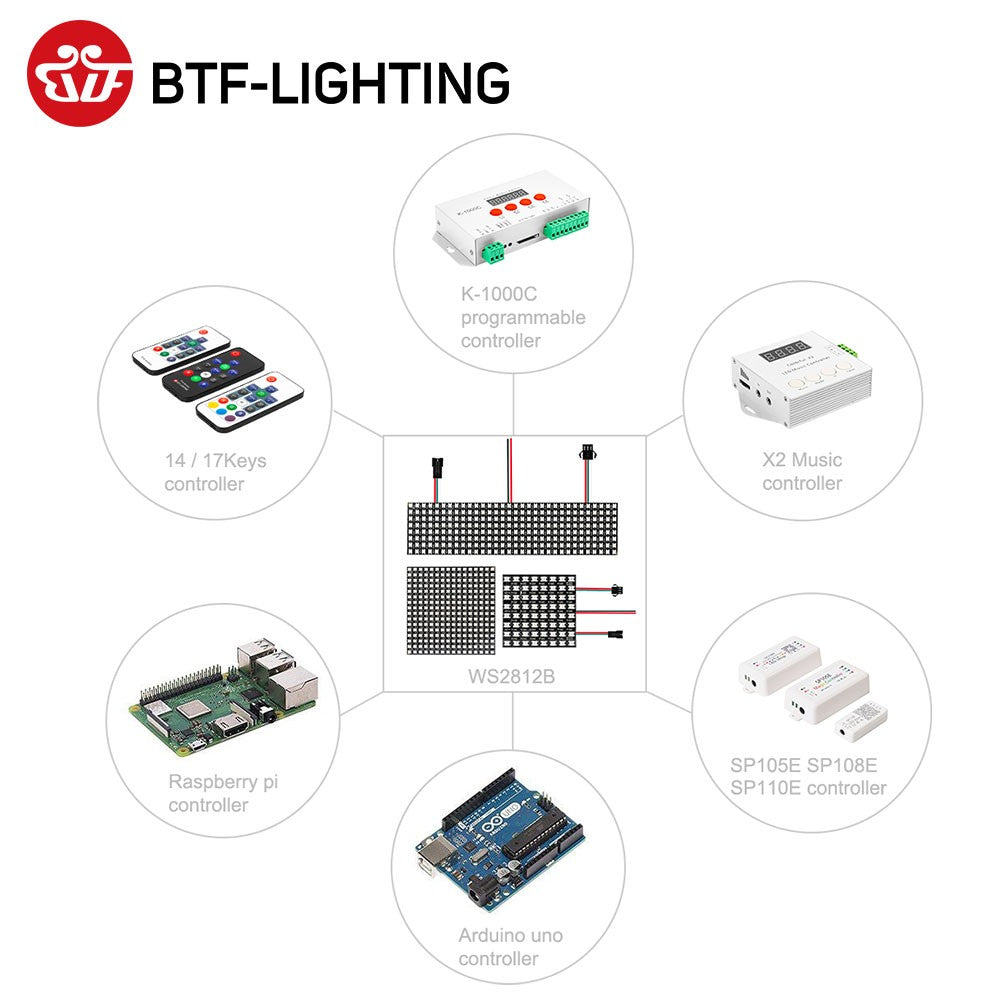

Working mode: external controller Arduino compatible.

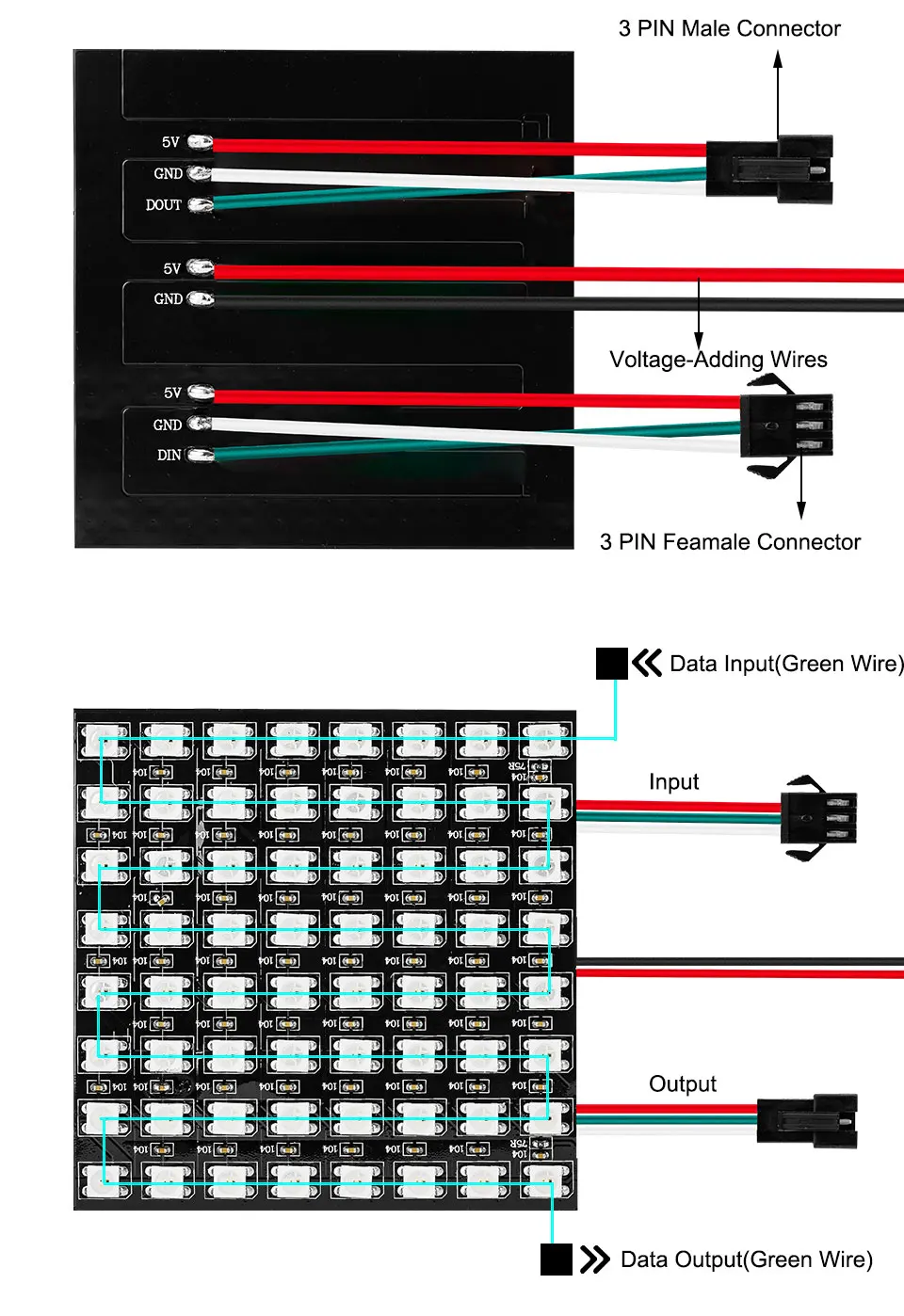

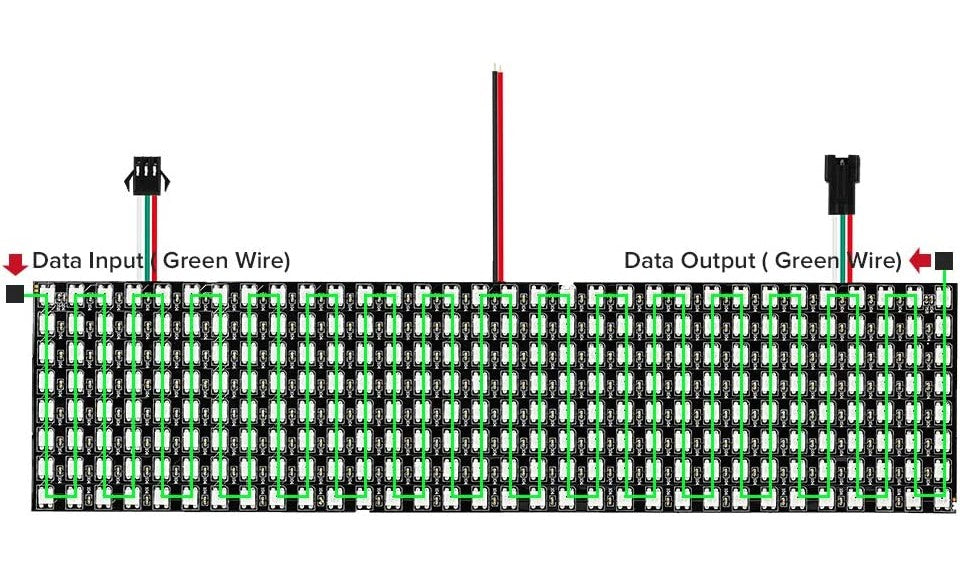

Connection: VCC: RED; GND:BLACK; DAT:BLUE.

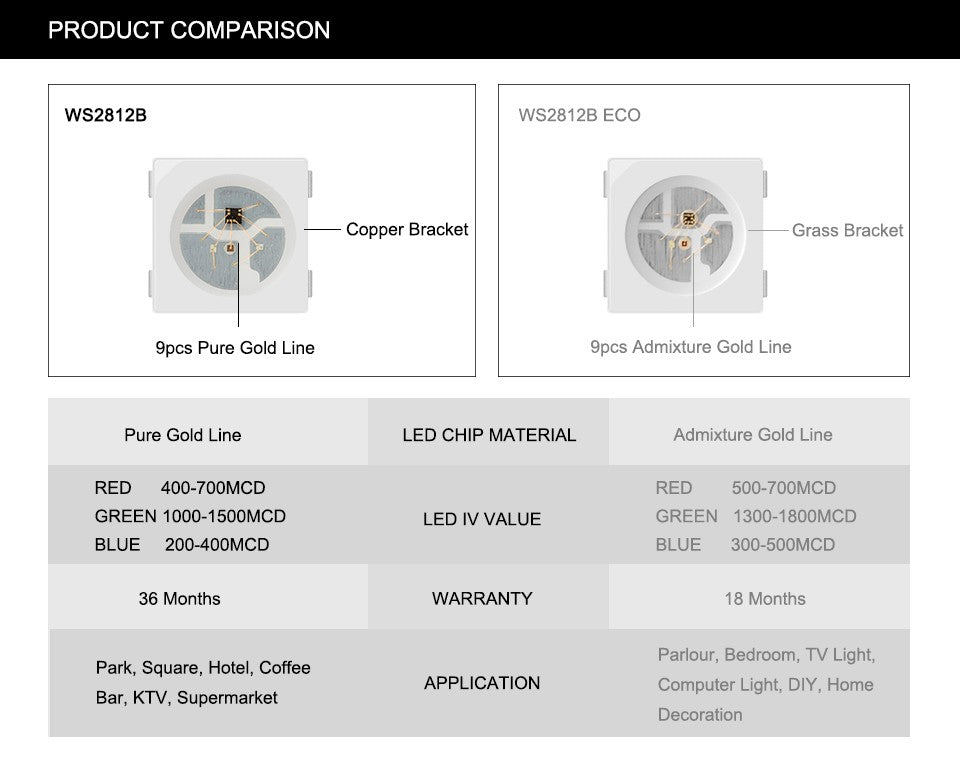

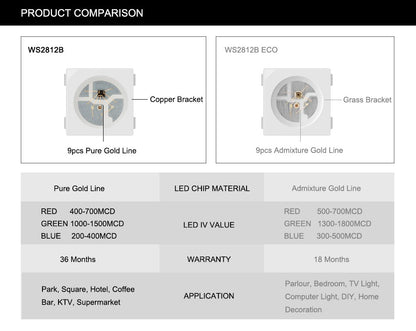

The different between the WS2812B and WS2812B-ECO.
LED Chip Material:
9pcs Pure Gold Line, Copper Bracket (WS2812B).
9pcs Admixture Gold Line, Brass Bracket (WS2812B-ECO).
LED IV Value Brightness:
Red: 400-700mcd, Green: 1000-1500mcd, Blue: 200-400mcd (WS2812B).
Red: 500-700mcd, Green: 1300-1800mcd, Blue: 300-500mcd (WS2812B-ECO).
