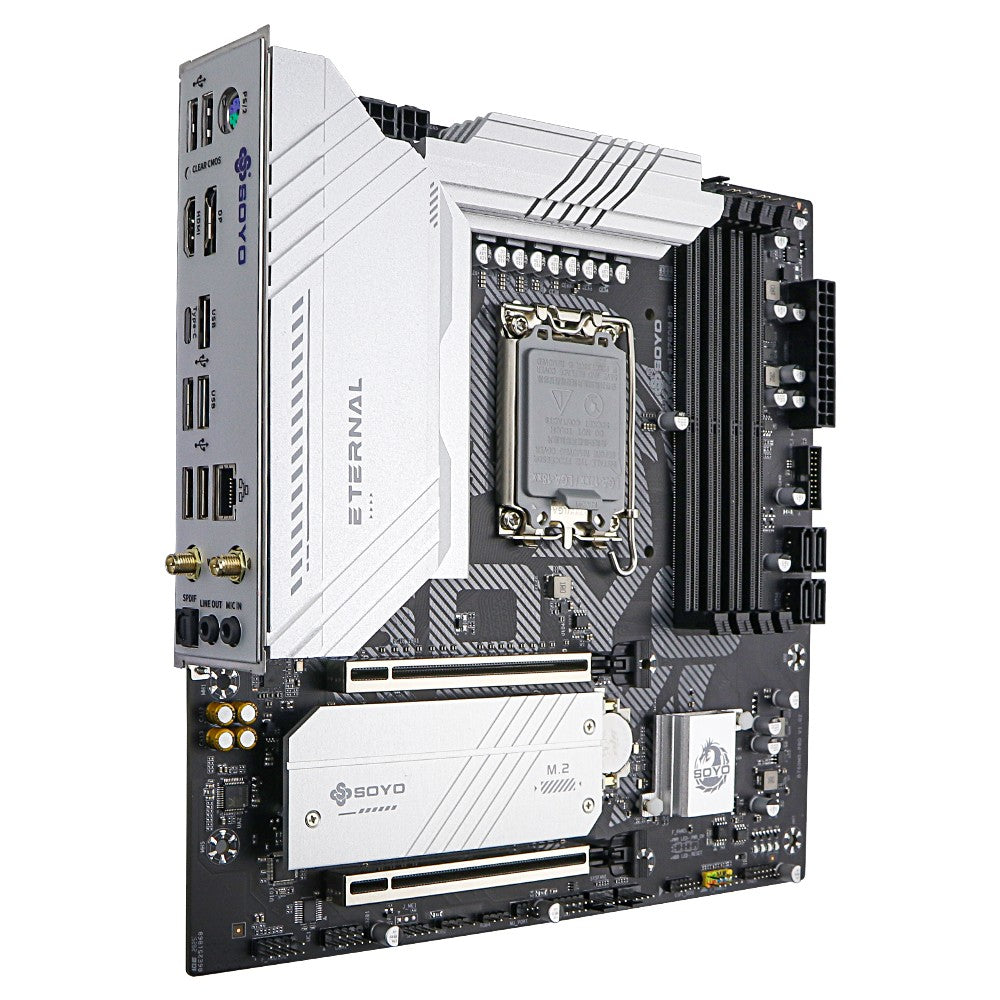

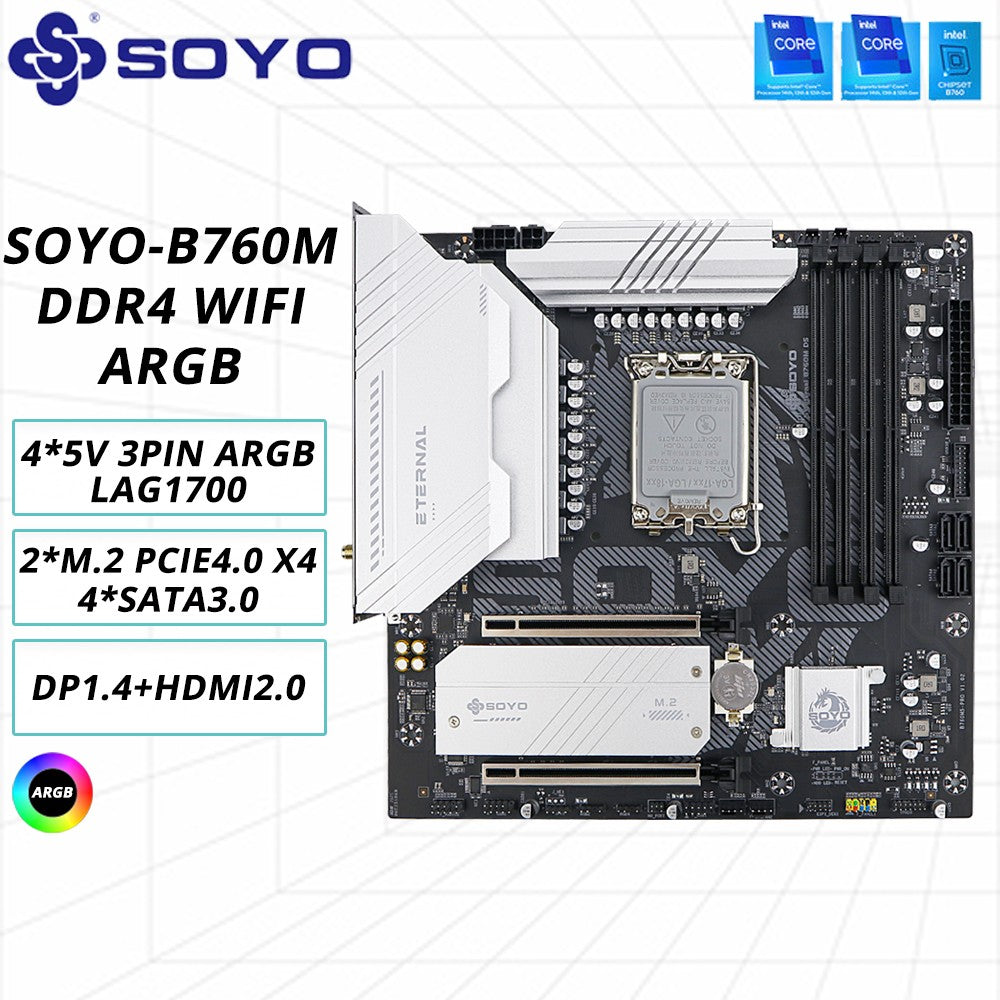

SOYO B760M D4 WiFi DDR4 LGA 1700 Intel B760 M-ATX Motherboard 2* M.2 PCIe 4.0 Type-C WiFi6 ARGB USB3.2 For 12/13/14th processor

Brand Name: SOYO

Chipset: Intel B760

Onboard LAN: 1x RJ45

Onboard LAN: WIFI 6 (AX)

Onboard LAN: Bluetooth v5.1

Maximum Ram Capacity: 256GB

Battery Included: No

Processor compatibility: 12th Intel Core i5

Processor compatibility: 13th Intel Core i5

With CPU: No

Support Memory Type: DDR4

Number of PCI: 2

Special Features: RGB

Special Features: Cooling Armor

Storage Interface Type: SATA

Storage Interface Type: SATA 2

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2 (SATA)

Package: Yes

RAID Supported: Yes

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

Back I/O Ports: WiFi

PCI - E standards: PCI-E 4.0

Socket Type: LGA 1700

High-concerned chemical: None

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Office

Usage Scenario: Video Production

Origin: Mainland China

Number of PCIe x 8: 1

Number Of Memory Slots: 4

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Support USB Type: USB 3.1 Gen1

Support USB Type: USB 3.2 Gen1

Number of PCIe x 16: 2

Onboard Connectors & Header: 24-pin Main Power Connector

Memory channel: Double

Number of SATA Ports: 4

Form Factor: Micro-ATX

Supports M.2 SSD: 2242

Supports M.2 SSD: 2280

Supports M.2 SSD: 2260

Number of M.2: 2

●Notice：TheCR2032battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom

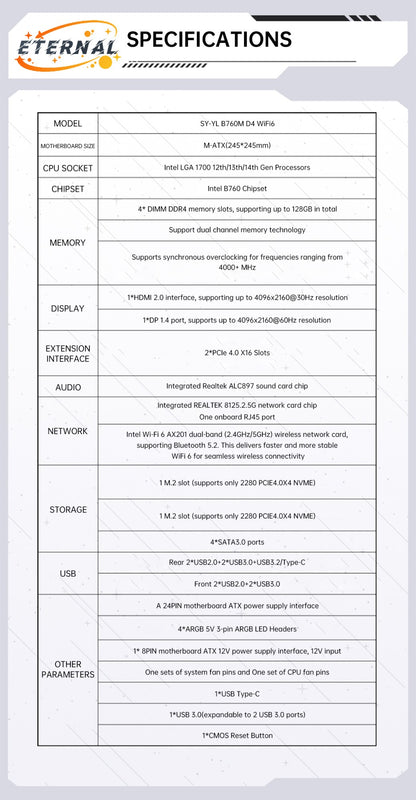

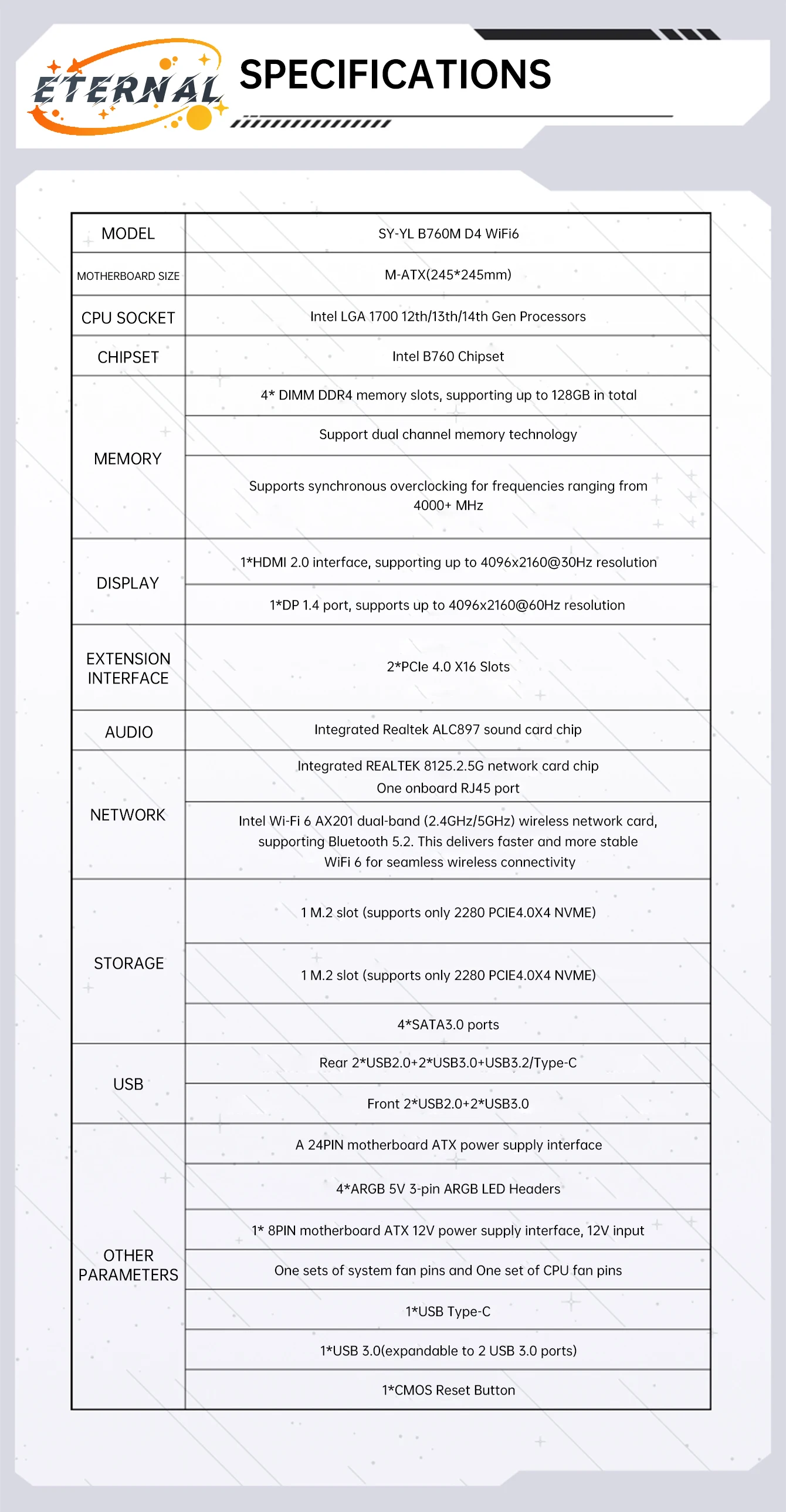

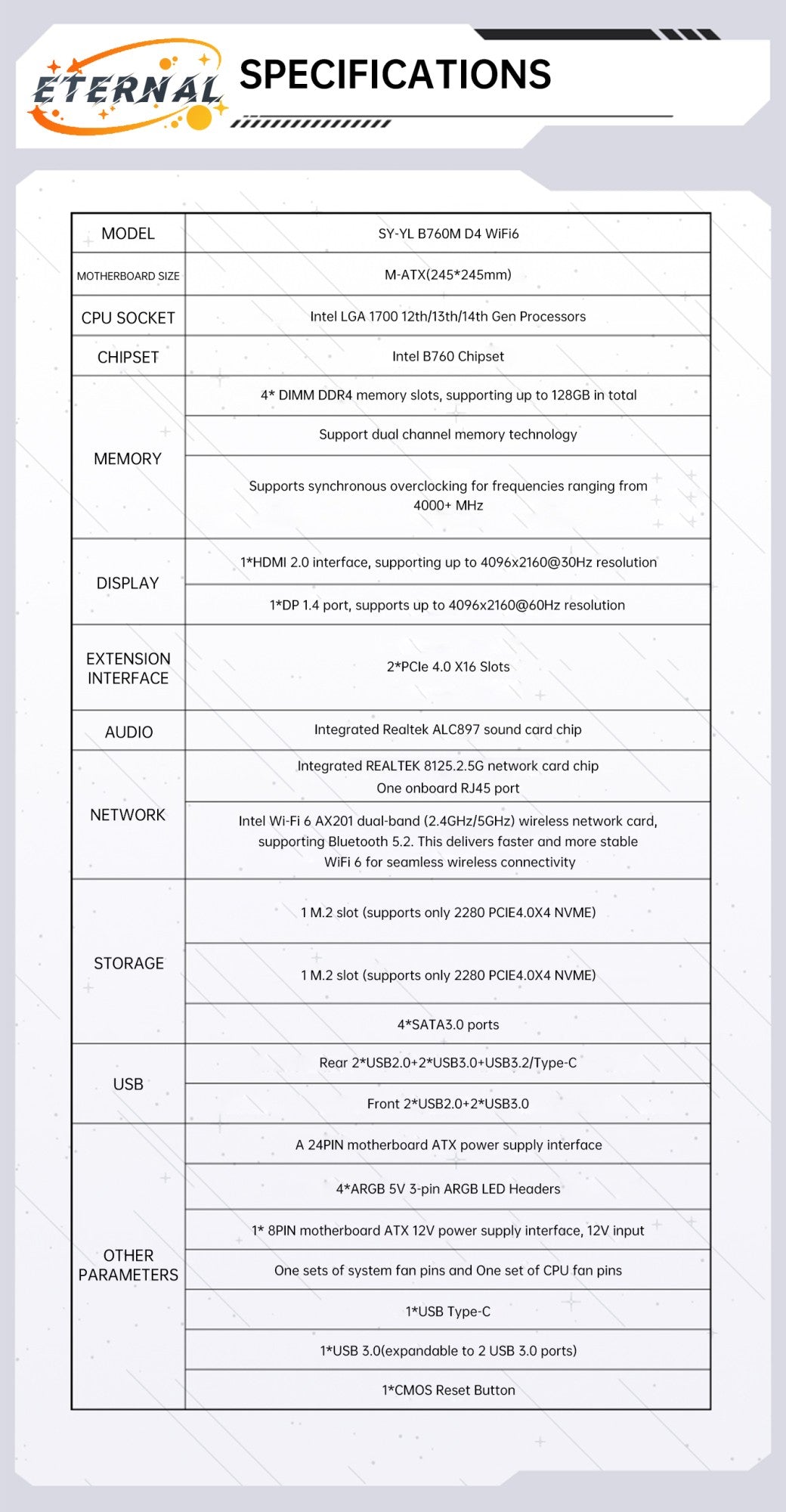

**Product Specifications**

**CPU Support**

- Intel LGA 1700 Socket

- Compatible with Intel 12th/13th/14th Generation Processors

**Chipset**

- Intel B760 Chipset

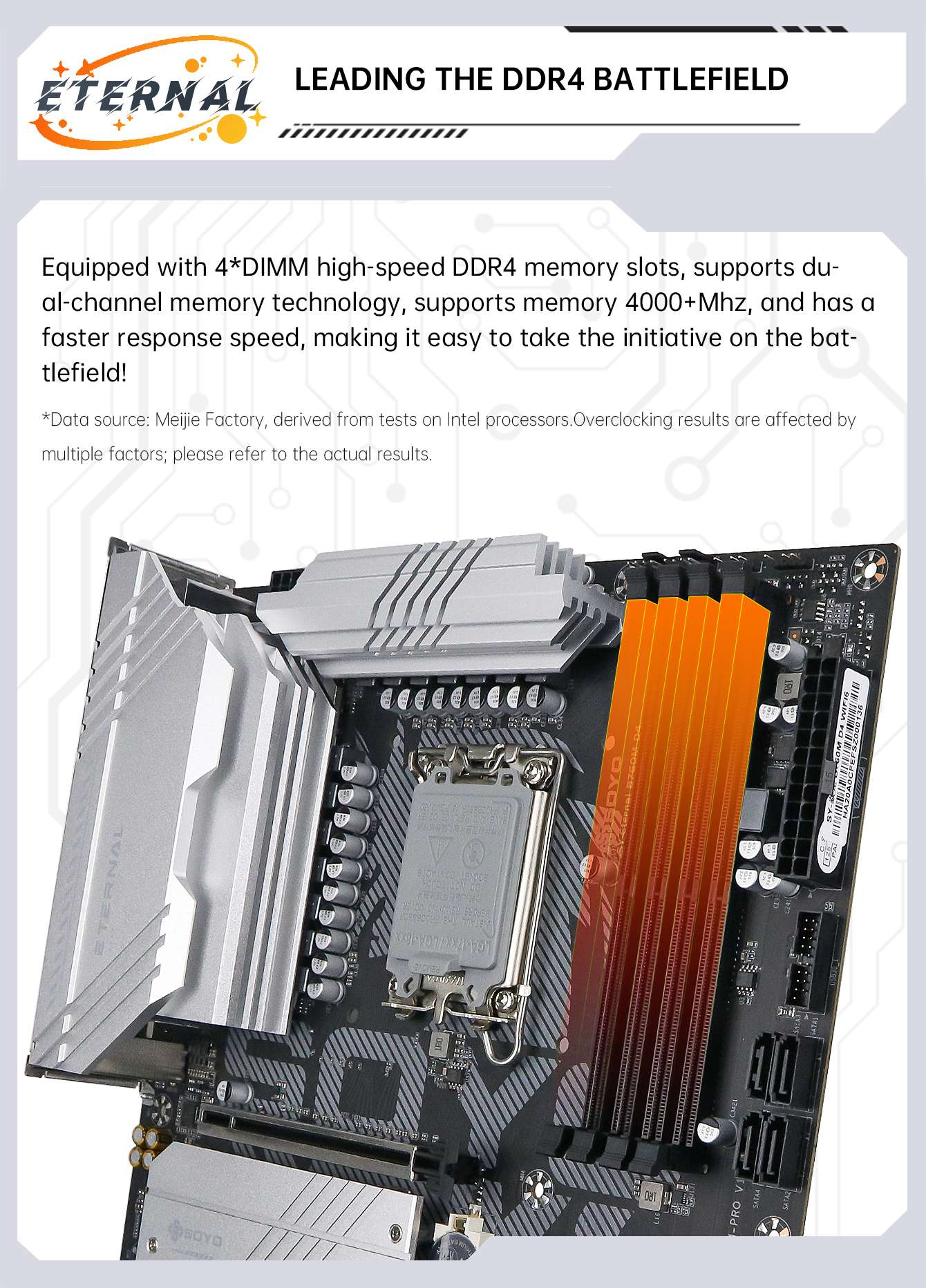

**Memory**

- 4x DDR4 DIMM Slots

**Storage**

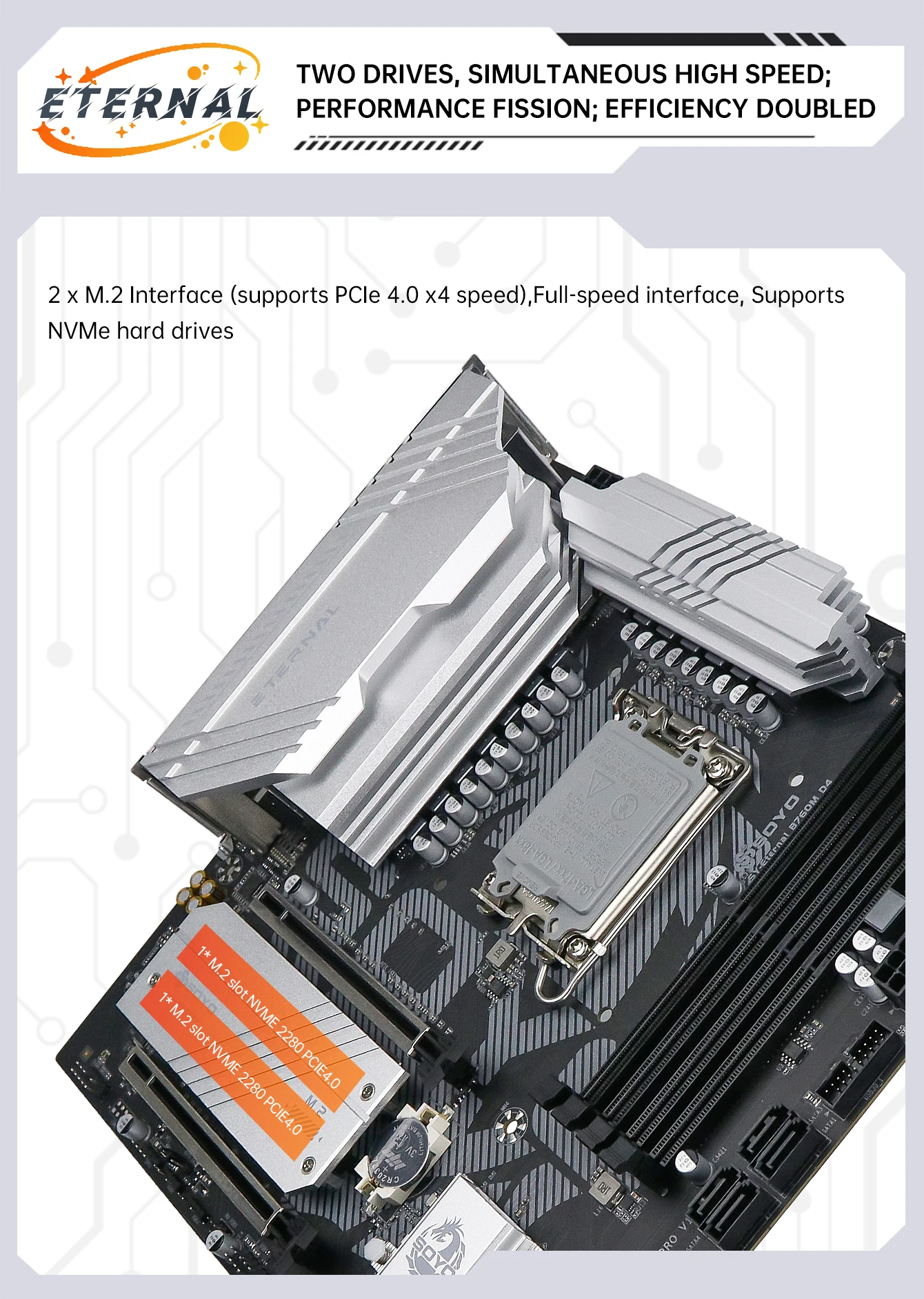

- 2x M.2 Slots (NVME PCIe 4.0 x4 Speed)

- 4x SATA 3.0 (6 Gb/s) Ports

**Display Outputs**

- 1x HDMI 2.0

- 1x DisplayPort

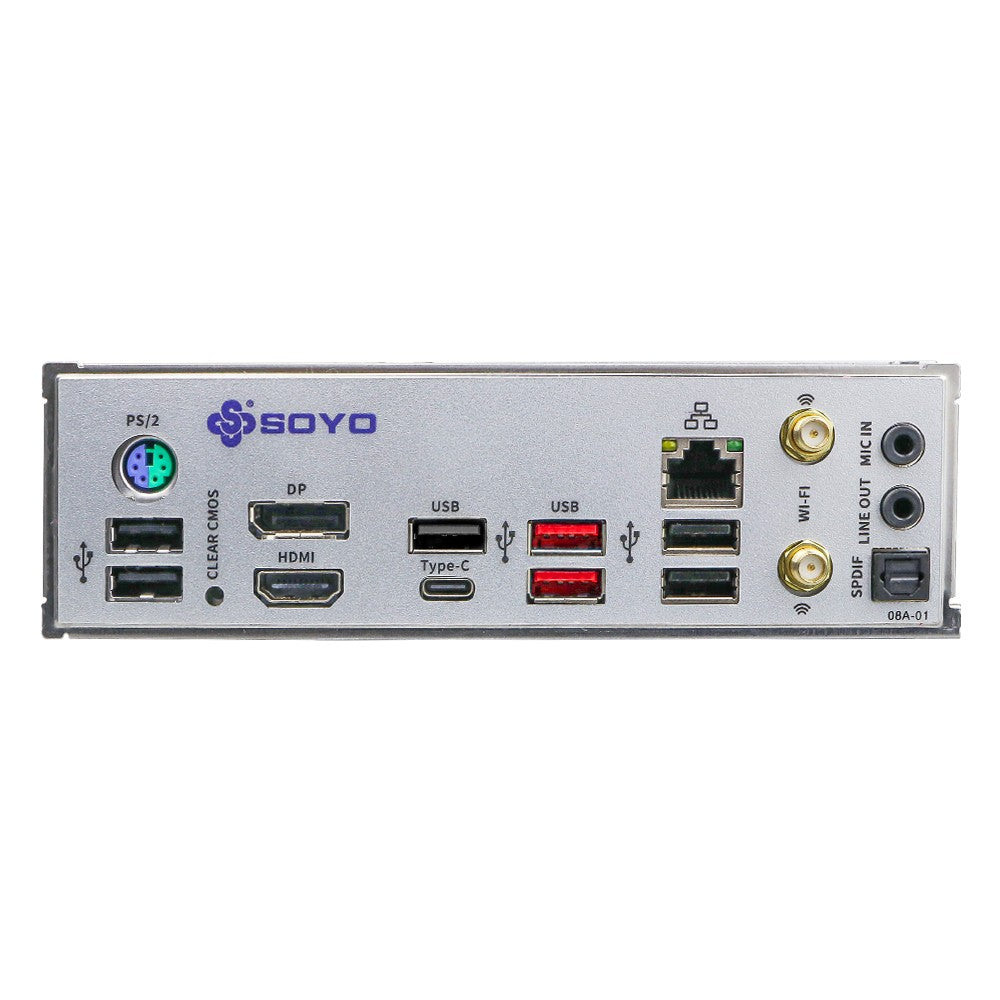

**I/O Ports**

- **Rear Panel:**

- 1x PS/2 Combo Port

- 4x USB 2.0 Ports (USB 1.1 Compatible)

- 3x USB 3.0 Ports

- 1x USB 3.2/Type-C Port

- 1x RJ45 2.5G LAN Port

- Audio Ports: Line Out, Line In, Mic In

- 1x BIOS Reset Button

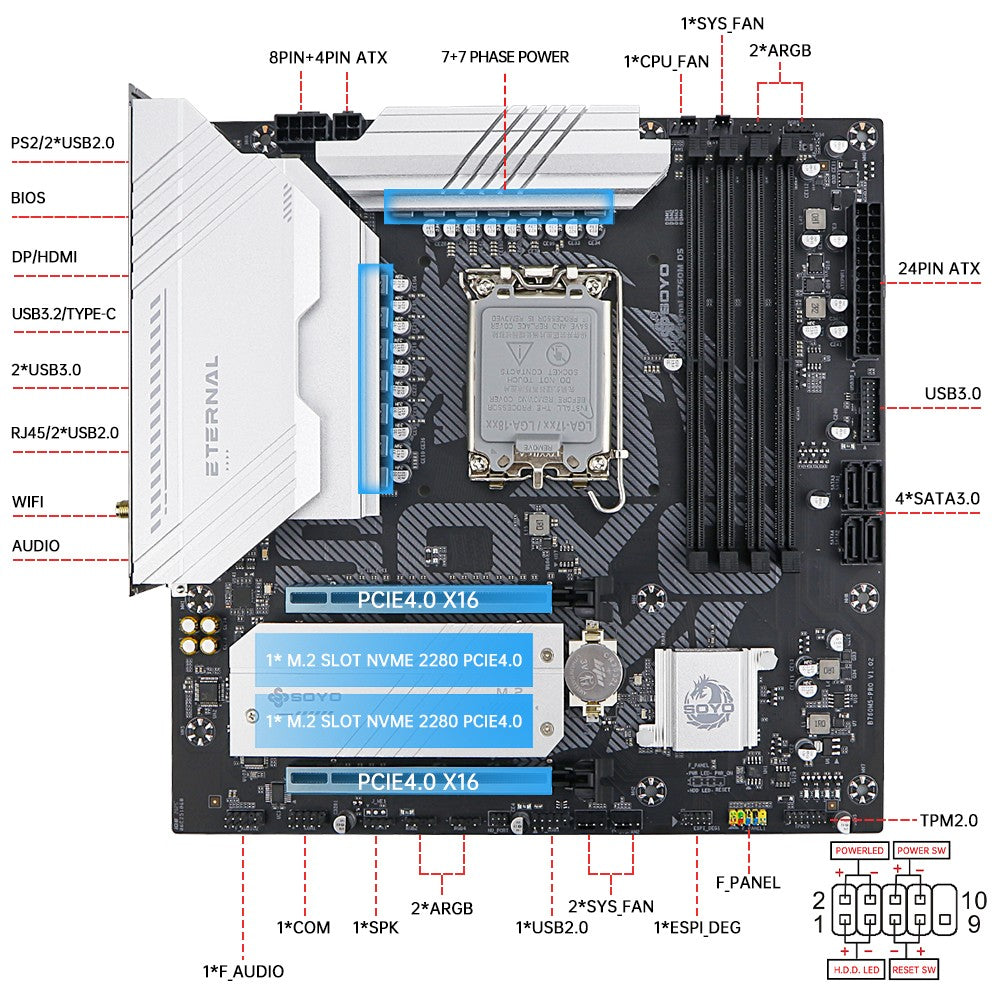

- **Internal Headers:**

- 1x F_USB2.0 Header (Supports 2x USB 2.0)

- 1x USB3.0 Header (Supports 2x USB 3.0)

- 1x Front Audio Header (F_AUDIO)

**Expansion Slots**

- 2x PCIe 4.0 x16 Slots

- 1x M.2 WIFI Slot (for Wireless Module)

**Audio**

- Realtek ALC897 HD Audio Codec

- 6-Channel HD Audio

- Front Audio and Stereo Mic Support

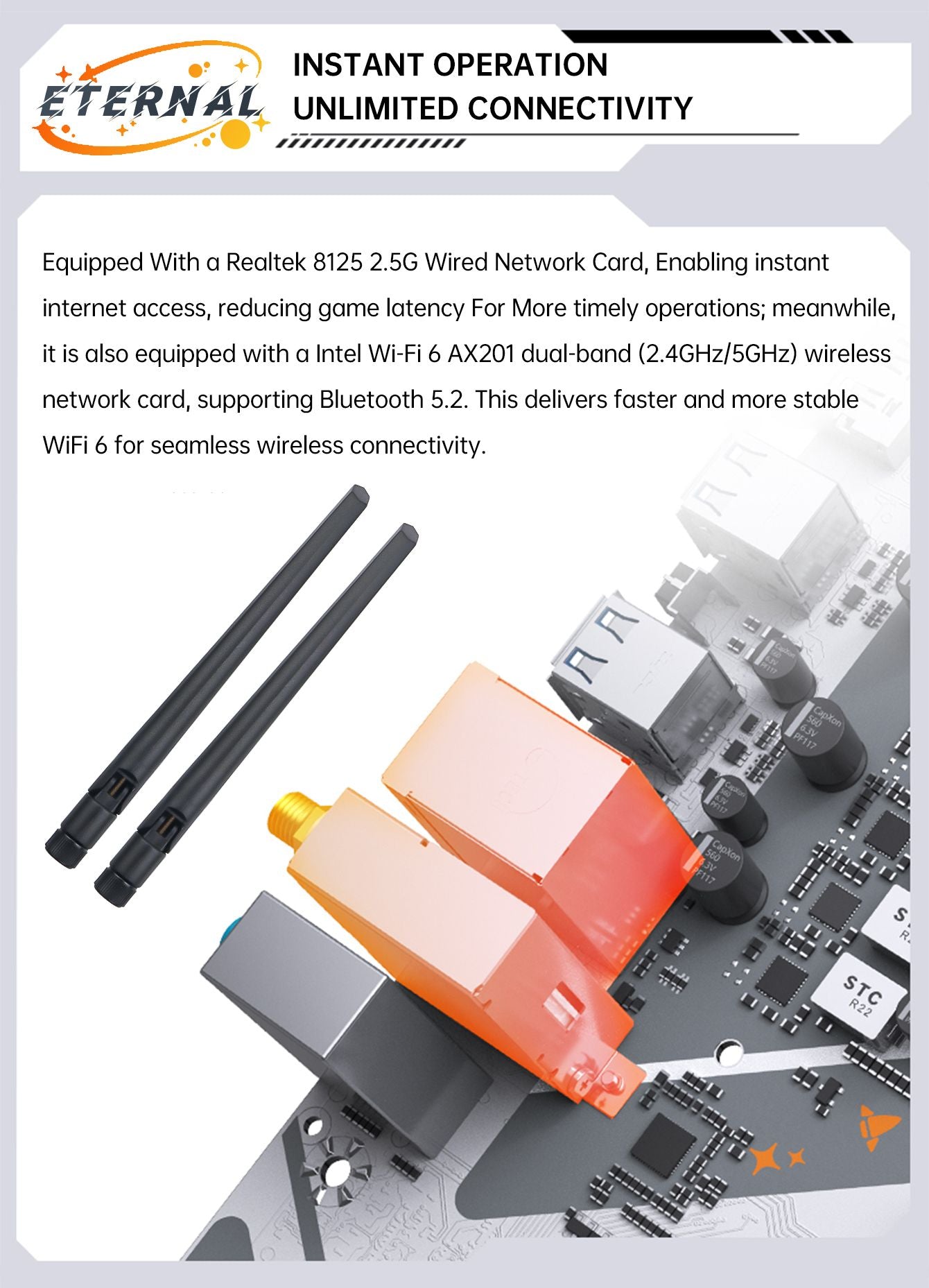

**Networking**

- Realtek RTL8125G 2.5G LAN

- M.2 WIFI Expansion Slot

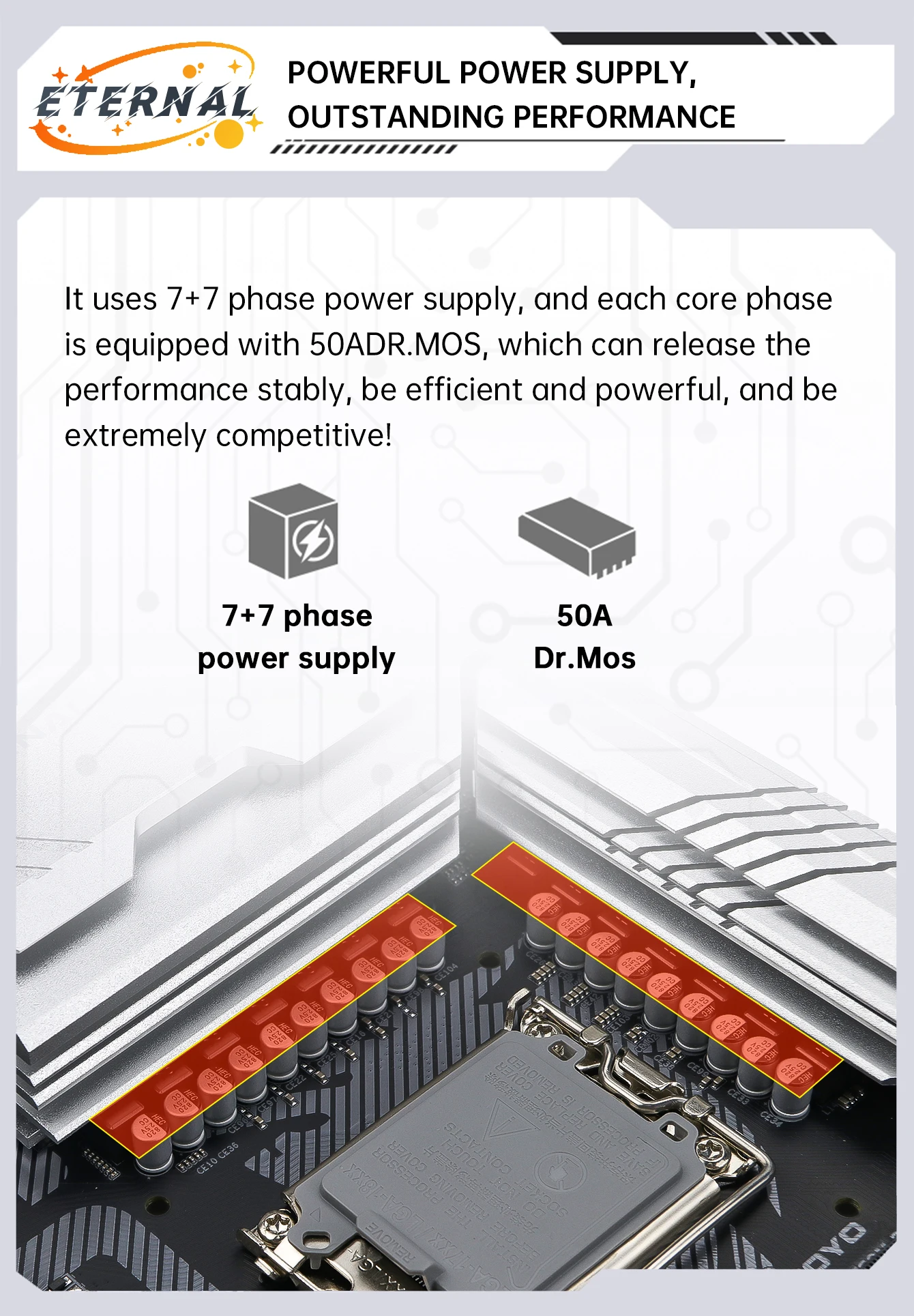

**Power & Cooling**

- 1x 24-Pin ATX Power Connector

- 1x 8+4-Pin ATX12V Power Connector

- 1x CPU_FAN Header

- 3x SYS_FAN Headers

**Additional Features**

- 4x 5V 3-Pin ARGB Headers

- 1x COM232 Header

- 1x SPEAK Header (System Speaker)

- 1x ESPI_DEG Diagnostic Card Header

**Form Factor**

- Micro-ATX Design (245mm x 245mm)

**Operating Environment**

- **Operating Temperature:** -10°C to 60°C

- **Storage Temperature:** -25°C to 70°C

- **Humidity:** 10-90% (Non-Condensing)

**Power Consumption**

- Idle: 30-70W

- Full Load: 200-450W

**Key Features**

- **Next-Gen Memory:** DDR4 Support up to 6800MHz

- **Dual PCIe 4.0 x16:** Flexible Multi-GPU/Expansion Setup

- **2.5G Networking:** High-Speed Wired Connectivity

- **Advanced Cooling:** Multiple Fan Headers + ARGB Support

- **Modern I/O:** USB 3.2 Type-C and Multiple Display Outputs

**Ideal For** gaming setups, content creation workstations, and high-performance computing systems requiring modern connectivity and expansion capabilities.
