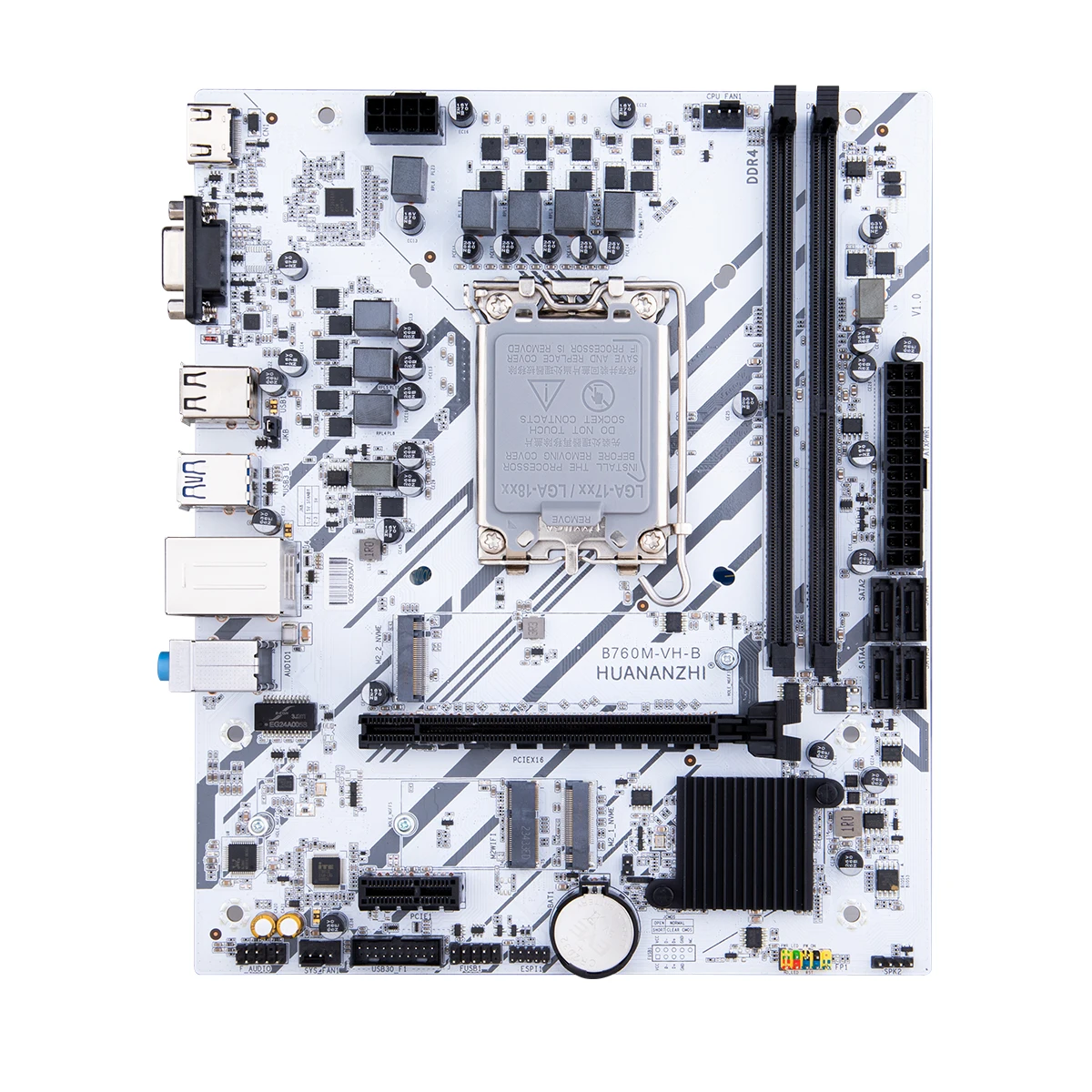

HUANANZHI B760M VH B M-ATX DDR4 Motherboard Support 12 13 Gen B760 Intel LGA 1700 CPU 12100F 12400F 12490F 12600F 12700F 13600F
Couldn't load pickup availability
"Secure Checkout
– Shop with Confidence Every Time"
Fast & Reliable Shipping
Straight to Your Doorstep
- Express Delivery
- 12 Months Warranty
- 7 Days Easy Replace
Brand Name: HUANANZHI
Chipset: Intel B760
Onboard LAN: 1x RJ45
Maximum Ram Capacity: 64 GB
Processor compatibility: 12th Intel Core i5
Processor compatibility: 13th Intel Core i5
Processor compatibility: 12th Intel Core i3
Processor compatibility: 13th Intel Core i3
With CPU: No
Support Memory Type: DDR4
Number of PCI: 0
Storage Interface Type: SATA
Package: Yes
RAID Supported: No
Application: Desktop
Chipset Manufacturer: Intel
Back I/O Ports: 1x RJ45
PCI - E standards: PCI-E 5.0
Socket Type: LGA 1700
Hign-concerned Chemical: None
Special Features: None
Usage Scenario: Household
Usage Scenario: Office
Origin: Mainland China
Number Of Memory Slots: 2
Number of PCIe x 4: 1
Number of PCIe x 16: 1
Memory channel: Double
Number of M.2: 2
If you have other requirements for the processor model and memory capacity, you can contact our staff to change the setting and recount the price
Specifications:
Model：HUANANZHI B760M VH B Motherboard
Chipset：Intel B760
CPU Socket：Supports IntelLGA1700
Memory Slot：2 x DDR4 Memory Slot
Memory Standard：Support dual channels DDR4 3200/2933/2666/2400MHz，Max Support 64GB
Storage Interface：4xSATA3.0 6Gbps
Expansion Slots：1xPCI Express 4.0 x16，1xPCI Express 3.0 x1
Expansion Interface：2xM.2 2280 NVME PCIE X4 4.0 ，1xM.2 WIFI
d Track：Realtek High Definition Audio
Network Card：Realtek Gigabit Network Card
Power Interface：24PIN+8PIN
FAN PIN：1xCPU_FAN PIN，1xSYS_FAN PIN
Power Supply：8 Phase Power Supply
PCB Layers：4-layer PCB
Dimension：220*180MM M-ATX
Rear Panel Interface：2xUSB2.0 480Mbps，2xUSB3.2 10Gbps，2xUSB3.2 5Gbps，1xNetwork Card Interface，1x3-Hole Audio Interface，1xVGA Interface，1xHDMI 2.0Interface
Front Panel Interface：1xUSB2.0 480Mbps PIN，1xUSB3.2 5GbpsPIN，1xFront Audio PIN，1xCOM PIN，1xPower On/Restart PIN，1xDebug PIN
Support System：Windows10 Windows11（Support incoming power on/timed power on/network card startup/network wake-up）
BIOS:AMI UEFI BIOS
Packing List:1xMotherboard，1xSATA Cable
Note:
1.Please allow 1-3mm differs due to manual measurement.
2.Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
3.The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
4.For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding！
5.Due to computer accessories is toomuch,are likely to have some small brand,bad quality or ES/QS version of the CPU, RAM, M. 2 SSD or other accessories may occur incompatible situation with motherboard.You can confirm with our customer service before purchase. if there is no confirmation before purchase then incompatible happen when you receive the motherboard, we would not accept a refund, when you buy this link of single motherboard we default you have read and know the situation.Mind please don't buy!
Before Packaging
Our engineers will carry out full-load operation test on the motherboard to ensure the best quality of motherboard shipment
