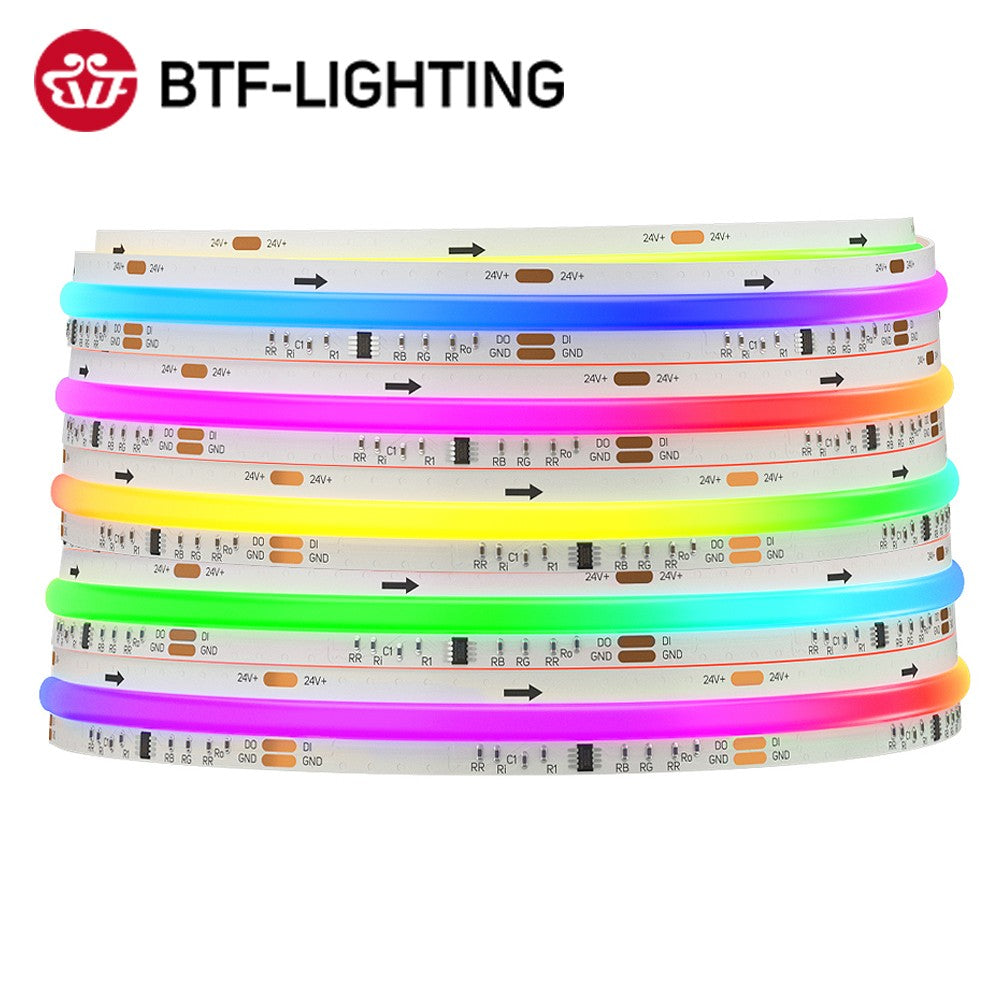

FCOB SPI RGB IC LED Light Strip WS2811 Addressable 720 630 LEDs Dream Color DC12V 24V WS2812B High Flexible FOB COB Lights
Couldn't load pickup availability
- 🔒 Secure Checkout
- 🚚 Fast Shipping
- 🔄 30-Day Returns
Brand Name: BTF-LIGHTING
High-concerned chemical: None
Luminous Flux: 2000-82000
Is Batteries Included: no
Nominal Voltage: 12V/24V
Origin: Mainland China
Voltage: DC12V/24V
Certification: ce
Certification: FCC
Certification: ROHS
Certification: UL
Average Life (hrs): 60000
LED Chip Model: WS2811
Strip type: COB
Waterproof: No
Is Smart Device: Yes
Occasion: Living room
Power Source: DC
Model Number: BTF-FCOB SPI RGBIC LED STRIP
LEDs Number/M: 720/630
Item Type: Strip
Theoretical Power: 12V-12W/m, 24V-21W/m
IC Number/M (720): 20 IC Drives 720 LED
IC Number/M (630): 14 IC Drives 630 LED
FPCB Width: 720-12mm, 630-10mm
Optional Length: 1m/2m/3m/4m/5m
WLED / ESP32: Do not support !

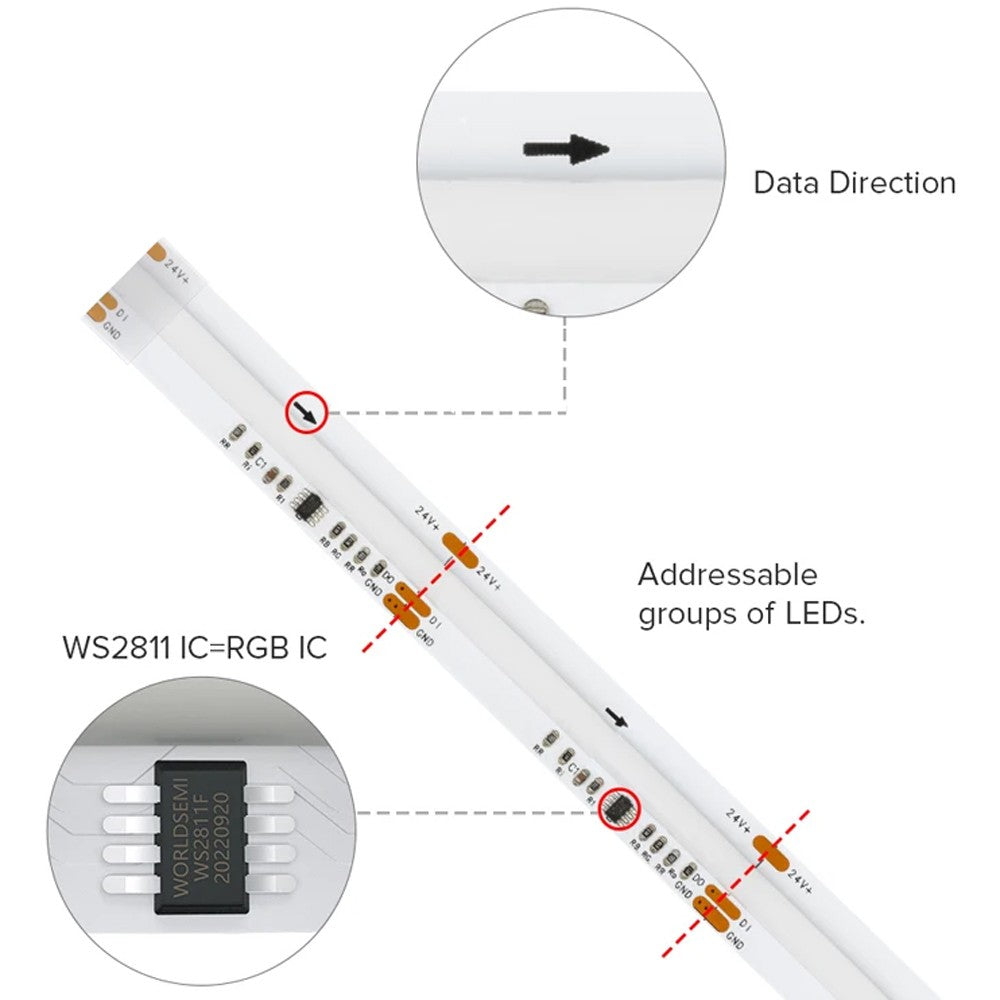

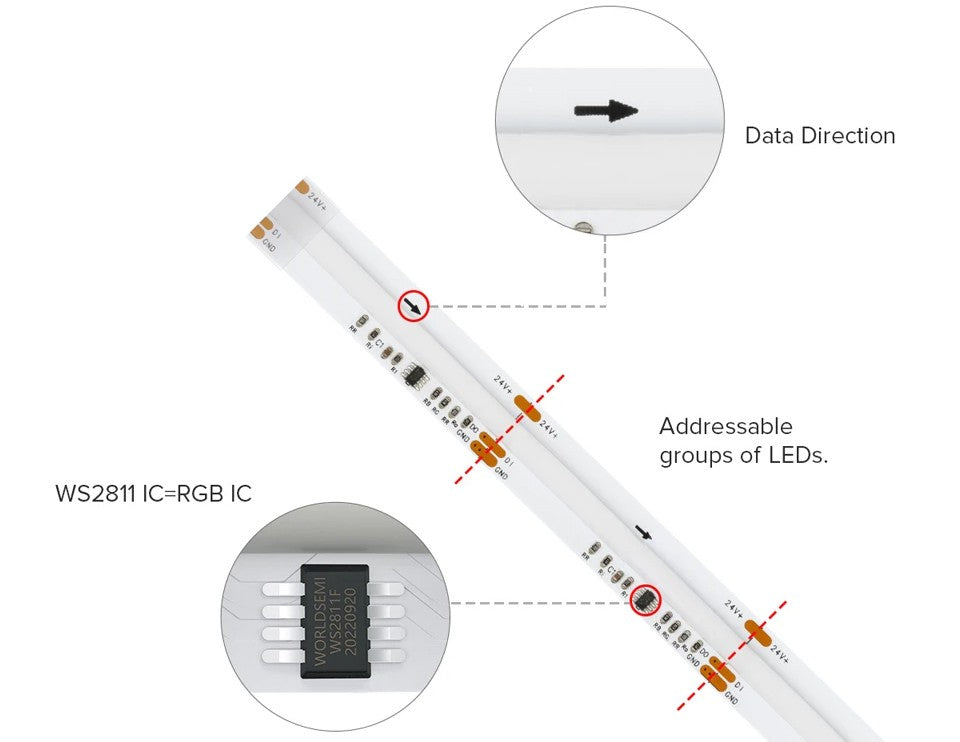

Addressable (720): Every 36 LED Addressable
Addressable (630): Every 45 LED Addressable
Cuttable (720): Every 36 LED or 50 mm is cuttable
Cuttable (630): Every 45 LED or 71 mm is cuttable
Package Including: Only LED Lights ( No power and pixels controller )
Attention 1: Must work with Pixels Controller and 12v/24v Power
Attention 2: Every 0.5 meter with Solder Joints
FCOB SPI RGB IC LED Light Strip WS2811 Addressable 720 630 LEDs Dream Color DC12V 24V WS2812B High Flexible FOB COB Lights
Specification:
Input Voltage: DC12V, DC24V.
IC Type: FCOB RGB WS2811 IC.
Theoretical Wattage: 12V-12W/m, 24V-21W/m.
FPCB Width: 720-12mm, 630-10mm.
LED Quantity: 720 LEDs/M, 630 LEDs/M.

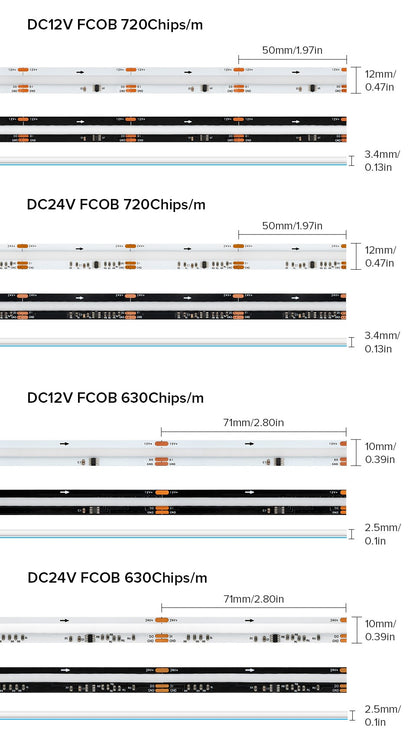

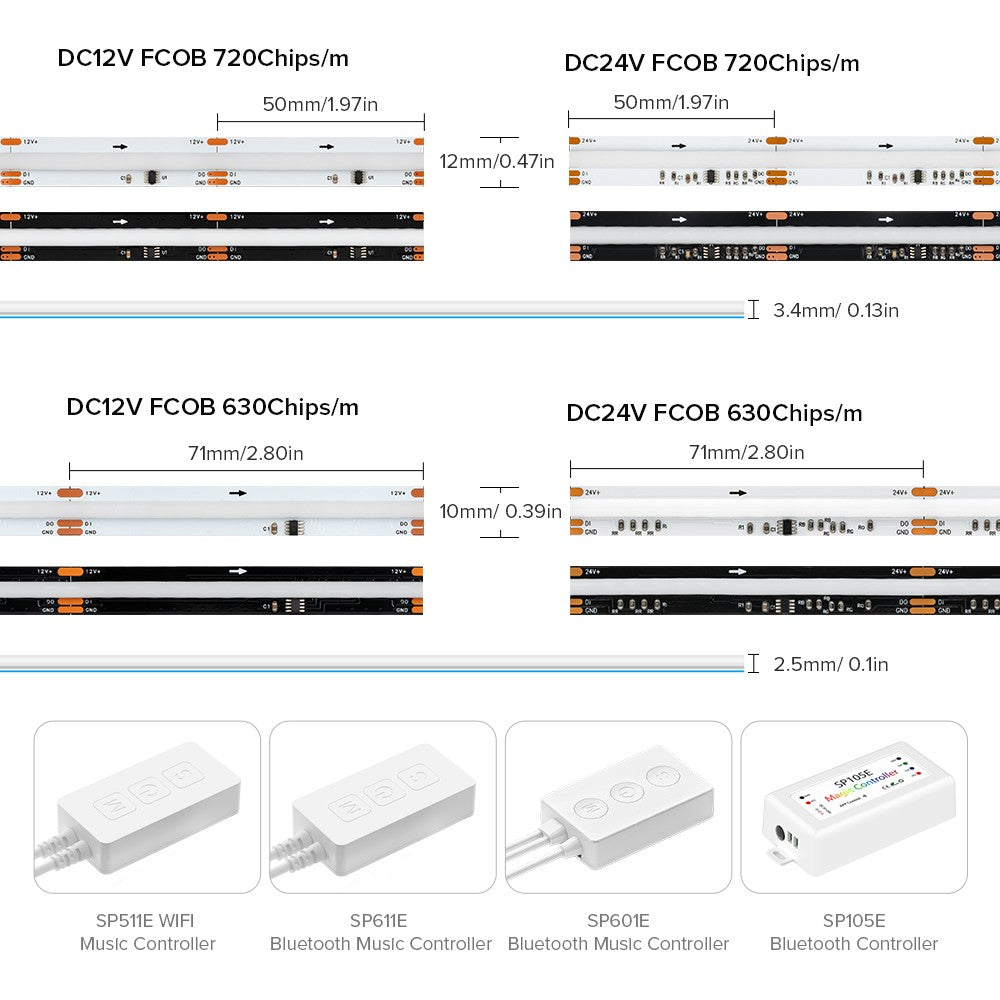

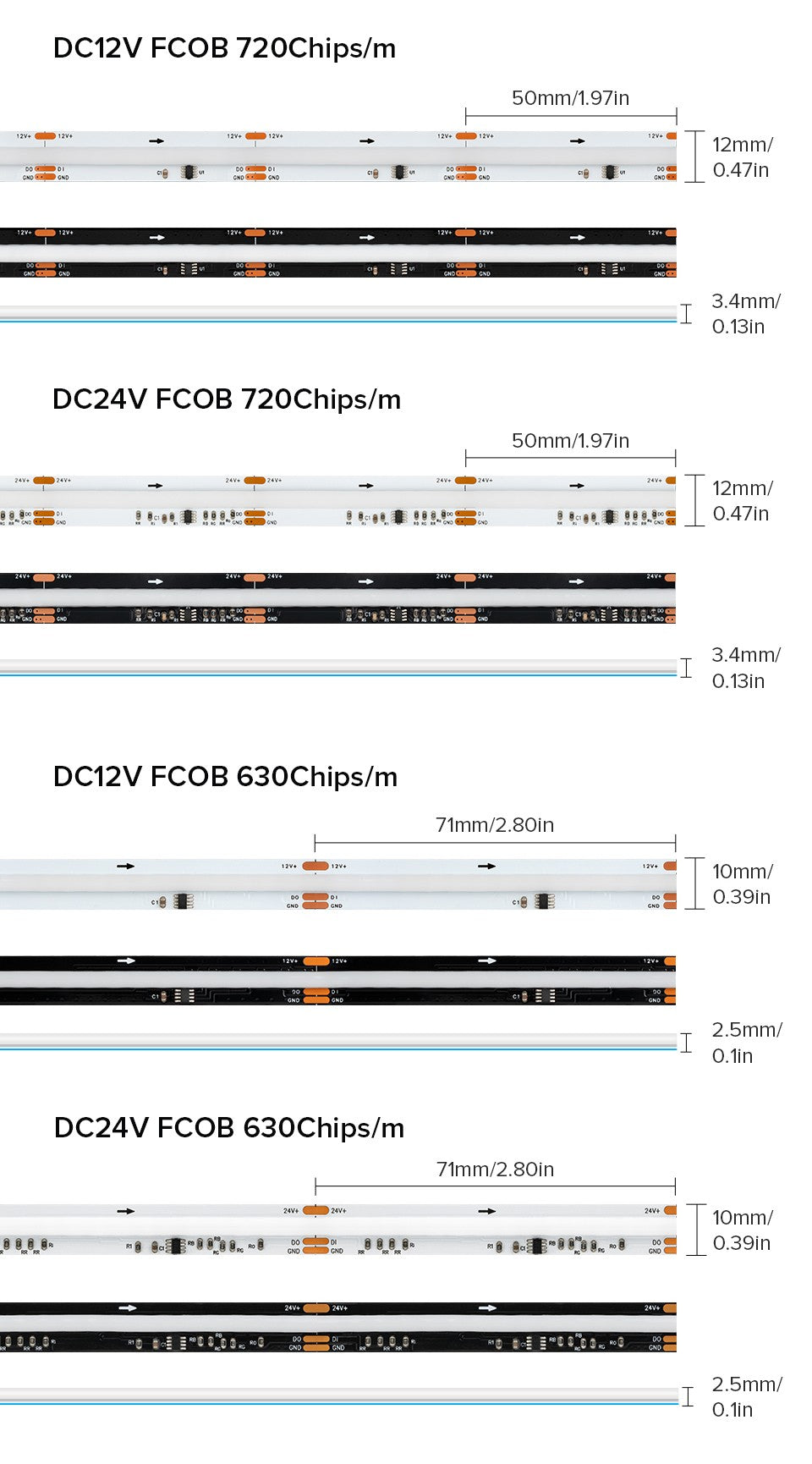

Cutting Length: 720-every 50mm, 630-every 71mm.

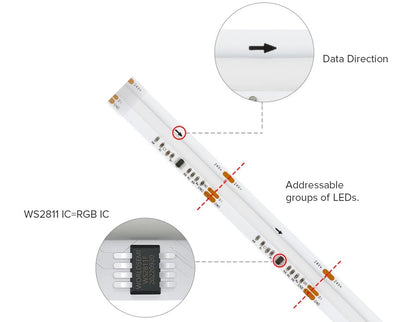

Addressable: every (720-50mm) or (630-71mm) can be unique controlled.
Operation Temperature: -20℃-+45℃.
Storage Temperature: -20℃-+60℃.
View Angle: 180°.

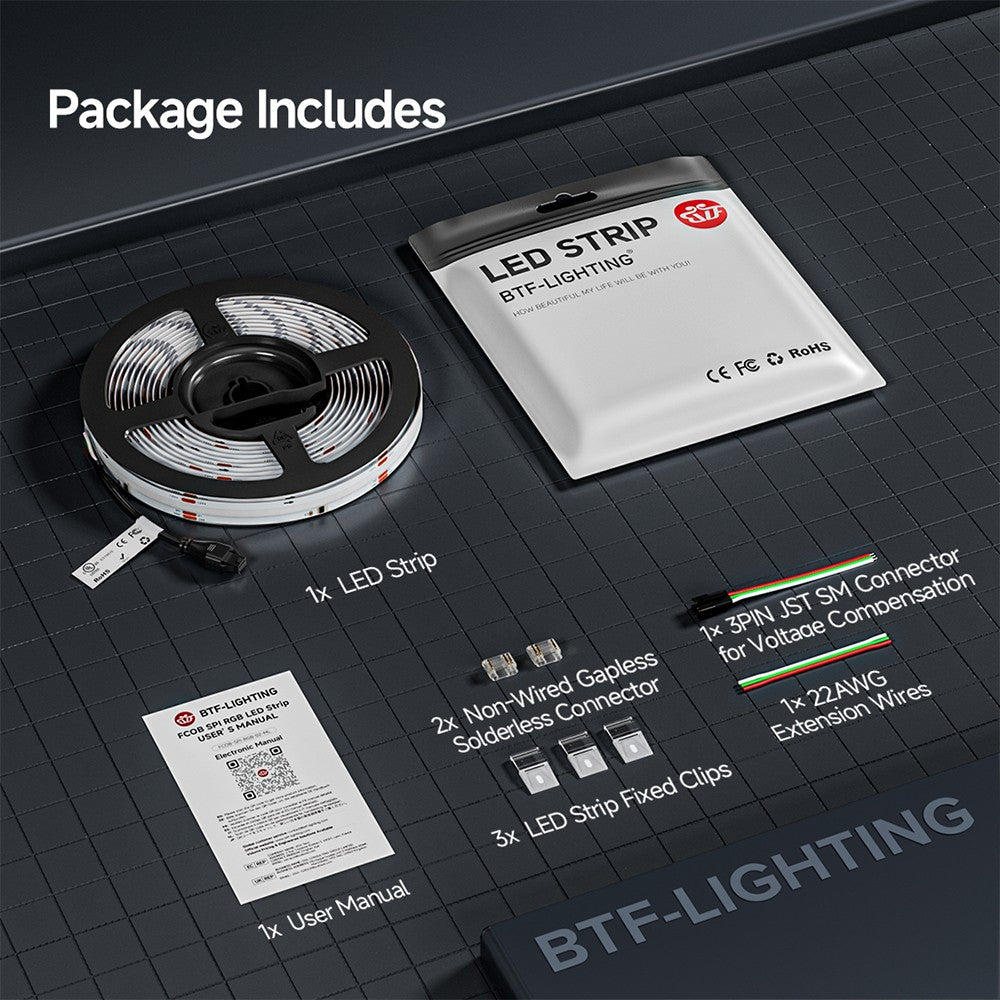

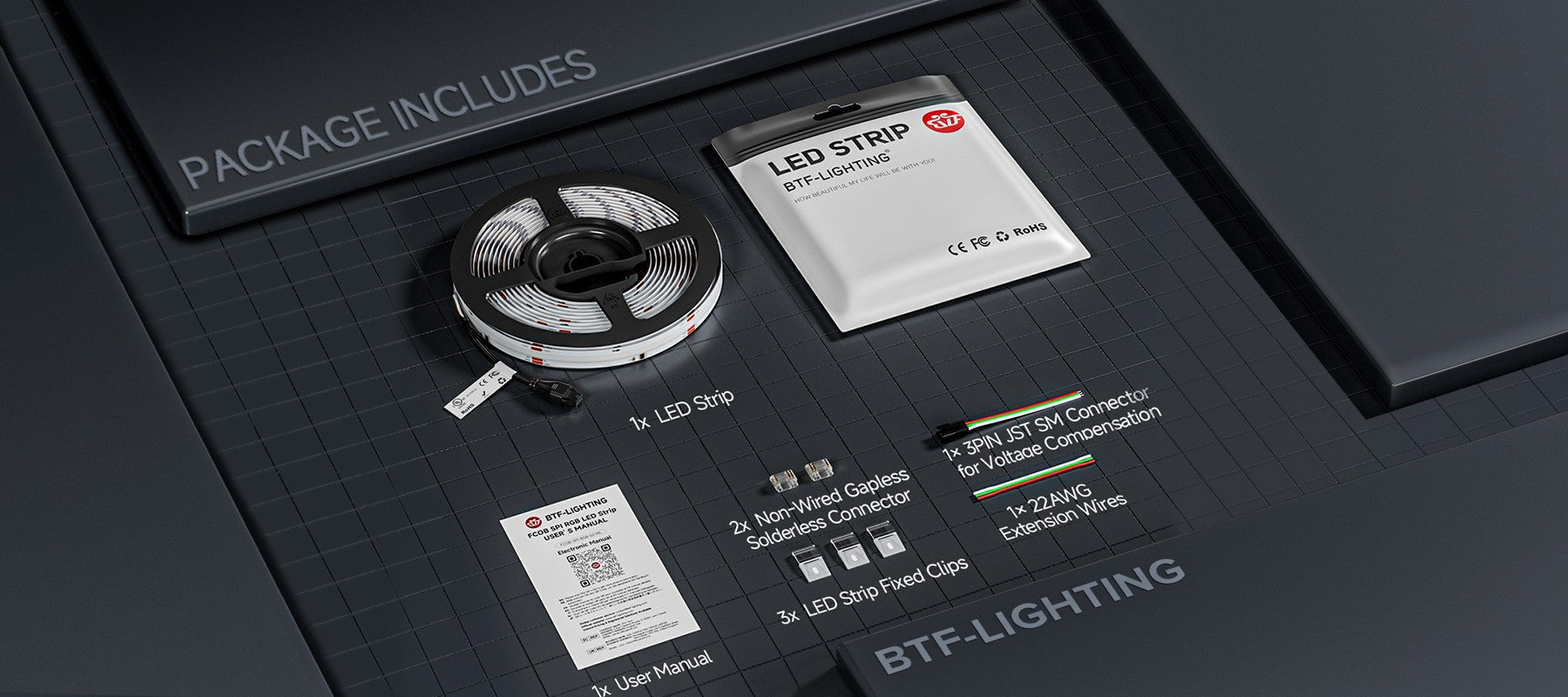

Package:
1 * FCOB 720/630 RGB IC LED Strip (power supply and SPI controller is not included).

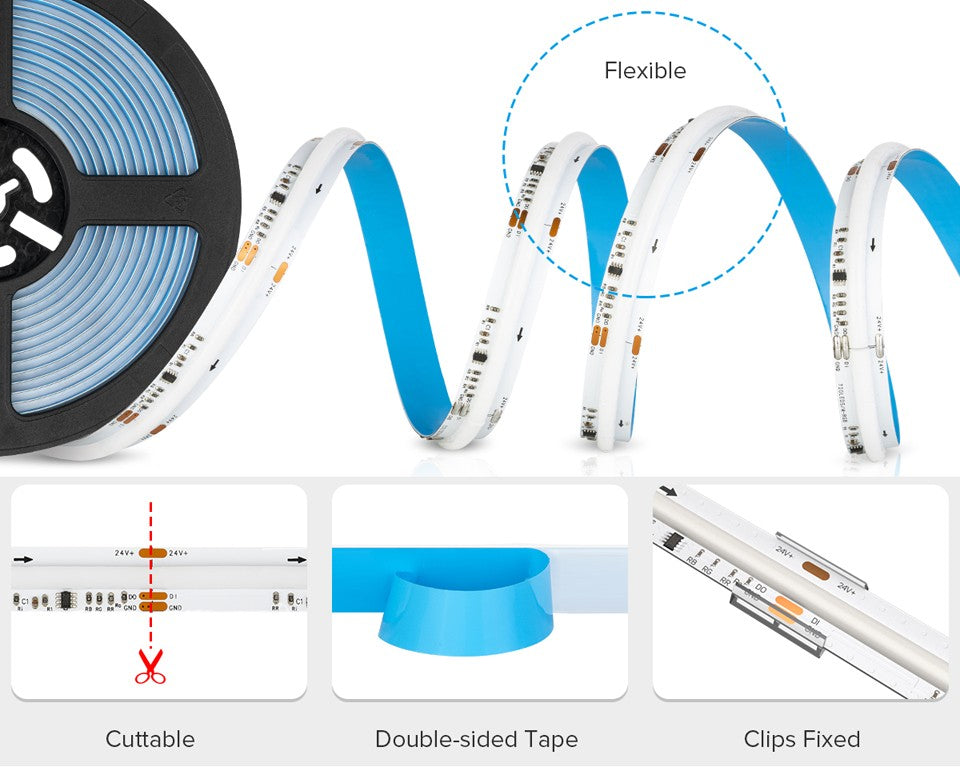

Advantages:

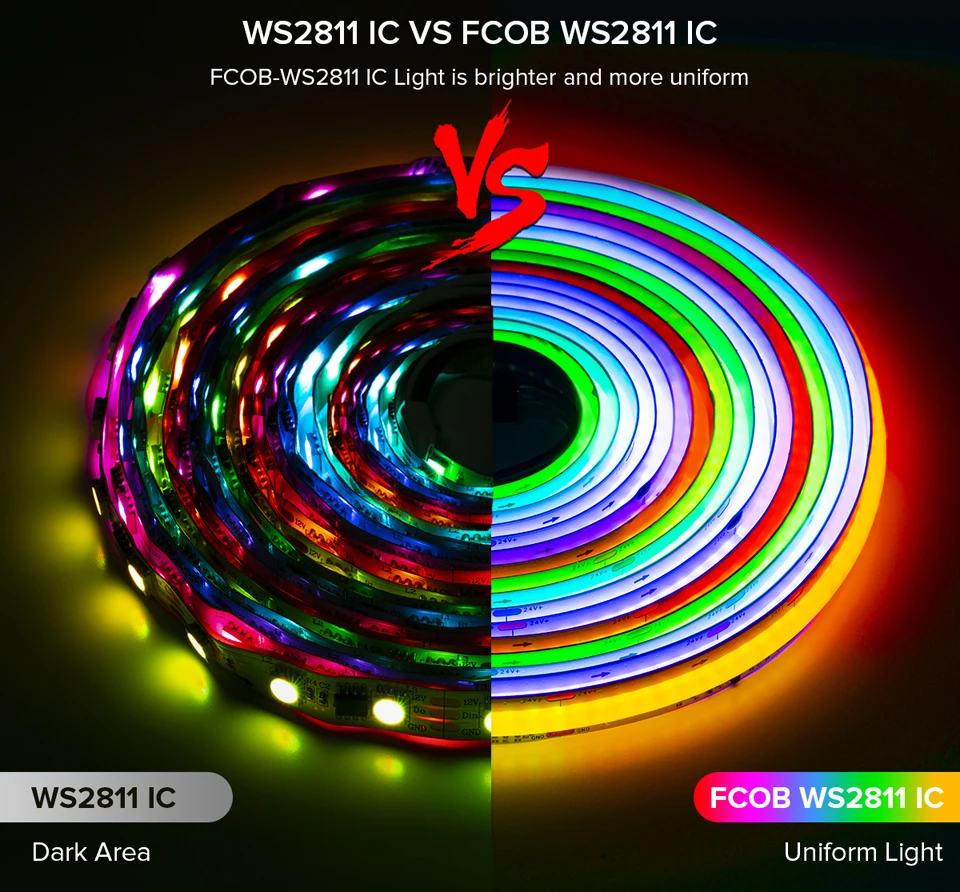

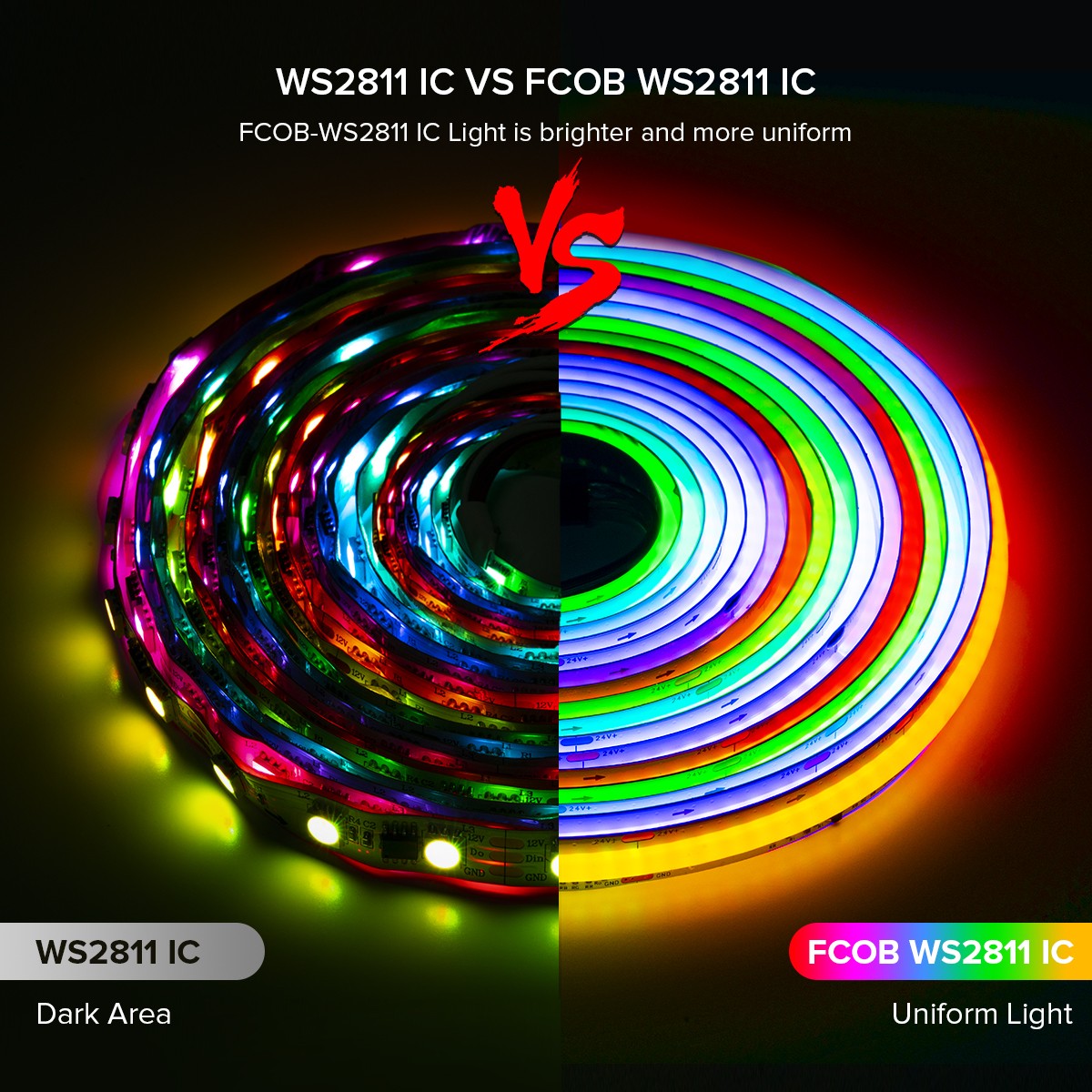

1. Chips are arranged in a linear way, integrated package, with uniform light color and no light spot;
2. High thermal conductivity flexible circuit board design, can be bent at will, convenient for installation;
3. The LED chip is directly mounted on the FPC, and the luminous angle can reach 180 degrees;

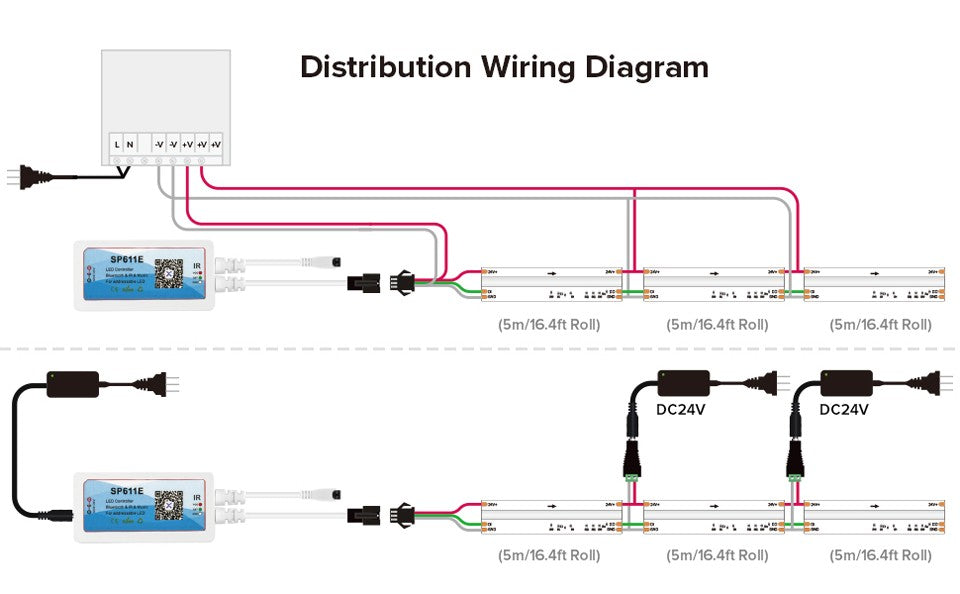

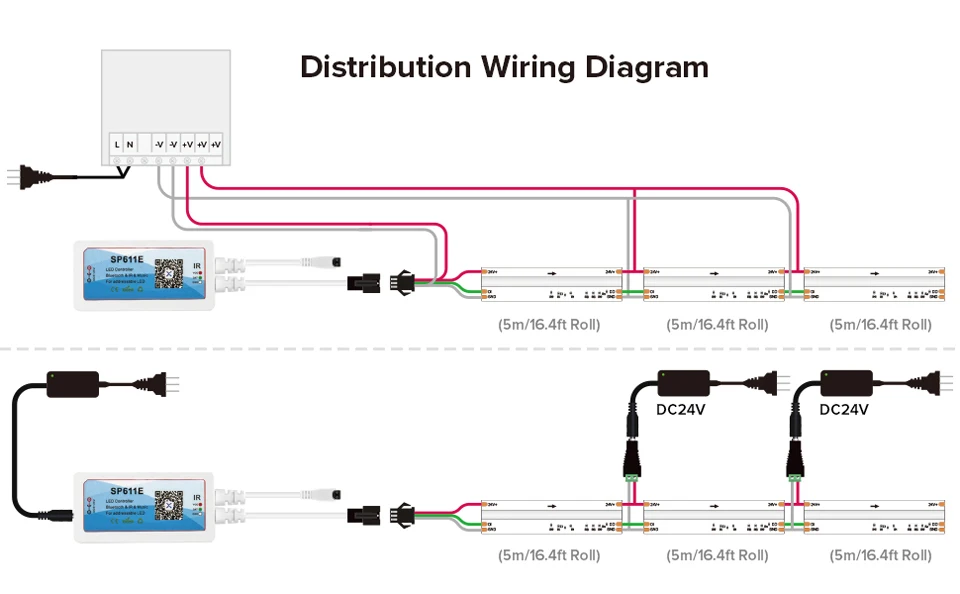

4. DC12V 24V constant voltage design, safe low voltage, low voltage drop, standard cascade 5m;

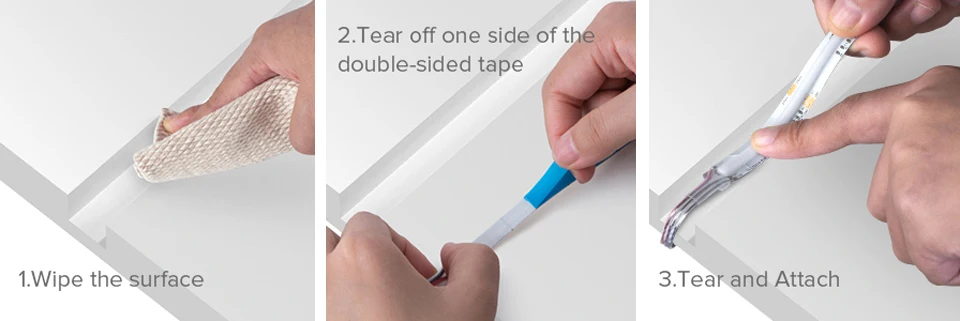

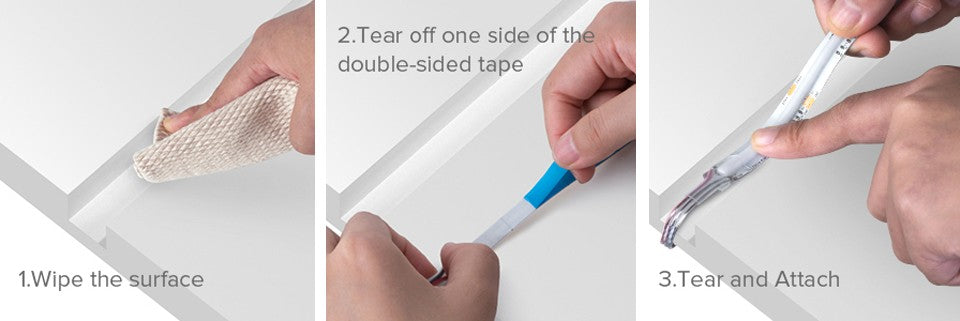

5. The back is pasted with high viscosity heat conduction double-sided adhesive tape, which is convenient for installation and firm and durable for pasting;
6. LED light source, energy-saving and environmental protection, in line with national environmental standards.
