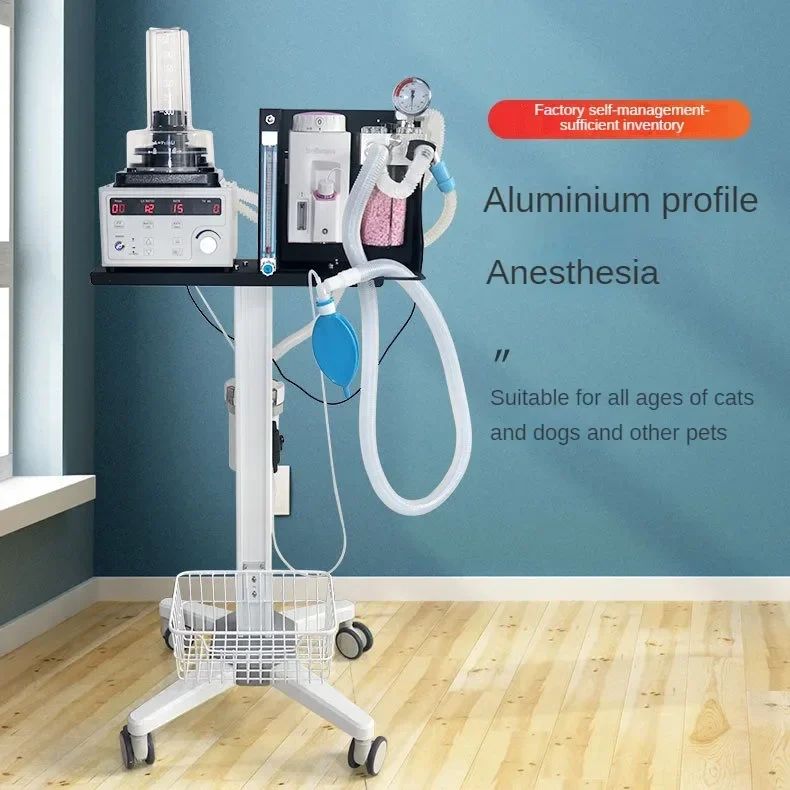

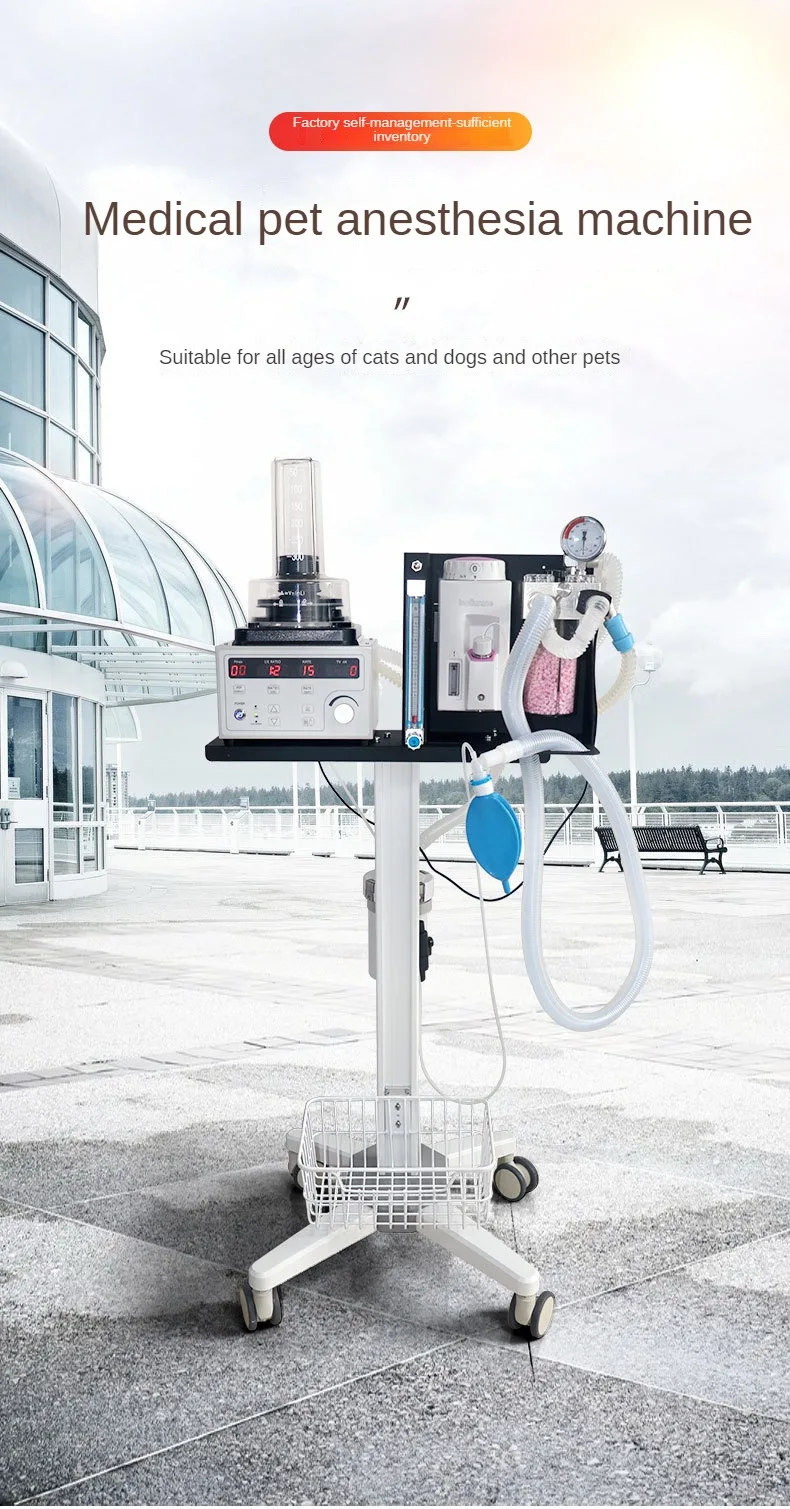

DV1200V5 Pet Anaesthesia Machine Cats Dogs Respiratory Anaesthesia Machine Aluminium Type Pet Veterinary Anaesthesia Respirator

DV1200V5 Pet Anaesthesia Machine Cats Dogs Respiratory Anaesthesia Machine Aluminium Type Pet Veterinary Anaesthesia Respirator
Either one: isoflurane evaporator or sevoflurane evaporator.
Because the parcels are large, we usually ship them by sea, and we provide customs clearance services, except for Brazil, we will complete customs clearance and deliver to your door.
Feel free to contact us for further information.

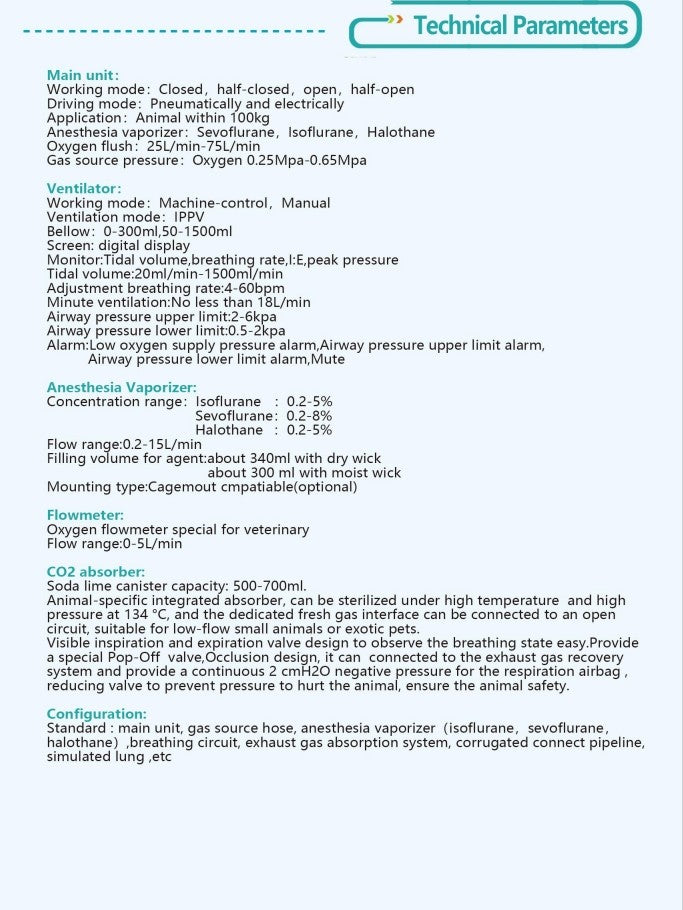

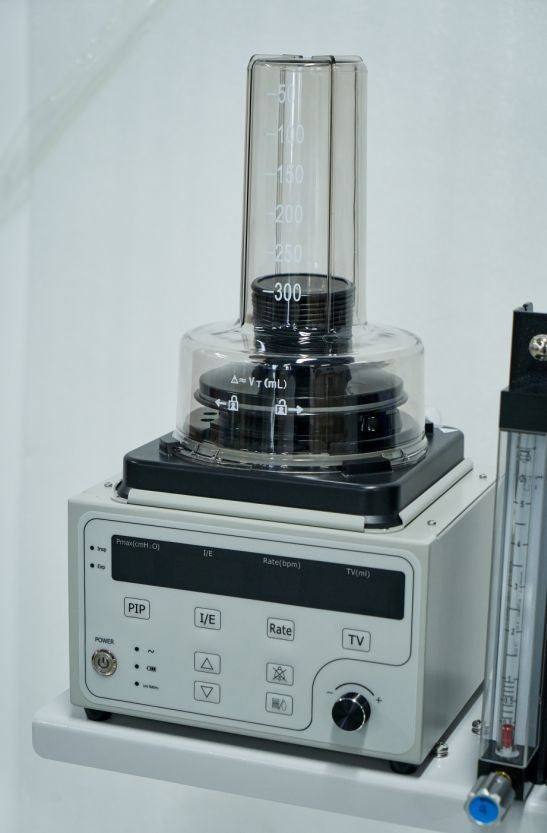

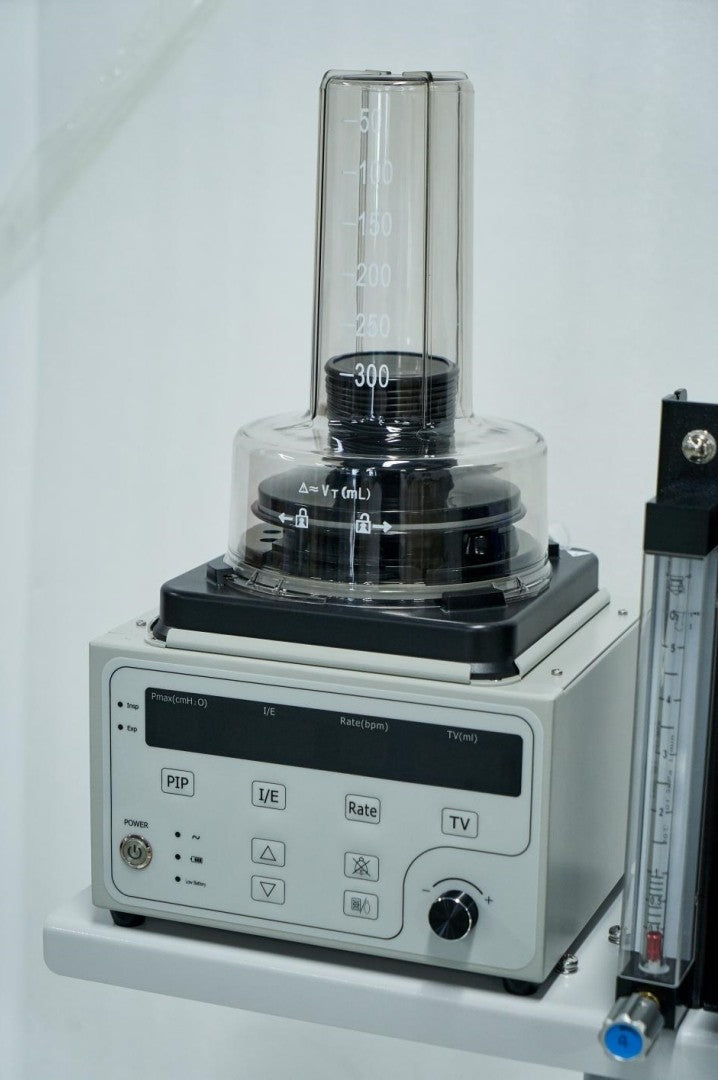

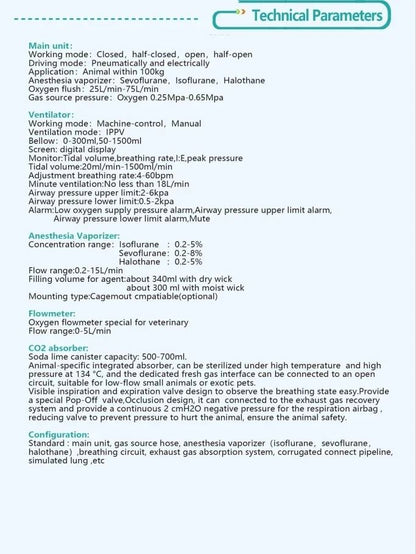

Working mode: Mechanical control,Manual control
Ventilation mode: IPPV,Manual

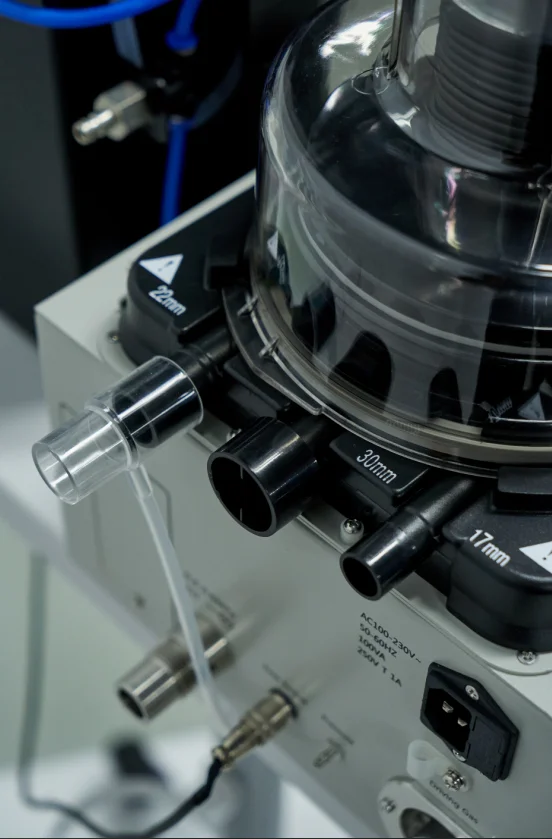

Bellow :0-300ml and 50-1600ml
Driving mode: Pneumatic electric ventilator
Screen: LCD
Monitoring: Tidal volume,breathing rate,I:E,peak pressure
Tidal volume: 20ml/min~1500ml/min,Continuously adjustable breathing rate:4-60bpm
I:E: 1:1~1:4adjustable
Minute ventilation volume :No less than 15L/min
Airway pressure upper limit: 2~6kpa
Airway pressure lower limit :0.5~2kpa
Alarm :Low oxygen supply pressure alarm,Airway pressure upper limit alarm,Airway pressure lower limit alarm,Mute

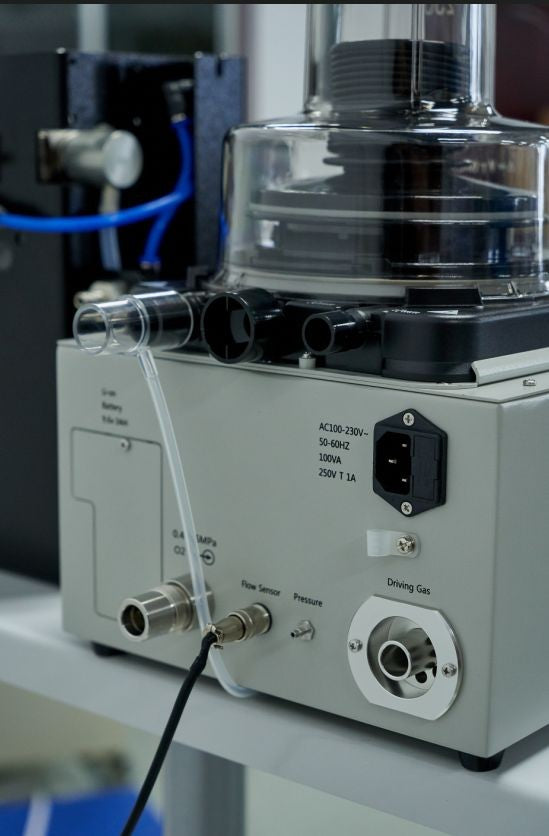

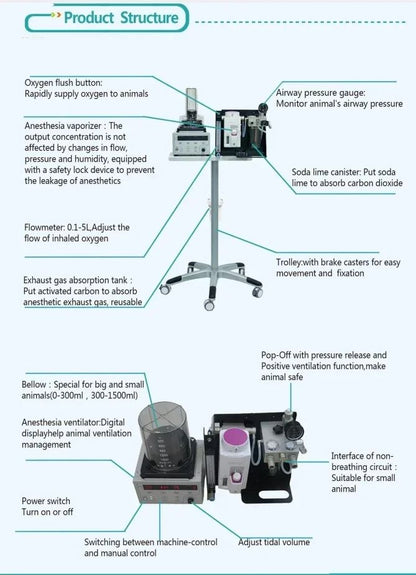

Configuration includes sensor, connecting silicone tube, power cord, big animal bellow and small animal bello,main unit, fuse, Gas source pressure gauge, etc.

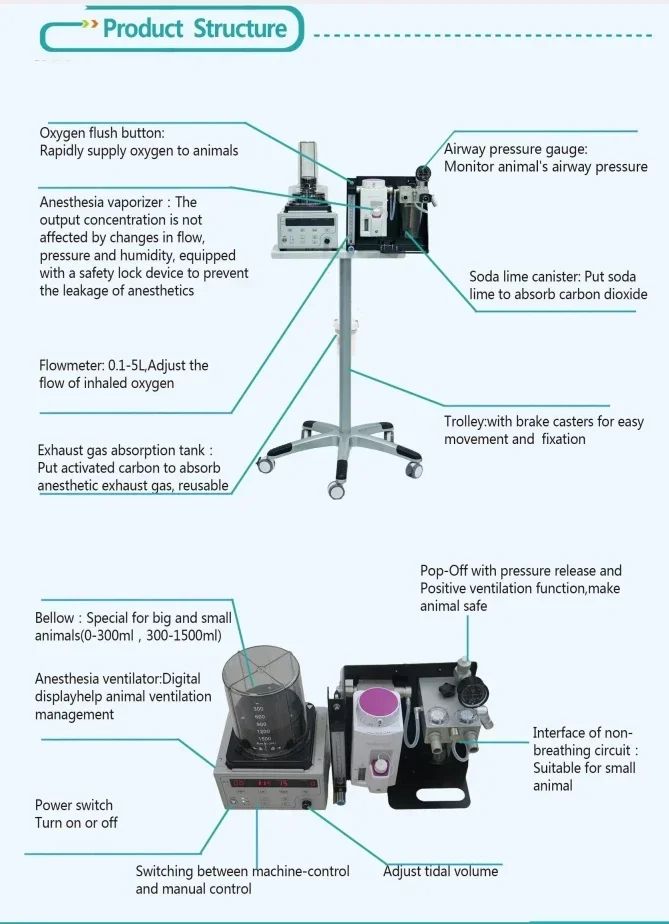

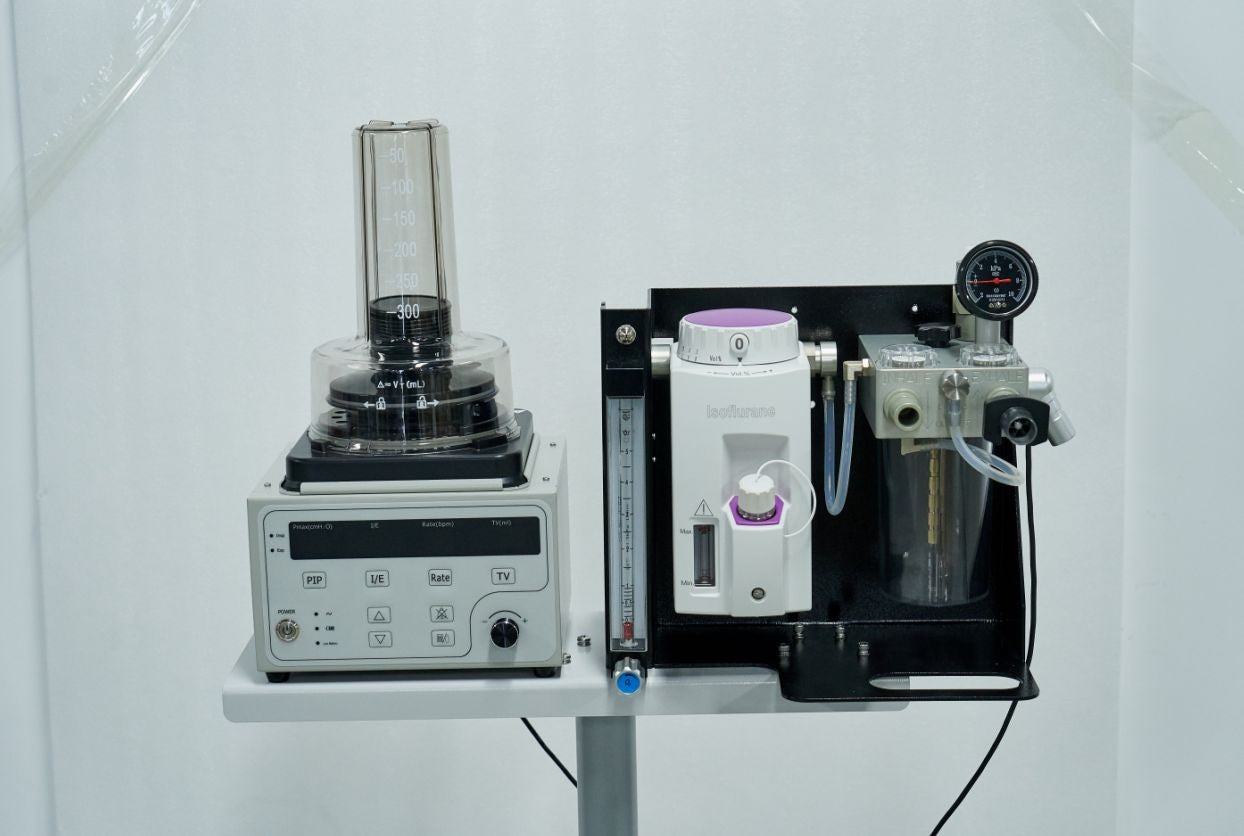

Vet Main unit
Working mode :Open,Closed,half-closed,half-open
Driving mode : Pneumatic electric control
Application: 0.5kg-100kg animal
Anesthesia vaporizer :Isoflurane,Sevoflurane,Halothane
Fast oxygen flush  : 25L/min~75L/min
Gas source pressure:  Oxygen 0.25Mpa~0.65Mpa

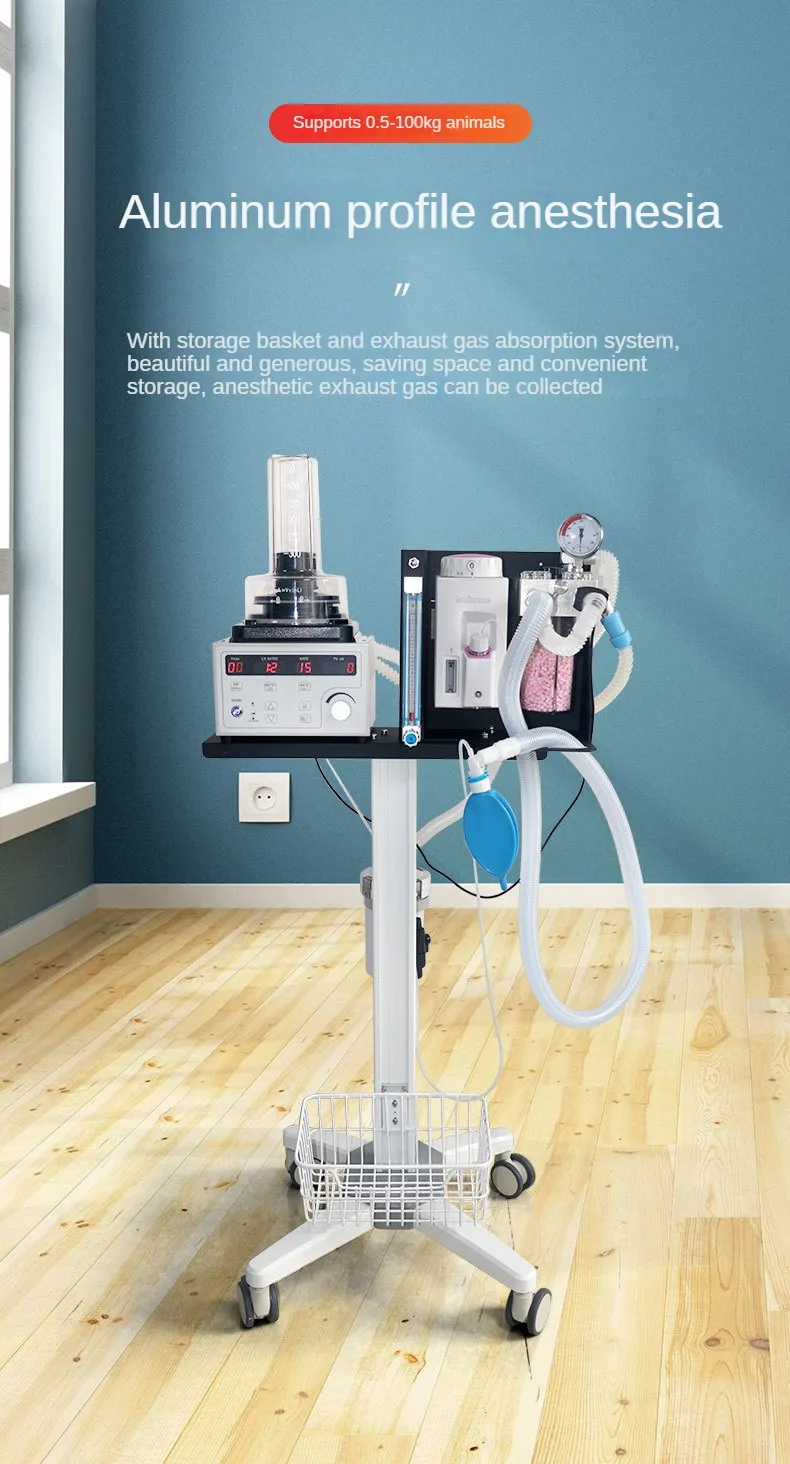

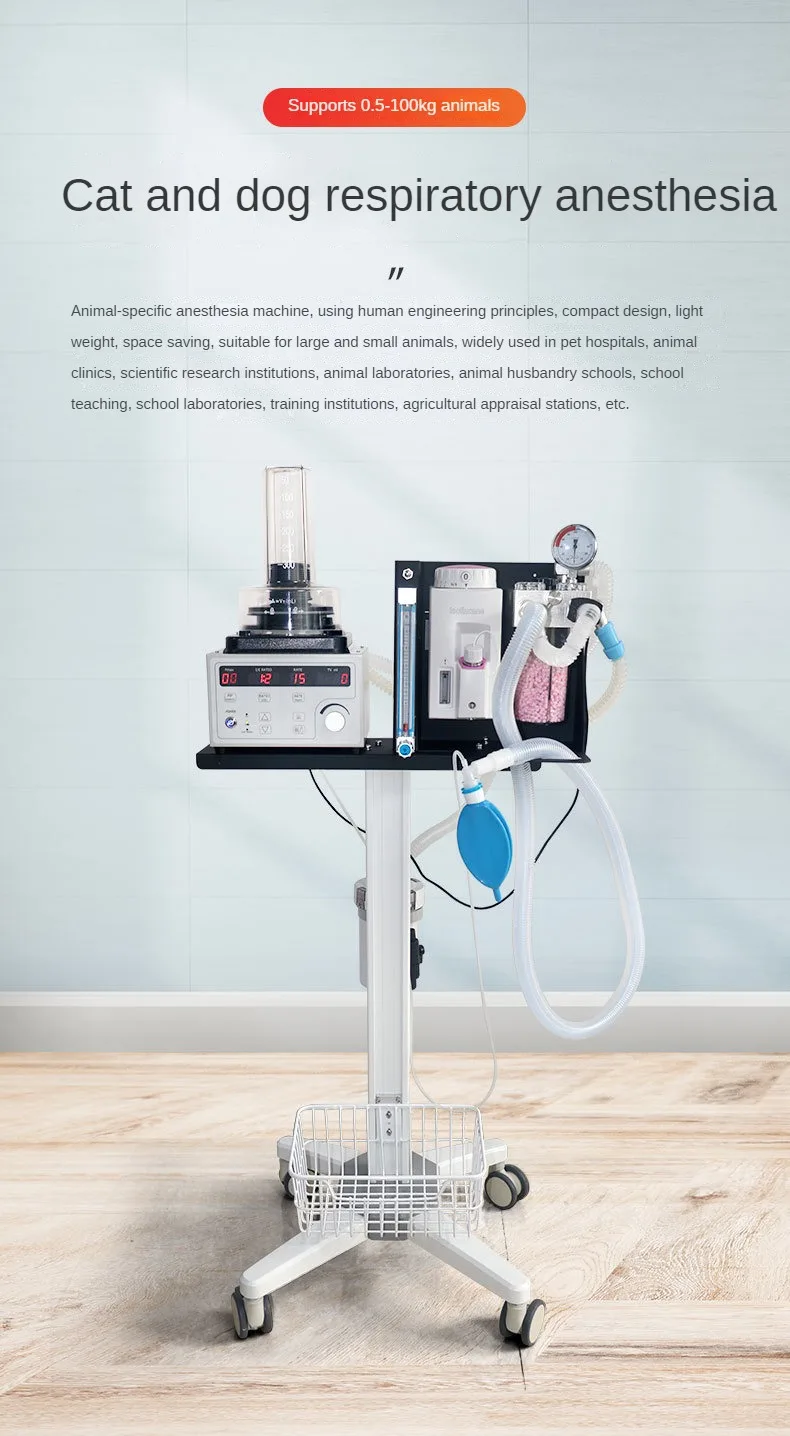

Trolley:  High-quality aluminum alloy profile, with storage frame and special interface for exhaust gas emission

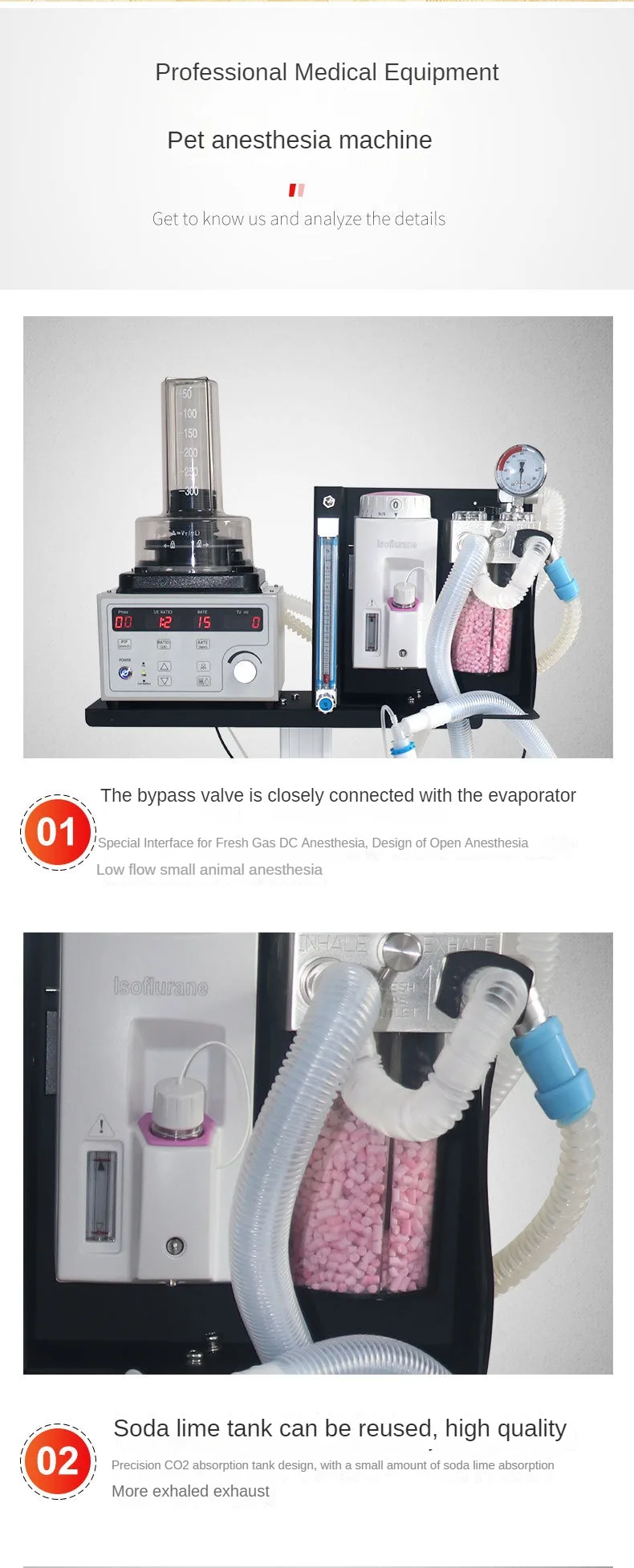

CO2 Absorber
Sodium Lime Tank Capacity :500ml-750ml
Absorber: The animal-specific integrated circuit can be sterilized at high temperature and high pressure at 134 ℃. The dedicated interface can be connected to an open circuit, suitable for low-flow small animals.

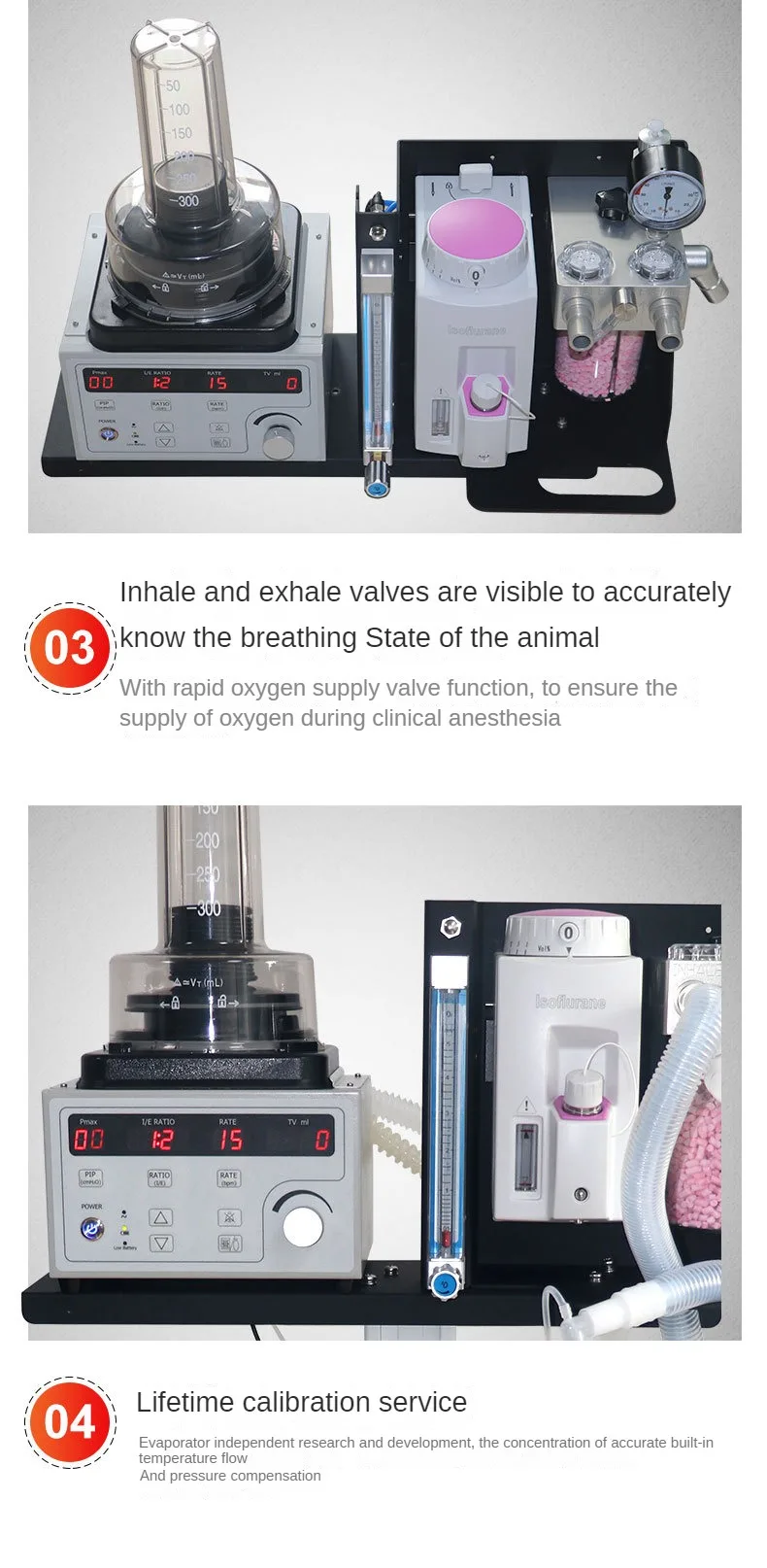

Valve piece: Visible ceramic valve piece, easy to observe animal breathing.

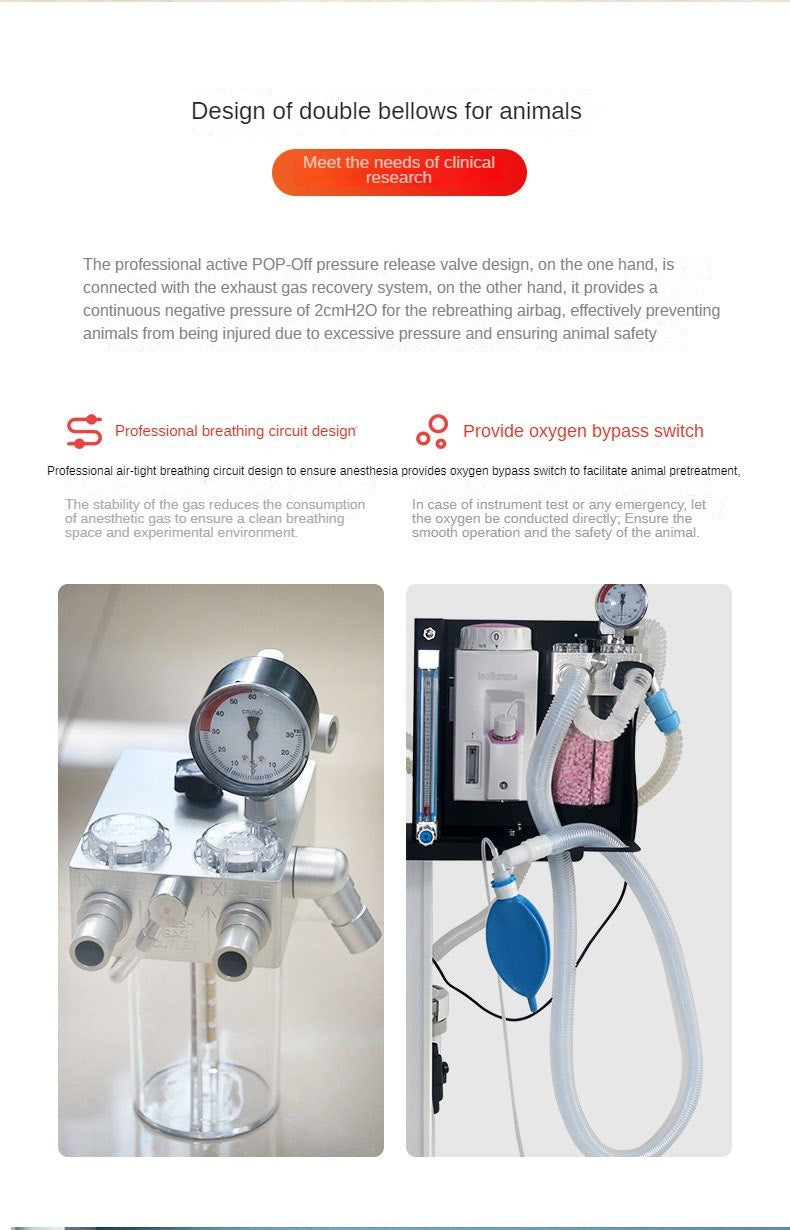

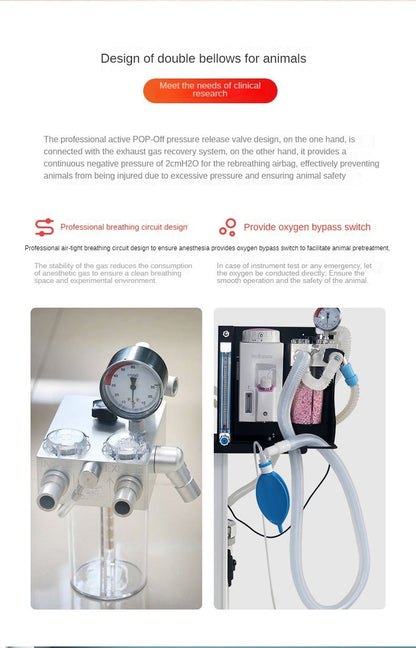

Pop off valve :Directs the waste anesthetic gas from the machine to a scavenging system. In the completely open position, the pop-off valve will release pressure at 2 cm H2O, while maintain a constant passive volume in the breathing bags.
Other advantage: Strong air tightness, reduce airway resistance;Design of quick replacement of sodium lime Canister

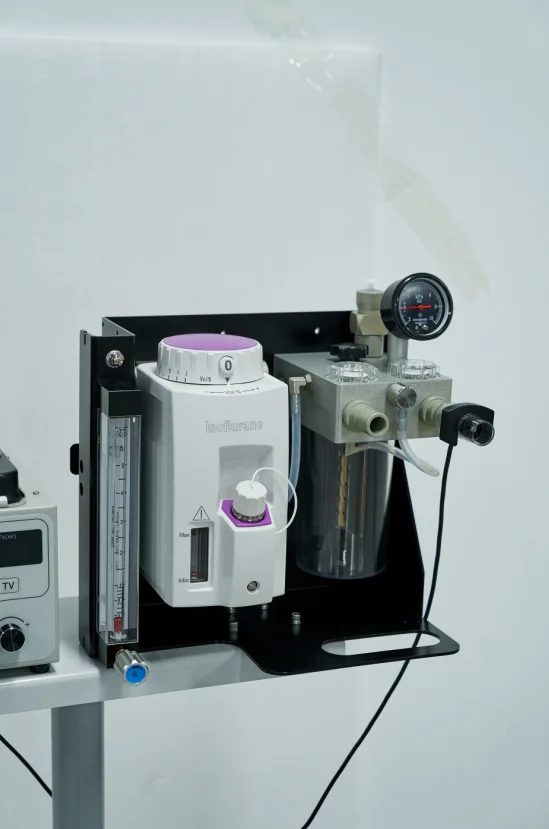

 Anesthesia Vaporizer
Concentration scope :Isoflurane:0.2%~5%
                      Sevoflurane:0.2%~8%
Flow rate scope: 0.2L/min~15L/min
Anesthetic capacity: Dry :340ml
                       Wet :300ml
Mounting type: Selectatec or Cagemout
