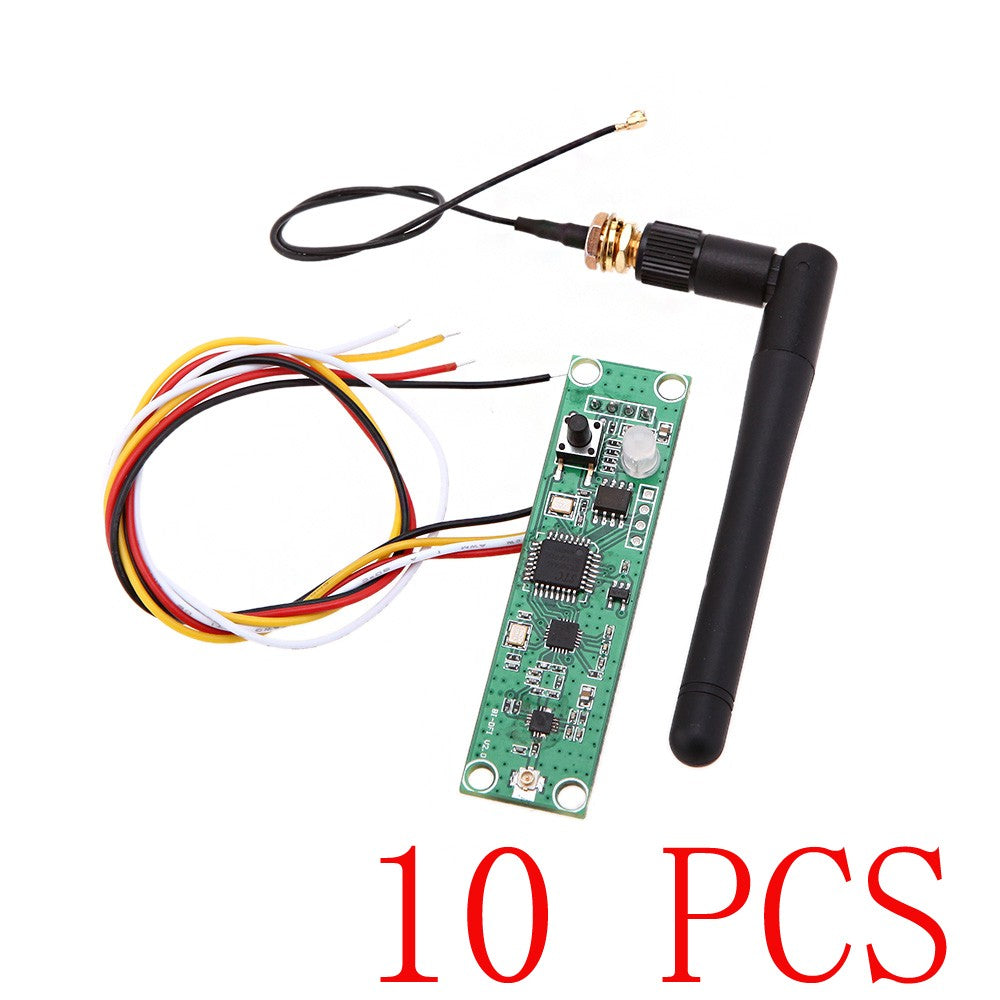

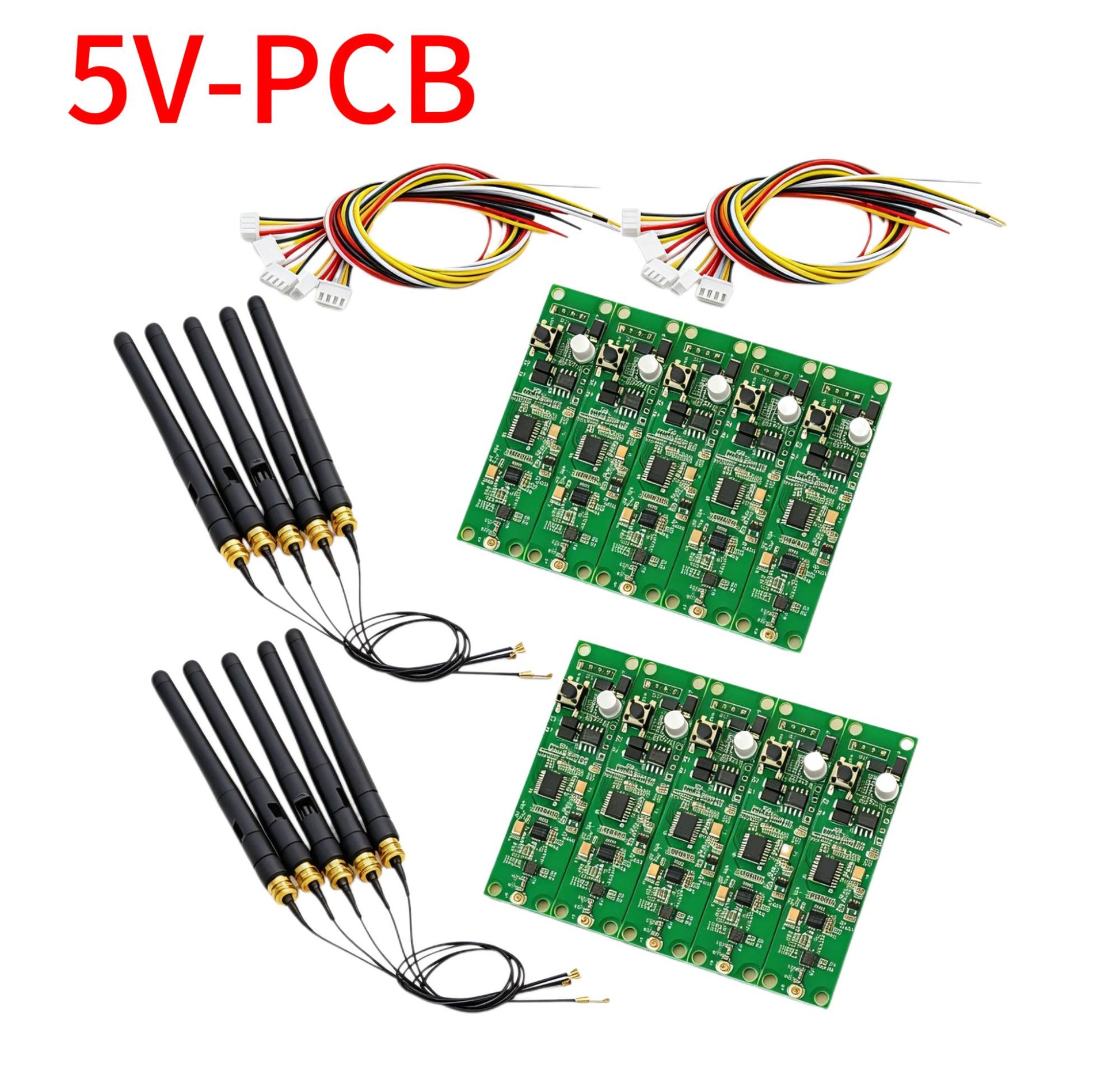

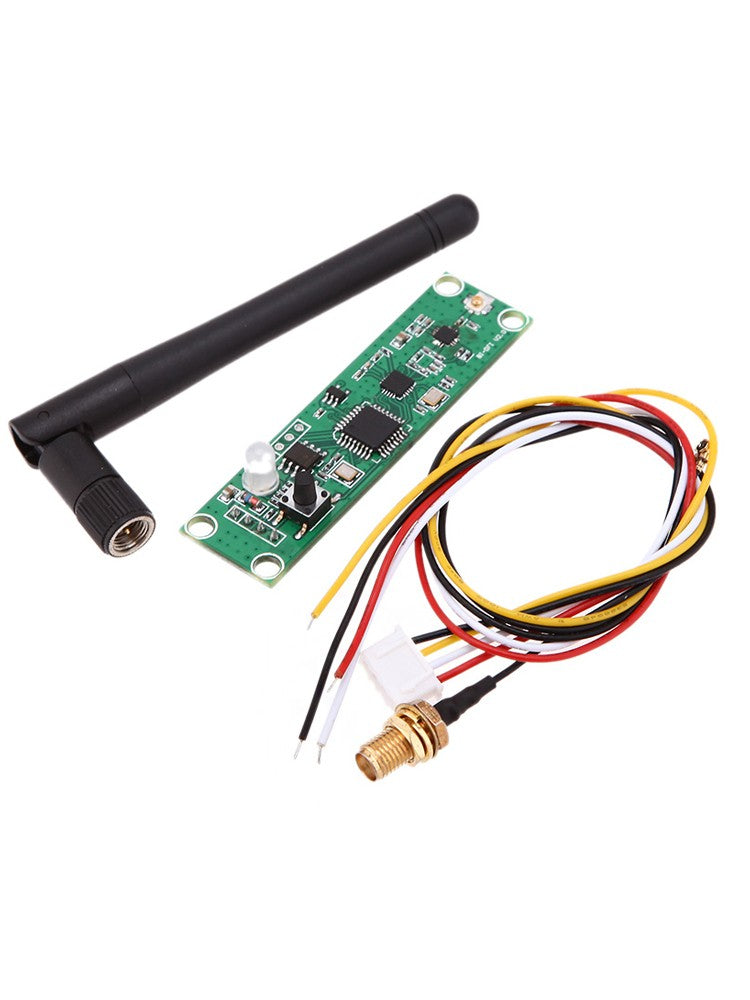

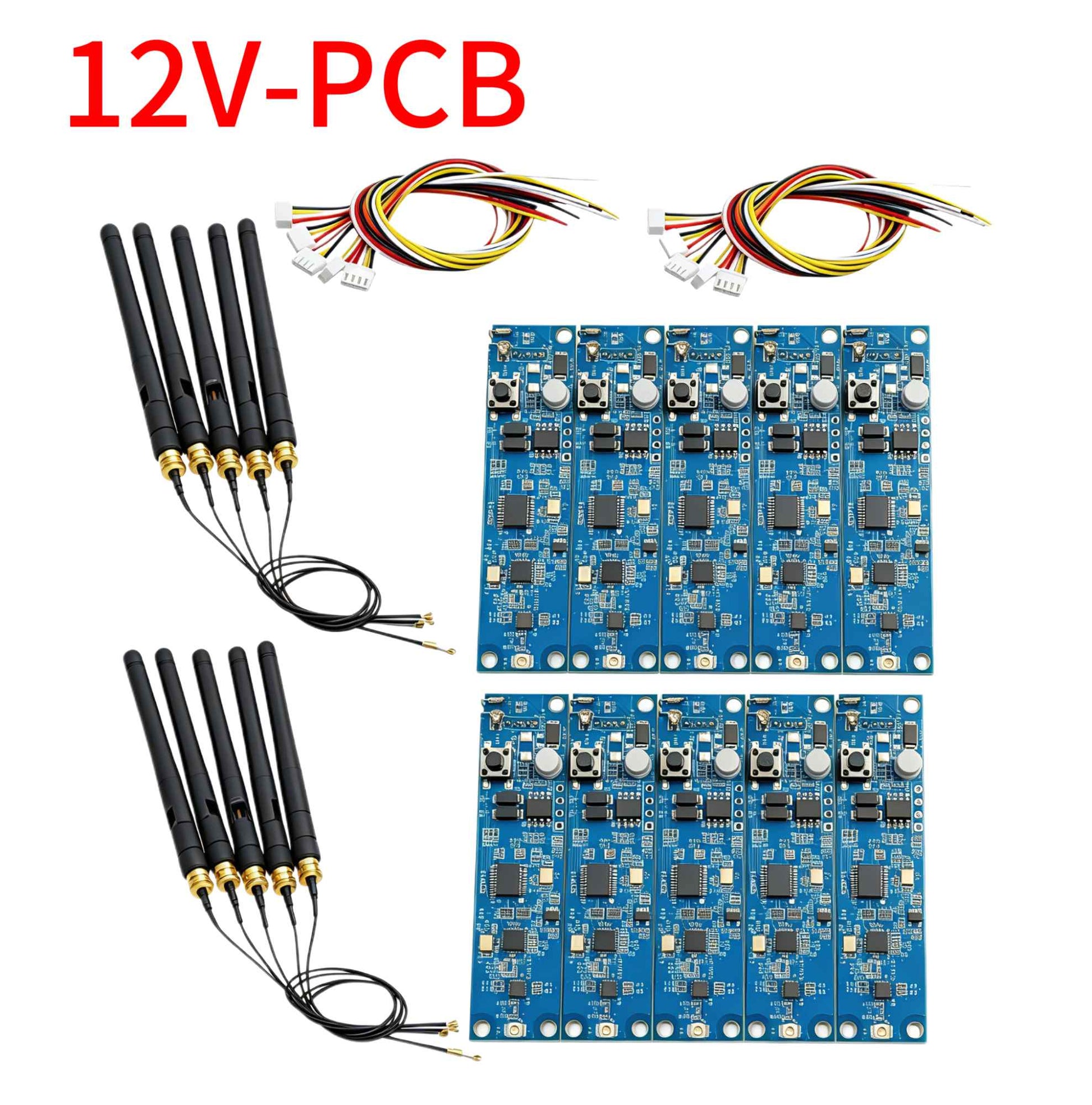

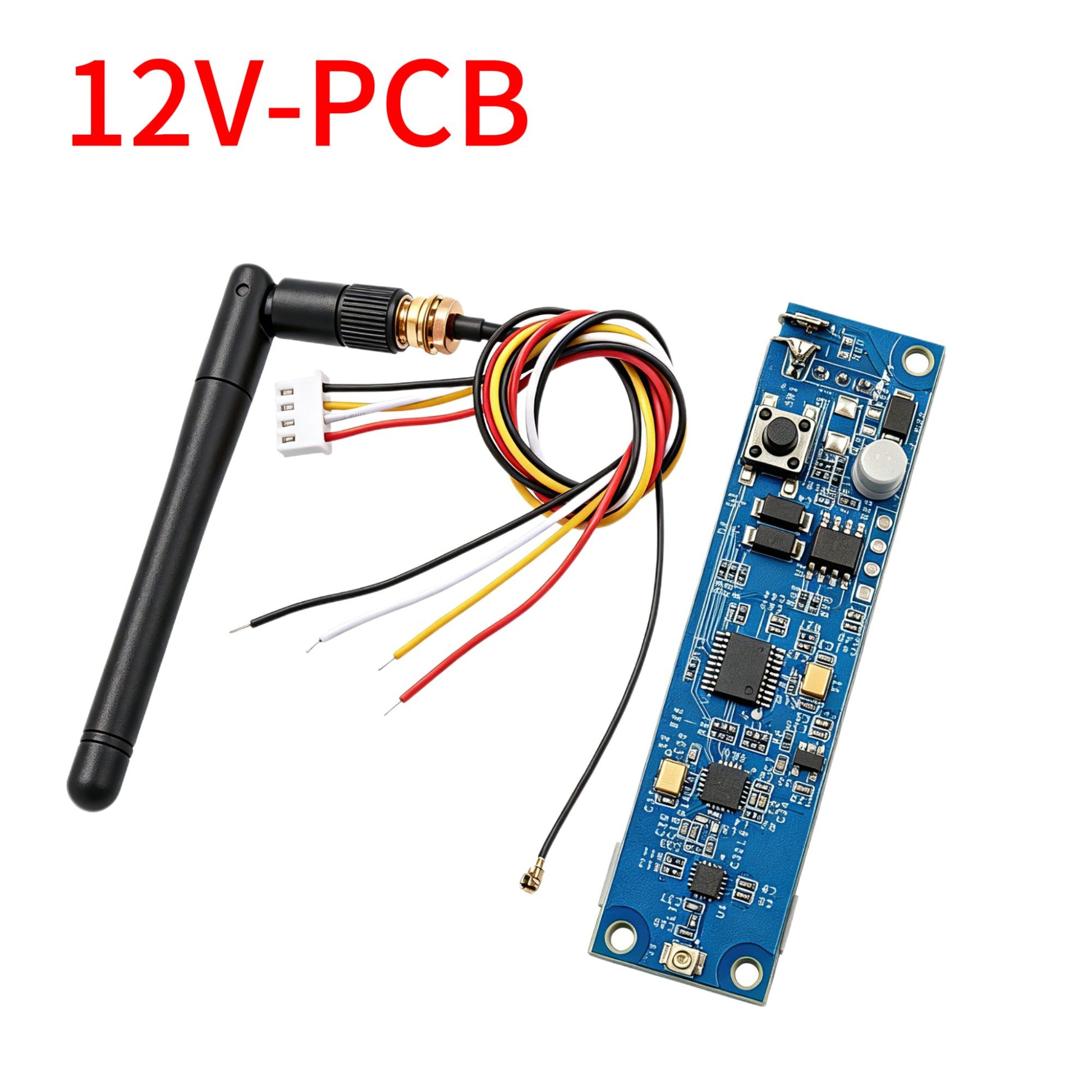

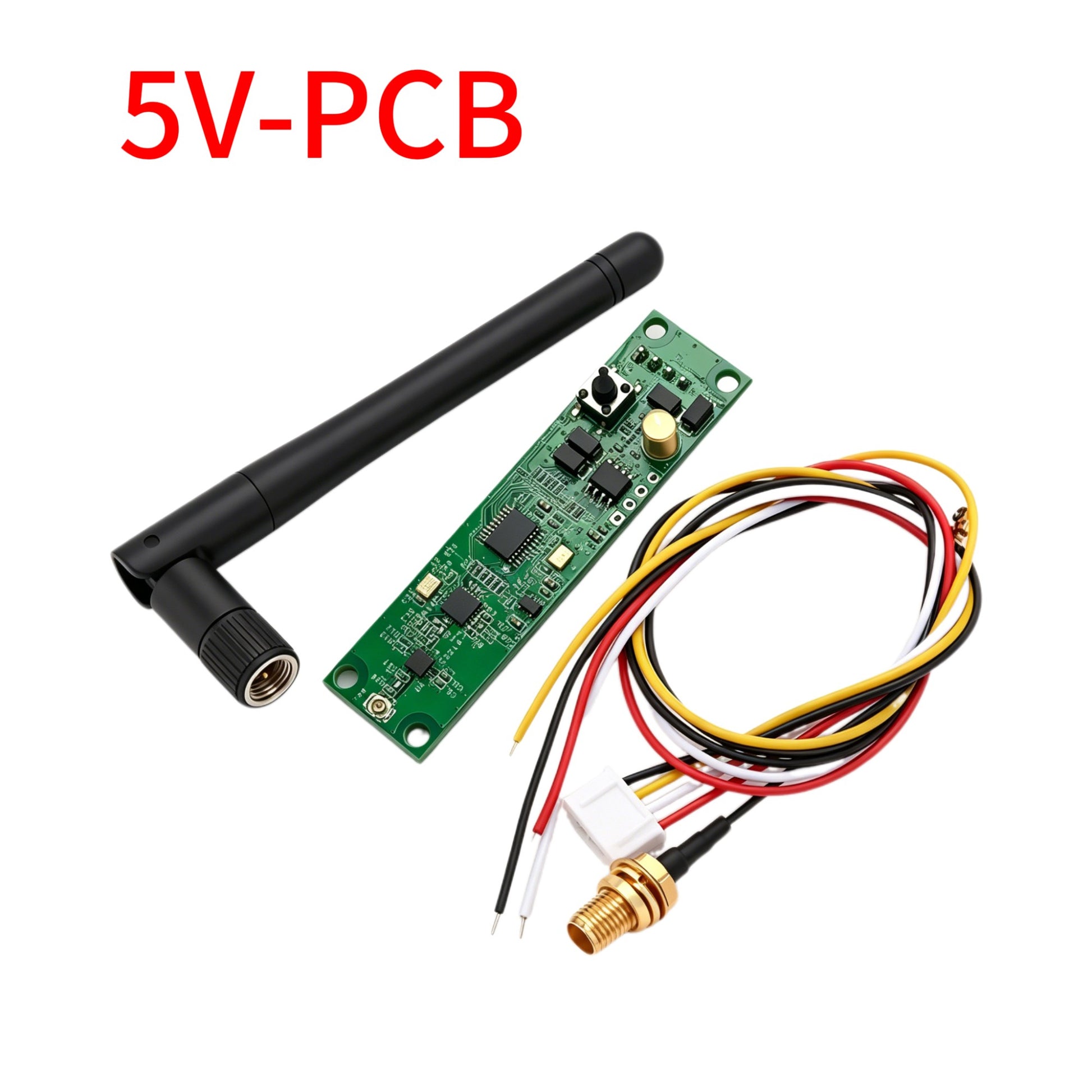

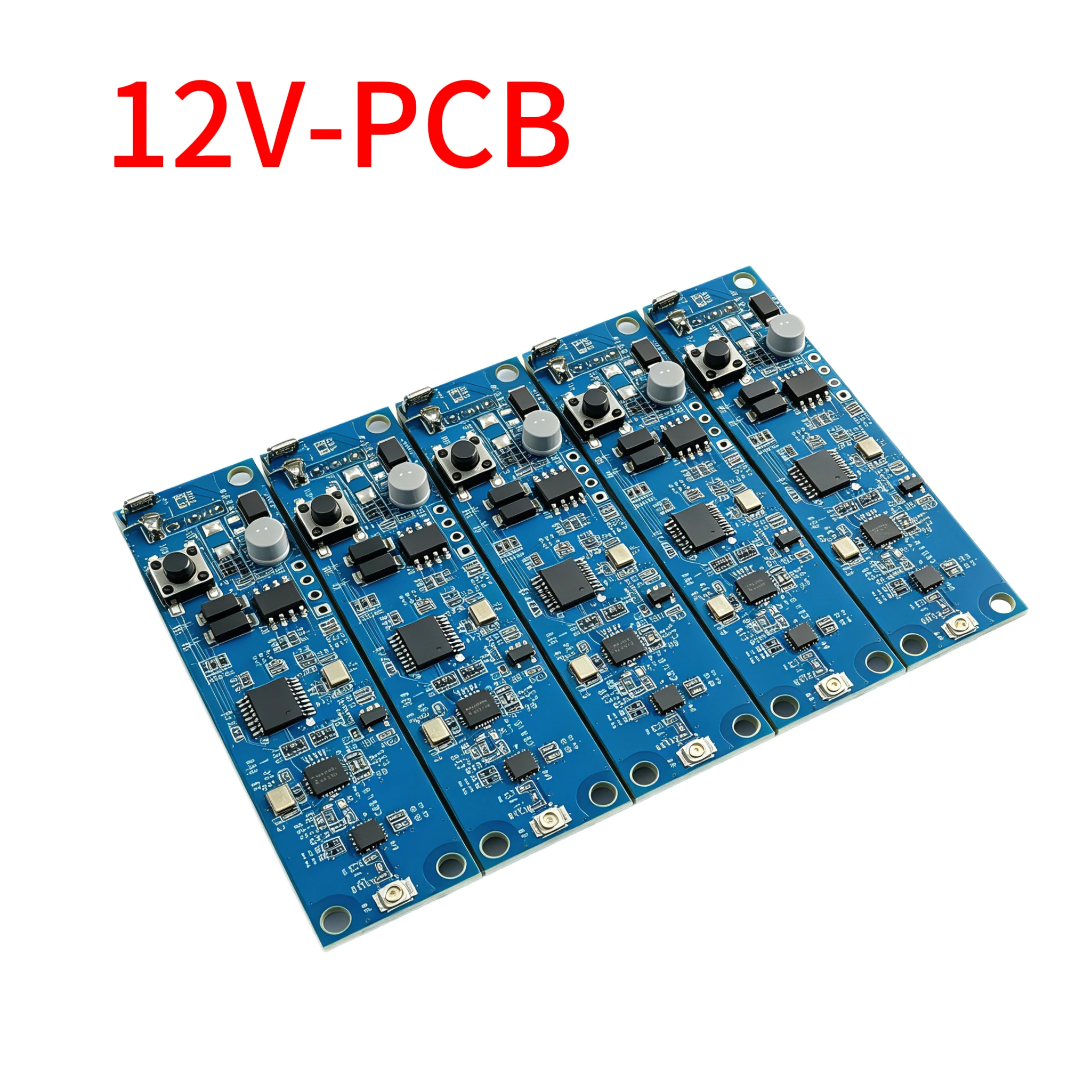

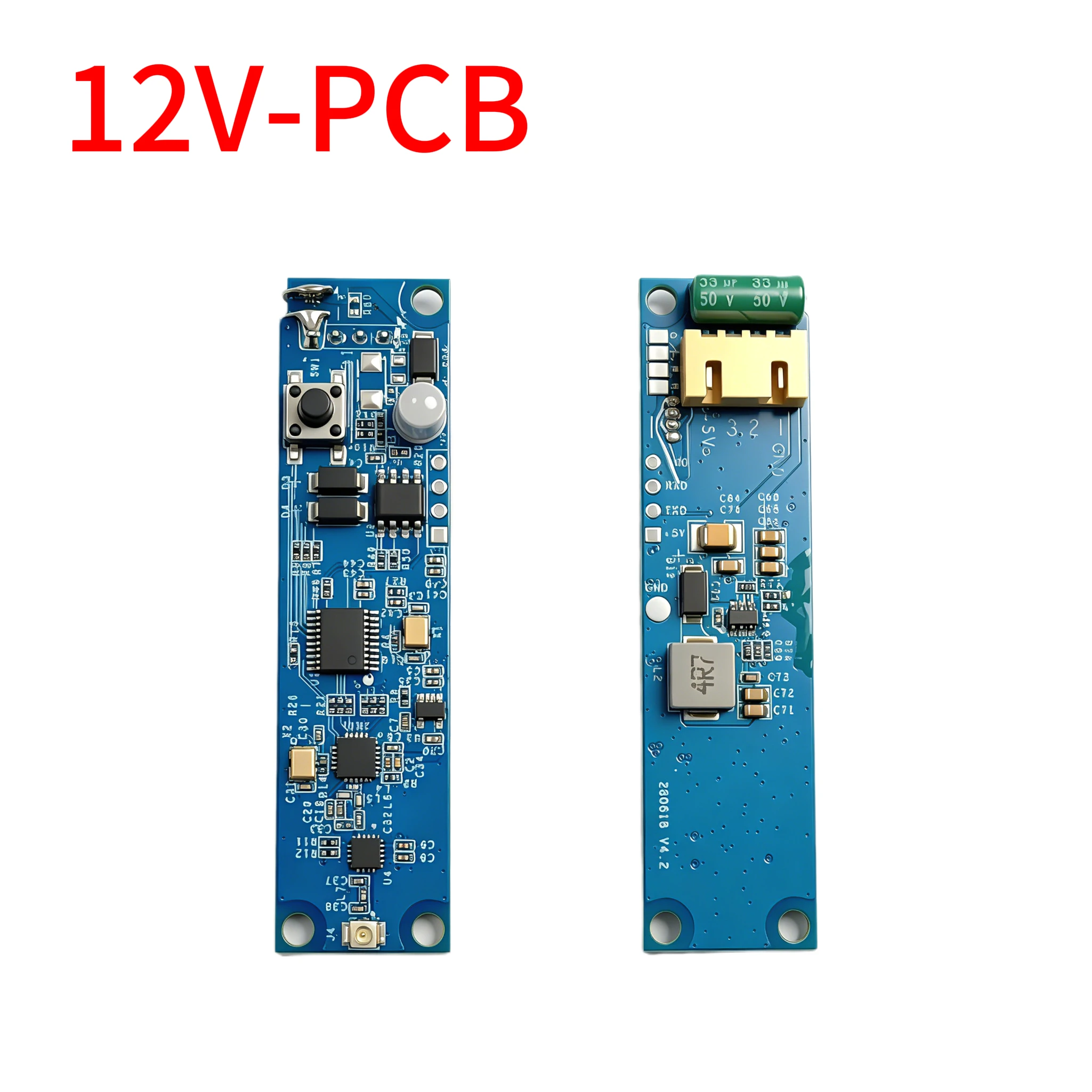

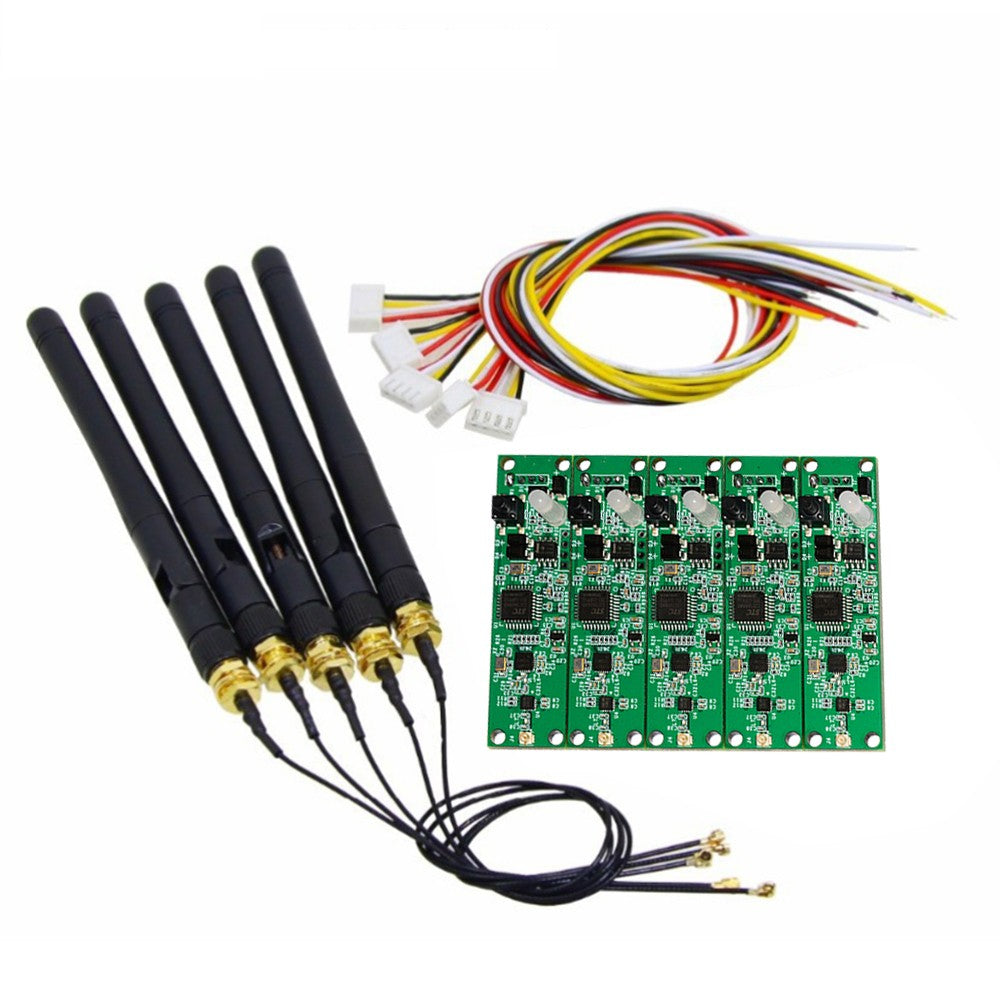

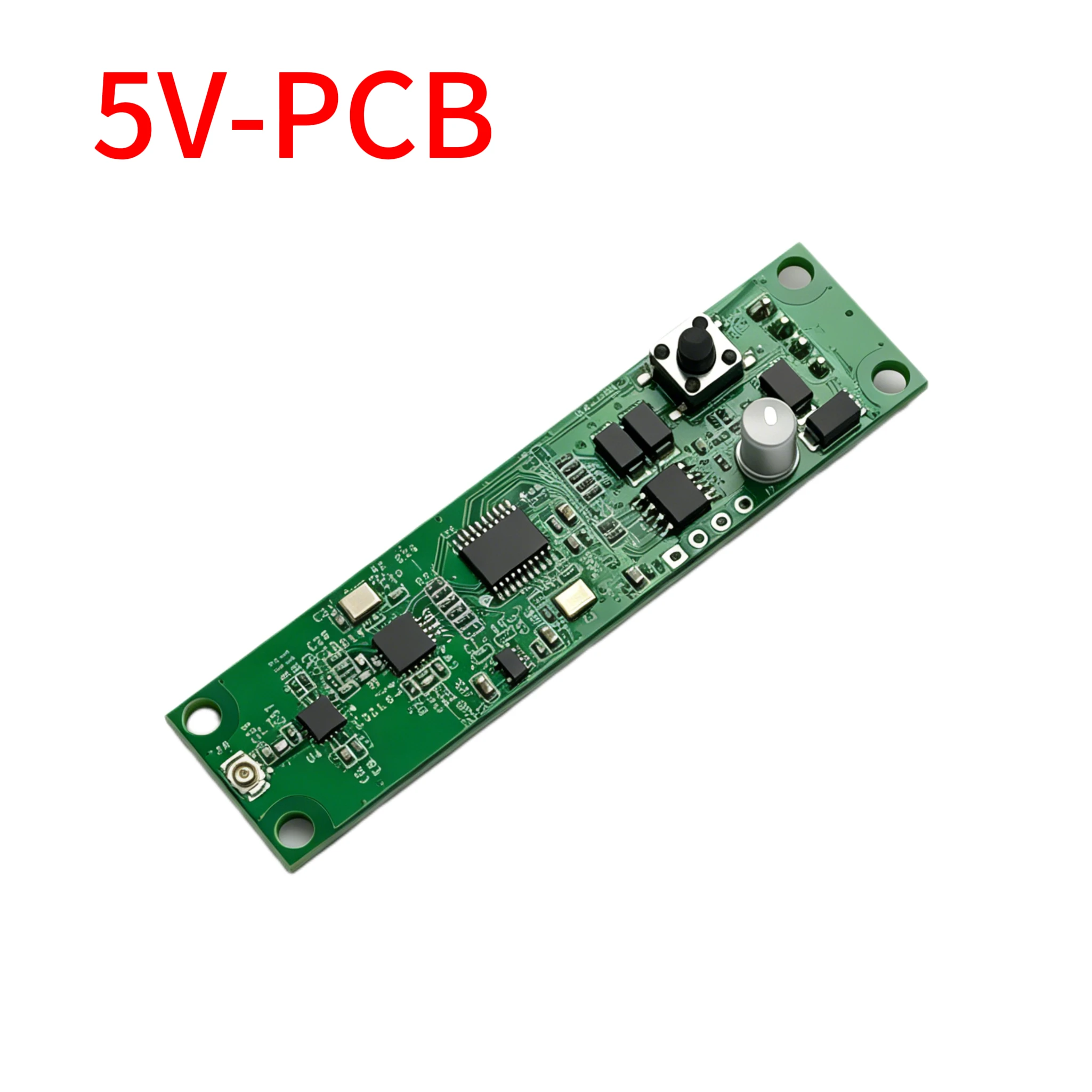

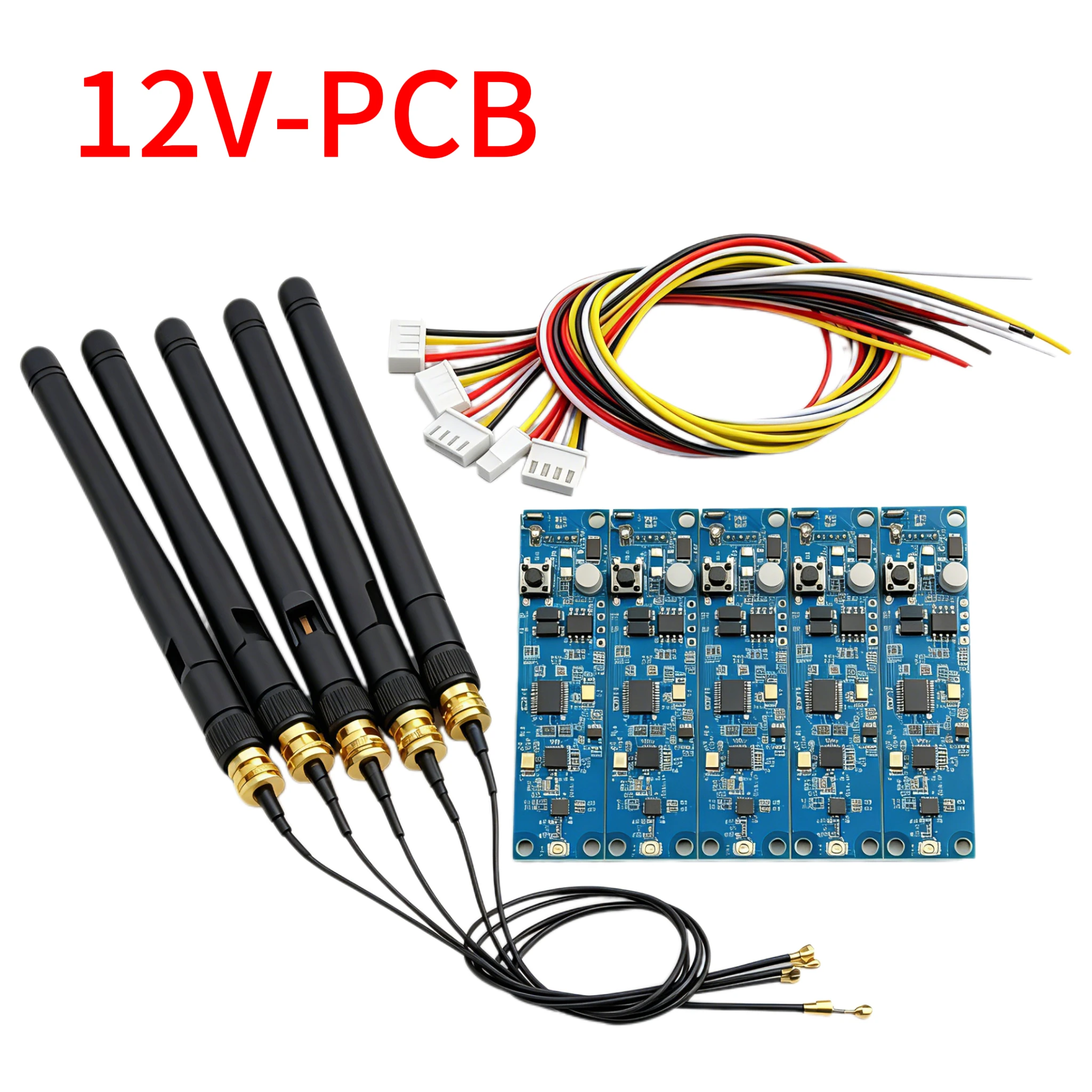

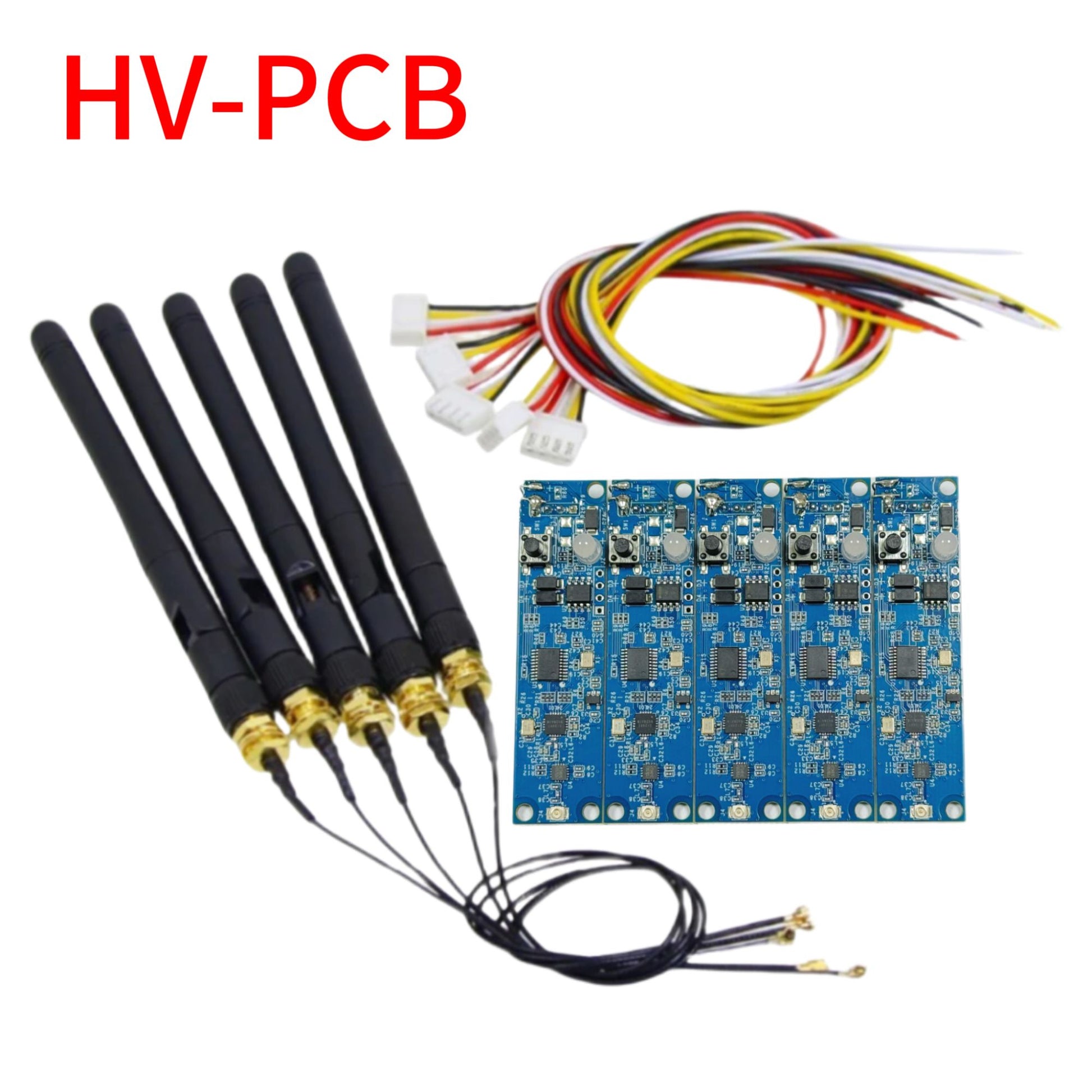

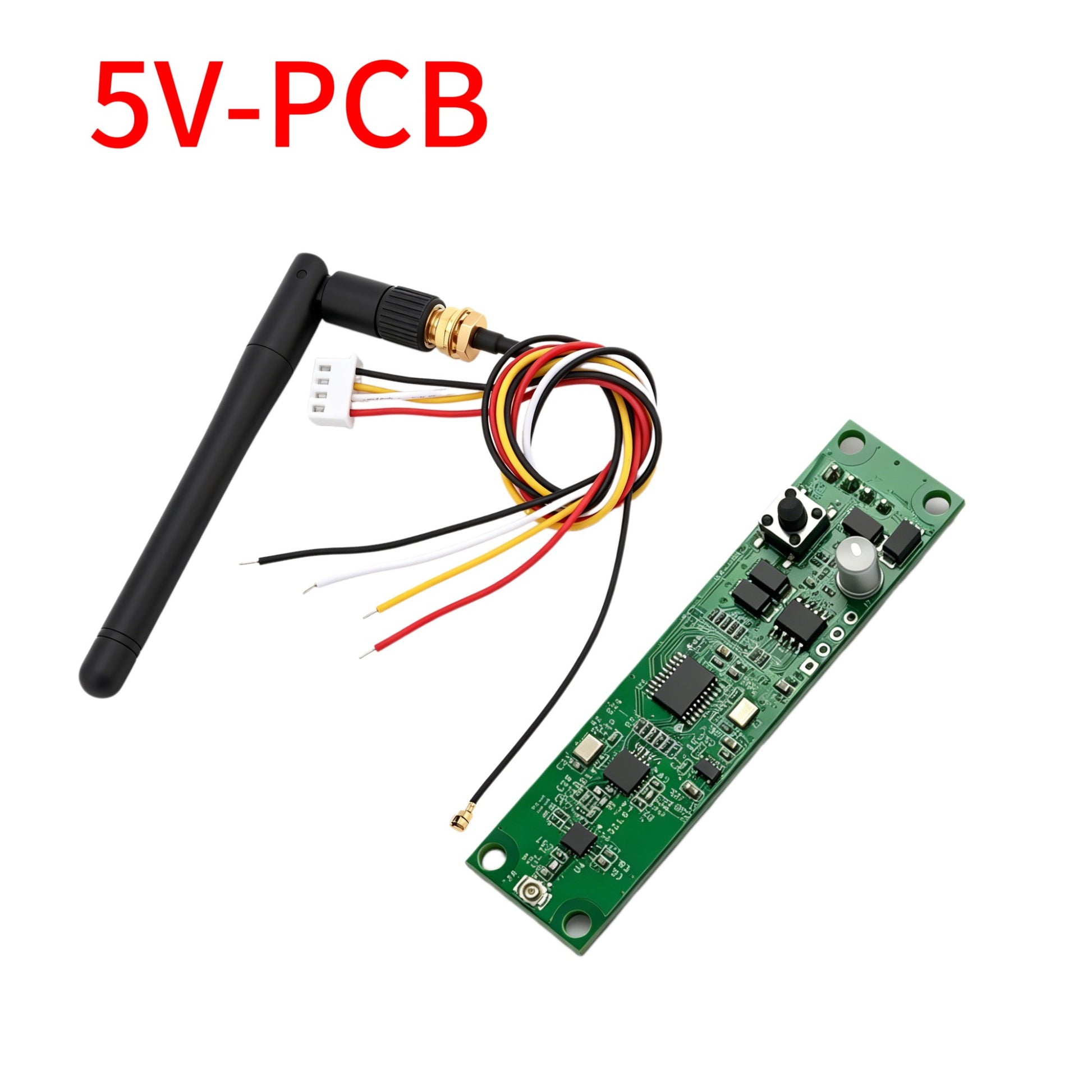

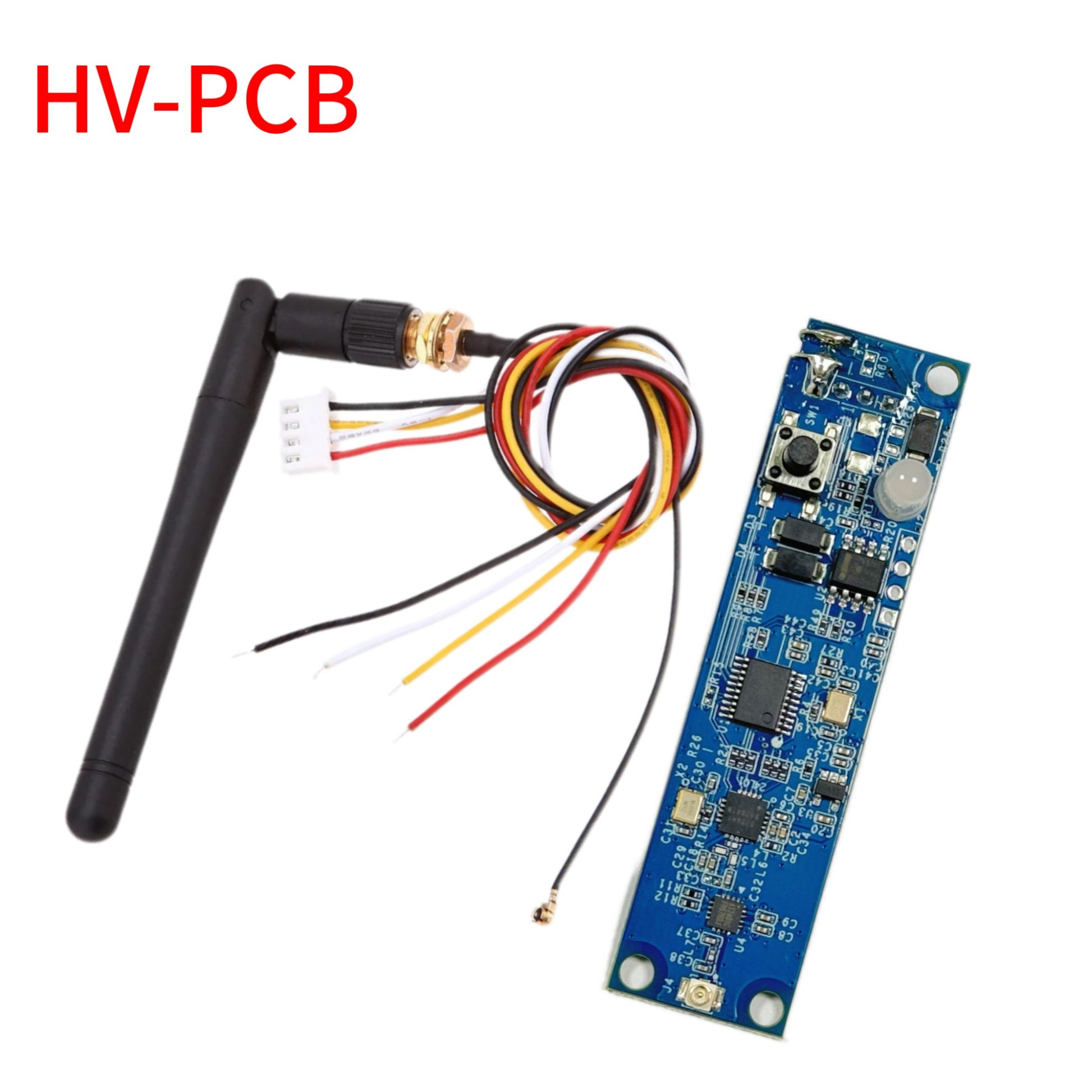

A9 2.4G ISM DMX Wireless Controller PCB Module 2 in 1 DMX512 Transmitter Receiver For Stage Light Built-in DIY 485EE
Couldn't load pickup availability
- 🔒 Secure Checkout
- 🚚 Fast Shipping
- 🔄 30-Day Returns
Brand Name: ICERAY
Installation Method: Assembly
IsStageLightingEffect'sEquipmentorAccessories: Yes
Is Bulbs Included: No
Nominal Voltage: 5V
Certification: NONE
Origin: Mainland China
High-concerned chemical: None
Power Source: DC
Is Smart Device: Yes

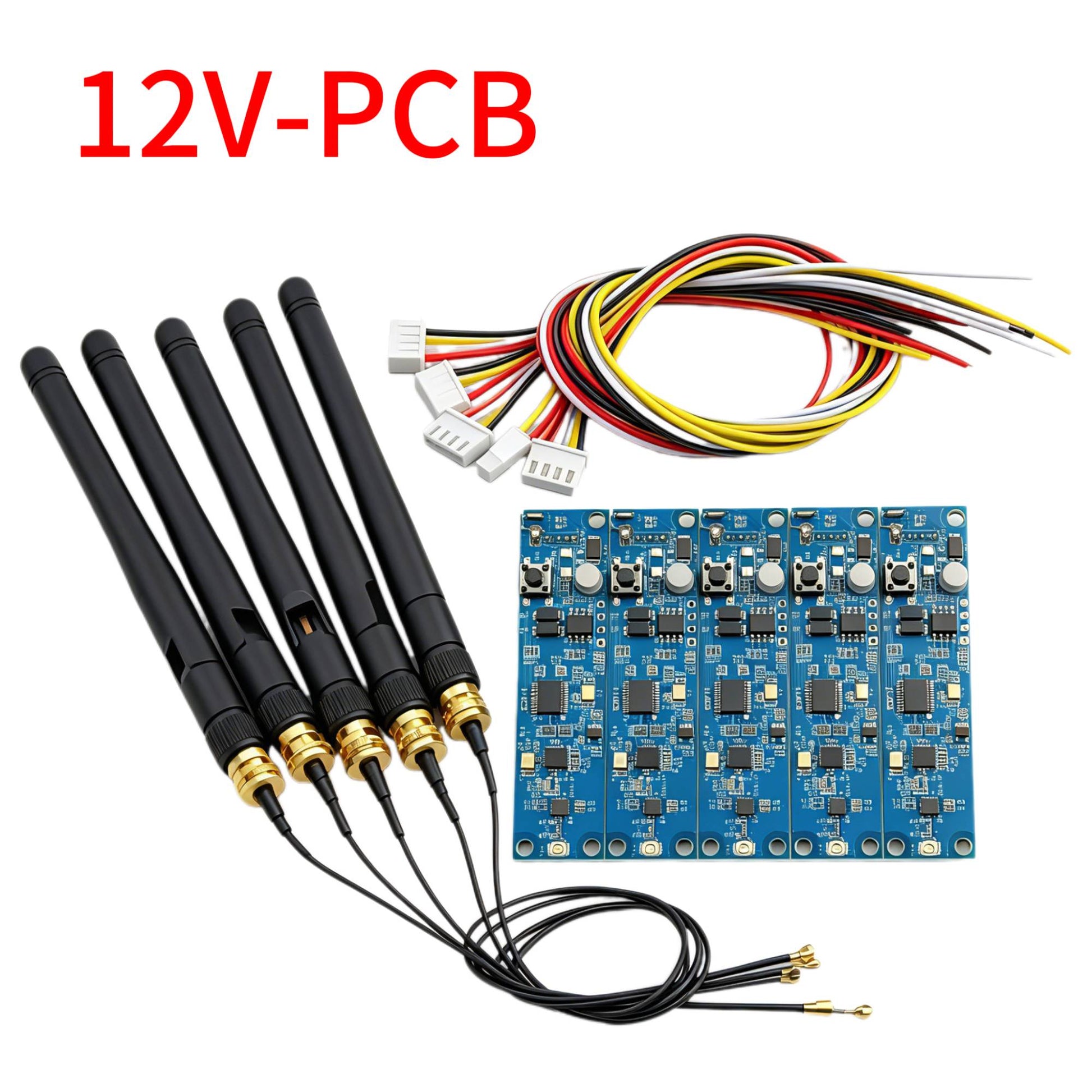

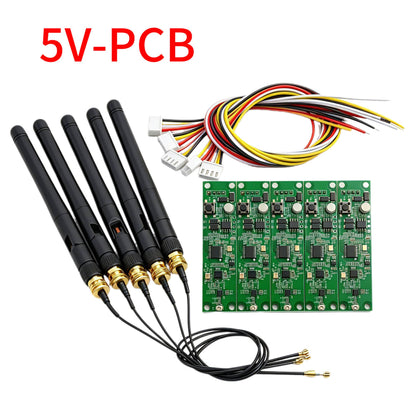

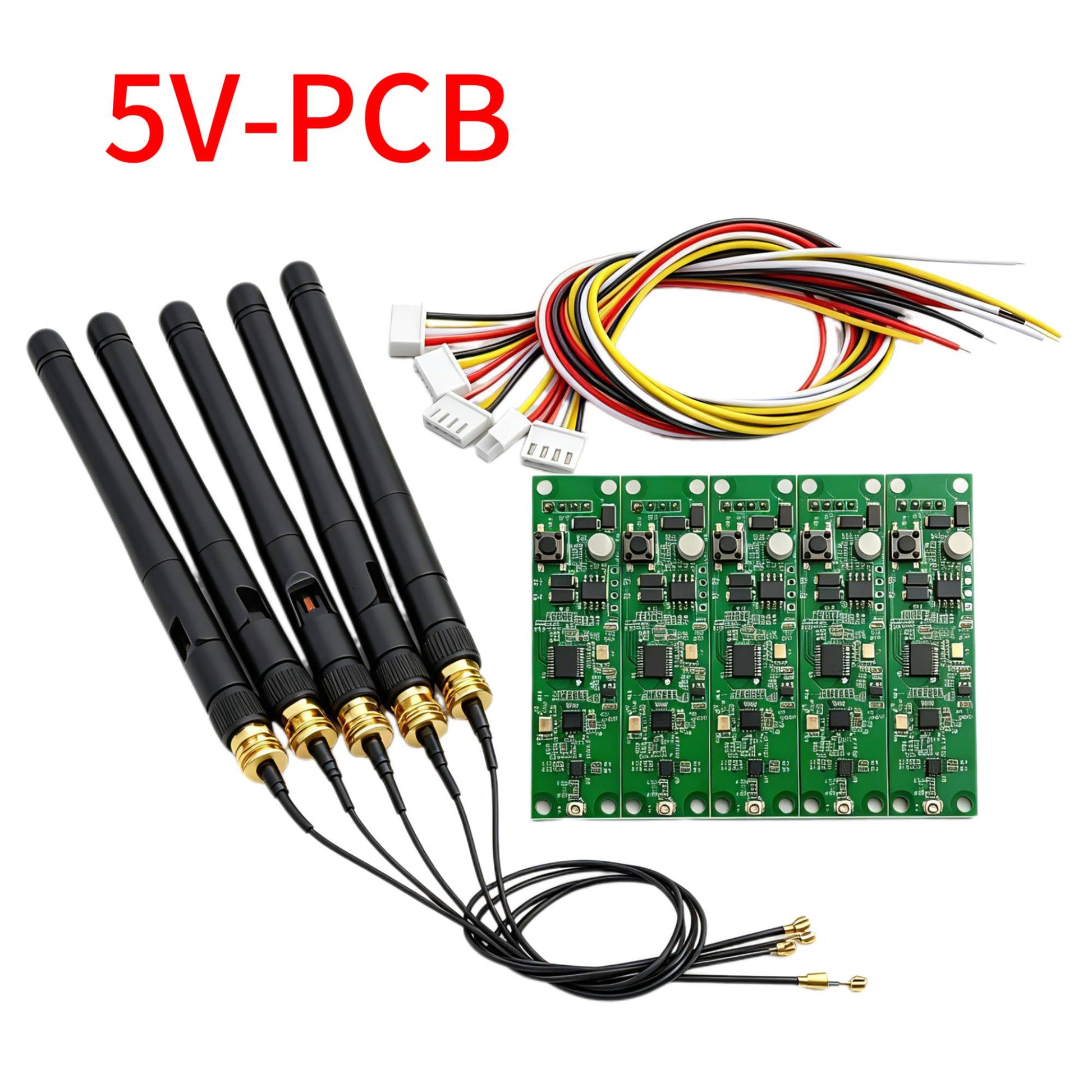

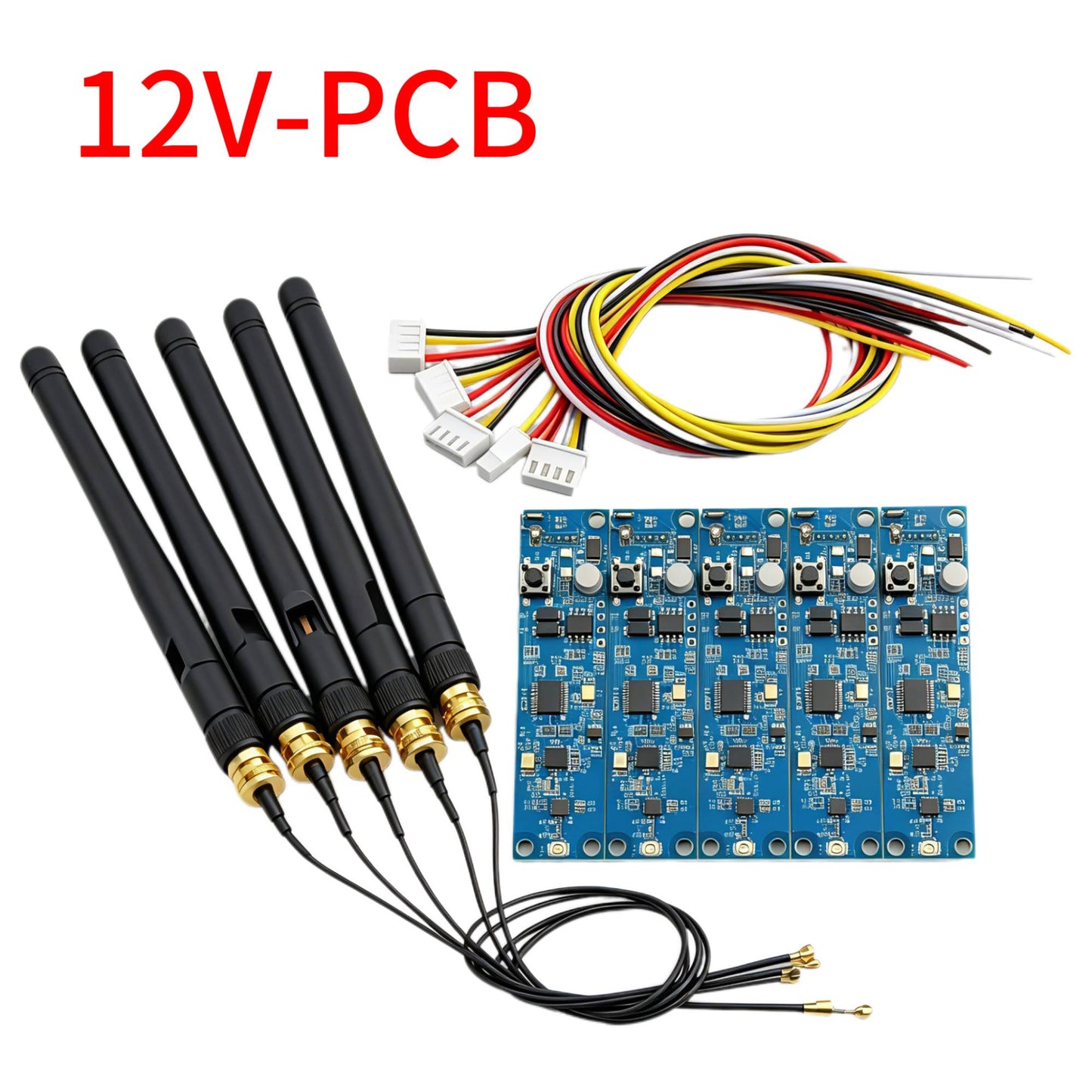

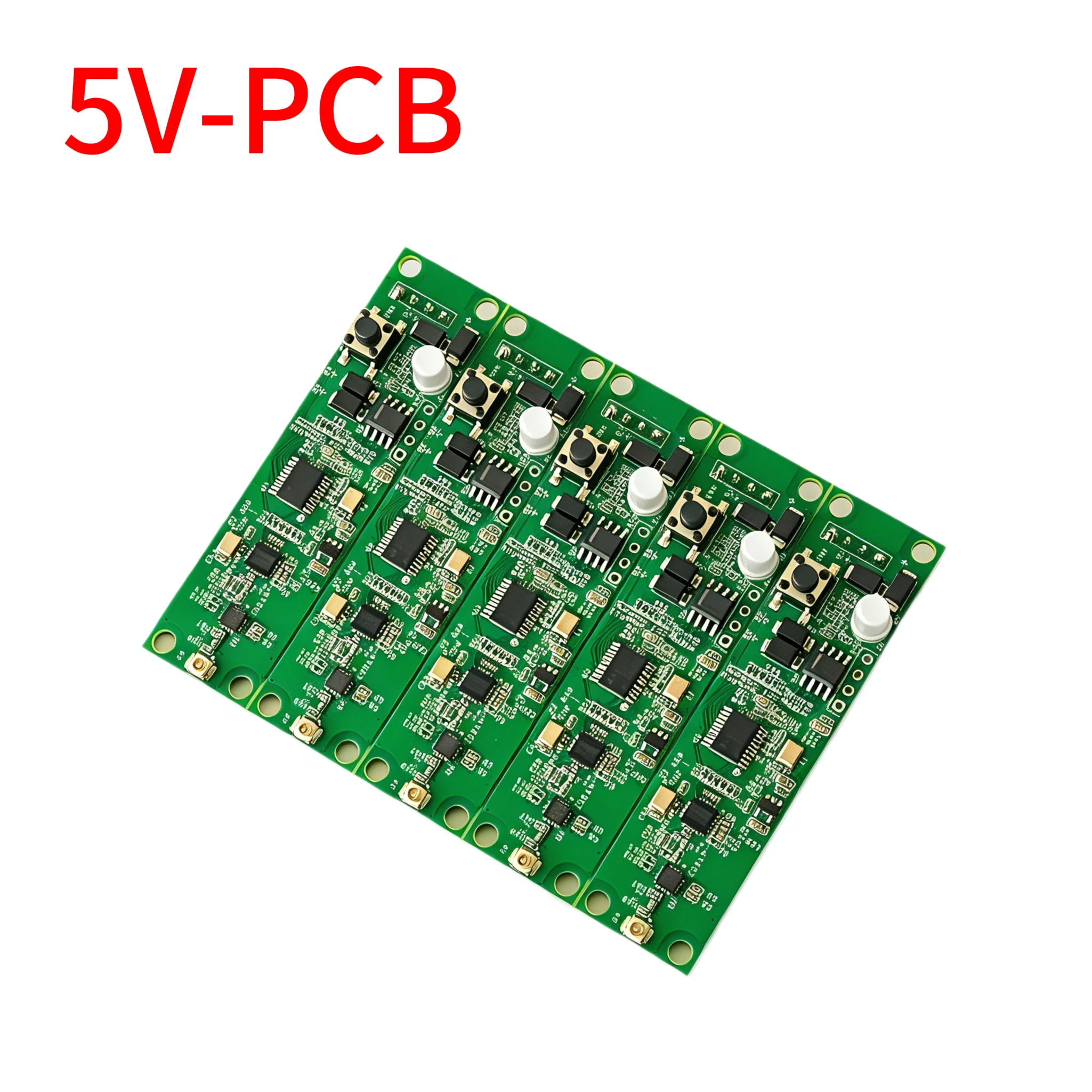

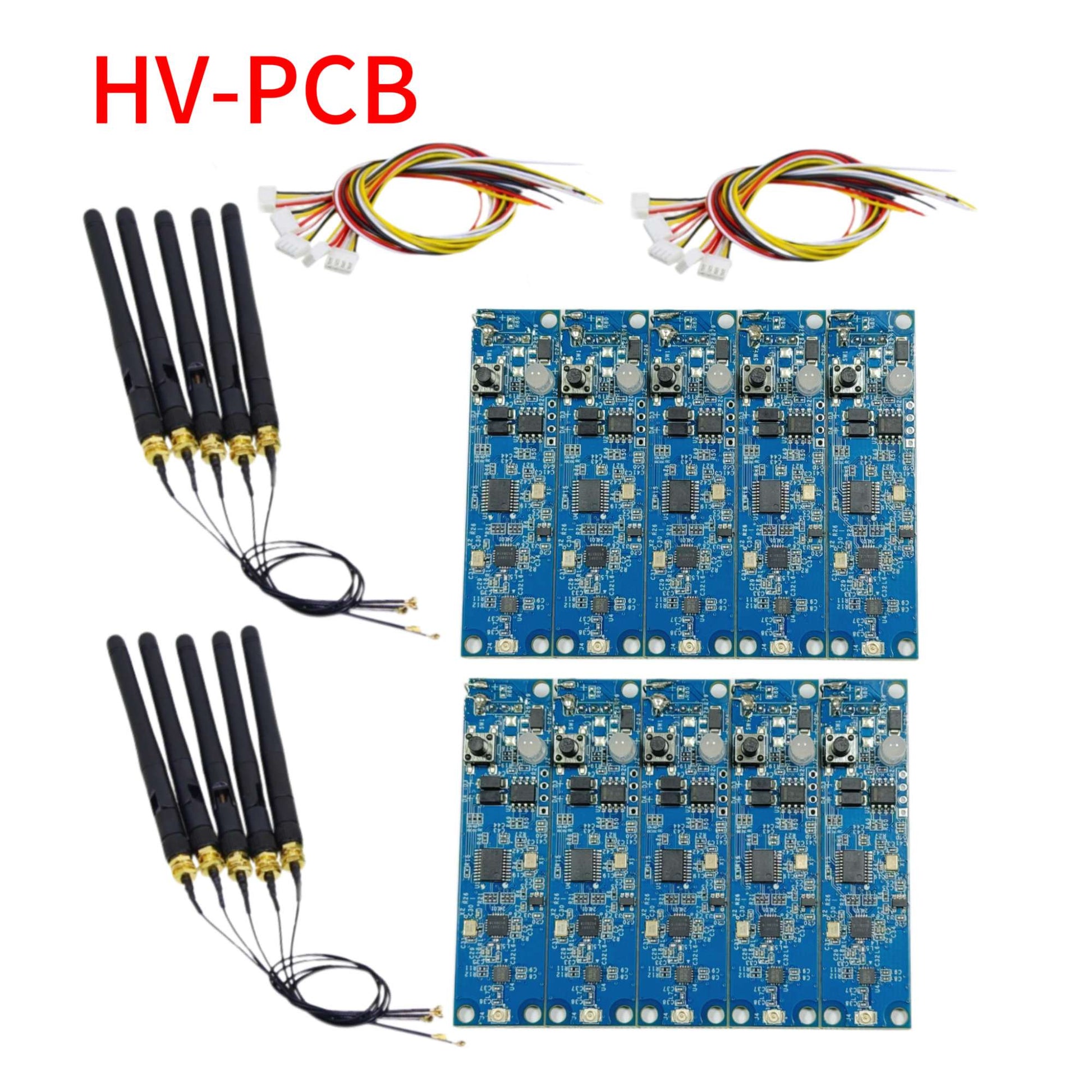

Voltage: 5V/12V-48V
Luminous Flux: <60
Is Batteries Included: No
Occasion: Professional Stage & DJ
Item Type: Stage Lighting Effect
Style: DMX Stage Light
Model Number: DMX512 WIRELESS
Power (W): 1 W
ATTENTON
Work Voltage:5V DC
FEATURES
Tricolor LED displaying.
126 channels jumping frequency automatically.
7 groups ID code settable.
Small size, easy to suit for interior of accessed lighting.
SPECIFICATIONS
Input voltage: 5V/12V-48V DC 500mA MIN
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm

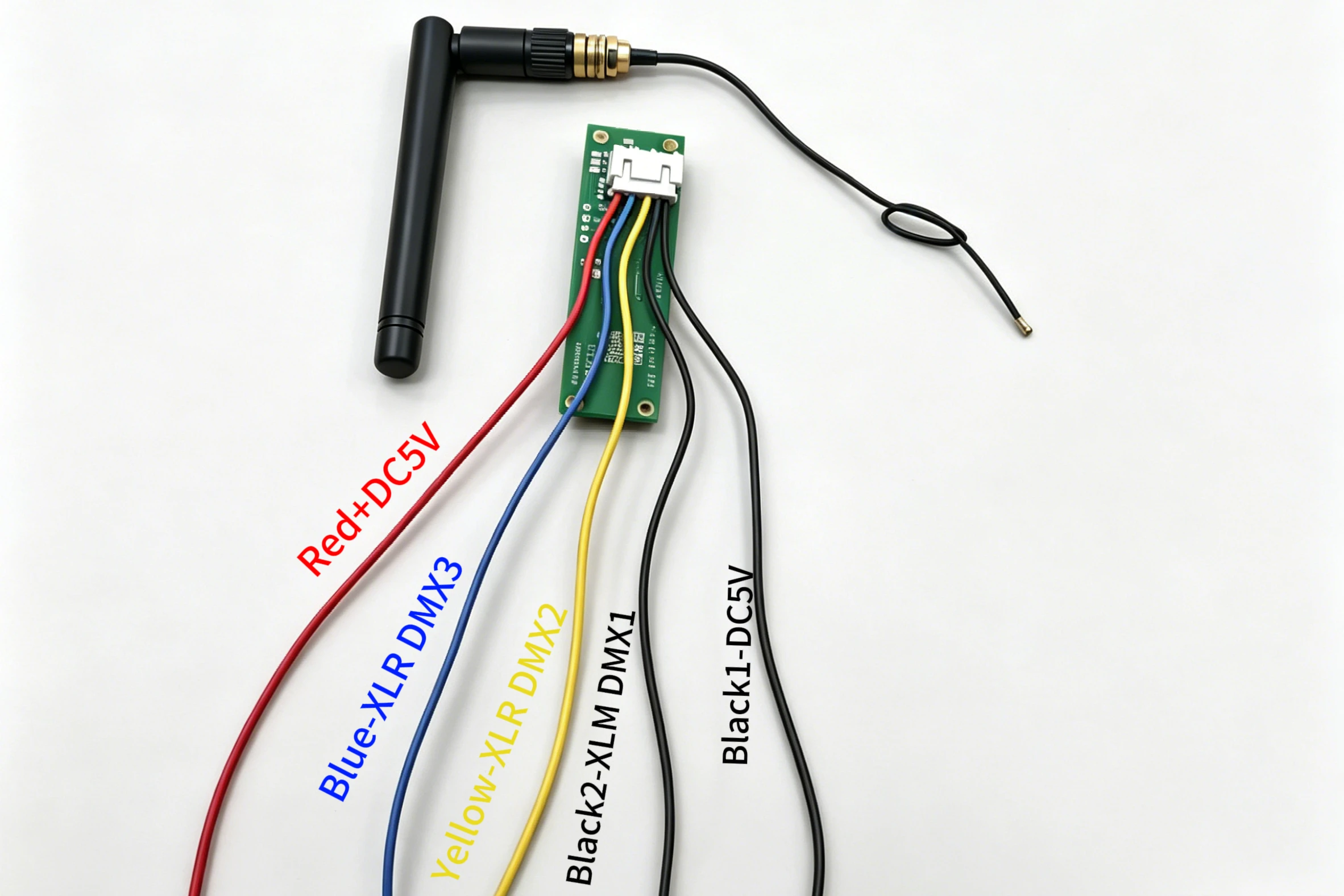

Signal port: 3pin female plug
OPERATING MANUAL
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press key 1 time to indicate ID setting, press again to set IC.
Working condition:
LED constant lit up: no DMX or wireless signal.
Red LED flash: transmitting.
Green LED flash: receiving total 126 channels, it's searching automatically.
ID Code- "1-7" groups ID code, press "KEY" for setting.

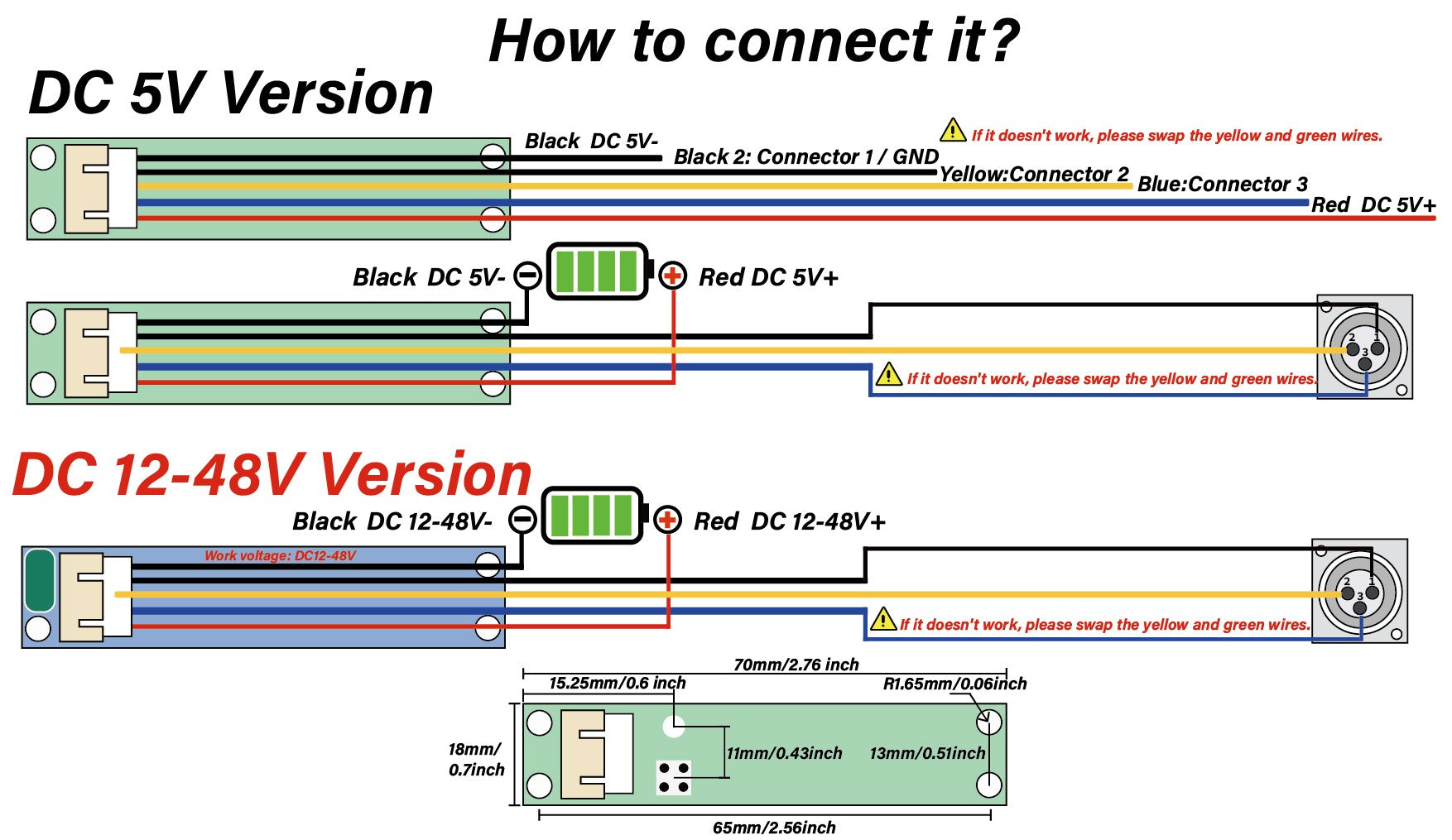

Establishing Communication:
Power on.
Communication was established correctly .
