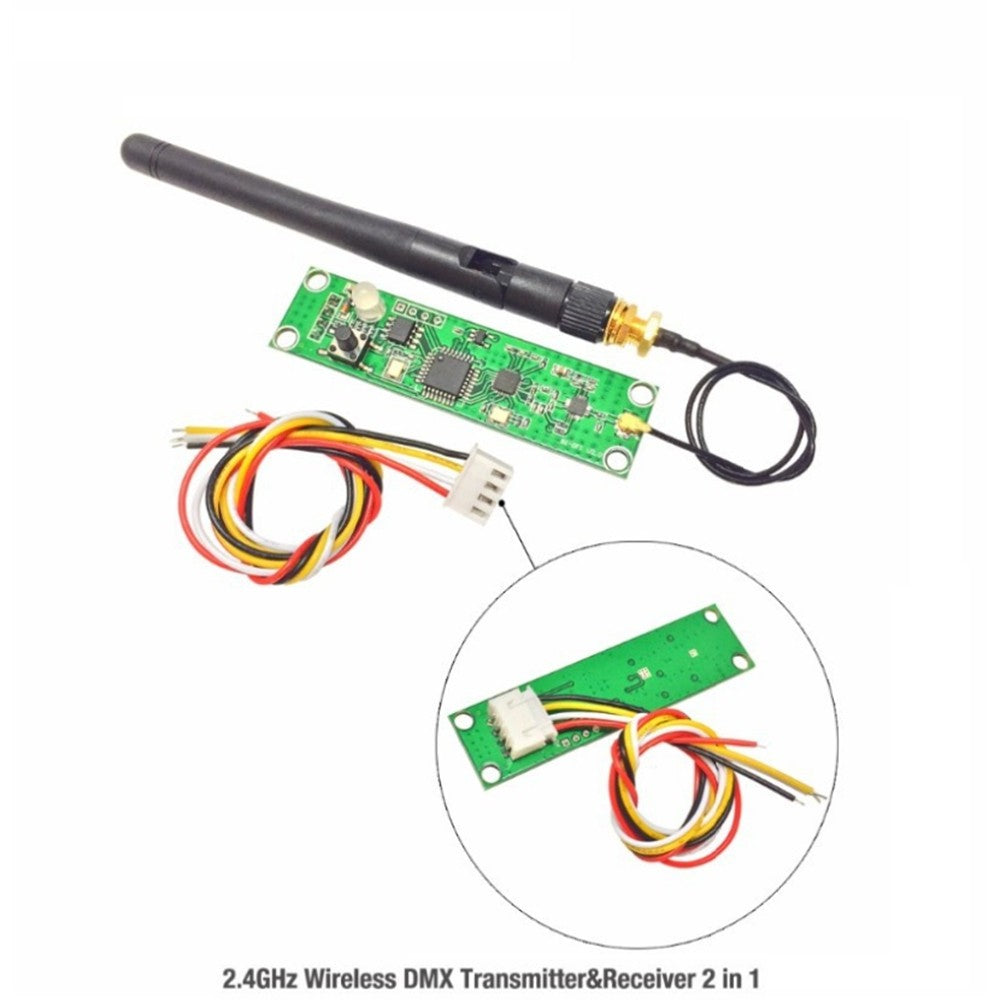

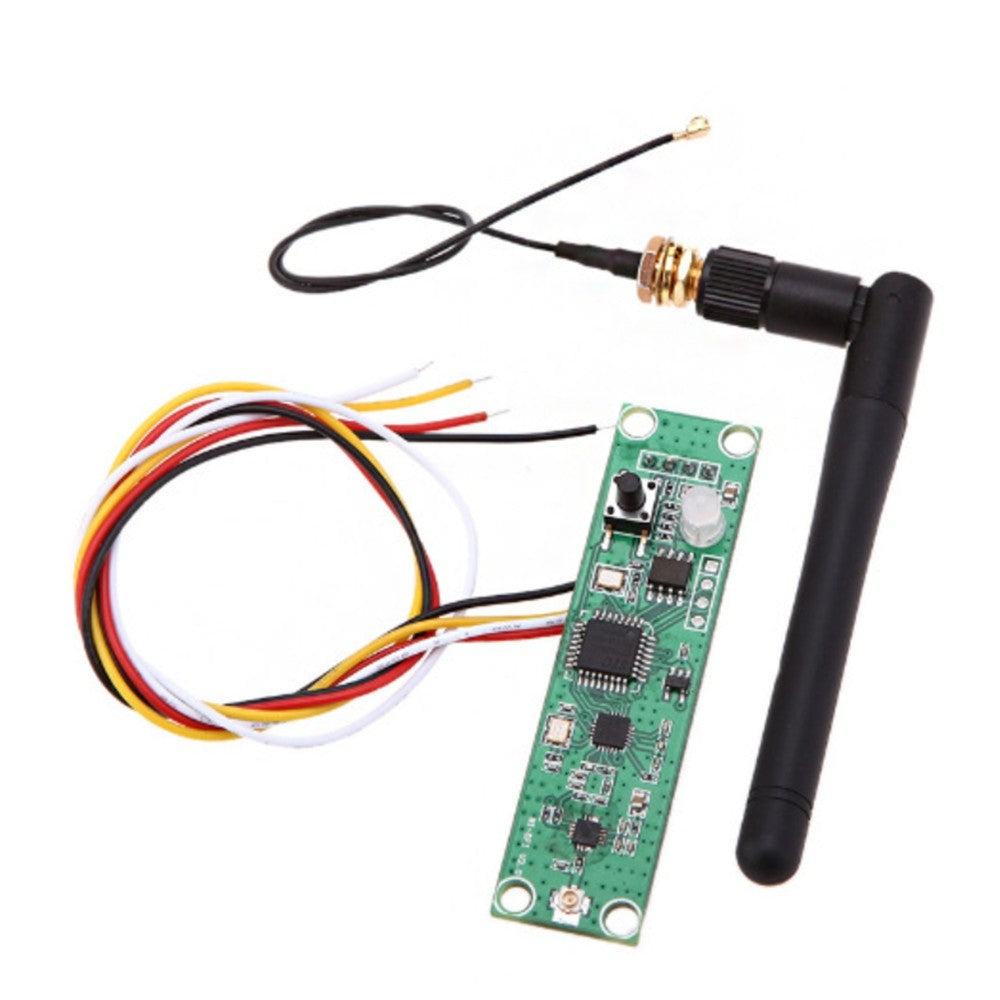

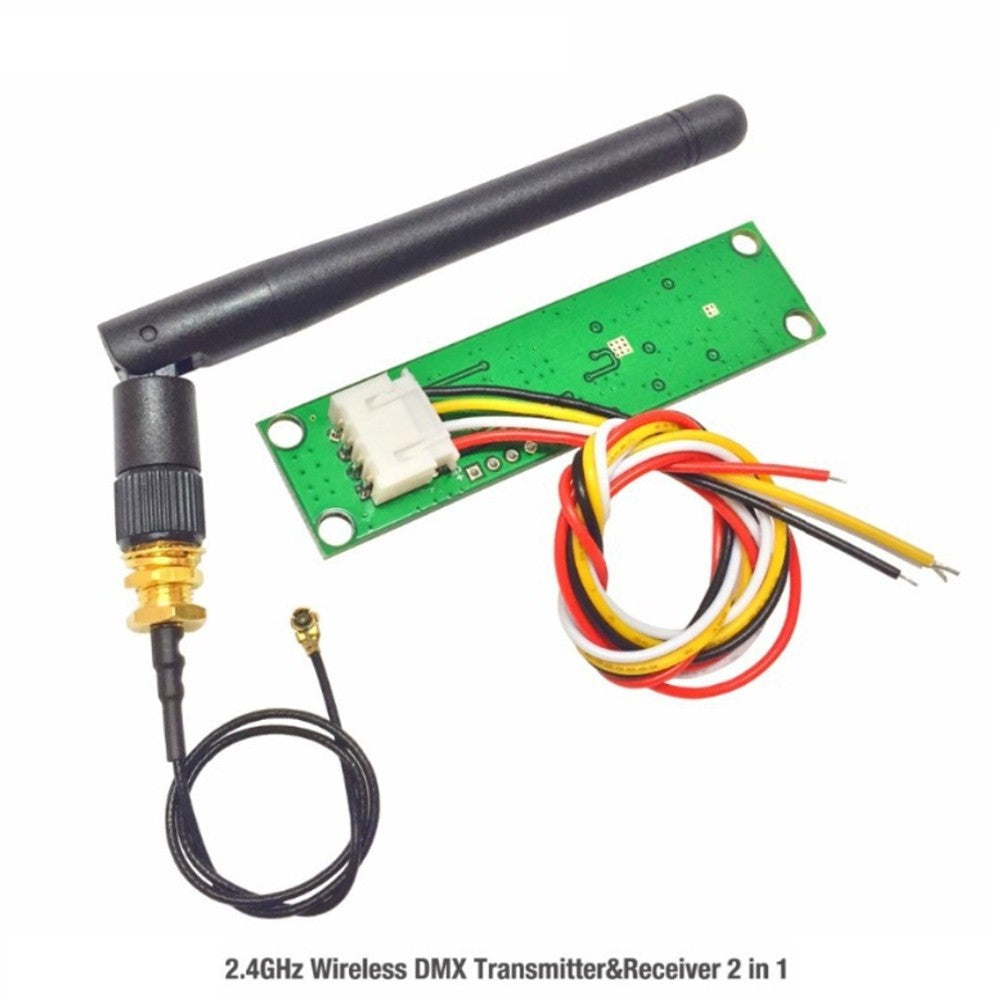

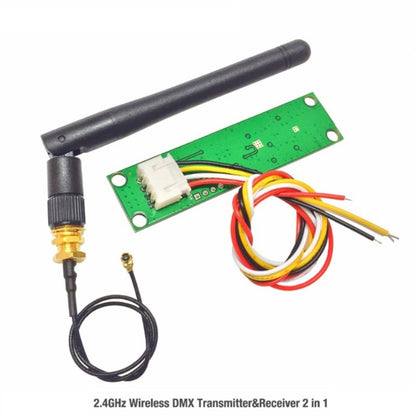

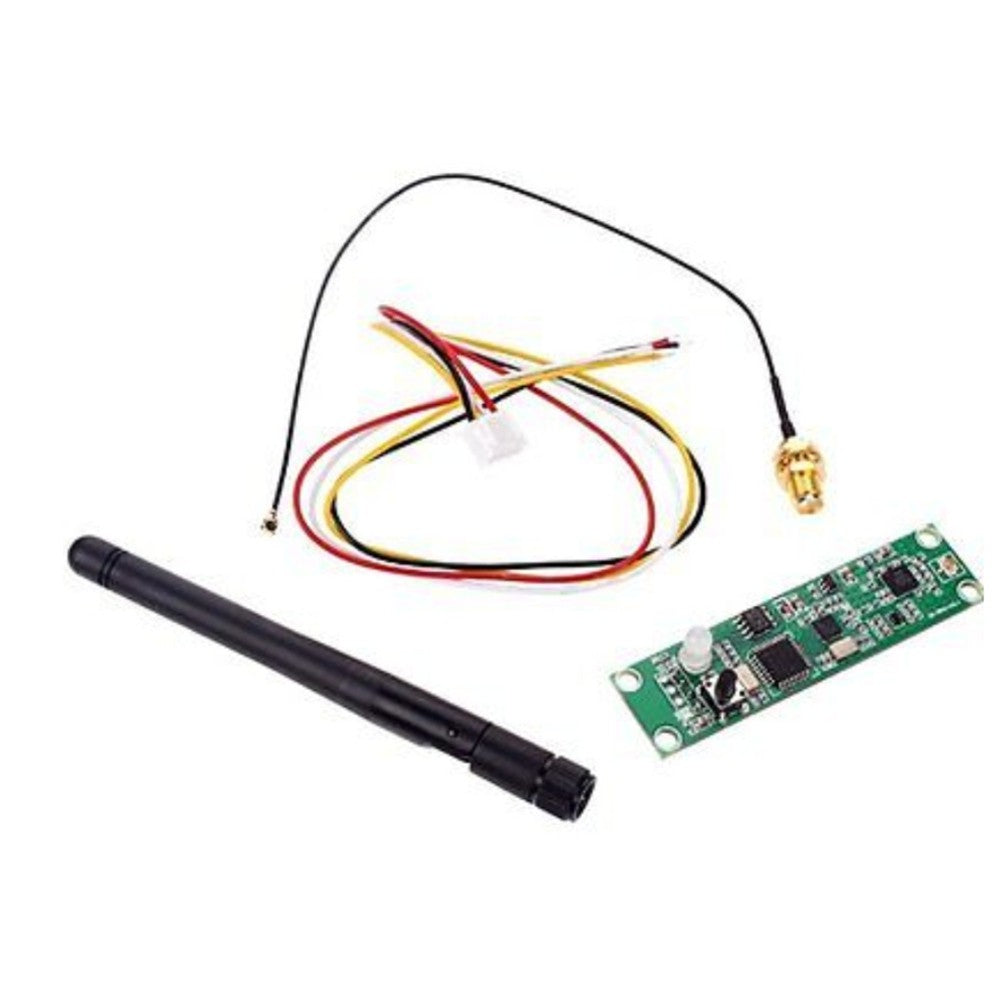

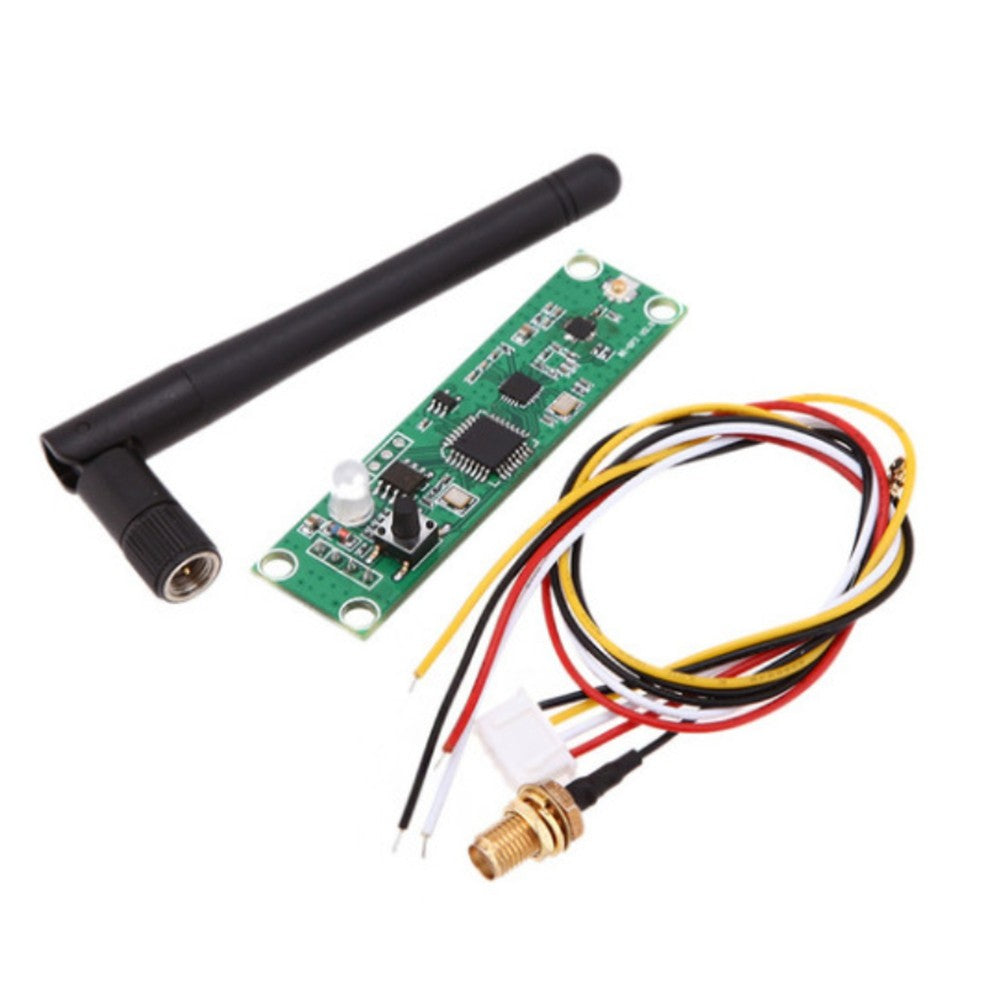

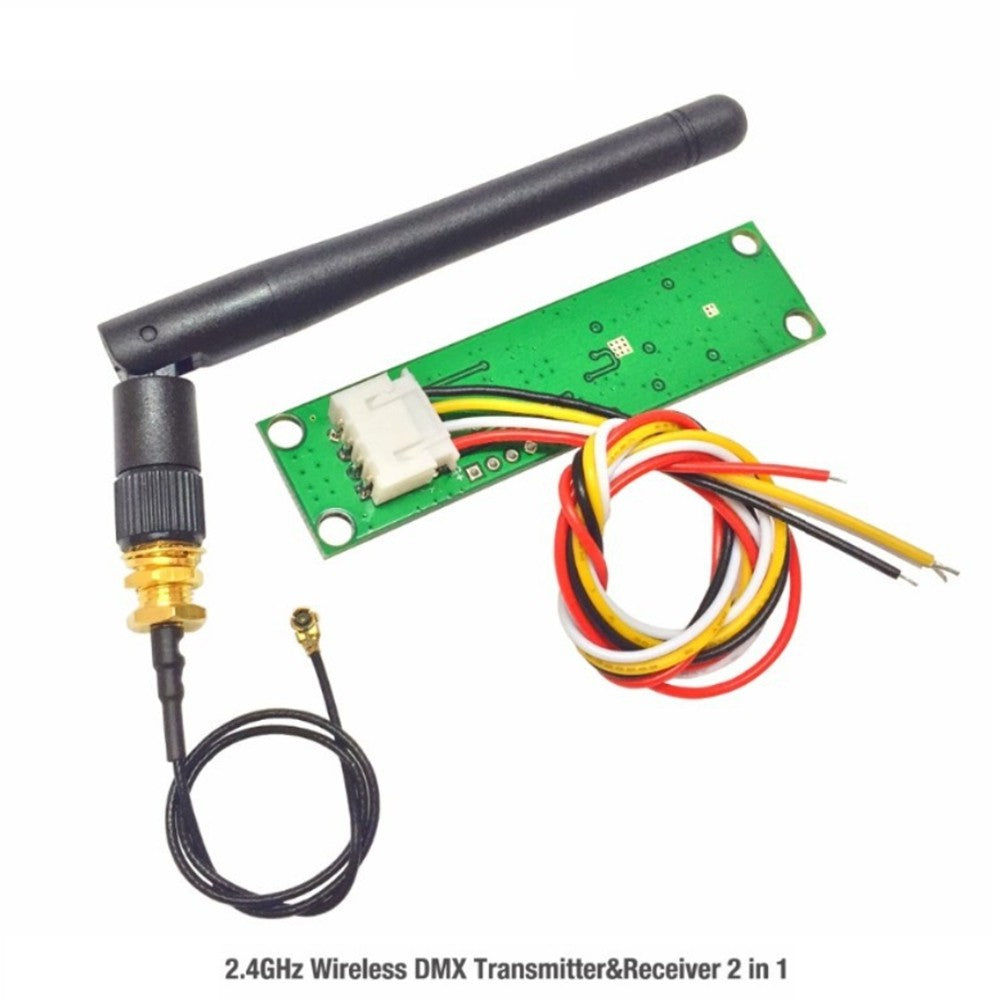

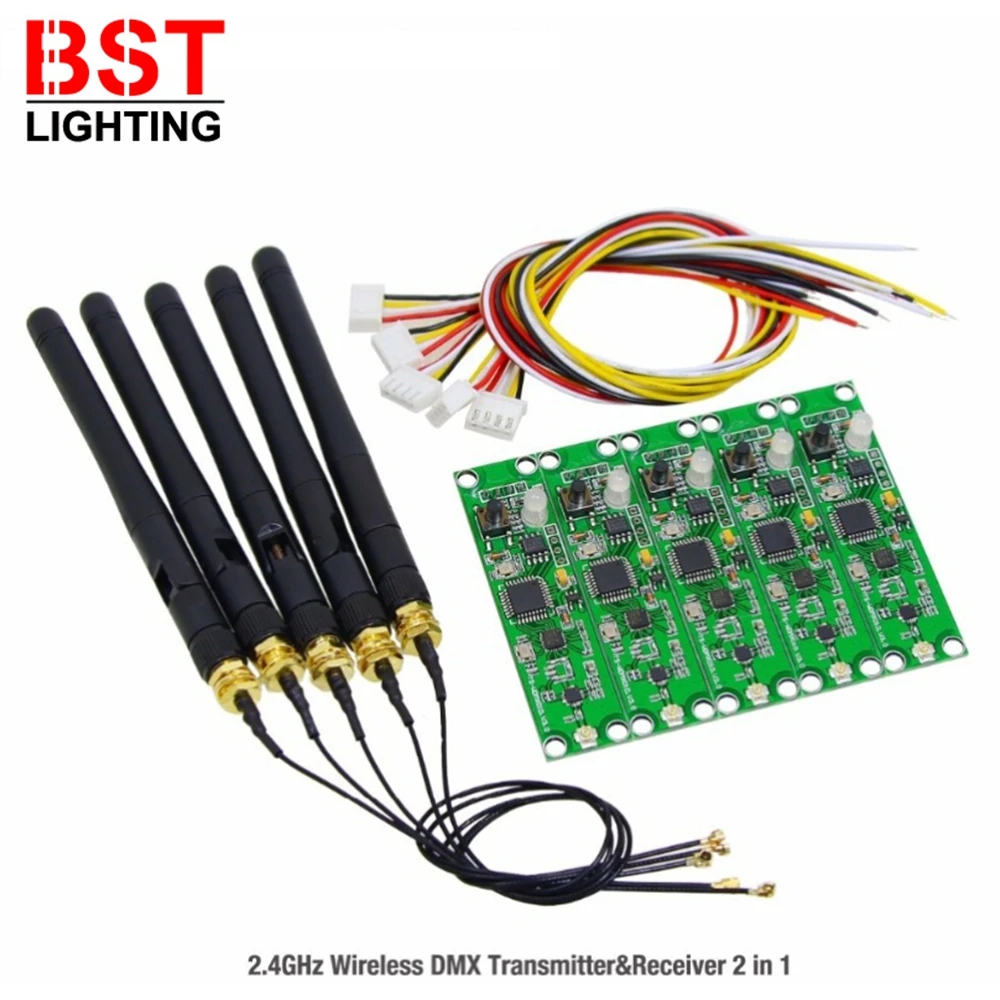

2.4Ghz DMX512 Wireless Transmitter Receiver PCB 2 in 1 PCB Board With Antenna LED Controller WIFI Receiver For DMX Stage Light
Regular price
$113.99
Sale price
$113.99
Regular price
$0.00
Unit price
per
Sale
Sold out
Shipping calculated at checkout.
Couldn't load pickup availability
- 🔒 Secure Checkout
- 🚚 Fast Shipping
- 🔄 30-Day Returns
Secure checkout with
Payment methods
Brand Name: Xnbada
Installation Method: Assembly
Is Bulbs Included: No
Nominal Voltage: 5V
Certification: CE
Certification: FCC
Certification: RoHS
Origin: Mainland China
High-concerned chemical: None
Power Source: DC
Voltage: 5V
Luminous Flux: 249-2000
Is Batteries Included: No
Occasion: Professional Stage & DJ
Item Type: Stage Lighting Effect
Style: DMX Stage Light
Model Number: DMX512
Power (W): 3W
Features:
Tricolor LED displaying.
126 channels jumping frenquecy automaticly.
7 groups ID code settable.
Small size, esay to suit for interior of accessed lighting.
Specifications:
Input voltage: 5V DC 500mA MIN
Communication distance: 400M ( visible distance )
Work frequency section: 2.4G ISM
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm

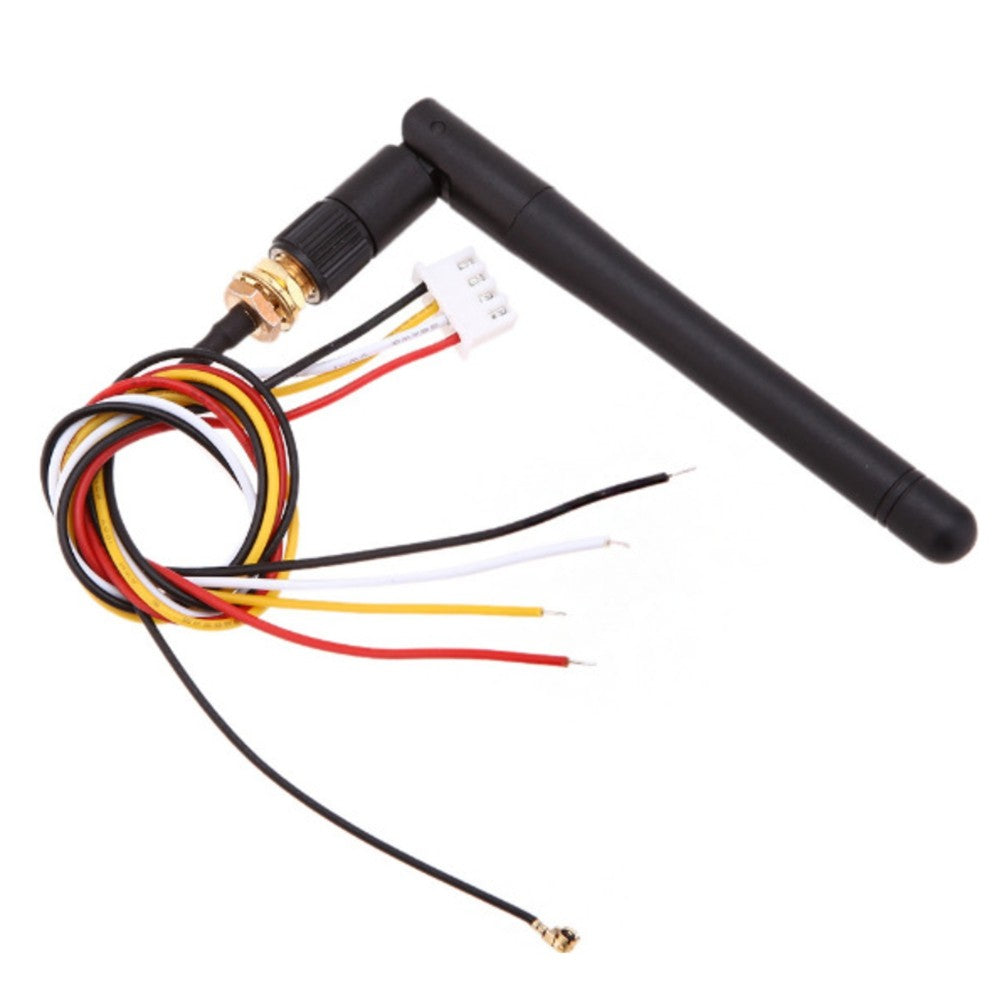

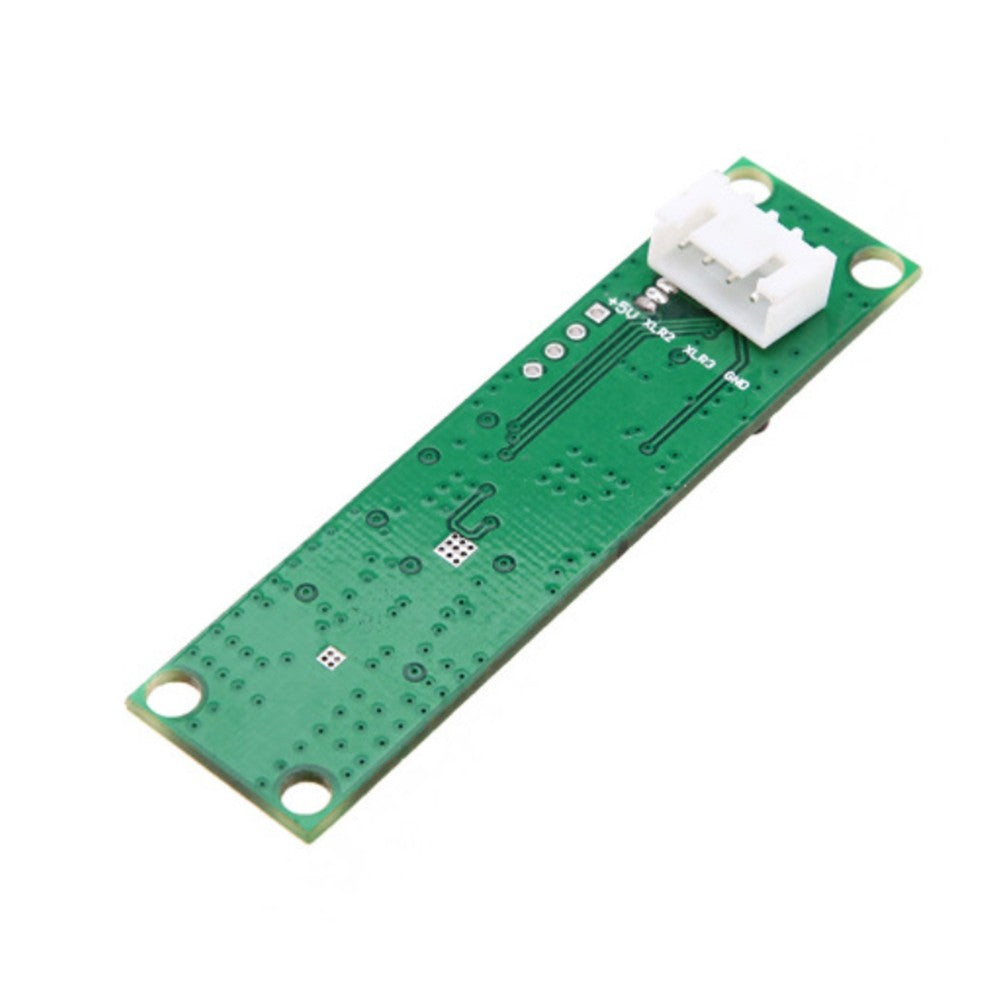

Signal port: 3pin female plug
Material: copper

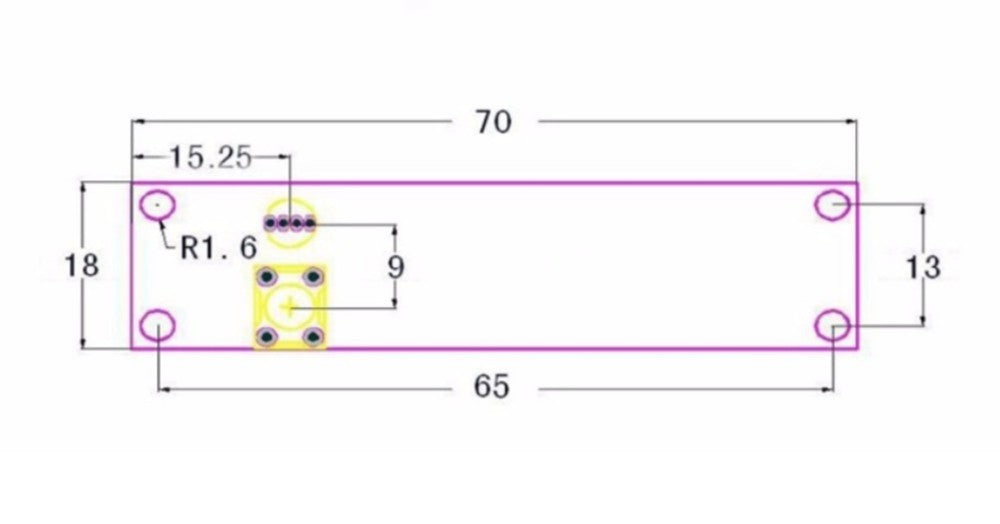

Modules board size: 7 * 1.8cm/2.75 * 0.7in ( L * W )
Item weight: 21g/0.74oz
Package size: 14 * 10.5 * 4.5cm/5.51 * 4.13 * 1.77in ( L * W * H )
Package weight: 65g/2.3oz
Operating manual:
ID code and LED color corresponding relationship:
1: RED
2: GREEN
3: RED+GREEN
4: BLUE
5: RED+BLUE
6: GREEN+BLUE
7: RED+GREEN+BLUE
Press key 1 time to indicate ID setting, press again to set IC.
Working condition:
LED constant lit up: no DMX or wireless singal.
Red LED flash: transmitting.
Green LED flash: receiveing total 126 channels, it’s searching automaticly.
ID Code- “1-7” groups ID code?press ”KEY” for setting.
Establishing Communication:
Power on.
Communication was established correctly then.
Note:
Indoor use only.
1 year warranty, repairment, free replacement except damaged artificially.
The manufacturer willn’t offer free service in warranty period if any repaired or uncapped had happened
It’s better to return to manufacturer if repairment is must, don’t do any repairment unless qualified electrician.
The working condition should be under temperature -20°C~+45°C, 10%?90%RH, no congelation, so as to ensure it’s lifetime.
It cann’t be covered by any superstratum, it should be swept periodly to prevent dust.
