Motor 5060 4260 4250 with 6S 12S 14S JP 90mm 105mm 120mm EDF Ducted Fan 12 Blades All Set RC Air Plane 50V, 7100W Motor Parts

modname=ckeditor

6S 12S 14S JP 90mm 105mm 120mm EDF Ducted Fan 12 Blades with 5060 4260 4250 Motor All Set RC Air Plane 50V, 7100W Motor Parts

Model: JP full Metal 120mm conditioning fan

Specification:

Working voltage: LIPO 12 S battery

Housing material: aluminum

Fan: 12 full metal blades and dynamic balance

Motor: 5060 750KV

Weight: 695g

Operating voltage: 50 V, 12 S

Push: 44.4V 110A 4884W 7.2KG

48 V 125A 6000 W 8.3 KG

50 V 142A 7100 W 9.3 KG

Model: JP full Metal 105mm conditioning fan

Specifications

Length (mm):    58mm (without motor / Cone)

Weight (gr):       513 gr

EDF Diameter Class (mm):    105

EDF Outside Diameter (mm):      110 mm

EDF Inner Diameter (mm) :106 mm

Rotor Diameter (mm):    103 mm

Stators:       4

Motor Type: Out-Runner

Blades:  12

Working voltage (Volts/LiPo Cells):   14.8 - 48v / 4 - 12s

4260 KV875Deatils

Motor Kv: 875 Kv

Motor: JP 42260-875kv (shaft 4mm) outrunner

Rotor: 71mm 12 blades aluminium

External diameter: 110mm

Ejection diameter: 93mm

Combo max thrust: 7.5kg

Weight: 513g (combo EDF + lip + motor )

Max efficiency: 90 %

Recommended max. rotation speed: 75 600 RPM

Speed Control Advanced Timing Setting: 15 Degrees

Connections: Banana / PK 5.5mm (in place)

Model: JP full Metal 90mm conditioning fan

Specifications:

Length (mm): 74.12mm (without motor / Cone)

Weight (gr):       482 gr

EDF Diameter Class (mm):    90

EDF Outside Diameter (mm):94.5 mm

EDF Inner Diameter (mm) :90.5 mm

Rotor Diameter (mm):    90 mm

Stators:       8

Motor Type: Out-Runner

Blades:  12

Working voltage (Volts/LiPo Cells):22.2v / 6s

Turns/min/Volt (Kv):1080 Kv

Motor Diameter (mm):42.65 mm

Shaft diameter (mm):5

Connection: Pk 5mm

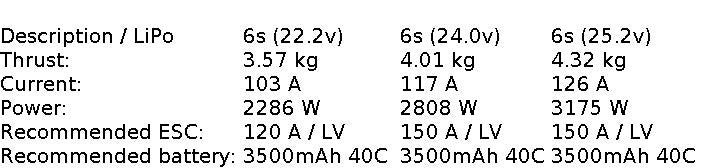

EDF Ducted Fan JP Hobby 90mm With 4250 KV1750 Motor for 6S Details:

Specifications:

Special high grade aluminum quality

Motor Kv: 1750

Motor type: JP 4250-1750kv (5mm axe) 12 poles (outrunner)

Rotor: 90mm 12 blades aluminium

External diameter: 94.5mm

Internal diameter: 90.5mm

Ejection diameter: nc

Combo max thrust: 4.32kg

Weight: 450g (combo EDF + lip + motor )

Max efficiency: 90 %

Recommended max. rotation speed: 75,600 RPM

Speed Control Advanced Timing Setting: 15°

Connections: Banana / PK 5mm (in place)

EDF Ducted Fan JP Hobby 90mm with 4250 KV1050  Motor for 12S

Specifications

Special high grade aluminum quality

Motor Kv: 1080

Motor: JP 4250-1080kv (5mm axle) Outrunner 12 poles

Rotor: 90mm 12 blades aluminium

External diameter: 94.5mm

Internal diameter: 90.5mm

Ejection diameter: 77.6mm

Combo max thrust: 6.10kg

Weight: 482g (combo EDF + lip + motor )

Max efficiency: 90 %

Recommended max. rotation speed: 75,600 RPM

Speed Control Advanced Timing Setting: 15°

Connections: Banana / PK 5mm (in place)

Model: JP full Metal 80mm conditioning fan

Specification:

Working voltage: 4S~6S lithium battery

Shell material: aluminum alloy

Fan blade: (full metal 12 blades) dynamic balance

Motor: 3055 2200KV

Weight: (250g)

Thrust: 22.2V, 92A, 2.9KG (test platform)

24V, 103A ,3.3KG (test platform)
